Description

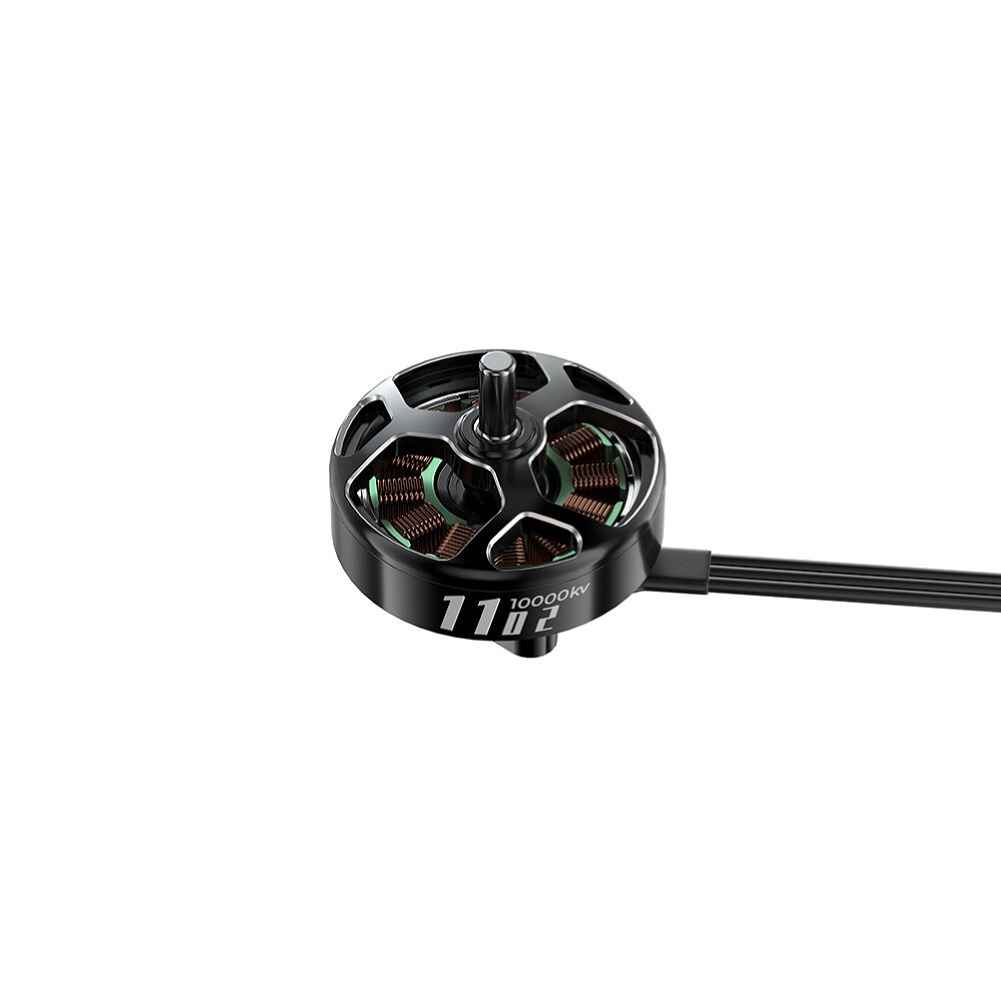

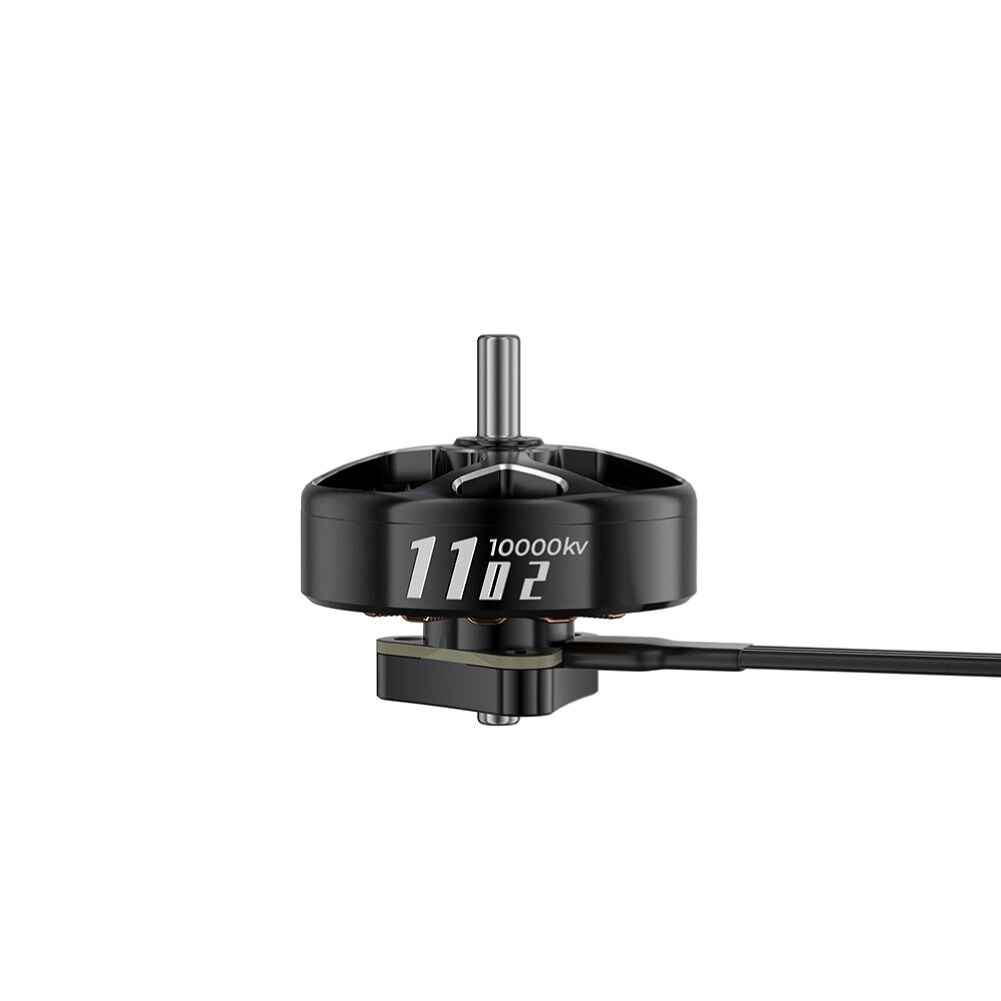

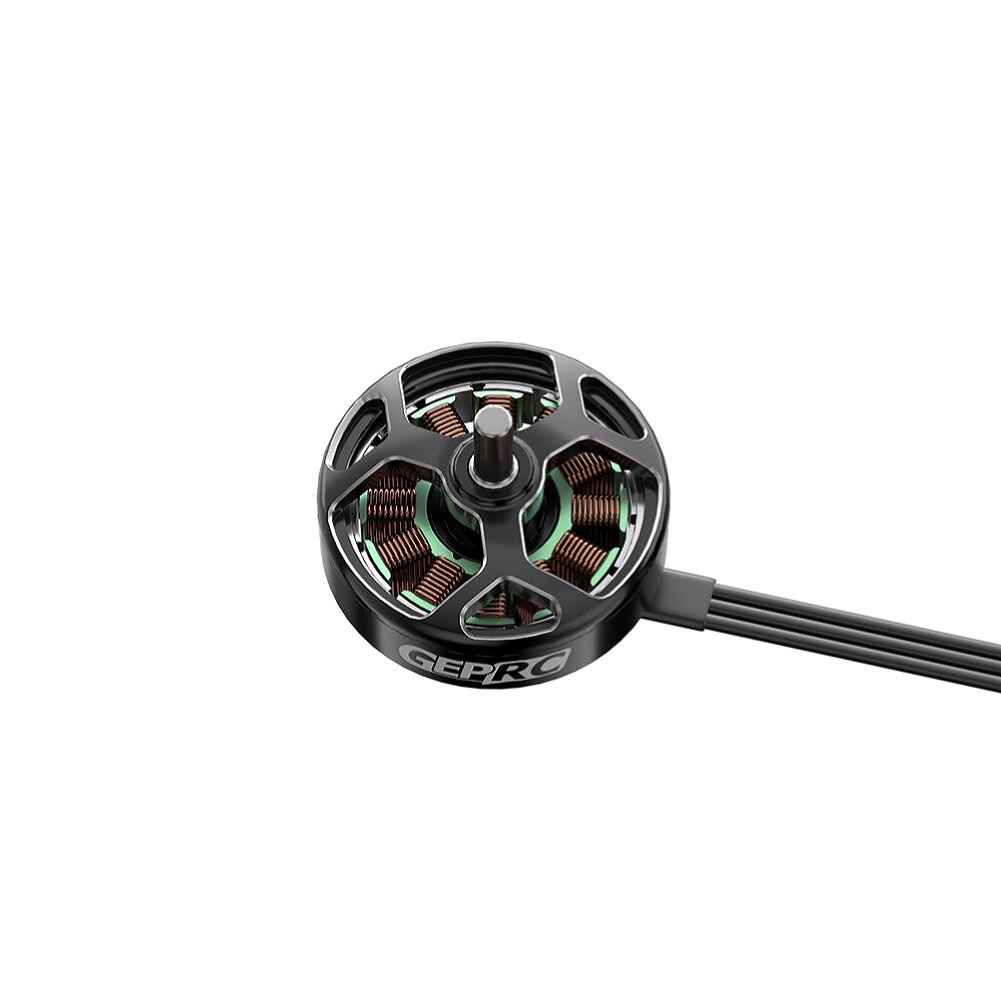

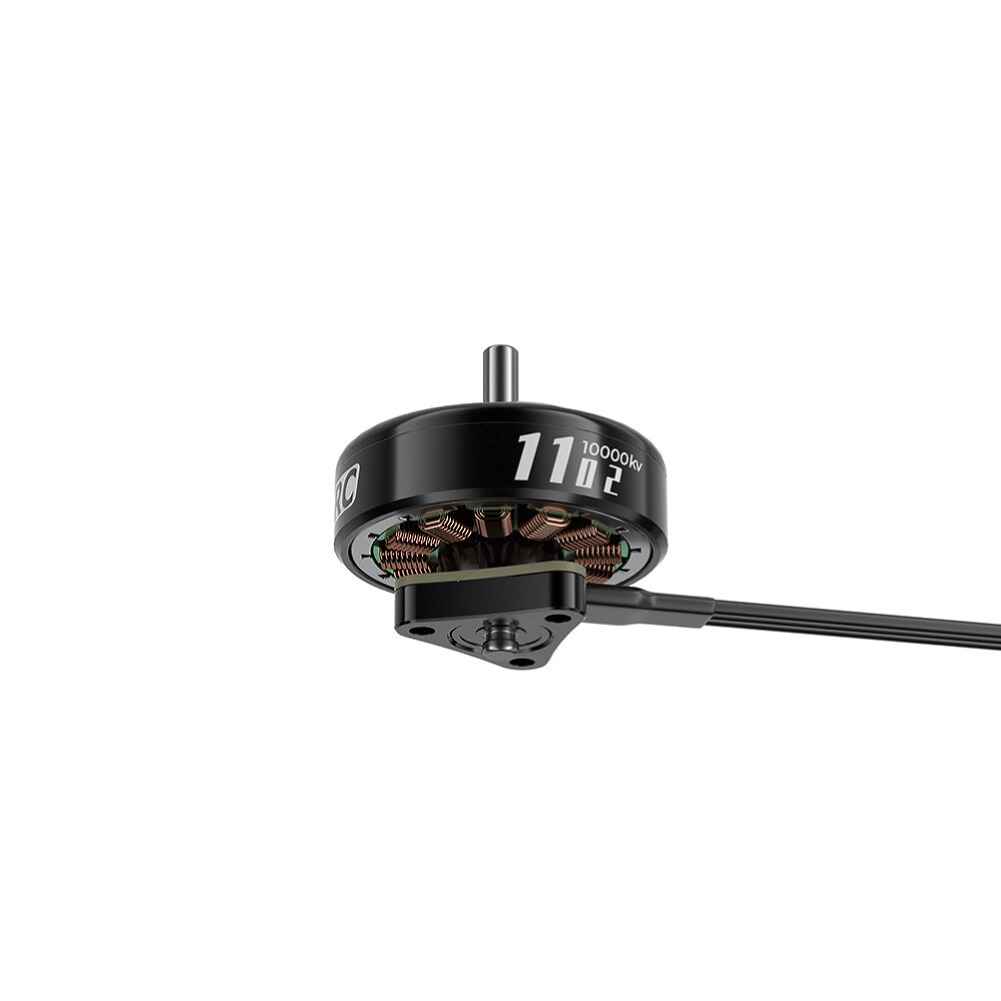

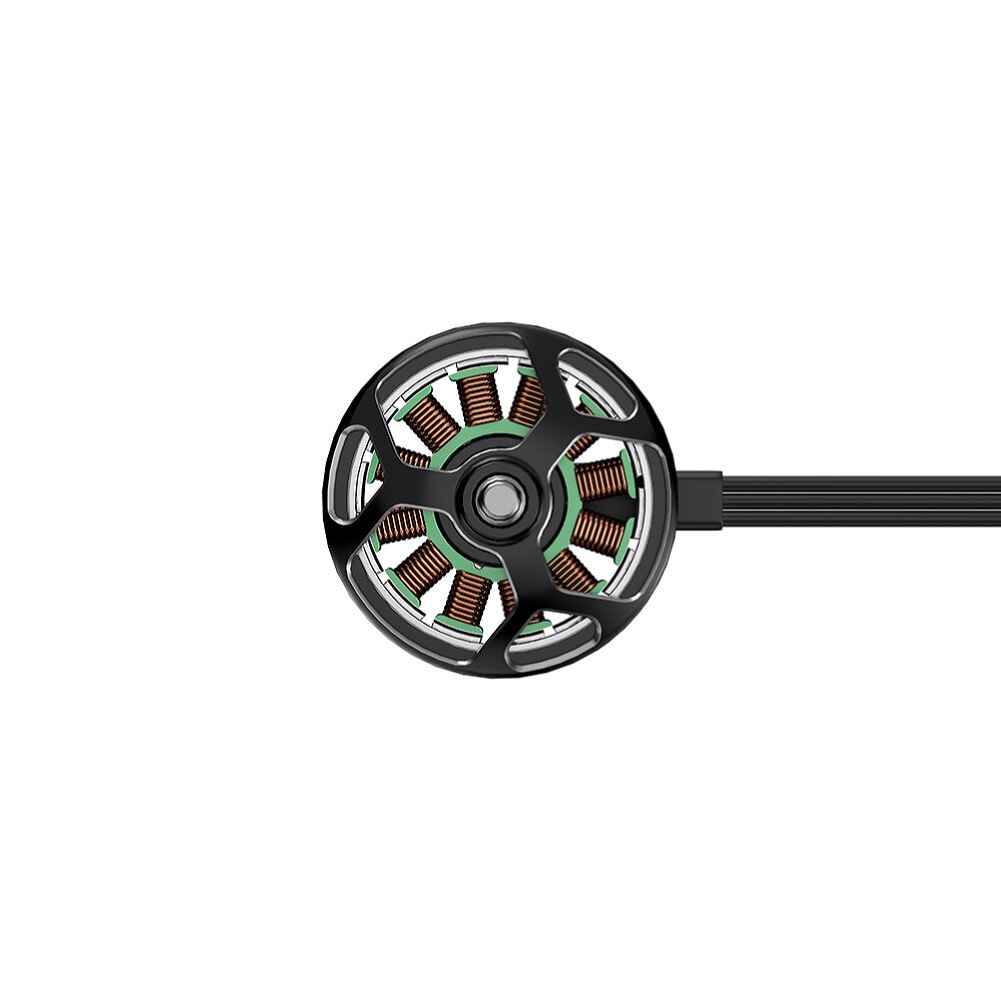

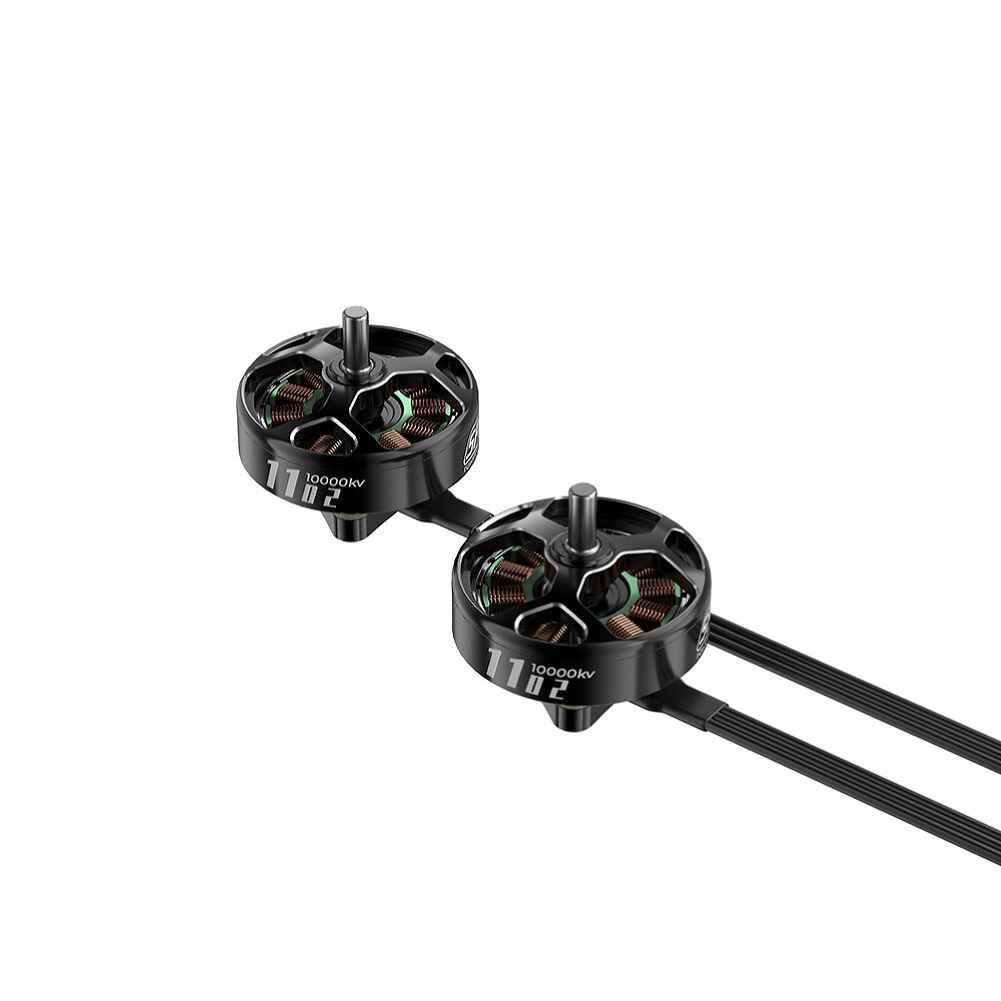

GEPRC SPEEDX2 1102 10000KV 2S Brushless Motor 1.5mm Shaft for Darkstar20 1.6 Inch to 2 Inch FPV RC Racing Drone
The GEPRC SPEEDX2 1102 10000KV Brushless Motor is designed for FPV RC racing drones with a 1.6 to 2-inch frame. Featuring a sleek matte black finish with bright edges, this motor is both visually appealing and highly functional. It is equipped with high-quality NSK/NMB bearings for precision and durability. The motor’s lightweight design includes a three-hole screw base, making it easy to install on lightweight models. With a maximum wattage of 59.6W and a peak current of 7.45A, this motor delivers powerful performance. The motor is suitable for use with a 2S LiPo battery, providing optimal power for your racing drone.
Features:
-The appearance is matte black with bright edges, which is exquisite and beautiful.
-Use high-quality bearings with high precision and durability.
-Three-hole screw base, light weight.
-Suitable for 1.6-inch-2-inch lightweight models.
Specifications:
Brand: Geprc
Model: SPEEDX2 1102
Item Name: 1102 10000KV Motor
Max Watt: 59.6W
Peak current: 7.45A
Interphase resistance: 251m棒
Magnet: N52H
Bearing type: NSK/NMB
Configuration: 9N12P
Dimension: 嫉13.8mmx12.7mm
Shaft Diameter: 嫉1.5mm
Shaft Protruding Length: 3.5mm
Mounting holes: 3-嫉6.6mm
Lead: 35mm/28AWG
ESC:12A
Input Volts: 8.4V侈2S LiPo)
Winding: multi strand copper winding
Weight: 2.83g (included wire)
Suitable for:1.6 inch -2 inch lightweight models
Includes:
1 x SPEEDX2 1102 motor
6 x M1.4*3 Round torx screw
Package Included:
1 x SPEEDX2 1102 motor
6 x M1.4 3 Round torx screw
