Description
1/4PCS CADDXFPV 1303 6000KV 2-4S Brushless Motors 1.5mm Shaft for Gofilm 20 2 Inch Brushless Whoop RC FPV Racing Drone

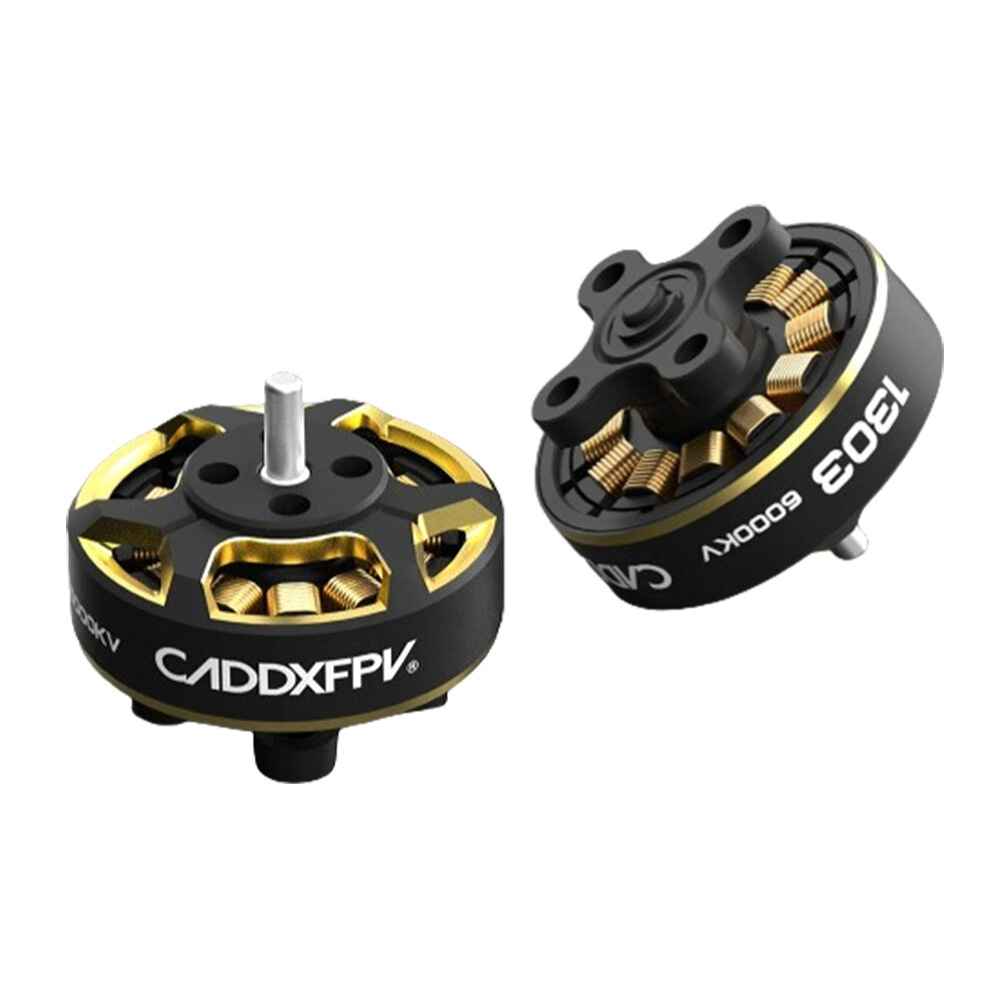

The CADDXFPV 1303 6000KV Brushless Motor is engineered for high-performance FPV racing drones. Designed with a 12N14P configuration, it features a stator diameter of 13mm and a length of 3.2mm. With a shaft diameter of 1.5mm and motor dimensions of 16.5 x 10.1mm, it offers optimal power and efficiency. Weighing just 5.6g with a 5cm wire, this motor is perfect for lightweight 2S to 4S drone setups. It is compatible with 2-inch propellers, enhancing thrust and efficiency. Ideal for the Gofilm 20 Brushless Whoop Quadcopter, it ensures powerful and stable flight, especially when paired with the Super F405HD ELRS AIO.
Specifications:
Model: 1303 6000KV Brushless Motors
KV: 6000
Configuration: 12N14P
Stator Diameter: 13mm
Stator Length: 3.2mm
Shaft Diameter: 1.5mm
Motor Dimensions (Dia. x Len): 谻 16.5 x 10.1mm
Weight: 5.6g (with 5cm wire)
Idle Current @ 5V: 0.7A
Number of Cells (Lipo): 2-4S
Max Continuous Power (3S): 250W
Internal Resistance: 166m棒
Max Current (3S): 16.9A
Max Efficiency Current (2-5A): >85%
Features:
1.Optimized for lightweight 2S to 4S setups for versatile drone configurations.
2.Compatible with 2-inch propellers for improved thrust and efficiency.
3.High-efficiency power system with CADDXFPV T2-2-3 3-Blade Propellers 1.3mm Shaft.
4.Suitable for high-performance Gofilm 20 Brushless Whoop Quadcopter.
5.Perfect match with Super F405HD ELRS AIO for powerful and stable flight performance.
Package Included:
1 x CADDXFPV 1303 6000KV Brushless Motor
