DarwinFPV Cement Ultra Durable F7 OSD Flight Controller with 5V 10V BEC 100A 3-6S 4in1 ESC Waterproof Stack for 5-10 Inch FPV Drone

Description

30.5×30.5mm DarwinFPV Cement Ultra Durable F7 OSD Flight Controller w/ 5V 10V BEC 100A 3-6S 4in1 ESC Waterproof Stack for 5-10 inch FPV Drone

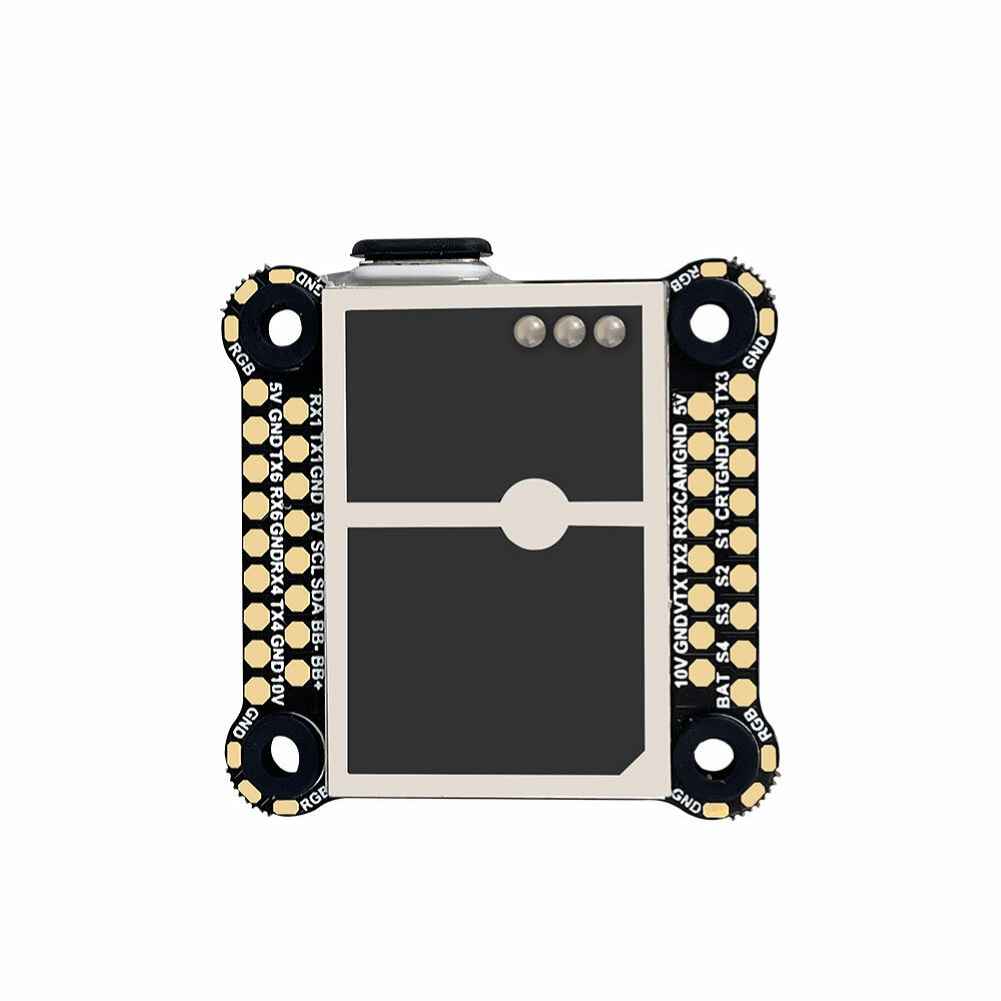

The DarwinFPV Cement Ultra Durable F7 OSD Flight Controller is engineered for 5-10 inch FPV drones, offering robust performance with its STM32F22 MCU and MPU6000 Gyroscope. It features a built-in 8G SD card for Blackbox data, and a versatile BEC output of 10V/3A and 5V/3A. The controller supports 2-6S Lipo input voltage and includes multiple interfaces such as Uarts, Softserial, and RGB. The accompanying 100A 4in1 ESC is powered by a 32-bit F4 MCU and supports a range of throttle signals including Dshot150/300/600/1200. Designed for durability, this waterproof stack is ideal for high-performance drone applications.

Specifications:
FC:
MCU: STM32F22
Gyroscope: MPU6000
OSD: AT7456E
Black box: Built-in 8G SD card
BEC output: 10V/3A 5V/3A
Reserved interface: 5x Uarts(1,2,3,4,6), 4x Softserial, 1x I2C, 4x RGB, 1x Buzzer, 1x USER(C09)
Input voltage: 2-6S Lipo
Firmware name: DARWINF722HDV2
Mounting hole: 30.5mm x 30.5mm
Dimensions: 39.5mm x 39.5mm x 4mm
Weight: 10.1g呼0.2g

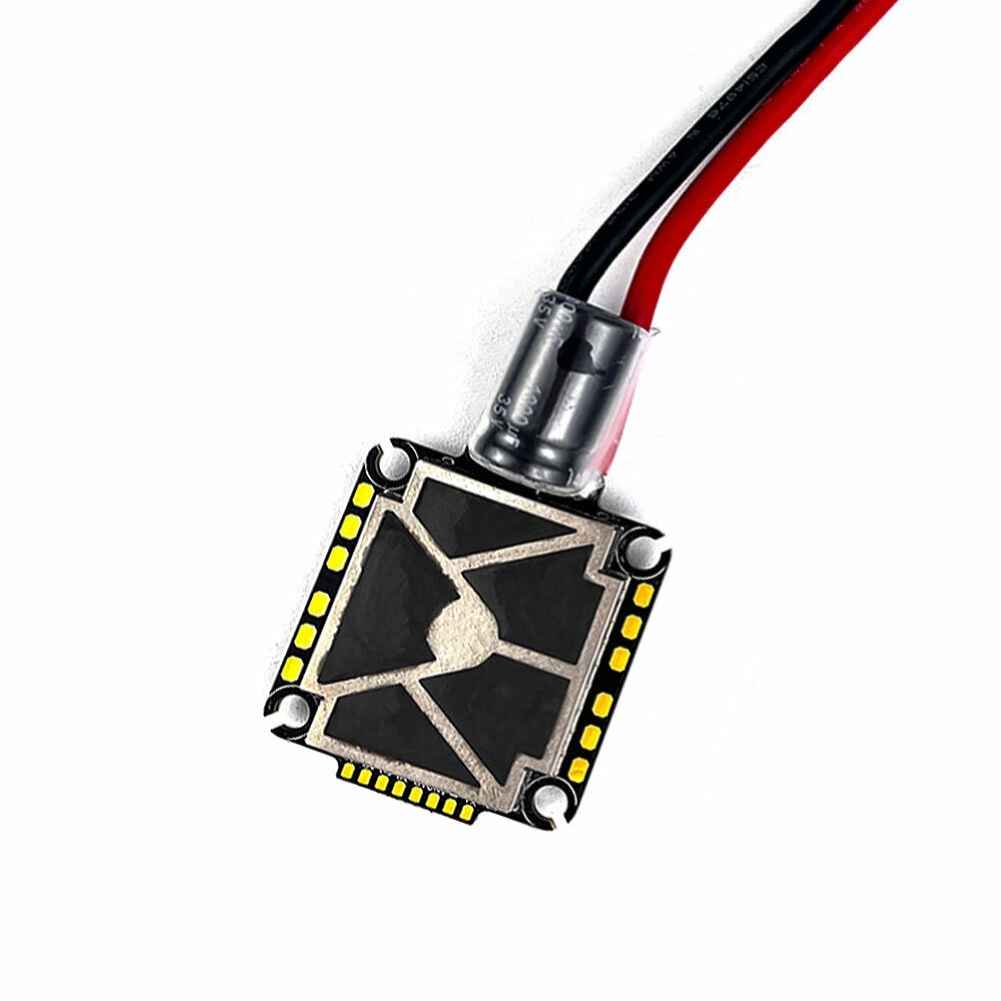

ESC:
MCU: 32-bit F4 120MHz main frequency, maximum support 128KHz PWM Packet Rate
Continuous / peak current: 100Ax4/120Ax4 (continuous 100A requires water cooling environment)
Input voltage: 3-6S Lipo
Support throttle signal: Dshot150/300/600/1200 MultiShot Oneshot42 Oneshot125
Current sensor: support (current meter scale: 125)
Firmware name: DARWIN_F4_60
Power cord: 14AWG-120mm long (the ESC terminal and electrolytic capacitor have been welded at the factory)
Power plug: XT60
Dimensions: 36.8mm x 42.5mm x 7.5mm
Mounting hole: 30.5mm x 30.5mm
Weight: 23.0g呼0.2g (excluding capacitors and power cords)
Apply for: 5-10 inch FPV Drones
Packing List:
FC:
1 x DarwinFPV ‘Cement’ Ultra Durable F7 Waterproof Flight Controller
1 x 30mm ESC cable (8P)
1 x 65mm analog VTX cable (4P)
1 x 65mm GPS cable (6P)
1 x 65mm receiver cable (4P)
1 x 65mm HD VTX cable (6P)
4 x M3*4.5mm shock-absorbing balls (installed on FC)
1 x sticker

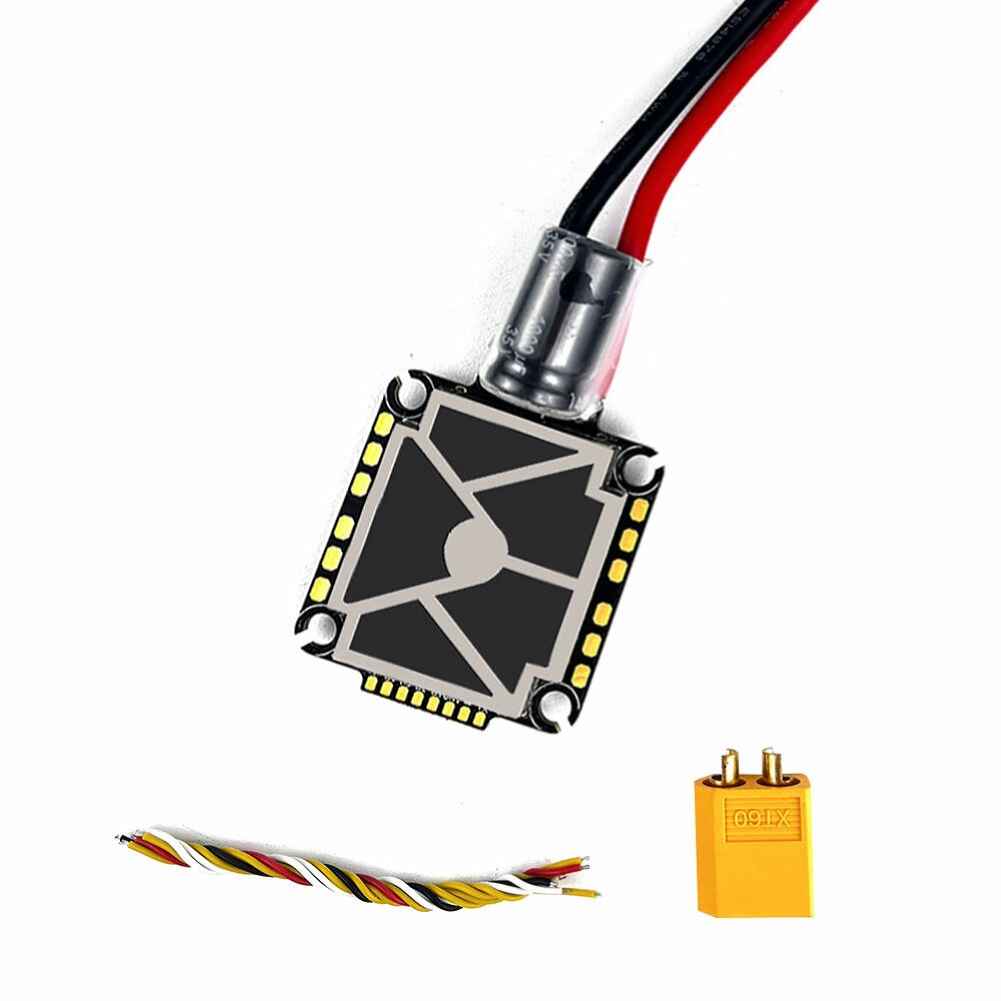

ESC:
1 x DarwinFPV ‘Cement’ Ultra Durable 100A Waterproof ESC
1 x 30mm ESC cable (8P)
1 x XT60
1 x 14AWMG power cable with a length of 120mm (soldered to the ESC)
1 x 35V/1000uF electrolytic capacitor (soldered to the ESC)
4 x M3*6.6mm shock-absorbing balls (installed on the ESC)
1 x sticker
Stack:
1 x DarwinFPV ‘Cement’ Ultra Durable F7-100A Waterproof Stack
1 x 30mm ESC cable (8P)
1 x 65mm analog VTX cable (4P)
1 x 65mm GPS cable (6P)
1 x 65mm receiver cable (4P)
1 x 65mm HD VTX cable (6P)
1 x XT60
1 x 14AWMG power cable (length 120mm, soldered to the ESC)
1 x 35V/1000uF electrolytic capacitor (soldered to the ESC)
4 x M3*4.5mm shock-absorbing balls (installed on FC)
4 x M3*6.6mm shock-absorbing balls (installed on the ESC)
4 x M3*25 hexagon socket head black 304 screws (installed on the stack)
4 x M3 nylon nuts
1 x sticker

Package Included:
1 x DarwinFPV ‘Cement’ Ultra Durable F7 Waterproof Flight Controller
1 x 30mm ESC cable (8P)
1 x 65mm analog VTX cable (4P)
1 x 65mm GPS cable (6P)
1 x 65mm receiver cable (4P)
1 x 65mm HD VTX cable (6P)
4 x M3 4.5mm shock-absorbing balls (installed on FC)
1 x sticker
1 x DarwinFPV ‘Cement’ Ultra Durable 100A Waterproof ESC
1 x XT60
1 x 14AWMG power cable with a length of 120mm (soldered to the ESC)
1 x 35V/1000uF electrolytic capacitor (soldered to the ESC)
4 x M3 6.6mm shock-absorbing balls (installed on the ESC)
1 x sticker
1 x DarwinFPV ‘Cement’ Ultra Durable F7-100A Waterproof Stack
4 x M3 25 hexagon socket head black 304 screws (installed on the stack)
4 x M3 nylon nuts
1 x sticker
