EMAX Tinyhawk III Plus 2.5 Inch FPV Racing Drone, Analog/HDZero, BNF/RTF, 1S, Freestyle, ELRS Receiver

Sale!

RTF, 1S, Freestyle, ELRS Receiver

Price range: 275.29$ through 944.98$

2.5-inch FPV racing drone with Analog/HDZero options
110mm wheelbase, lightweight design
12025 7000KV motor and AVAN Rush propellers
F411 control board with integrated ELRS receiver

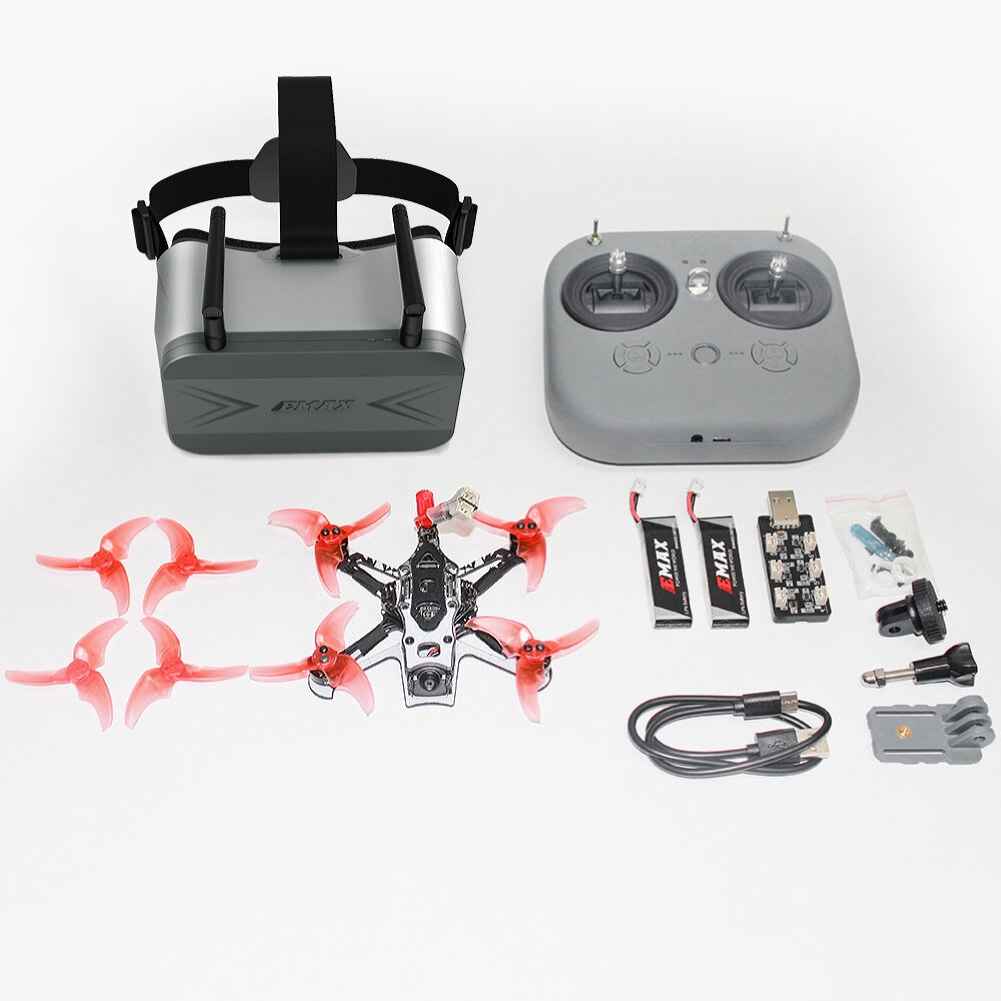

RTF version includes E8 Transmitter and Transporter II Goggles

Model

BNF RTF

Version

Analog HDZERO

SKU: RC1999566 Category: FPV Racing Drone Tags: 1S racing drone, 2.5 inch FPV drone, Analog HDZero drone, BNF RTF racing drone, ELRS receiver drone, Emax Tinyhawk III PLUS, FPV goggles included, freestyle FPV drone Brand: Emax

Description

EMAX Tinyhawk III Plus Freestyle Analog / HDZero HD Digital 2.5 Inch 1S FPV Racing Drone BNF RTF

The EMAX Tinyhawk III Plus is a versatile 2.5-inch FPV racing drone, available in both Analog and HDZero versions. Designed for freestyle flying, it features a 110mm wheelbase and weighs approximately 65.5g without the battery. The drone is equipped with a powerful 12025 7000KV motor and AVAN Rush three-blade propellers for superior performance. The F411 main control board integrates a 4-in-16A ESC and an ELRS 2.4G receiver, ensuring responsive control. The HDZero version includes a Nano Lite Camera for high-quality image transmission. The RTF version comes with an E8 Transmitter and Transporter II FPV Goggles for an immersive flying experience. It supports various features like simulator support, joystick calibration, and firmware updates.

Specifications:
Brand: EMAX
Model: Tinvhawk III PLUS Freestyle
Optional Version: Analog / HDZero
Optional Mode: BNF / RTF

Aircraft model

HDZero Version

Analog Version

Wheelbase

110mm

Maximum appearance size

100沁104沁22mm(Propeller not included)

Weight

about 65.5g (excluding battery)

about 62.5g (excluding battery)

Motor

12025 7000KV

Propeller

AVAN Rush 2.5inch three-blade propeller

Main control board

F411 (100MHz) main control, integrated 4-in-16A 8-bit ESC, onboard ELRS (2.4G) receiver (SPI communication), input voltage 1-2S

Camera

HDZERO Nano Lite Camera

RunCam Nano 6

Image transmission

HDZero whoop Lite 0/25mW/200mW

32-bit 40CH open source image transmission
0/25mW/100mW/200mW

Battery

1S HV 650mAh (With 2 1S batteries)

Remote Controller ( Only RTF Version has) : E8 Transmitte (ELRS-2.4G)

Maximum appearance size

L沁W沁H=150沁140沁45mm

Weight

about 260g (excluding battery)

Number of channels

8 channels

Protocol

ELRS-2.4G protocol

Working frequency

2.4gHz frequency band (2400-2483.5MHz)

Power

10mW/25mW/50mW/100mW

Battery

Built-in 1800mAh 18650 lithium-ion battery

Charging system

Built-in USB1A linear lithium-ion battery charging system

Working voltage

3.7-4.2V

External interface

Type-C interface. 3.5mm audio interface (wired trainer interface)

Others

Support simulator, support joystick calibration, support left and right hand switching, support firmware update (USB method), support adjustable power, support adjustable send/return rate, support changing binding key

FPV Goggles
( ONLY RTF Version has)

Transporter II HD

Transporter II

Maximum appearance size

145沁155沁92mm (excluding antenna)
145沁155沁190mm (including antenna)

L沁W沁H=150沁100沁90mm

Weight

about 425g (including headband and antenna)

about 398g (including headband and antenna)

Screen resolution

720*1080

480×800
