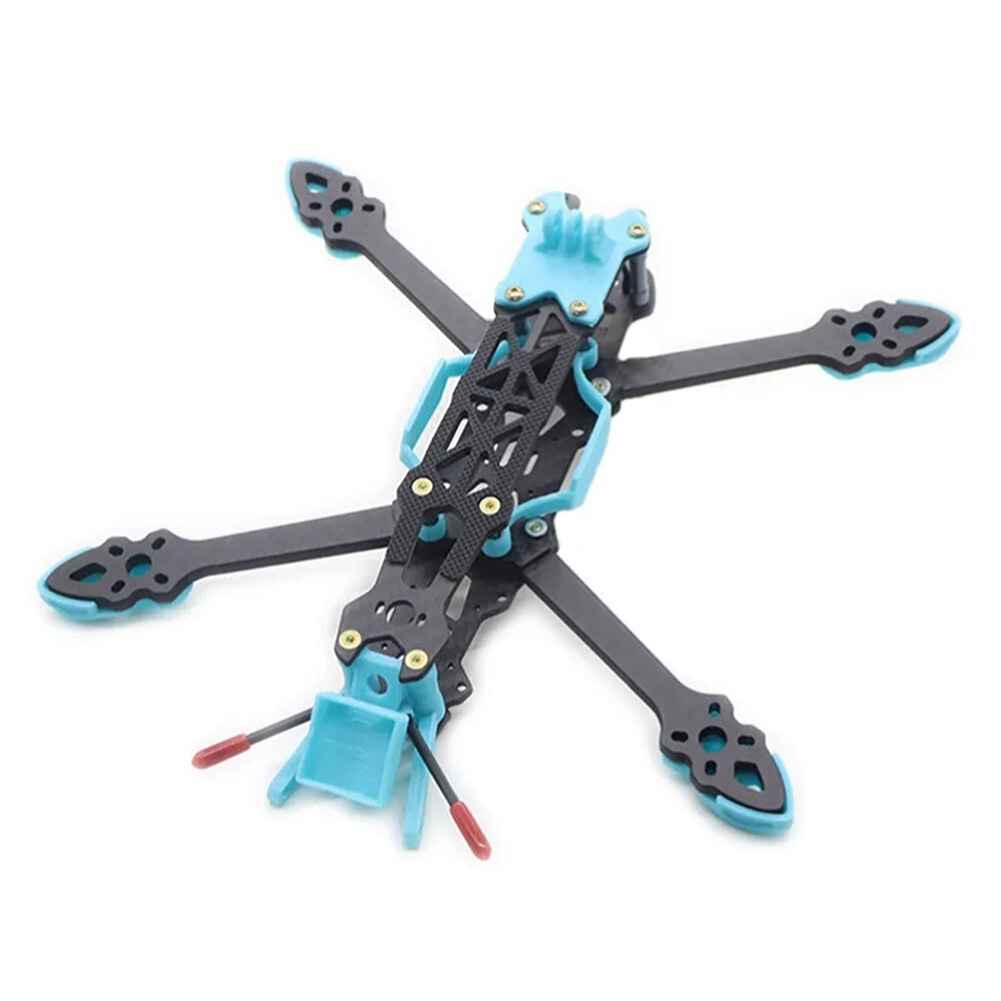

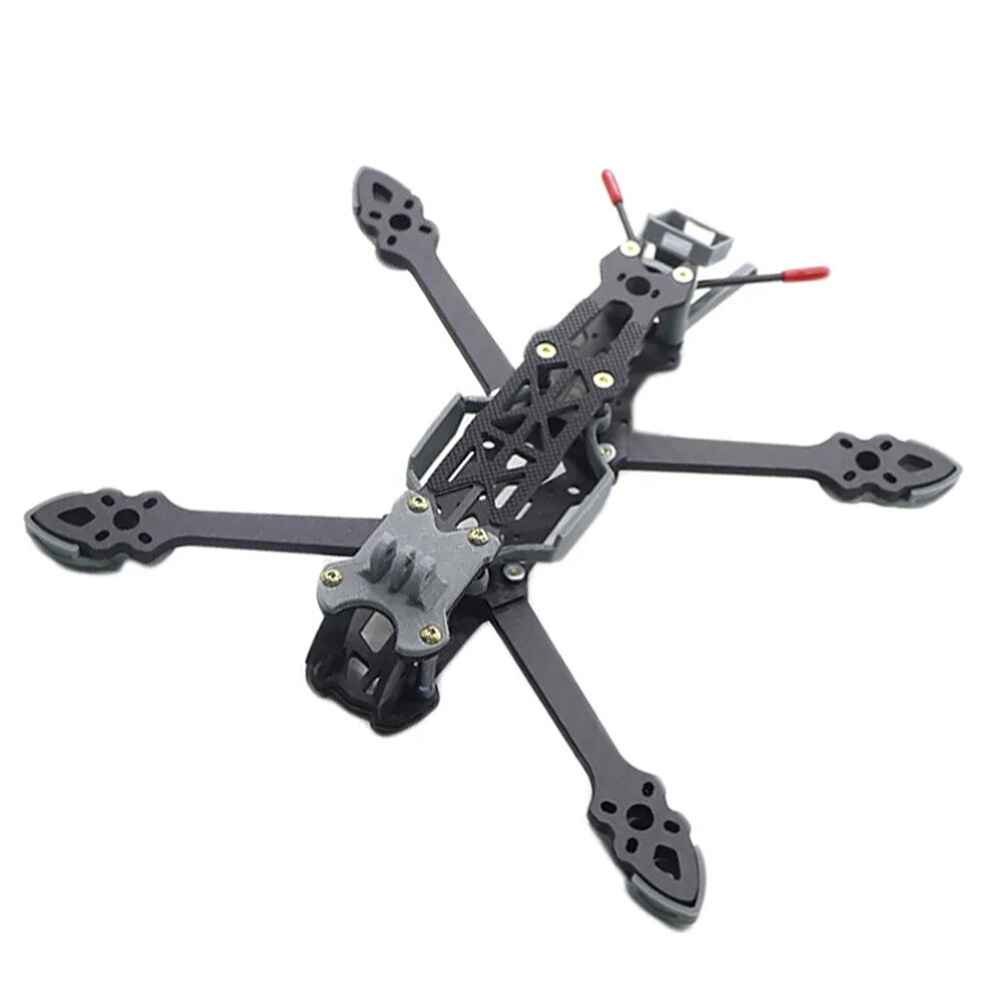

HSKRC MAK4 7 Inch 295mm Carbon Fiber Frame Kit 5mm Arm Thickness for DIY Long Range RC FPV Racing Drone
The HSKRC MAK4 Carbon Fiber Frame Kit is designed for DIY enthusiasts building long-range RC FPV racing drones. Featuring a 295mm wheelbase and 5mm thick arms, this frame offers durability and stability for smooth flight and elegant FPV shooting. The H-shaped structure provides a lower center of gravity and increased arm strength compared to X-shaped designs. It includes installation spaces for FPV lenses and flight control equipment, with motor mounting hole compatibility. The frame is crafted with chamfered corners and thickened aluminum tubes for enhanced strength and fine workmanship. Please note, this is an empty frame kit that requires assembly.
Notice: It is Empty Frame. Comes unassembled. Need build by buyers.
Specifications:
Brand name: HSKRC
Model: MAK4
Item name: 295mm wheelbase Carbon Fiber Frame Kit
Color: Red/Grey/Blue
Wheelbase:295mm
Arm thickness: 5MM
Upper center board: 2.5MM
Lower center plate: 2.5MM
Camera Mount Width: 19mm
Camera protection frame board thickness: 2MM
Plywood thickness: 2MM
Size: 193*223MM
weight: about 128g
Recommended configuration(not included):
Flight control: 20x20mm 30.5×30.5mm F4/F405/F722
Motor:2306/2806.5/2806
ESC: 35A-60A Split/4-in-1
Battery: 4S 1800mAh ~ 6S 2200mAh
Propeller: supports up to 7 inches (7040)
GPS: BN220 (22x20x6mm)
The following Parts are compatible:( NOT Included)
Features:
-Flight is smooth and FPV shooting is easier and more elegant.
-H-shaped structure does not affect the flying experience at all. On the contrary, compared with the X-shaped structure, the arm is shorter and lighter. At the same time, the arm strength is higher.
-The H-shaped layout has more installation space in the middle section of the cabin and a lower center of gravity, making the flight more stable.
-The installation size of the FPV lens is 19mm wide
-Flight control installation positions with two hole spacings of 30.5*30.5 and 20*20 are reserved at the front and rear of the cabin. Suitable for the installation of a variety of flight control equipment.
-Fixed motor mounting hole spacing: 16*16/16*19/19*19mm are compatible.
-The corners of the entire machine are chamfered to create a fine workmanship and reasonable structure. Of course, there are also customized thickened aluminum tubes to ensure the strength of the frame.
Package Included:
1x Frame Kit
1x Set of 3D Printed Parts
