Description
25.5*25.5mm SpeedyBee F405 AIO 40A Flight Controller with 5V 9V BEC Output 40A BL_S 3-6S ESC for RC FPV Racing Drones Support Betaflight Inavflight

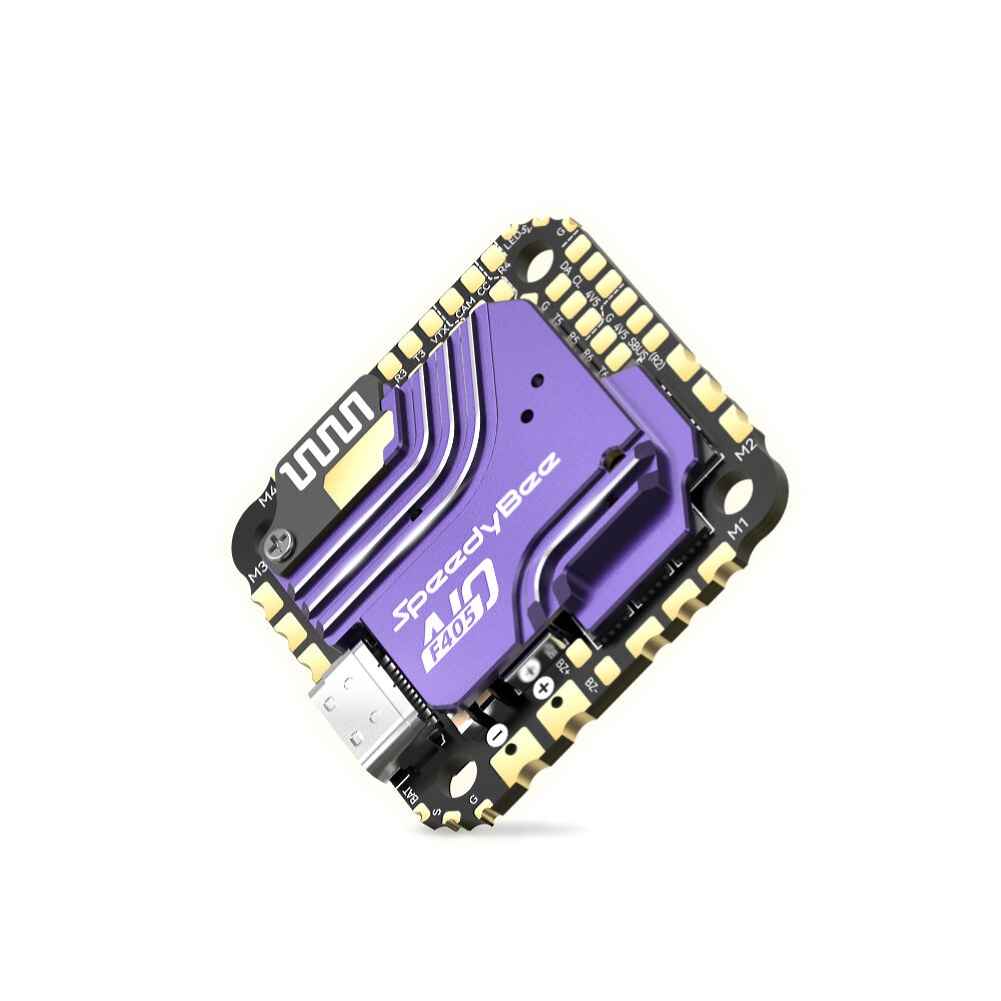

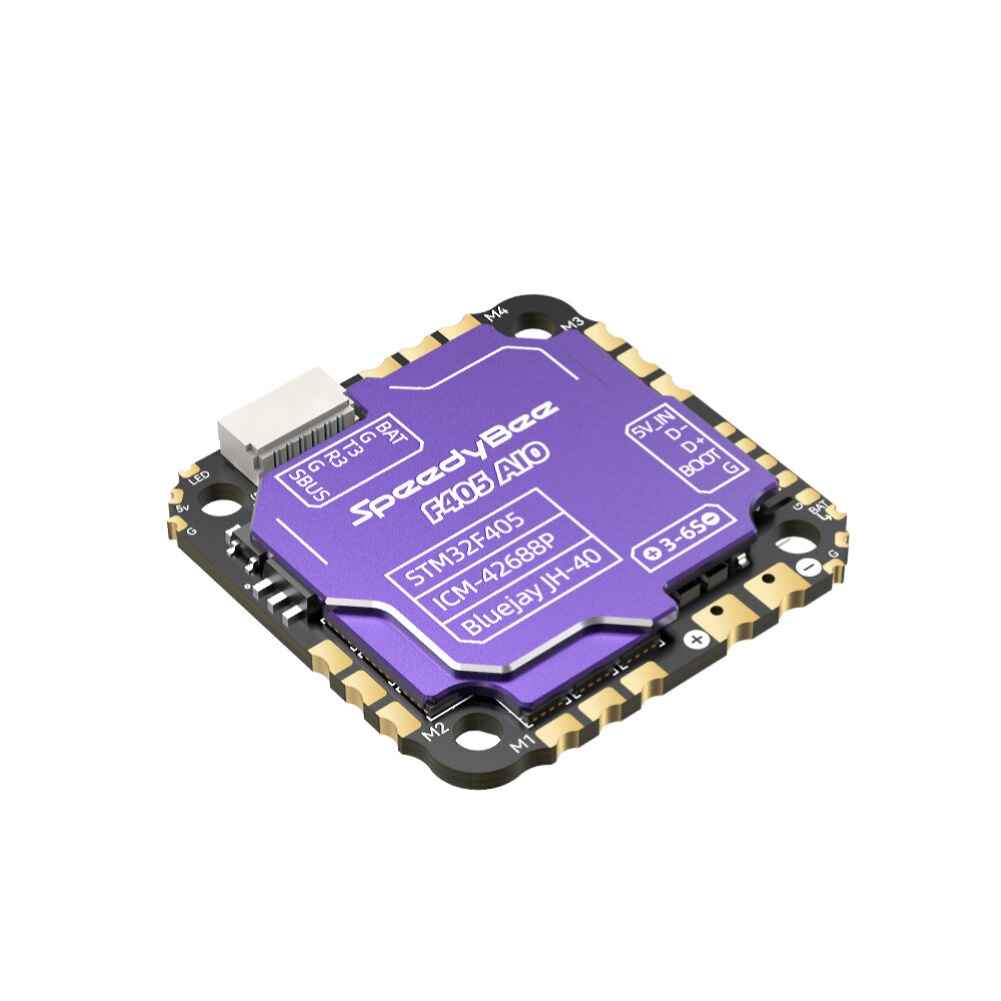

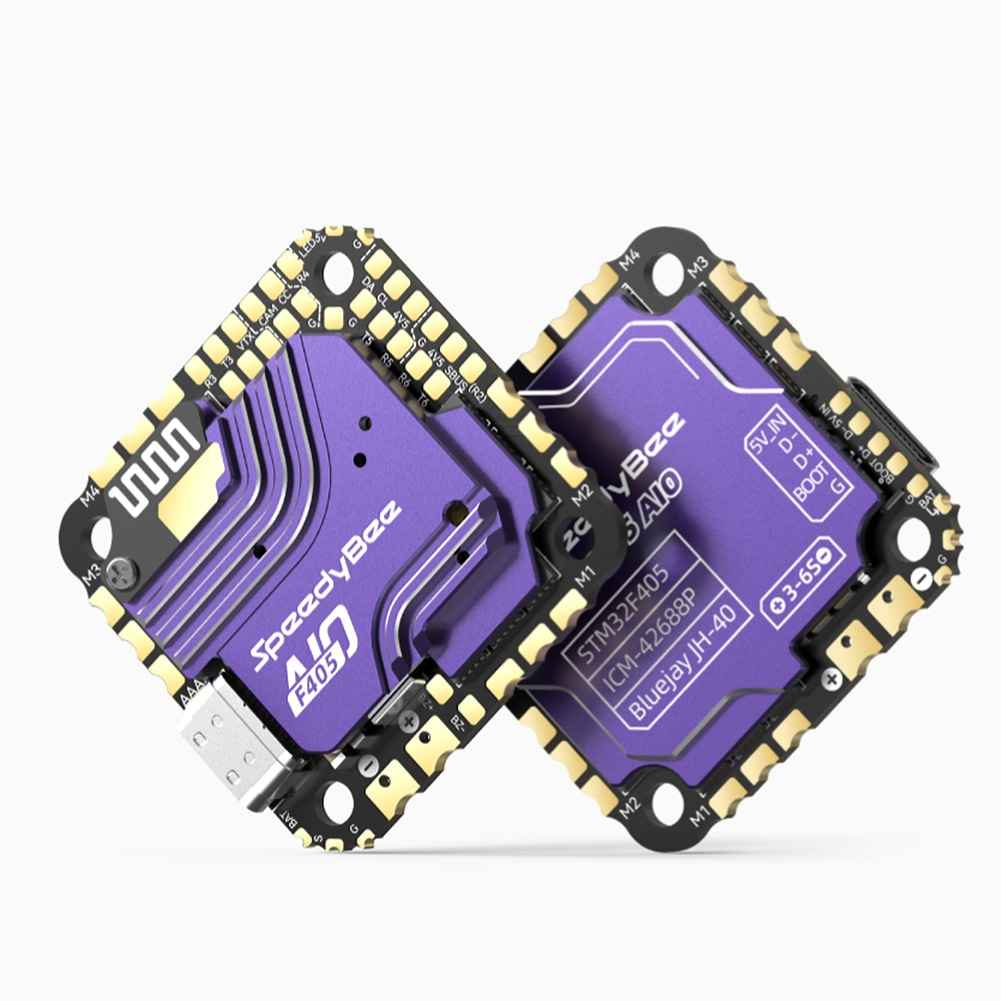

The SpeedyBee F405 AIO Flight Controller is designed for FPV racing drones, offering enhanced performance with a continuous 40A current rating and peak current of 45A. Compatible with 2-4′ and ultra-lightweight 5′ FPV builds, it supports 1002-2104 brushless motors and is pre-flashed with Bluejay firmware. This controller features dual CNC heat sinks, onboard TVS diodes, and low-ESR high-frequency electrolytic capacitors. It supports bidirectional Dshot, wireless tuning, and motor direction adjustment via an app. The ICM-42688 gyroscope with independent LDO power supply improves measurement accuracy, while the STM32F405 MCU provides superior performance. It also includes the new SPA06-003 barometer for enhanced accuracy.
Notice: This product support betaflight and inavflight.
Descriptions:

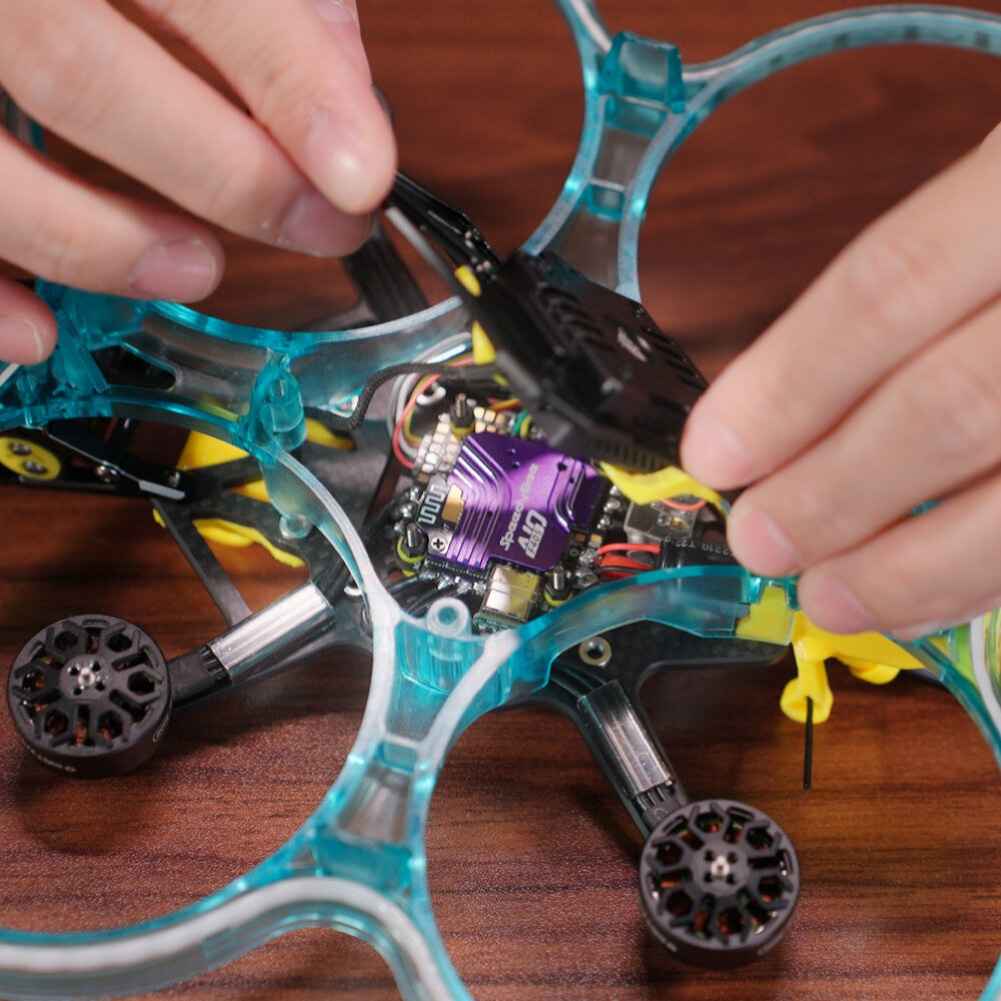

Compared to the previous F745 AIO, the F405 AIO offers enhanced performance with a continuous 40A current rating and a peak current of 45A (10s). It is compatible with 2-4′ and ultra-lightweight 5′ FPV builds and supports 1002-2104 brushless motors. Pre-flashed with Bluejay firmware, it supports bidirectional Dshot, includes dual CNC heat sinks, onboard TVS diodes, and is equipped with low-ESR high-frequency electrolytic capacitors.
Features:

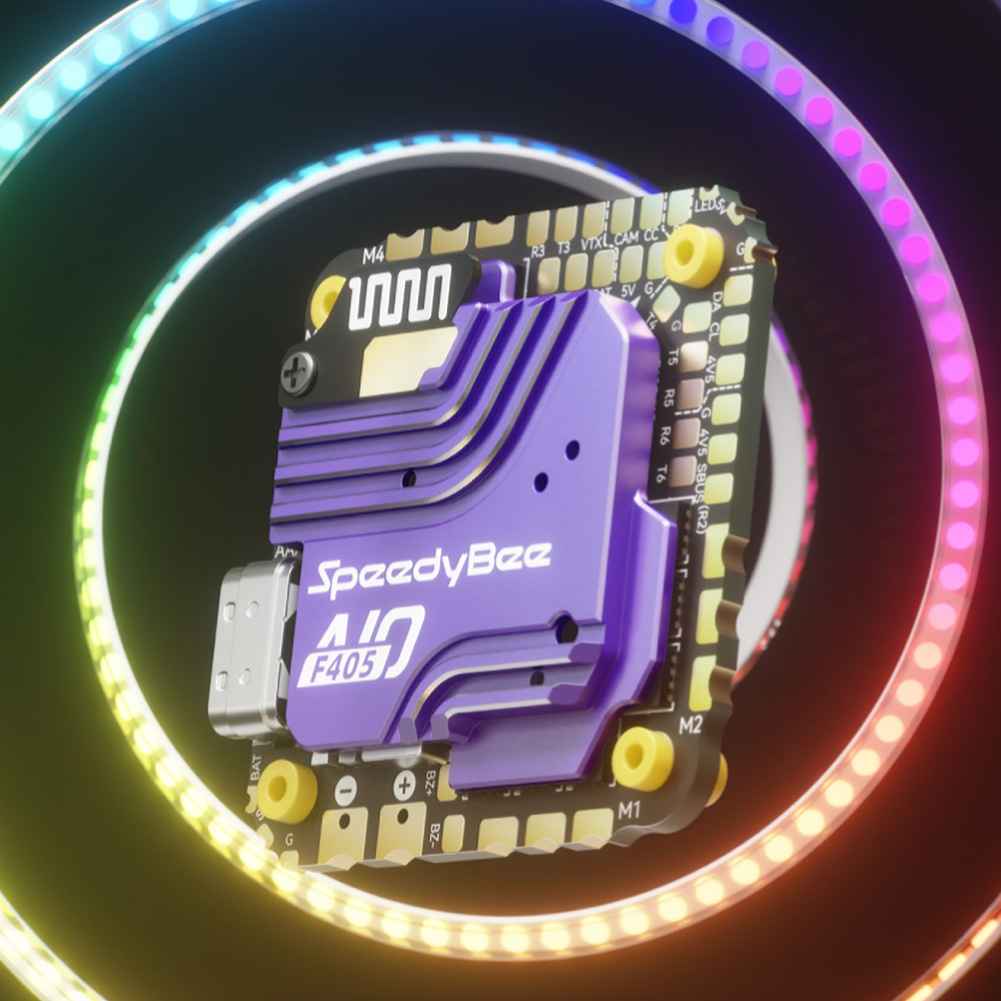

1. Wireless Tuning 2.0 Upgrade: Supports Meteor LED strip function, allowing for custom your own cool styles.

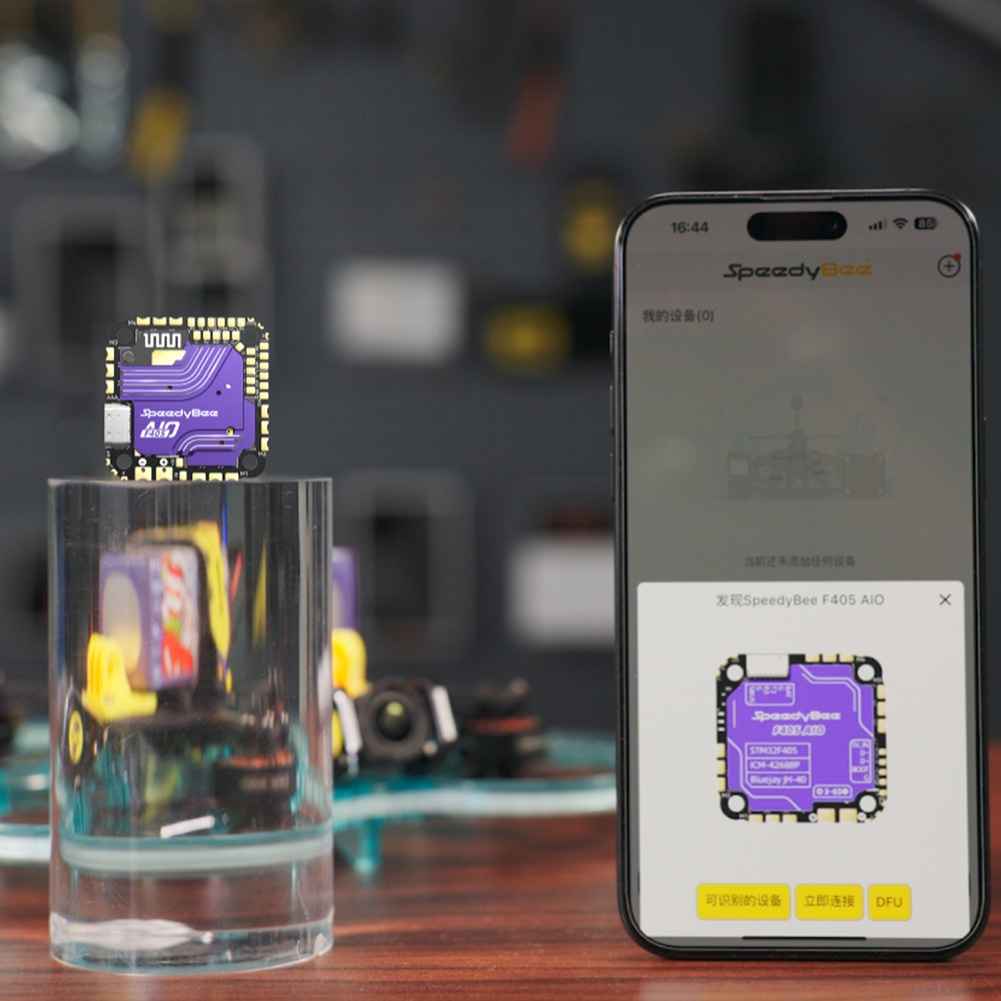

2. Wireless BOOT Button: With the APPㄙs DFU button, the flight controller can enter DFU mode without pressing a physical button, eliminating the hassle of disassembling when it cannot automatically boot.
3. Full Feature Tuning: Supports APP-based parameter tuning, firmware upgrades, and wireless motor direction adjustment.
4. Equipped with ICM-42688 Gyroscope: Features independent LDO power supply, a PSRR (Power Supply Rejection Ratio) of up to 100dB, and output ripple as low as 1.3mV! This greatly improves gyroscope measurement accuracy and enhances flight stability.
5. STM32F405 MCU: Offers better performance than the F411 and greater compatibility compared to the G4 series. (SpeedyBee F405 AIO supports both Betaflight and INAVFlight).A higher frequency means stronger performance, larger flash memory, and greater compatibility for program functionalities.
– STM32F405: 168MHz Frequency, 1MB Flash
– STM32F411: 100MHz Frequency, 512KB Flash
– STM32G474: 170MHz Frequency, 512KB Flash
6. Equipped with the New SPA06-003 Barometer: Further improves accuracy, with barometric pressure measurement accuracy increased to 0.5%, and relative pressure accuracy improved to 呼0.03hPa, equivalent to 呼0.25m.
FC Specifications:
