Description
Happymodel Customized Ant Lite 1200TVL FPV Camera with Canopy for Mobula6 Mobula7 Mobula6 2024 Whoop FPV Racing Drone

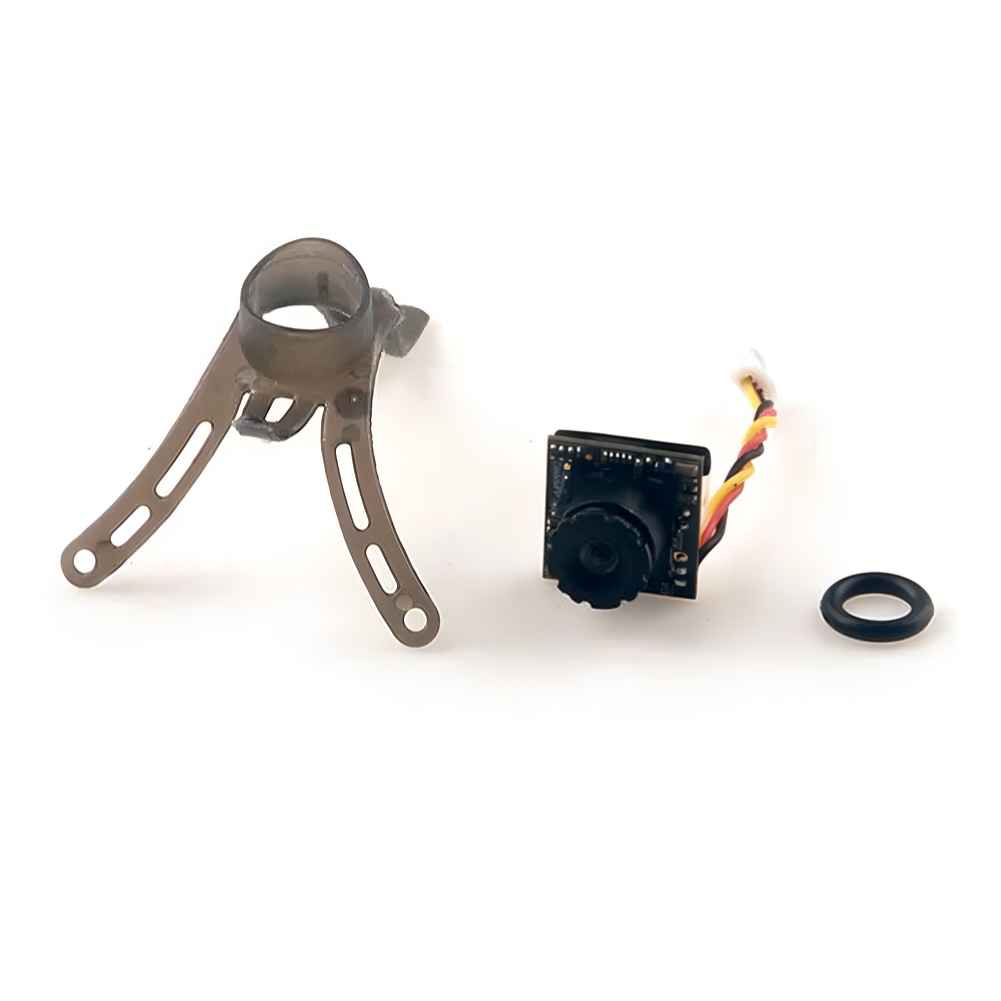

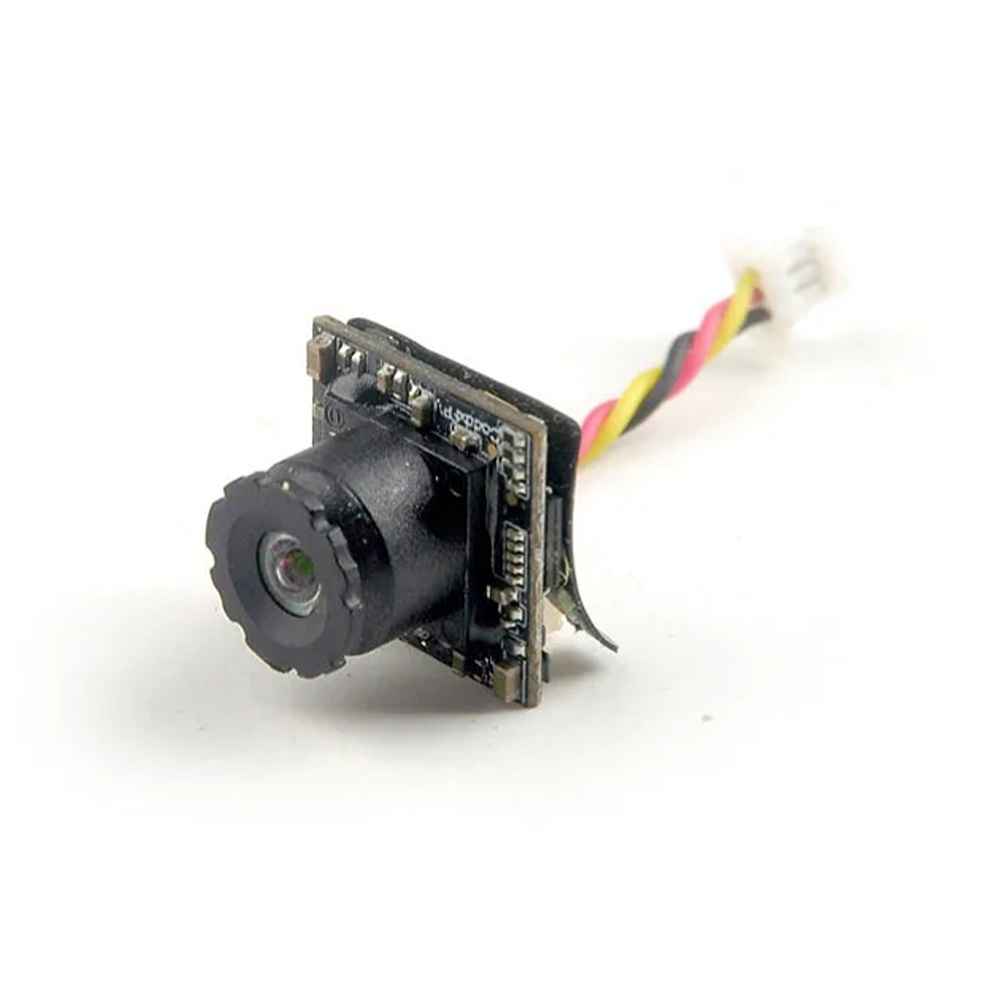

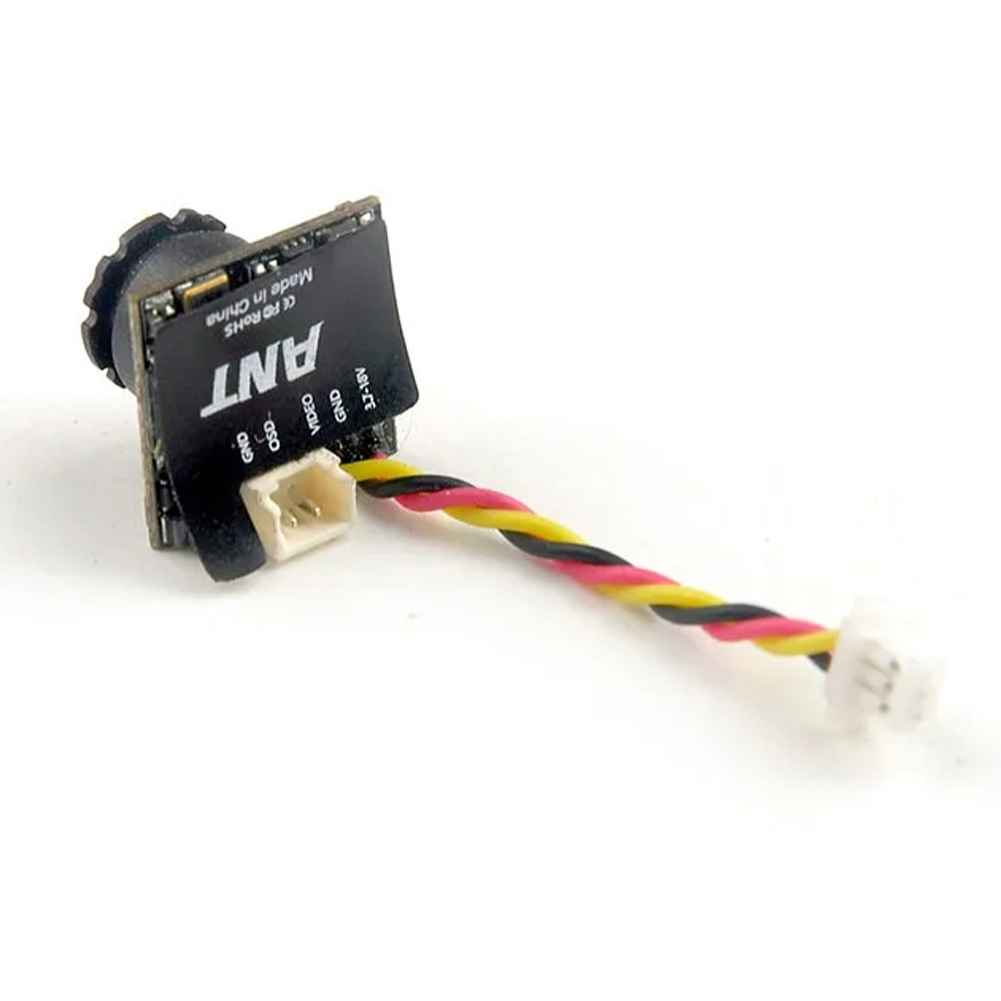

The Happymodel Ant Lite FPV Camera is designed for Mobula6, Mobula7, and Mobula6 2024 Whoop FPV racing drones. It features a 1200TVL resolution and a 1/3′ CMOS sensor for superior image quality. The camera supports both NTSC and PAL systems with a switchable menu and provides a wide dynamic range (WDR) and 2D noise reduction for clear visuals. With a 2.1mm lens and a minimum illumination of 0.001Lux@F1.2, it performs well in low-light conditions. The lightweight design, weighing only 1.5g, includes a canopy for easy installation. Power input ranges from 3.7V to 5V, making it versatile for various setups.
Specification券
Brand: Happymodel
Models: Customized Light Weight Ant Lite 1200TVL FPV Camera with Canopy
Image Sensor: 1/3′ CMOS Sensor
Horizontal Resolution: 1200 TVL
TV System NTSC/PAL switchable
MENU SUPPORT
IMAGE 16:9
Synchronization Internal
Electronic Shutter PAL: 1/50~100, 000; NTSC: 1/60~100,000
S/N Ratio: >52dB (AGC OFF)
Video Output: CVBS
Lens: 2. 1mm
Min. IIlumination: 0.001Lux@F1.2
Auto Gain Control: YES
BLC: YES
WDR: GIobal WDR
DNR: 2 DNR
Dimensions: 14mm*14mm
Power input: 3.7v~5v

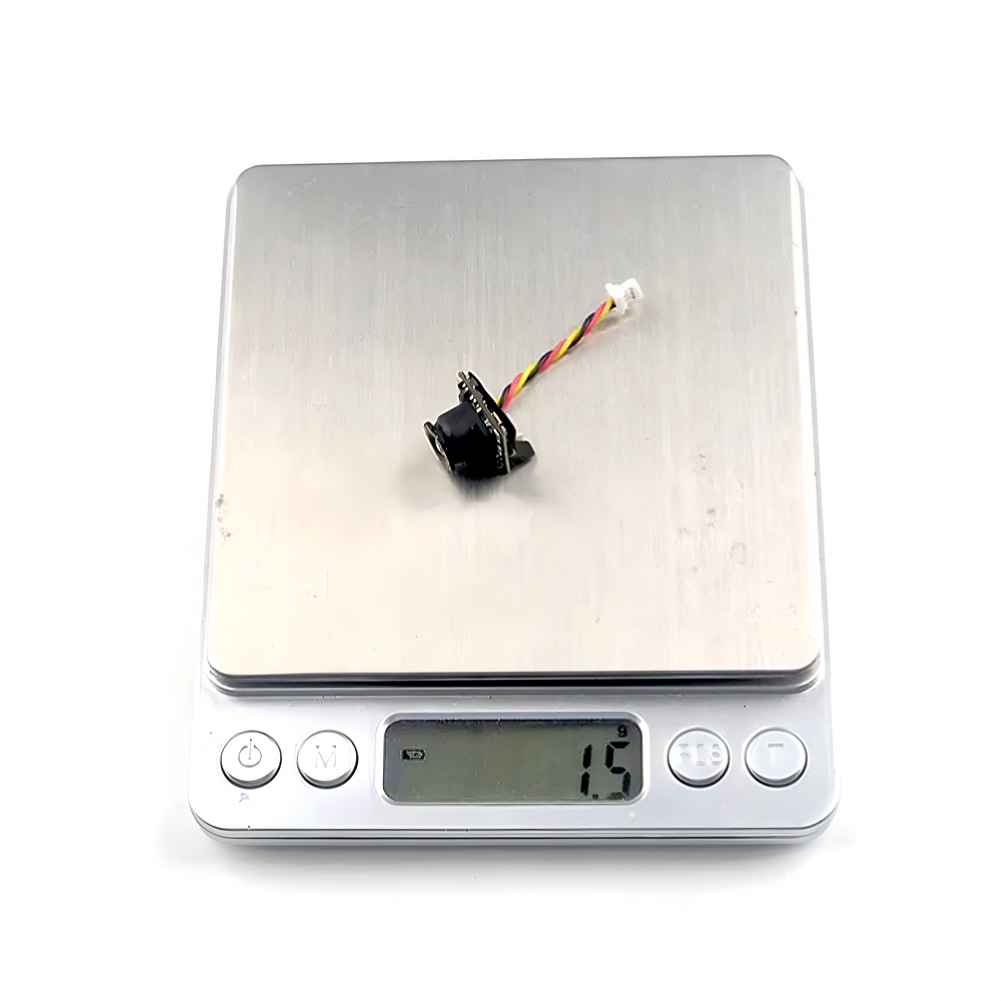

Weight: 1.5g (N.W.)
Compatible for Mobula6/Mobula7/Mobula6 2024
Package Included:
1 x FPV Camera
1 x Canopy
