Description

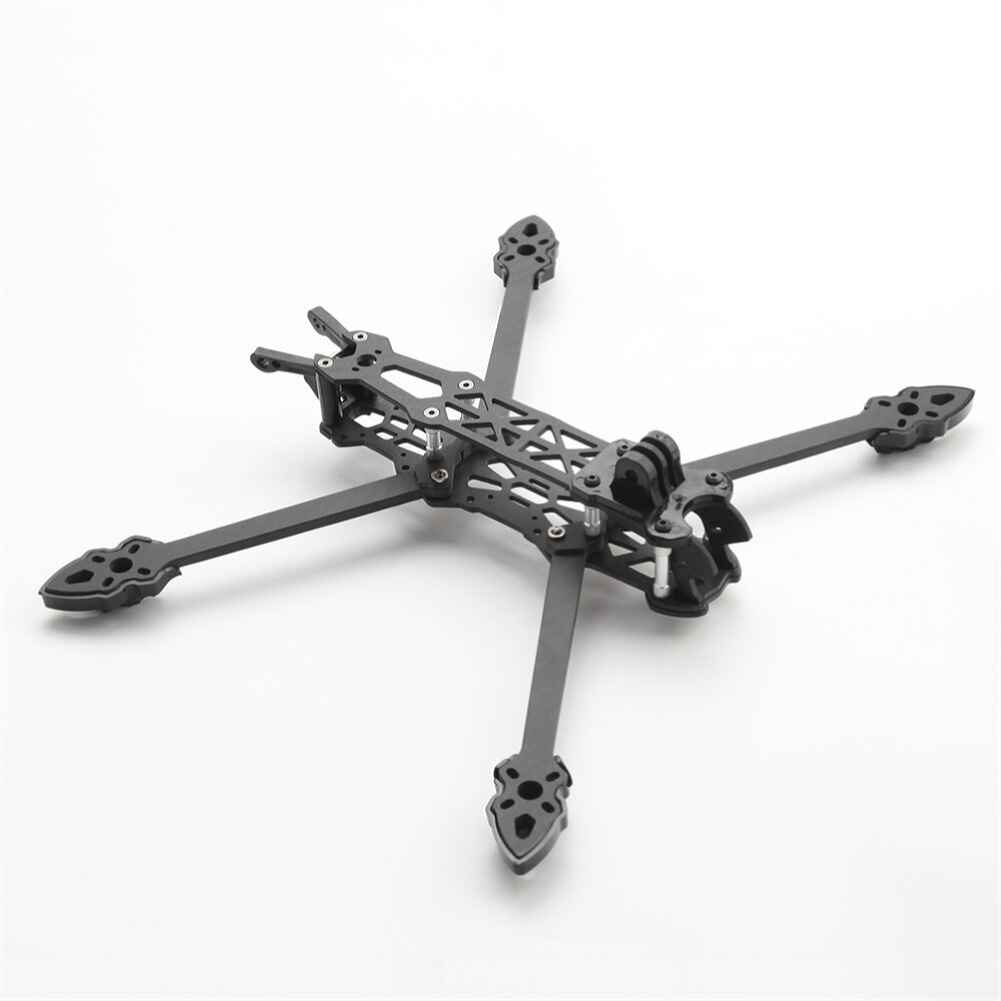

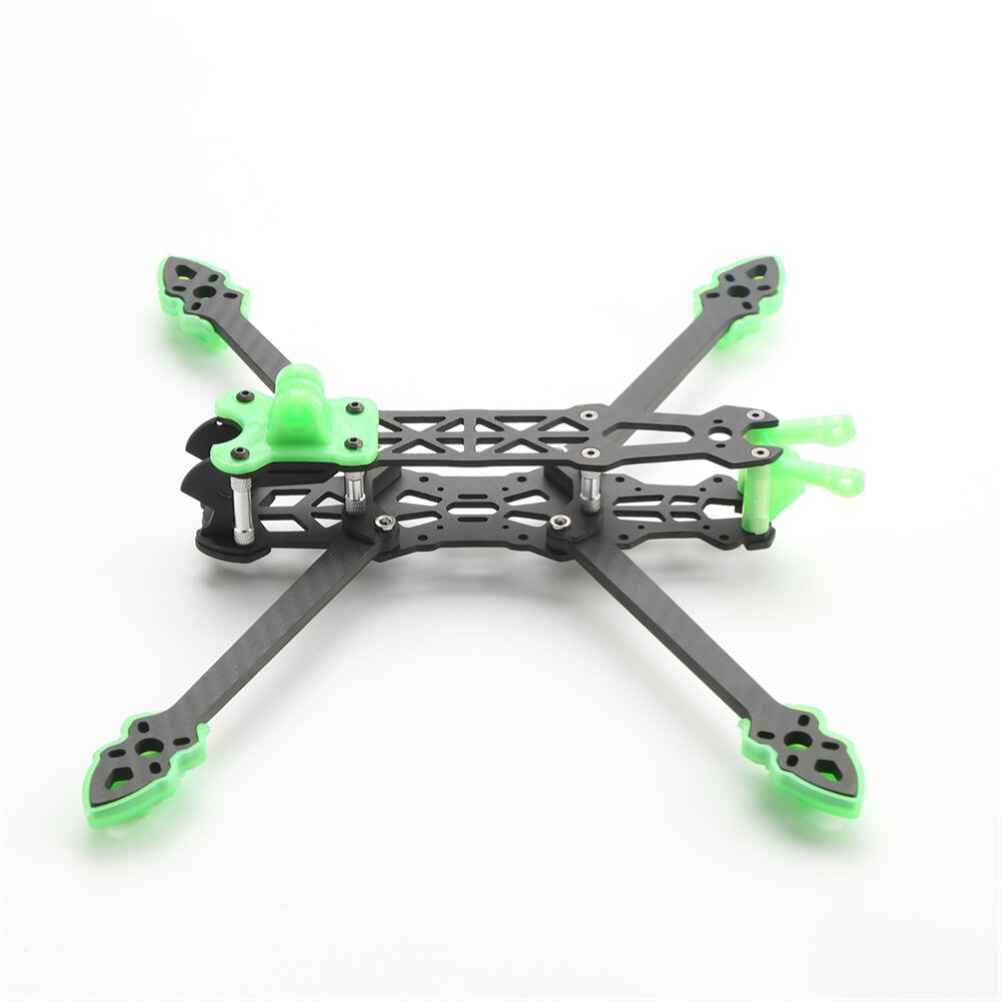

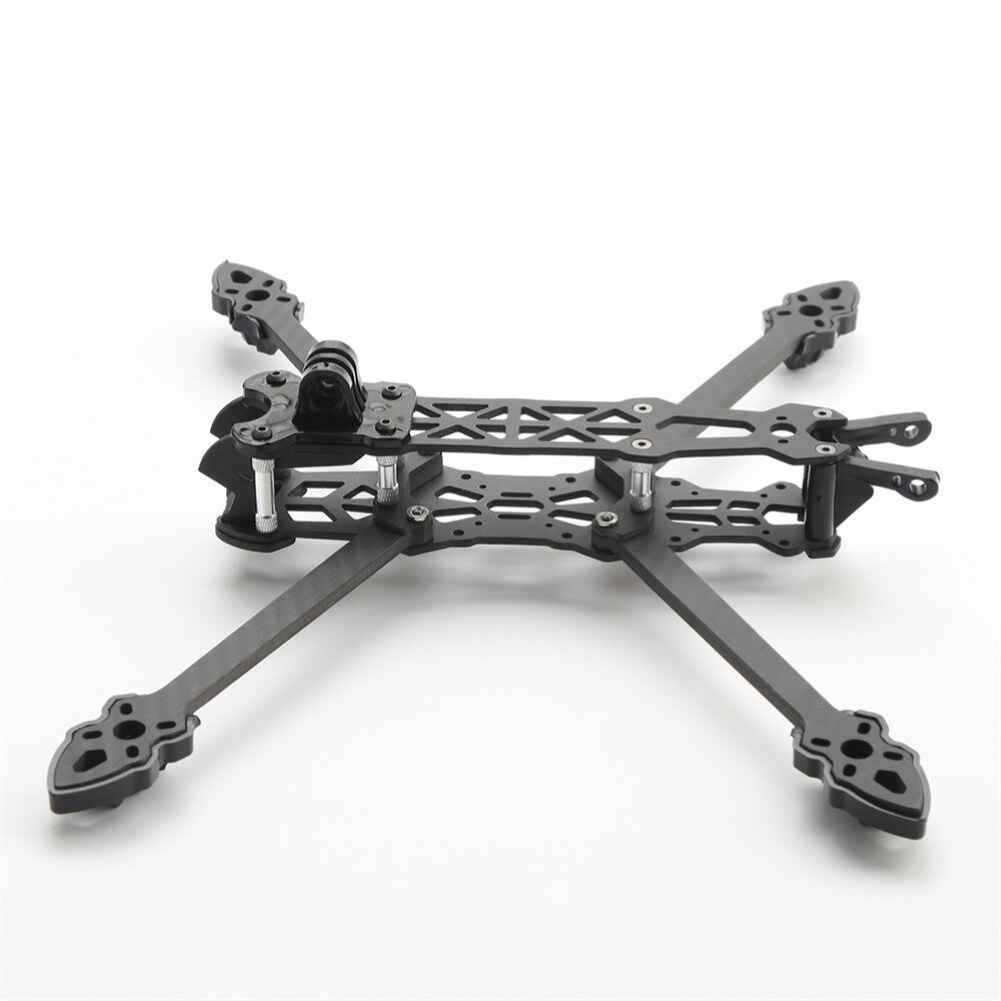

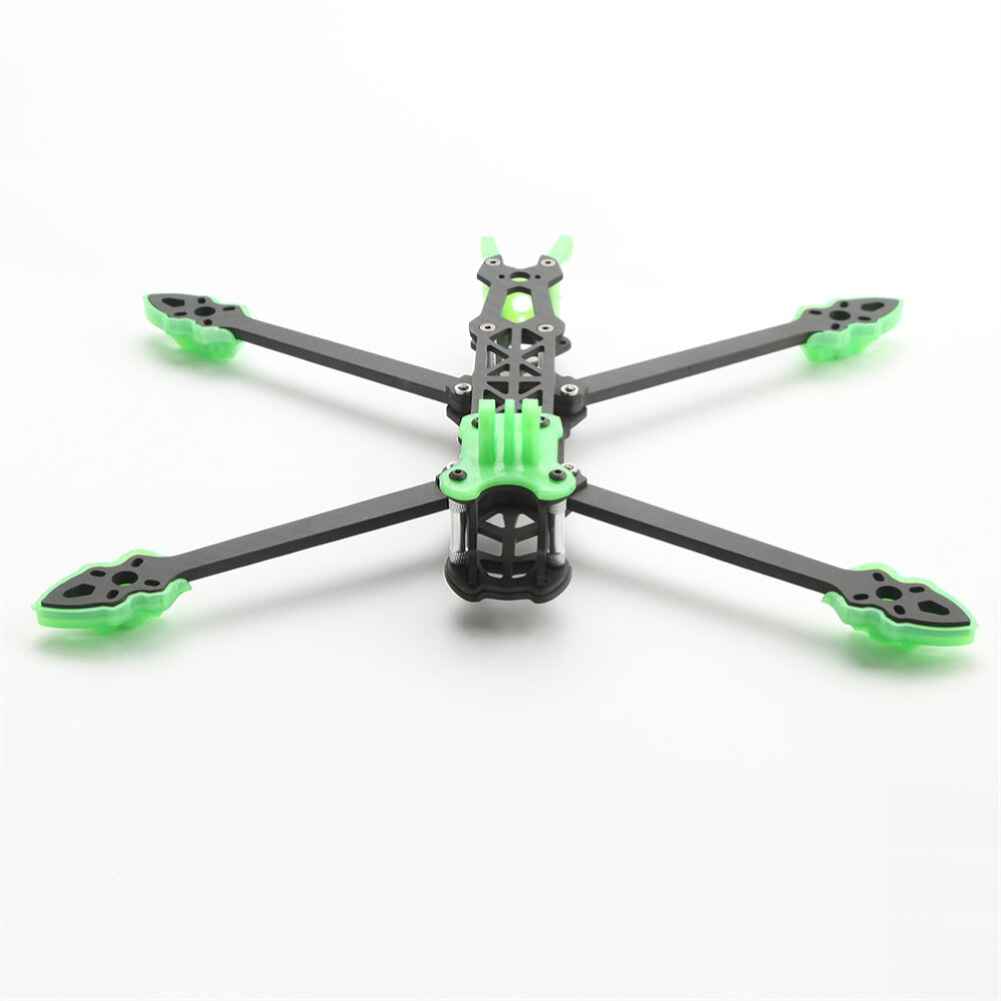

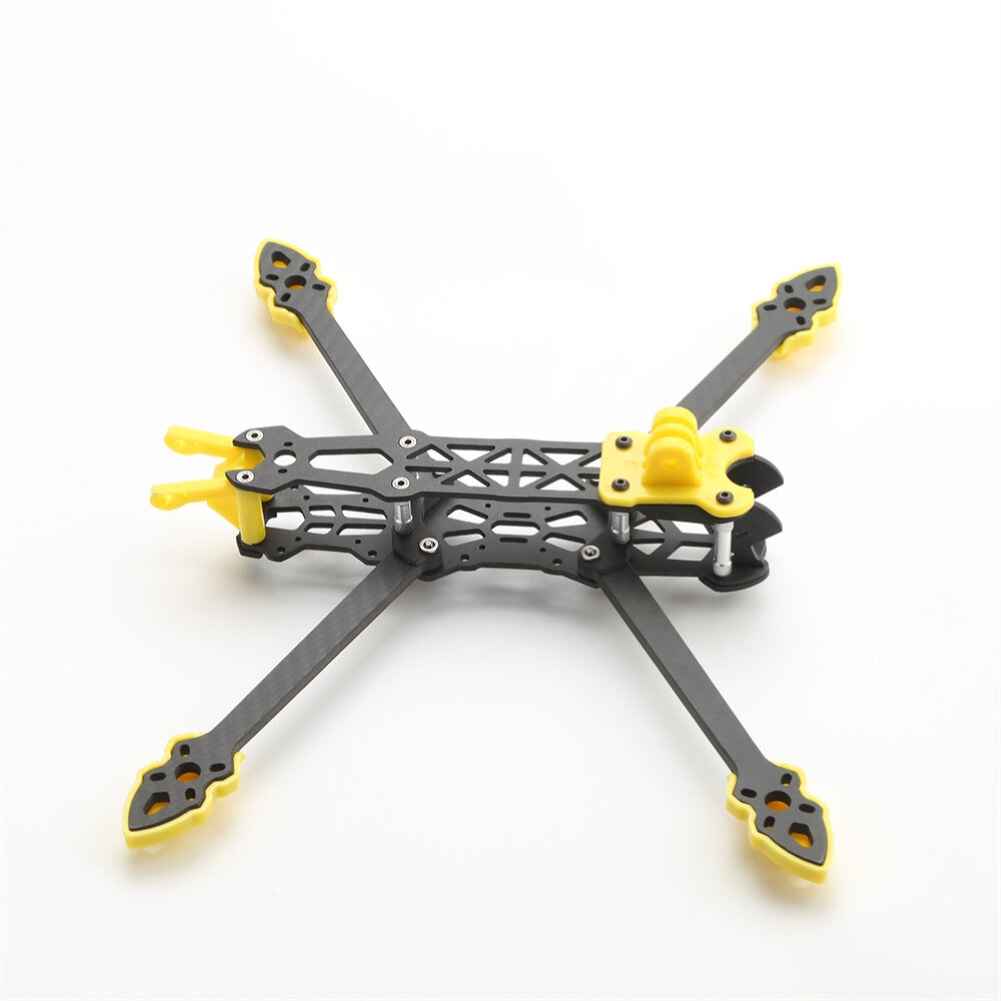

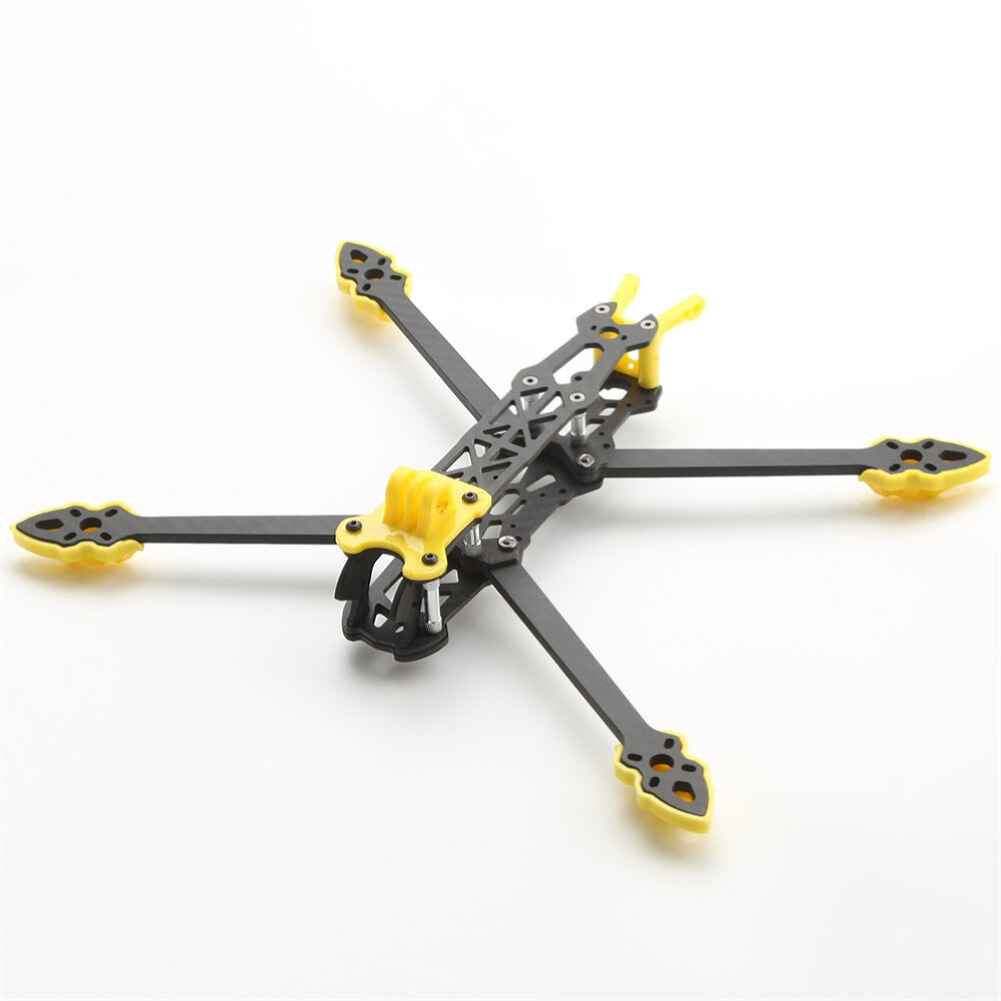

Mark4 225mm 5 Inch 3K Carbon Fiber Frame kit for FPV Freestyle RC Racing Drone with Print Parts
The Mark4 225mm 5 Inch 3K Carbon Fiber Frame Kit is designed for FPV freestyle RC racing drones. This kit features durable carbon fiber construction with a 5mm arms plate and 2.5mm top, bottom, and side plates, offering a robust build for high-performance racing. The frame is compatible with various flight controllers, motors, ESCs, and batteries, allowing for a customizable setup tailored to your racing needs. Available in multiple colors, including red, black, light green, light blue, and yellow, the frame kit includes a camera mount size of 19x19mm. Please note that the kit requires assembly by the buyer.
Notice: Comes unassembled. Need build by buyers. Specification:
Name: Mark4 225mm 5 Inch Carbon Fiber FPV Frame kit
Print Parts Color: Red/Black/Light Green/Light Blue/Yellow(Optional)
Propeller: 5 Inch
Arms Plate: 5mm
Top Plate: 2.5mm
Bottom Plate: 2.5mm
Side Plate: 2.5mm
Camera Mount Size: 19*19mm
Size: 145*172mm
Weight: 102g
Recommended Configuration: (not included)券
Flight Controller: RF/Kiss/F3/F4/F7/F405/F722
Motors: 2205/2206/2207/2305/2306/2507/2306.5/2207.5
ESC: 30A-40A-45A-50A
Propeller: 5 Inch
Battery: 3S-4S 1500mAh-2200mAh / 6S 1150mAh-1500mAh
The fllowing Parts are Compatible: ( NOT Included):FC & ESC Stack: 30.5*30.5mm MAMBA Stack MK4 F722 APP 45A 6S
Brushless Motor: T-Motor Velox V3 2306 1750KV 1950KV 6S / 2550KV 4S Brushless Motor Propeller: HQProp Freestyle Prop 5X4.3X3V2S 5043 5 Inch 3-Balde Propeller VTX: EWRF 5.8G 48CH Long Range Transmitter VTX 100/200/400/1000mWFPV Camera: Caddx Ratel 2 1/1.8 Inch Starlight 1200TVLLipo Battery: CNHL Black Series V2.0 6S 22.2V 1500mAh 130C LiPo Battery XT60 Plug
Package Included:
1 x Mark4-5inch FPV Frame kit
