Description

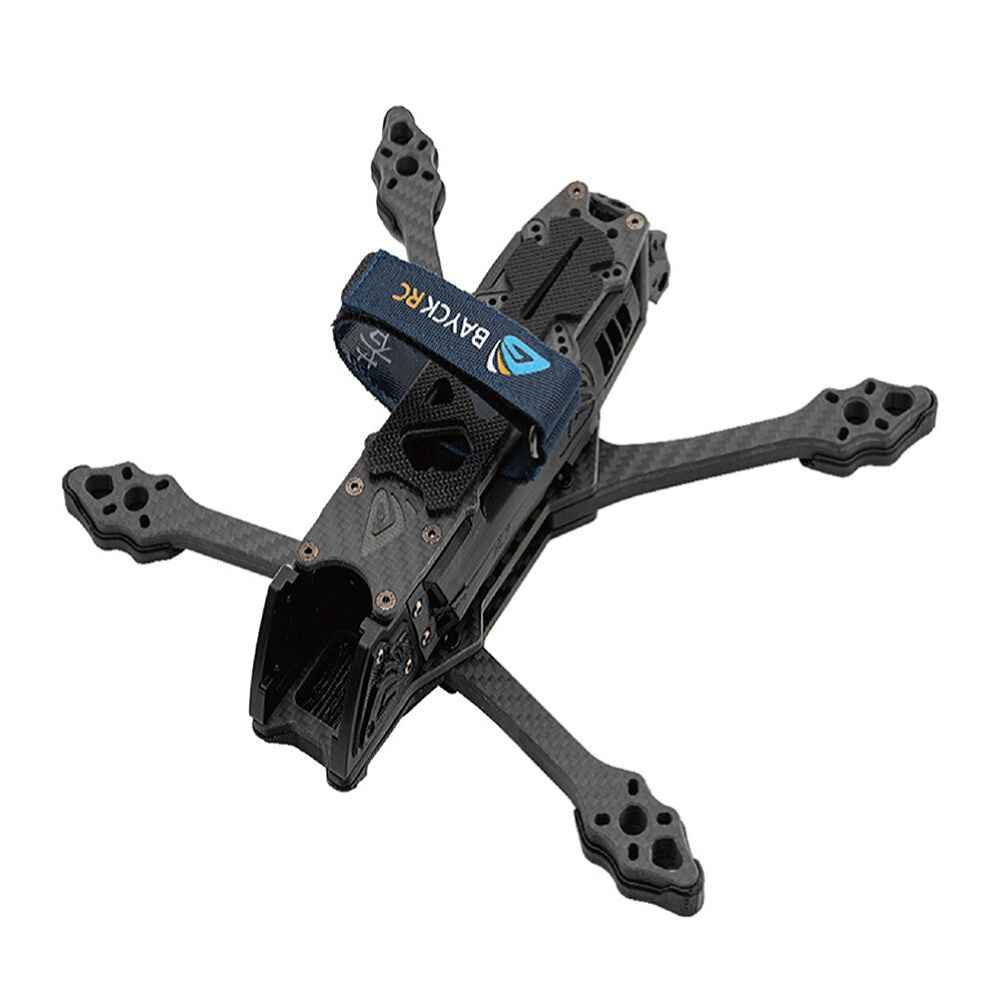

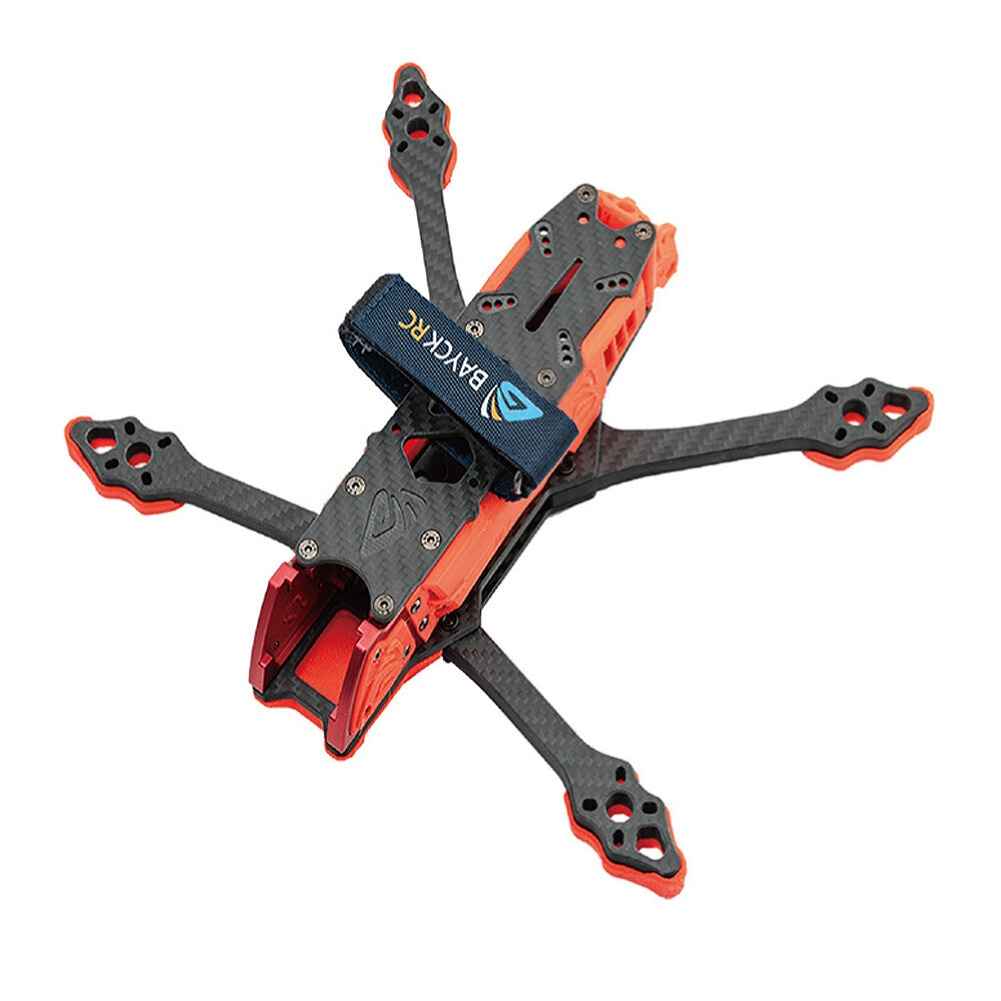

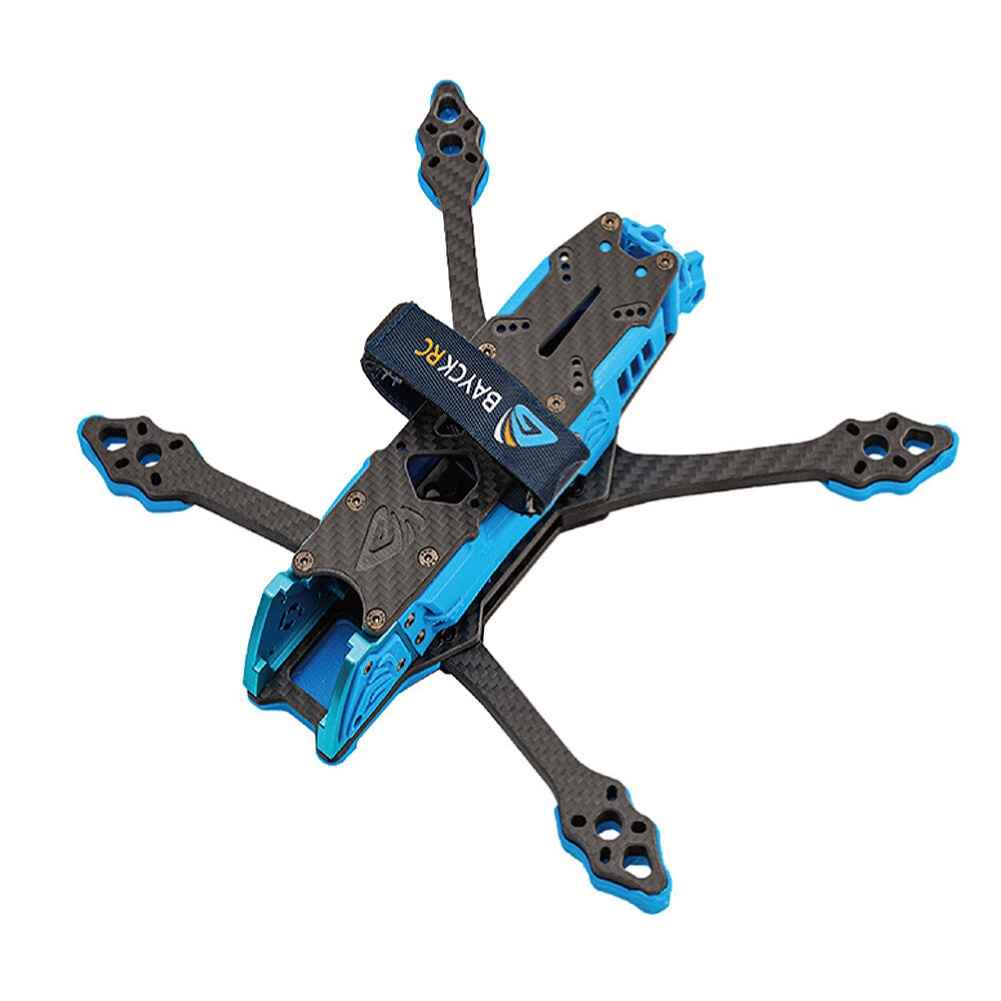

BAYCKRC SEAS HARKS DC5 230mm Wheelbase 5 Inch 6S Carbon Fiber Frame Kit for DIY RC FPV Racing Drone
The BAYCKRC Seas Harks DC5 Frame Kit is designed for DIY RC FPV racing drones, featuring a 230mm wheelbase and a 5-inch propeller compatibility. Constructed from durable 3K carbon fiber, this frame offers a robust structure with a top plate thickness of 2.5mm, a mid plate of 3mm, and a bottom plate of 2.5mm. The frame includes CNC aluminum components and 3D printed TPU parts, ensuring a lightweight yet sturdy build. With mounting holes for flight controllers and motors, the frame supports a variety of configurations. The package comes with essential tools and accessories, making it an ideal choice for enthusiasts looking to build a high-performance racing drone.
Specification:
Brand: BAYCKRC
Product Name: Seas Harks
Frame Model: 5 Inch 6S Frame Kit
Type: Deadcat
Wheelbase: 230mm
Dimensions: 184x145mm
Frame Weight: 199g (Including 3D Printed Parts)
CNC Material: Aluminum
Frame Material: 3K Carbon Fiber
3D Print Material: TPU
Top Plate Thickness: 2.5mm
Mid Plate Thickness: 3mm
Bottom Plate Thickness: 2.5mm
Frame Thickness: 6mm
Mounting Hole Size: 30.5×30.5mm/20x20mm
Flight Controller Mounting Holes: 30x30mm or 20x20mm
Motor Mounting Holes: 16-19mm
Camera Size: 19mm
Inner Frame Height: 25mm
Supported Propellers: 5 Inches
3D Printing: Provide accessory models, personalized color matching
Screw: M2/M3
Recommended Parts (Not included):
FC&ESC: 30.5×30.5mm / 20x20mm
Propeller: 5 Inch Propeller / 5.1 Inch Propeller
Motor: 2205, 2206, 2207, 2306, 2305
Battery: LiHV/LiPo 1050-1500mAh 6S

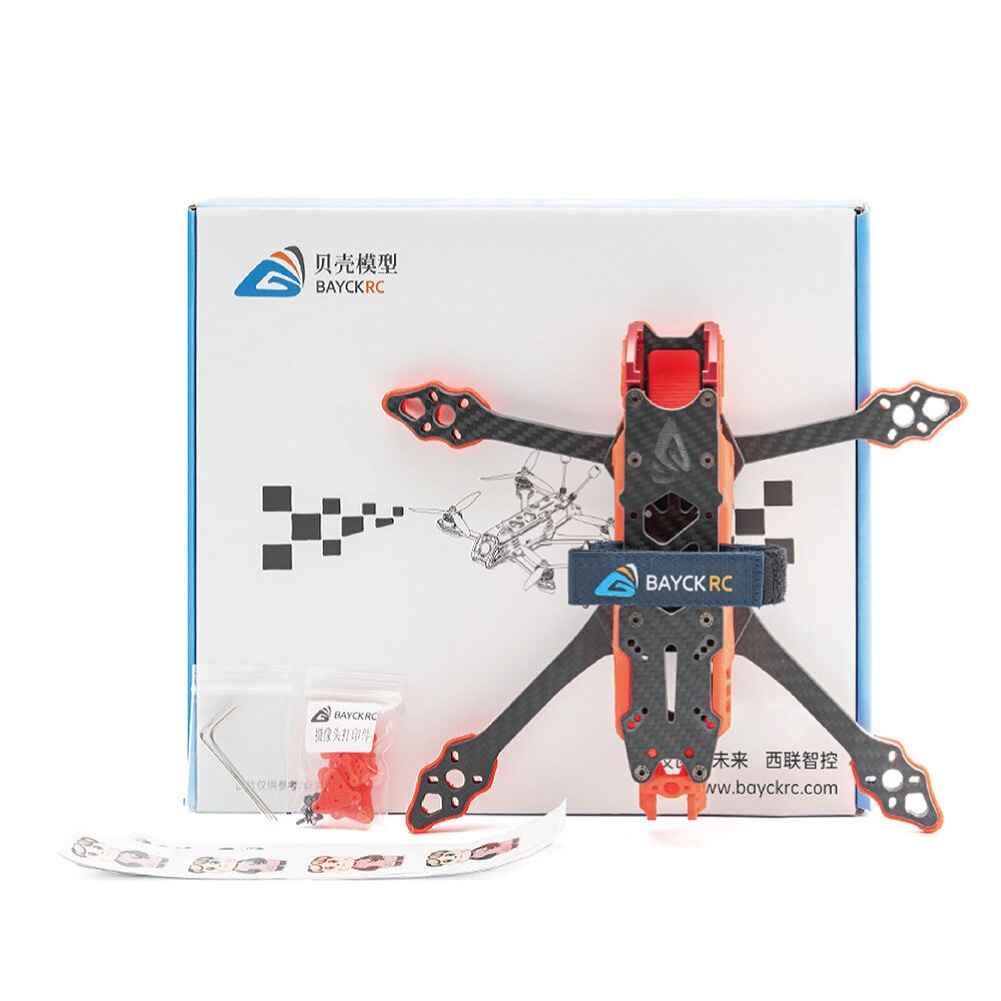

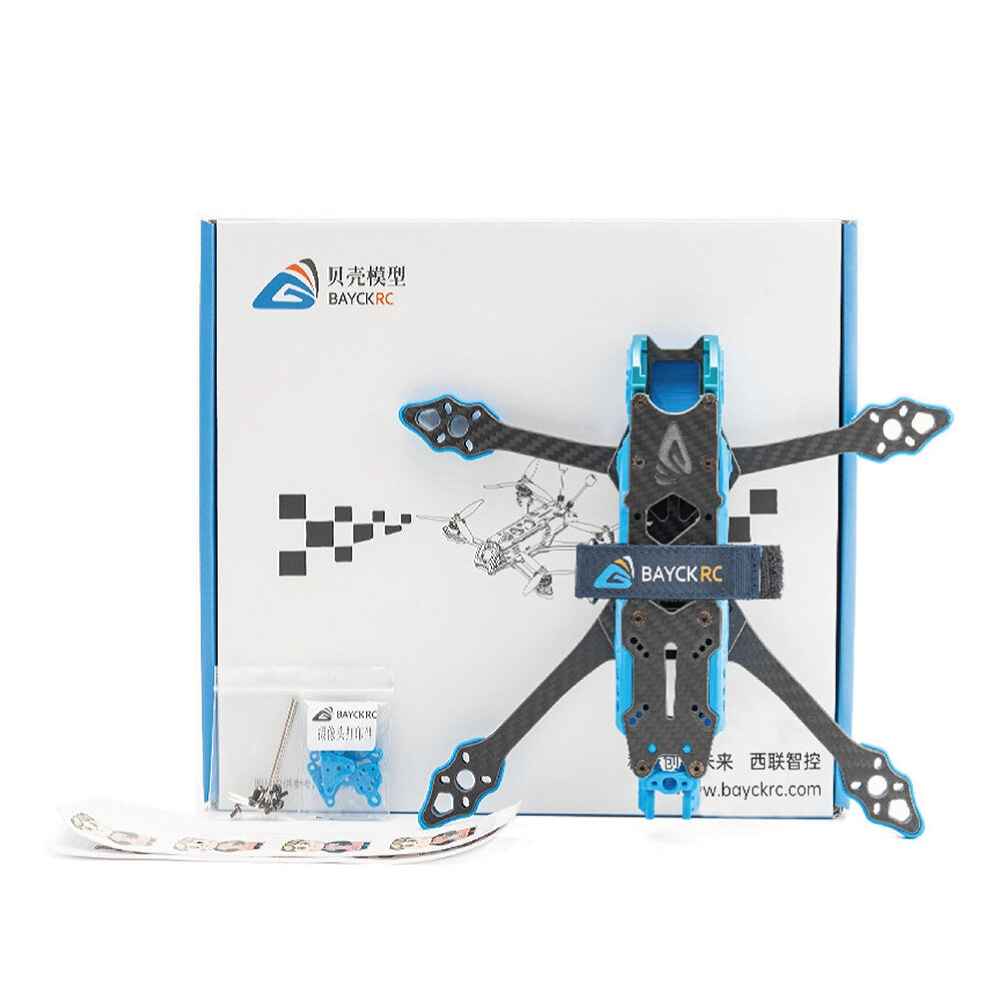

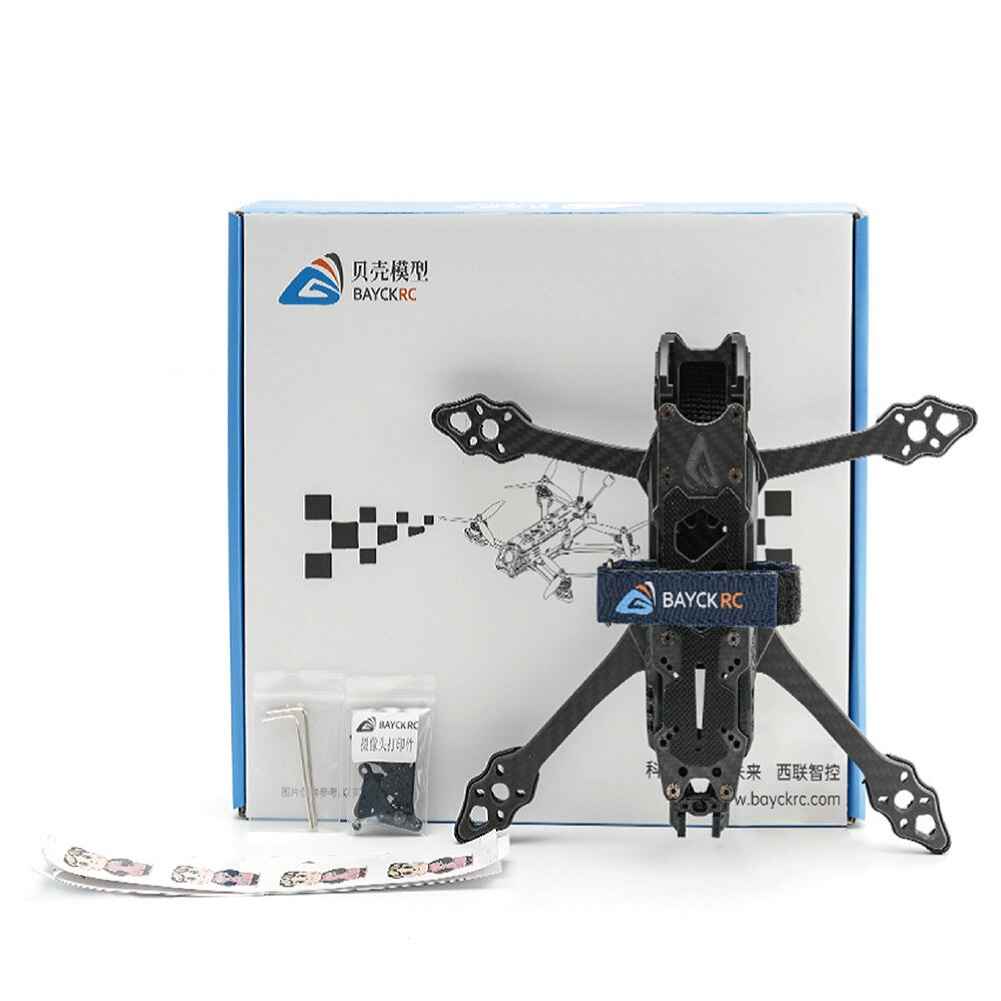

Package Included:
1 x M1.5 Hexagon Screwdriver
1 x M2 Hexagon Screwdriver
1 x Frame (including printout, battery strap)
1 x Set of Camera Printouts
2 x BAYCKRC Stickers
