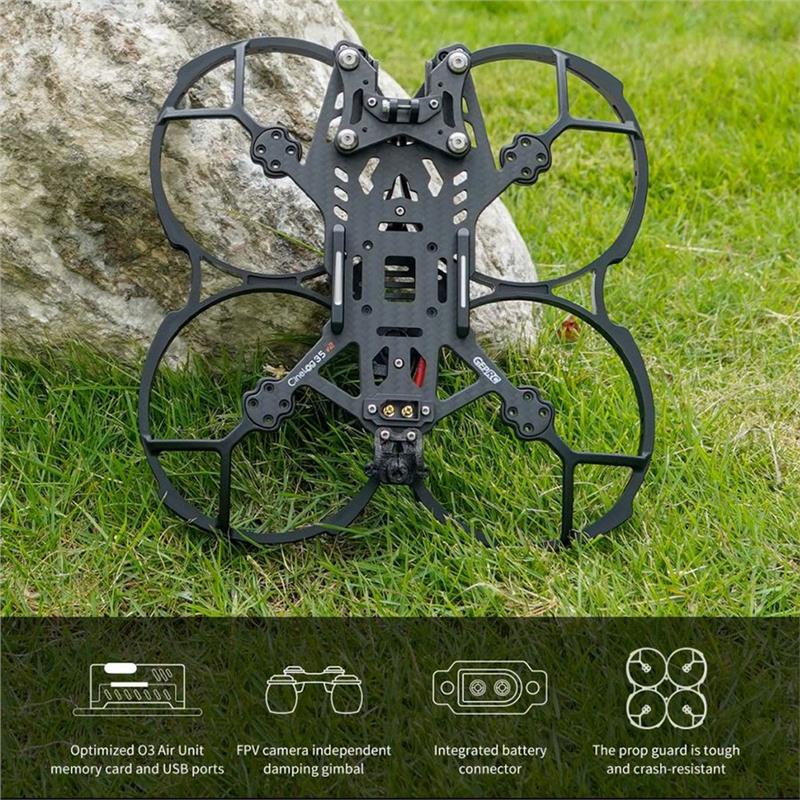

Geprc CL35 V2 142mm Wheelbase 3.5 Inch CineWhoop Frame Kit Support DJI O3 Air Unit for Cinelog35 V2 RC Drone FPV Racing

Geprc CL35 V2 142mm Wheelbase 3.5 Inch CineWhoop Frame Kit Support DJI O3 Air Unit for Cinelog35 V2 RC Drone FPV Racing

Notice: Comes unassembled. Need build by buyers.
Introduction:
The GEP-CL35 V2 version was released after careful development by the GEPRC team.
GEP-CL35 V2 is developed and upgraded on the basis of CL35. It can be mounted with DJI O3 VTX. The camer Aadopts the bottom-mounted shock absorption gimbal to solve the camer AIMU??s resonance issue, and achieve Agood anti-shaking effect.
The main carbon plate and injection prop guards increased the 7075 aluminum column for structural strengthening.
Battery installation method using Astrap with 7075 aluminum parts fixed.Power XT60E1M plug and carbon plate are integrated and integrated for convenient application. The prop guard adds Astorage card and USB port to the DJI O3 Air Unit for easy dat Areading.
GEPRC strives for the ultimate flight experience!
Specification:
Model: CL35 V2
Motor to Motor: 142mm
Top Plate: 2mm
Bottom Plate: 1.5mm
Arm Plate: 3.5mm
FC Mounting Hole: 25.5mm x 25.5mm
VTX Mouning Hole : 20mm x 20mm/25mm x 25mm
Motor Mounting Hole: 12mm x 12mm
Camer AInstallation Space: 20mm
Propeller Guard Internal Diameter: 95mm
Suitable Propeller Size: 3.5 inch propeller
Weight: 133.7g
Features:
Prop guard for DJI O3 Air Unit adds storage card and USB port for easy dat Areading.
Innovative camer Ashock-absorbing structure to fix the issue of lens IMU resonance and achieve the optimal anti-shake effect.
Battery installation method using Astrap with 7075 aluminum parts fixed, solid and stable.
Power cable using XT60E1-M plug and carbon plate integrated design, user-friendly.
Injection molding prop guard is tough and impact-resistant, and the connection between the frame and the carbon plate is strengthened with aluminum columns.
Package Included:
1x CL35 V2 Frame Kit
1 X Power XT60E1-M plug with cable
4 X Motor hub M7*15mm
3 X 5.8G VTX extension cable 80mm
7 X Heatshrink tube
1 X Naked GP Camer Abase mount( 1 X base mount, 2 X round head M2*12, 2 X press rivet nut M2)
4 X BEC pads
2 X Battery non-slip pads for Cinelog 35 v2
2 X Receiver Antenn AStick 100mm
1 X Battery strap M20*250
1 X Battery strap M20*220
1 X L-shaped screwdriver 1.5MM
1 X L-shaped screwdriver 2.0MM
1 X L-shaped screwdriver 3.0MM
