TEOSAW APEX DC5/DC5 Max 245mm & DC7/DC7 Max 340mm Deadcat Frame Kit for DJI O4 Pro FPV Racing Drones

Description

TEOSAW APEX DC5/DC5 Max 245mm 5 Inch / DC7/DC7 MAX 340mm 7 Inch Deadcat Frame Kit Compatible with DJI O4 Pro DIY FPV Racing Drones

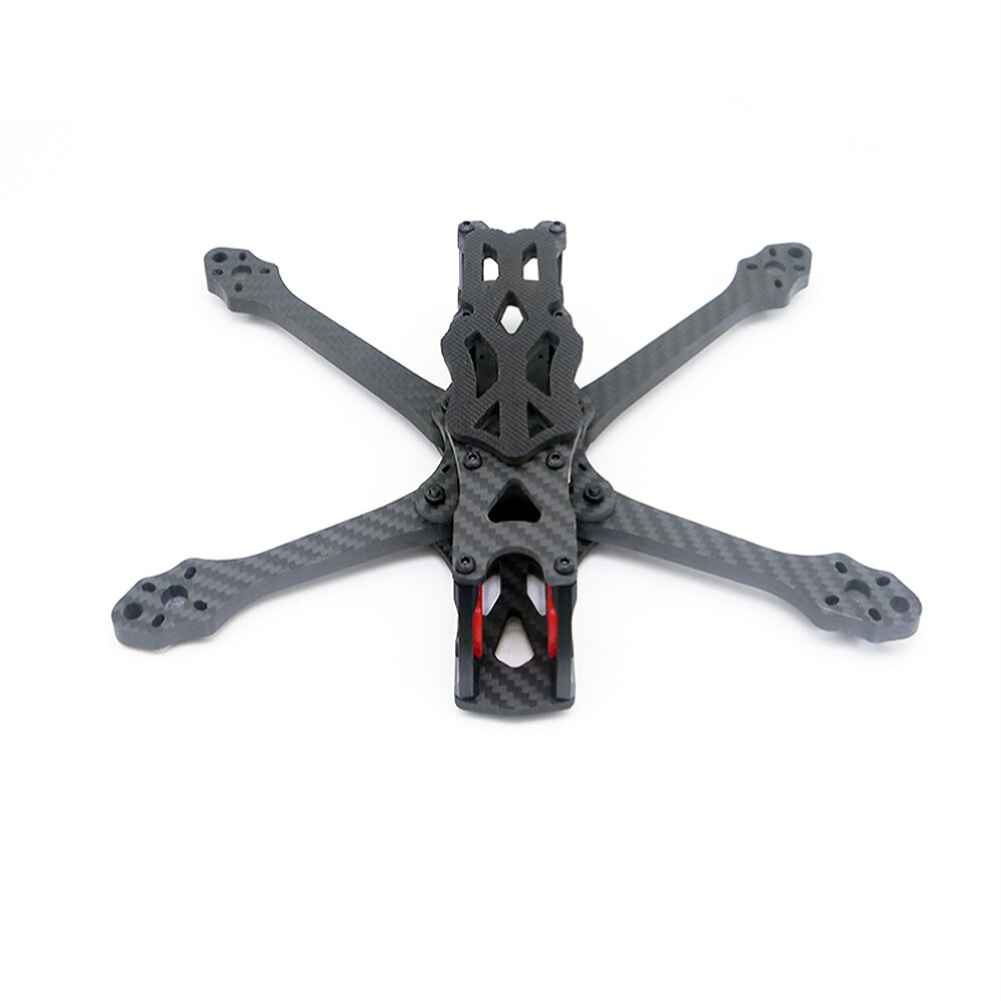

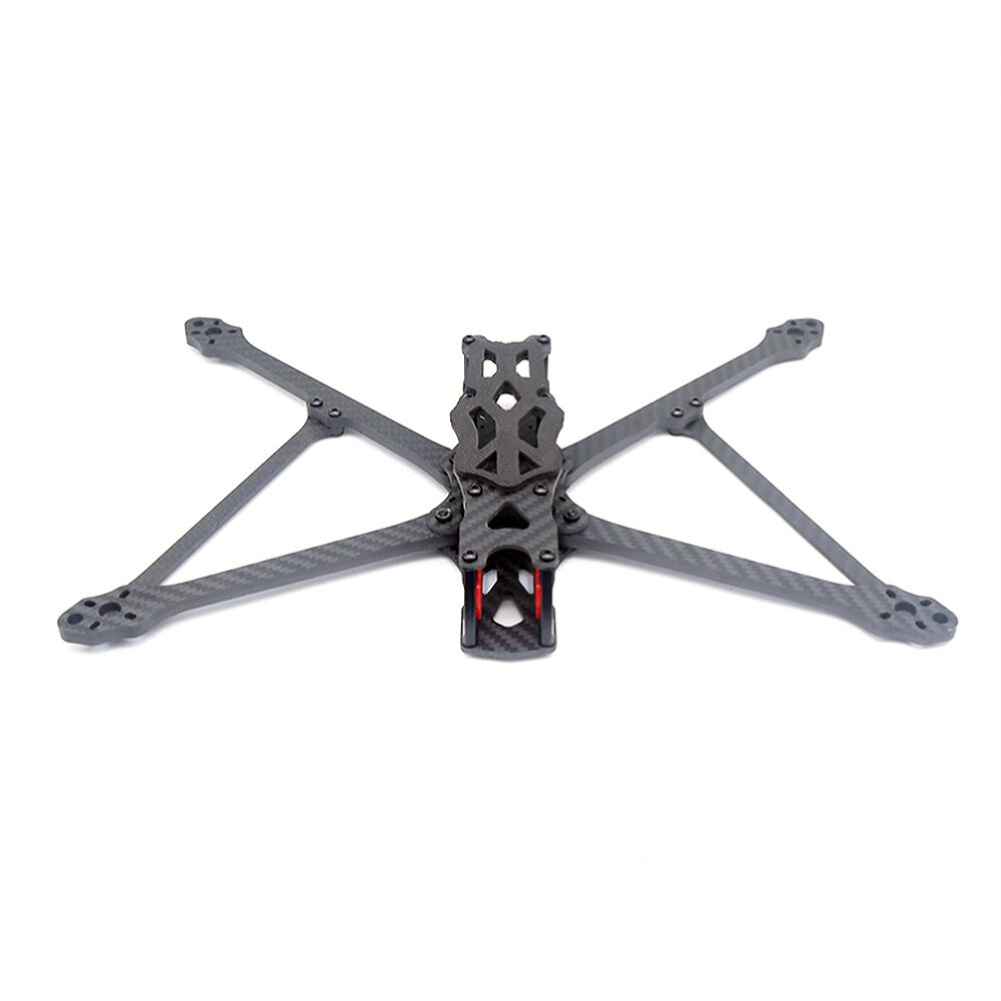

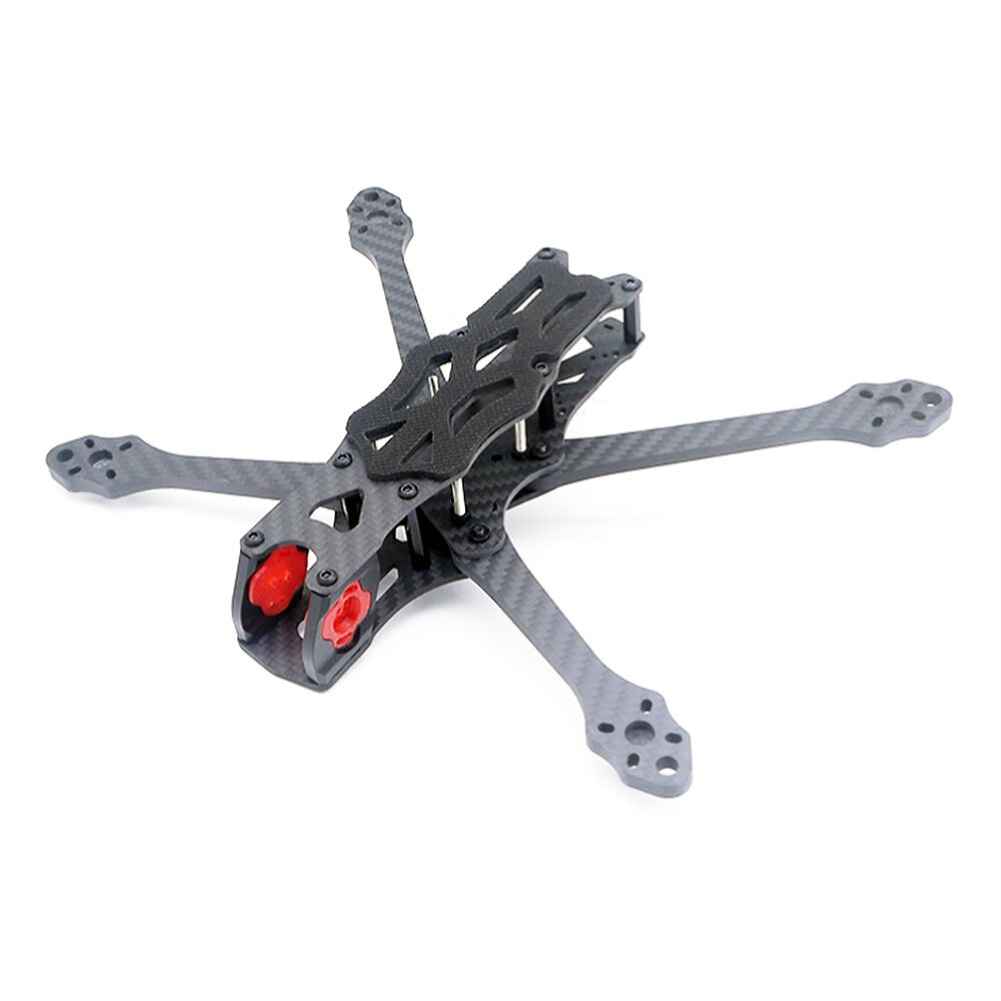

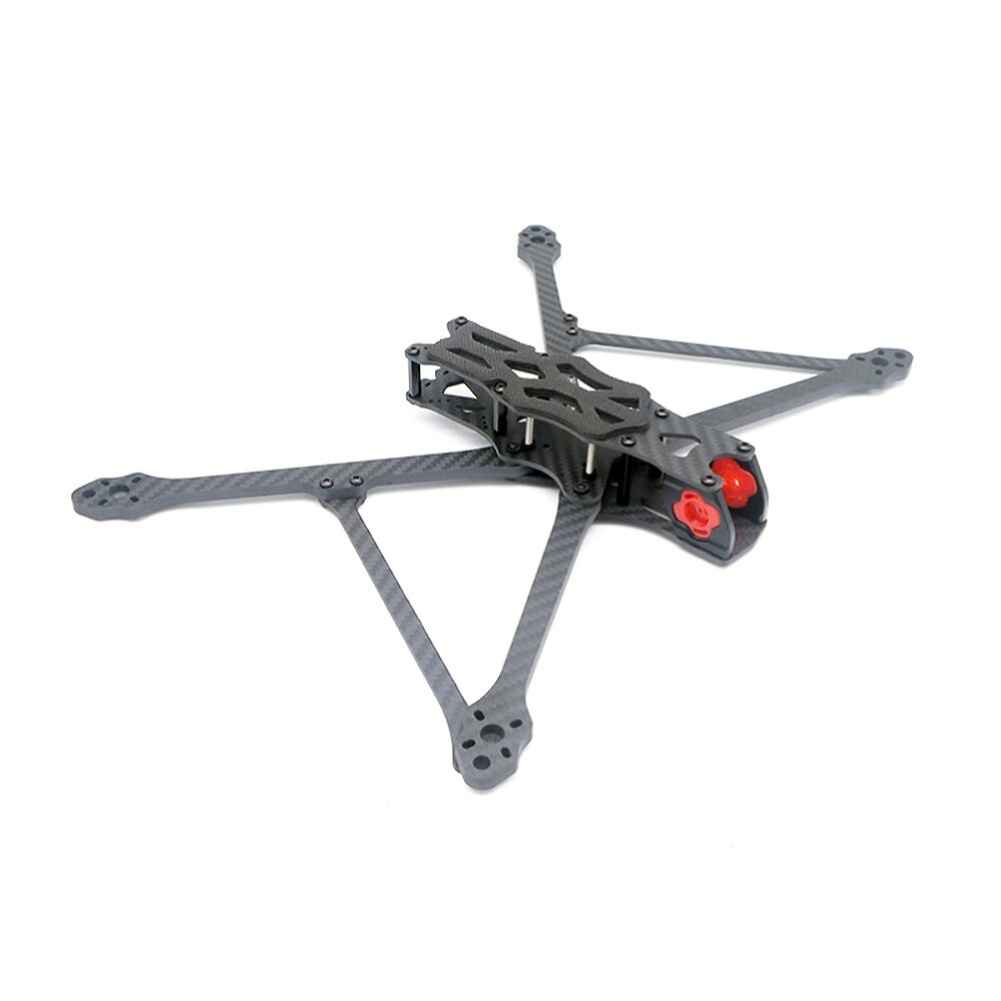

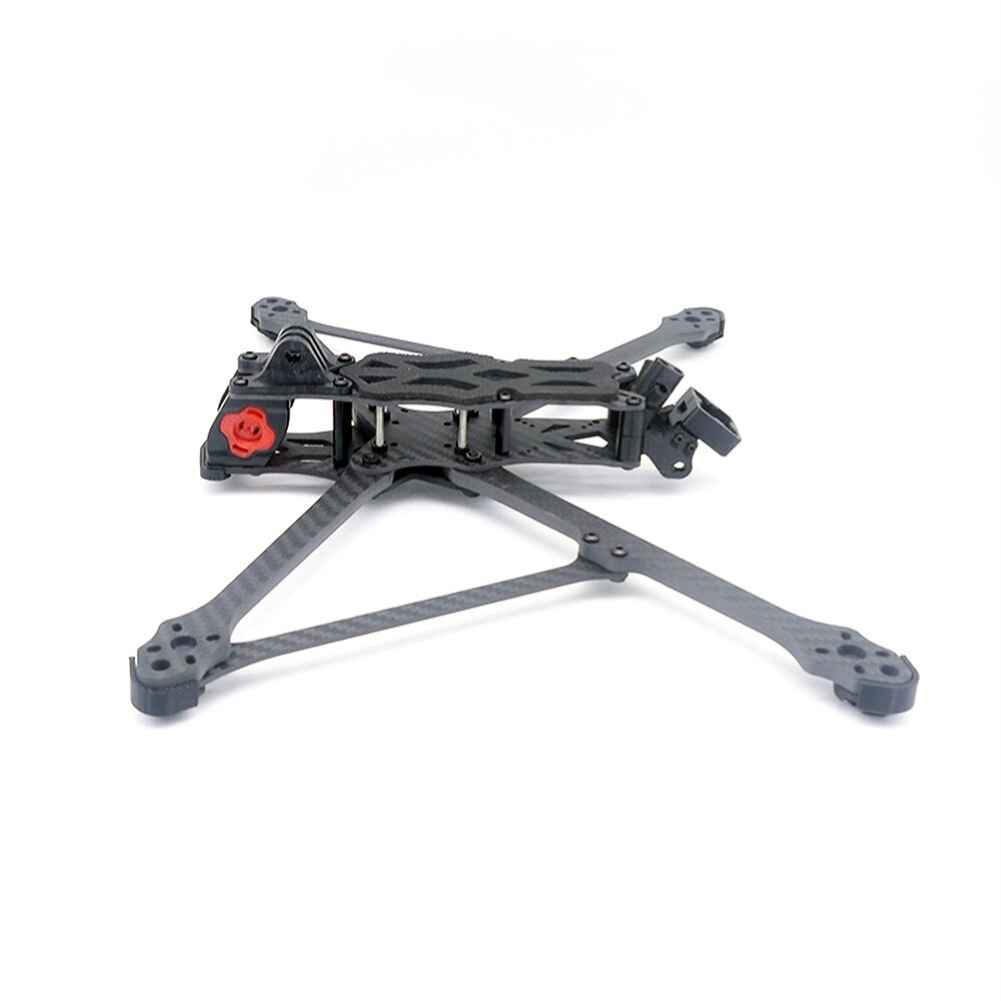

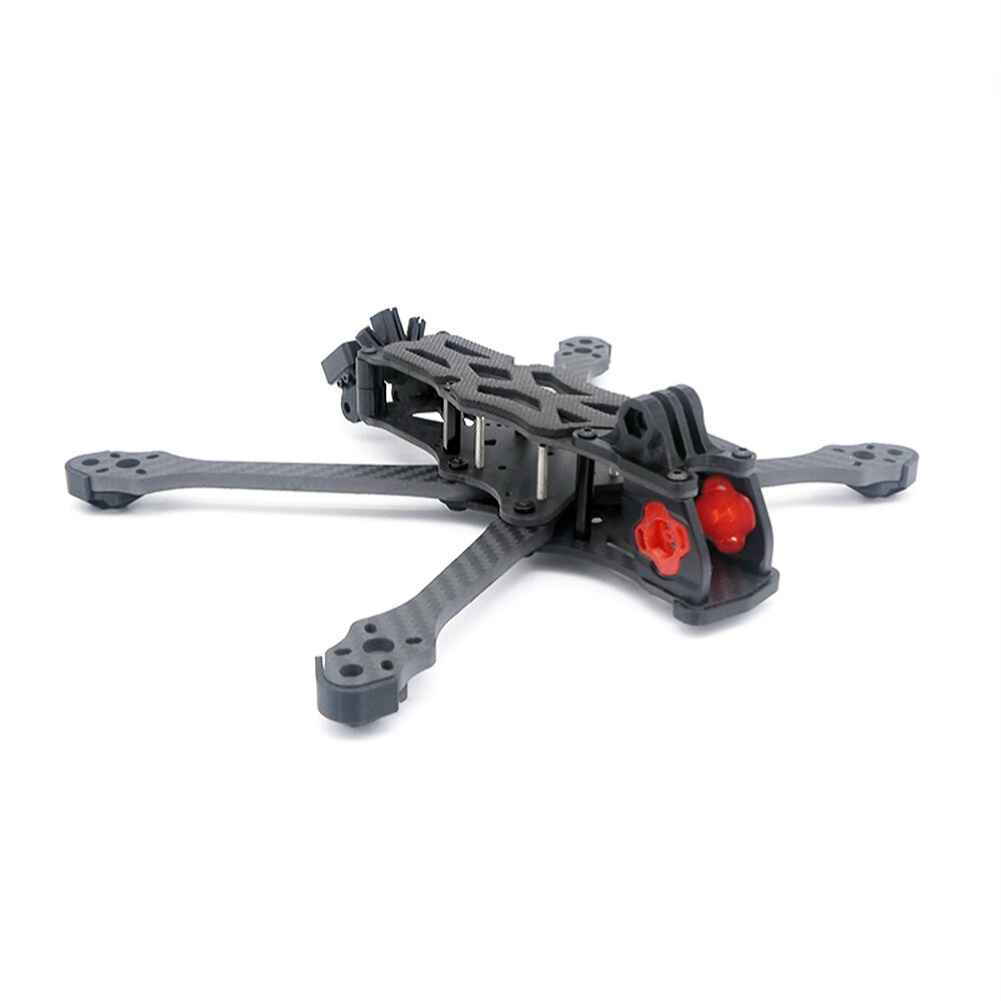

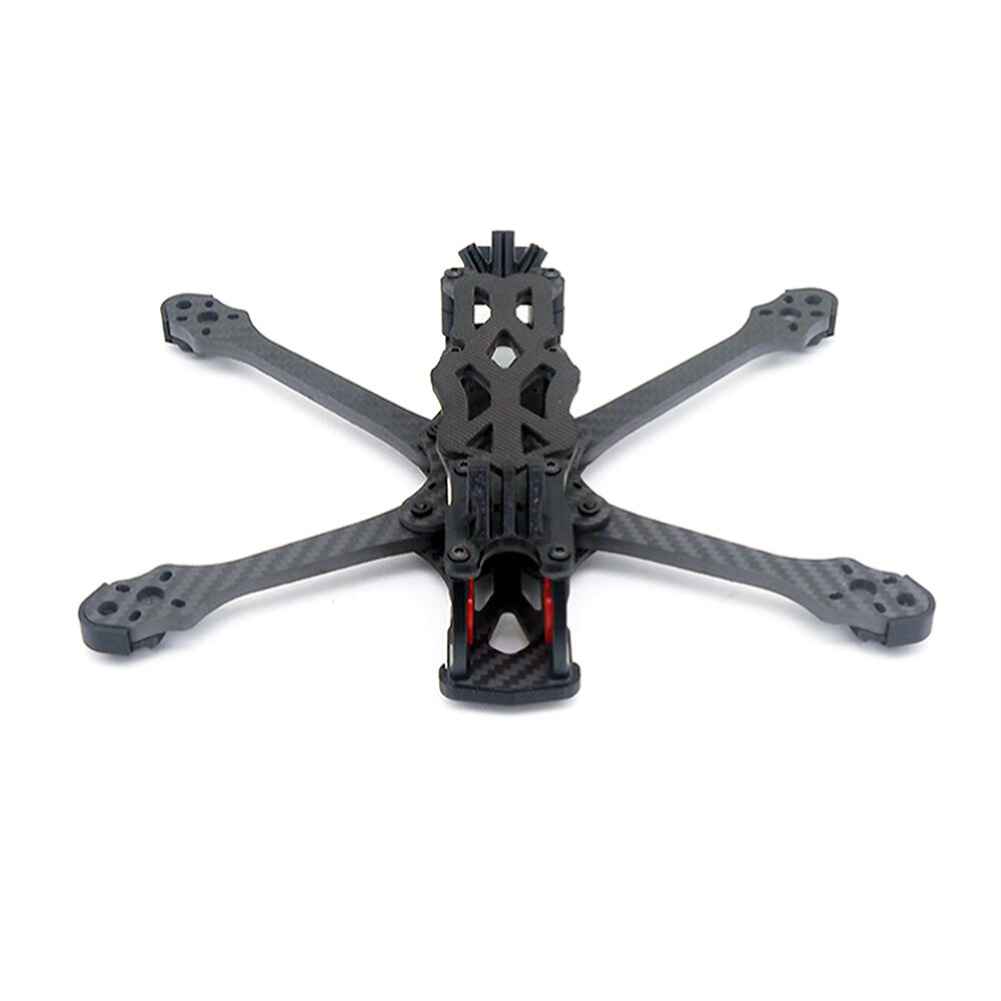

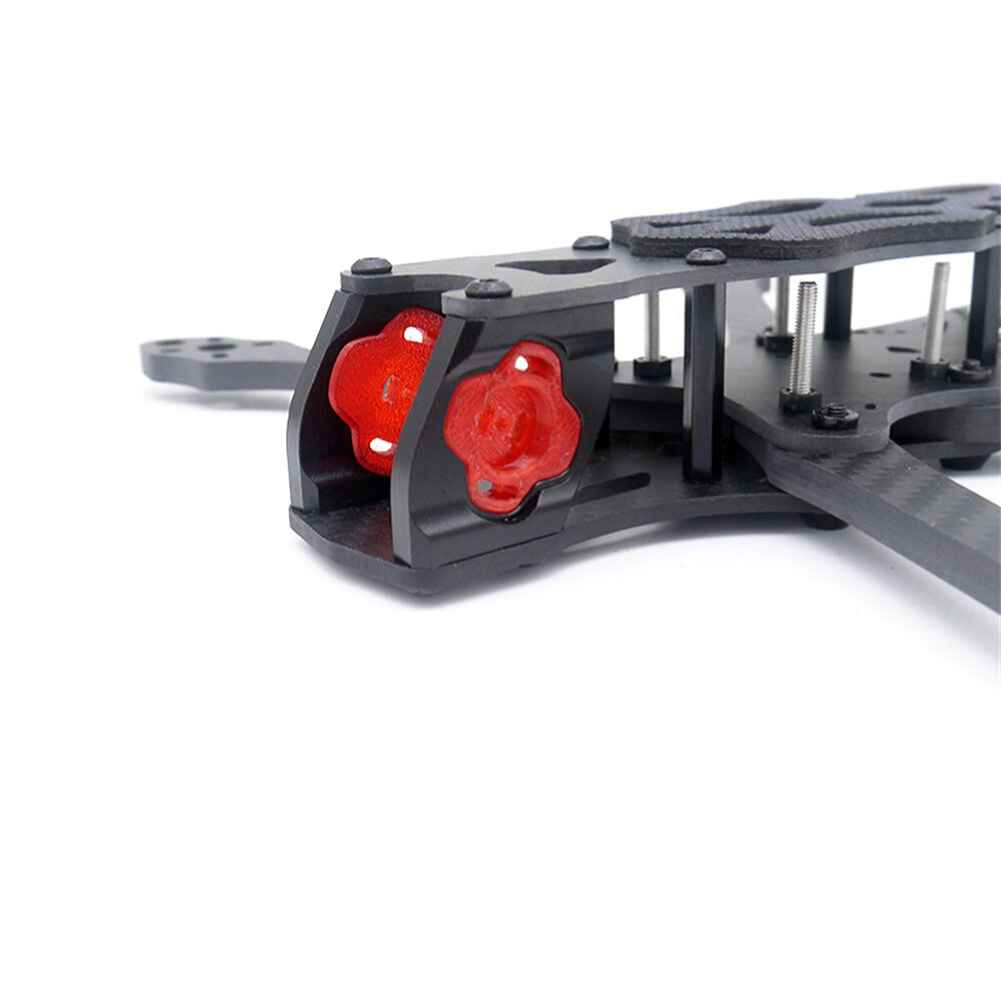

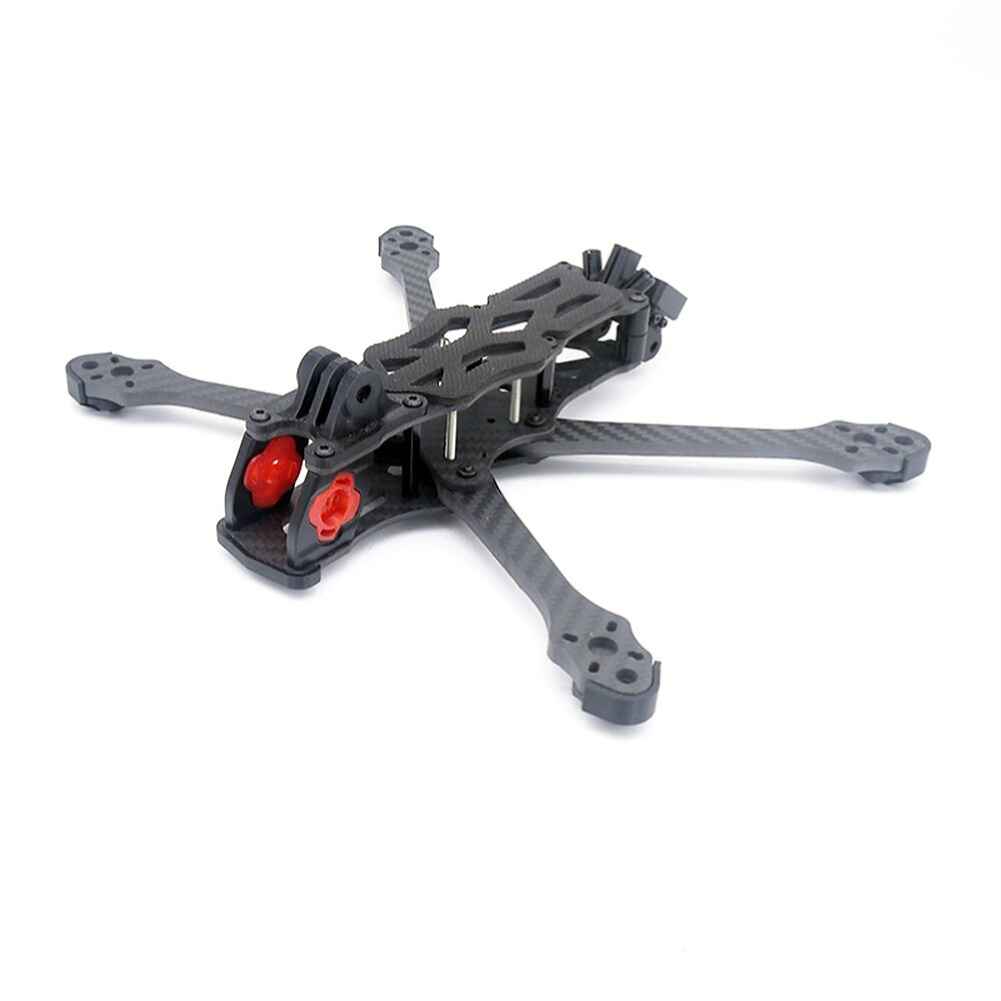

The TEOSAW APEX DC5/DC5 Max and DC7/DC7 Max Deadcat Frame Kit is designed for DIY FPV racing drones, compatible with DJI O4 Pro. This unassembled kit requires buyer assembly and features a robust DC structure with a 5.5mm arm thickness for durability. The mounting holes of the new DJI O4 Pro aluminum parts align with the old APEXEVO series, allowing for easy upgrades without changing the carbon fiber plate. The frame is compatible with 19mm-20mm lenses, including DJI O3 Air Unit and analog. The kit includes 3D printed TPU camera side panels and a 7075 magnesium aluminum alloy nose for enhanced performance.

Note:
– Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of 呼0.2mm. The size of the hole may have a standard manufacturing tolerance of 呼0.1mm.
– Comes unassembled. Need build by buyers.
– The mounting holes of the new (DJI O4 PRO version) aluminum parts are consistent with those of the old APEXEVO series (DJI O3 model). If you want to equip the old APEXEVO with DJI O4 PRO, you can replace the new aluminum parts (DJI O4 PRO version) without replacing the carbon fiber plate to adapt to the DJI O4 PRO lens. At the same time, the new aluminum parts are compatible with 19mm-20mm lenses such as DJI O3 Air Unit/analog.
Specification:
Brand: TEOSAW
Model: APEX D5 / D5 Max / D7 / D7 Max
Item Name: 5 Inch / 7 Inch Frame Kit

Model

APEX EVO DC5
侈Support O4 PRO佩

APEX EVO DC5 MAX
侈Support O4 PRO佩

APEX EVO DC7
侈Support O4 PRO佩

APEX EVO DC7 MAX 侈Support O4 PRO佩

Wheelbase:

245mm

340mm

Dimensions:

Approx.187mm(L)x230mm(W)x35mm(H) (excluding printed parts)

Approx.222mm(L)x309mm(W)x35mm(H) (excluding printed parts)

Weight:

Approx.151g

Approx.174g

Approx.179g

Approx.203g

Structure:

DC Structure

Thickness:

Arm 5.5mm, upper plate 2.0mm, bottom plate 2.5mm, splint 2.5mm

Material of the Nose:

7075 Magnsium Aluminum Alloy CNC

Camera Side Panel:

3D Printed Parts TPU

Material of Aluminum Column:

7075 Hexagonal Aluminum Column

Applicable Propeller Size:

5-5.1 inch

7 inch

Flight Control Hole Spacing:

20*20mm (M3), 30.5*30.5mm (M3)

Tail Image Transmission Installation Hole Spacing:

20*20mm (M2), 25.5*25.5mm (M2), 30.5*30.5mm (M3)

Camera Installation Width:

20mm/19mm (compatible with DJI O4 PRO/DJI O3 Air Unit/Analog, etc.)

Internal Height:

Approx. 20-28mm

Motor Installation Hole Spacing:

16*16mm (M3), 19mm*19mm (M3)

Applicable Image Transmission:

DJI O4 PRO/DJI O3 Air Unit/VISTA SKY Unit/Analog, etc.

Plate Material:

3K (T700 level)

Applicable GPS:

–

BZ181

–

BZ181

3D Printed Material and Color:

–

3D Printed TPU Material, Black

–

3D Printed TPU Material, Black
