TEOSAW APEX EVO X5/X5 MAX/X6/X6 MAX/X7/X7 MAX X Frame Kit for DJI O4 Pro FPV Racing Drones, 5-7 Inch

Description

TEOSAW APEX EVO X5/ X5 MAX 5 Inch / X6 /X6 MAX 6 Inch / X7/ X7 MAX 7 Inch X Frame Kit Compatible with DJI O4 Pro FPV Racing Drones

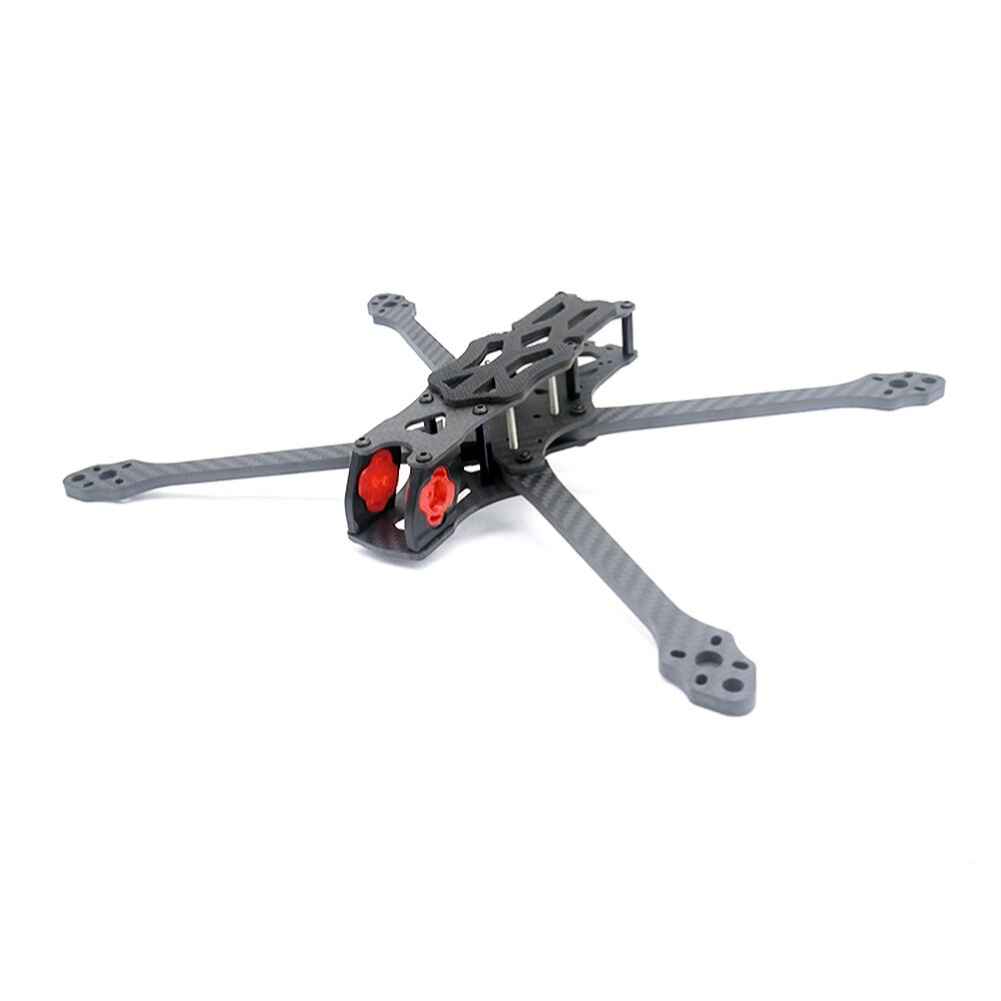

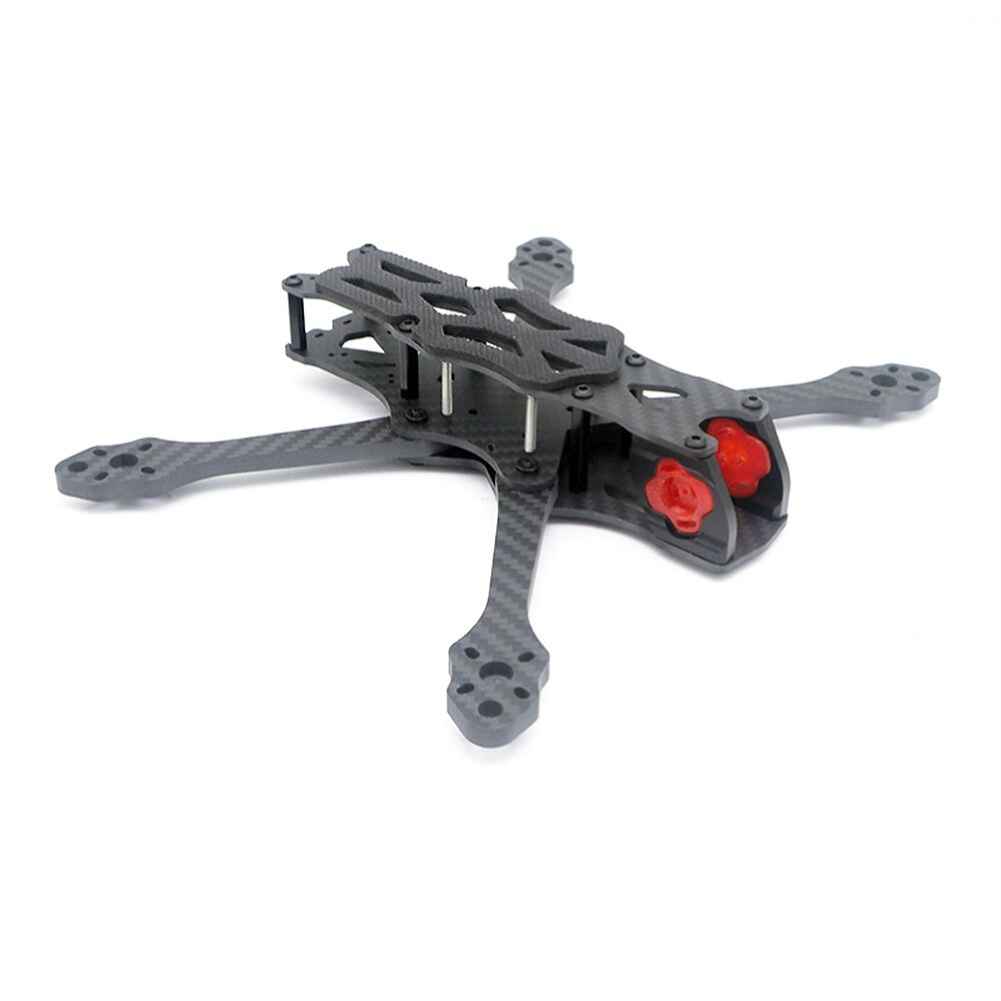

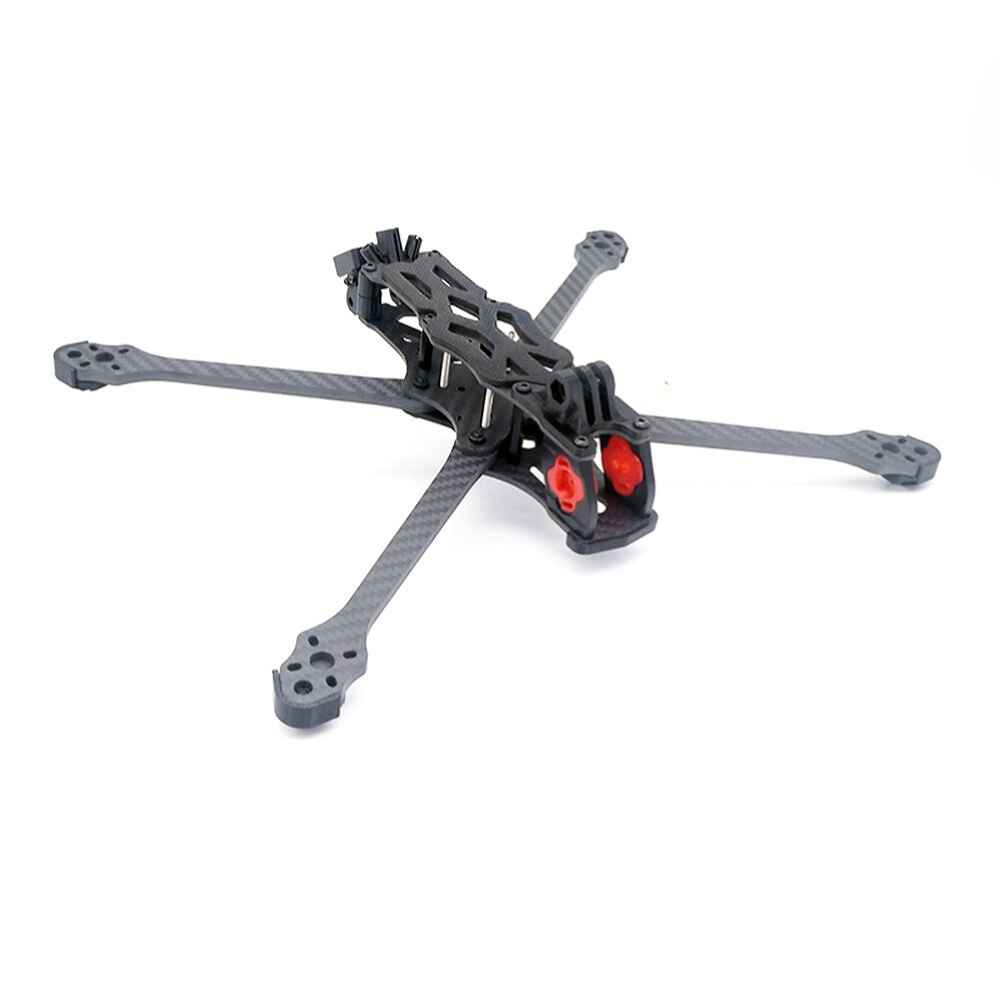

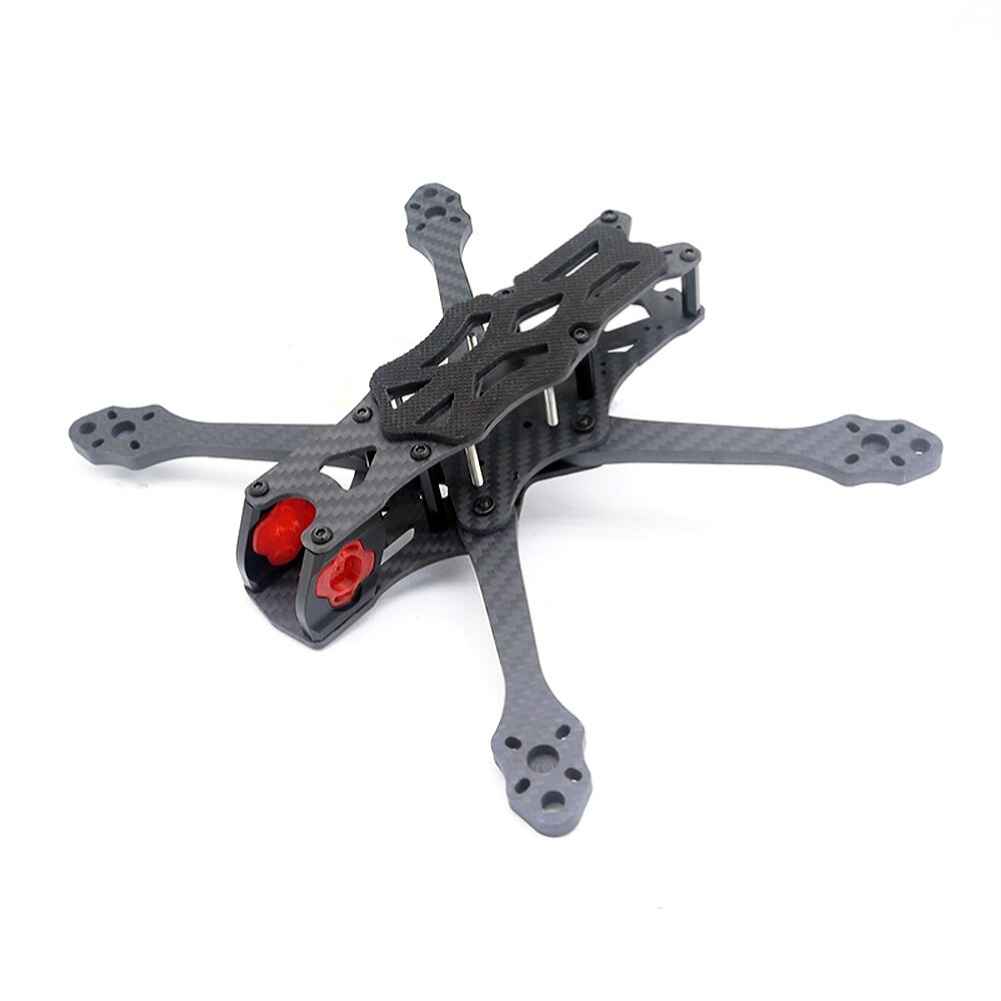

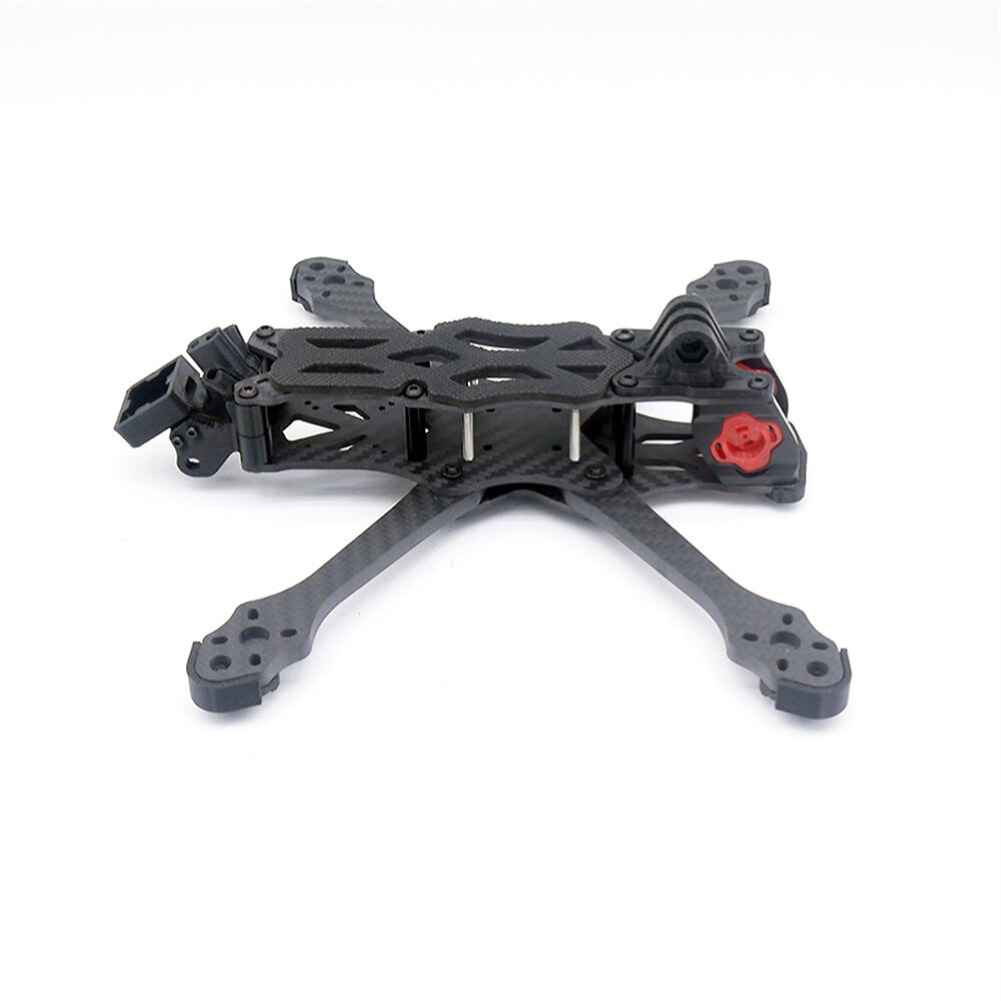

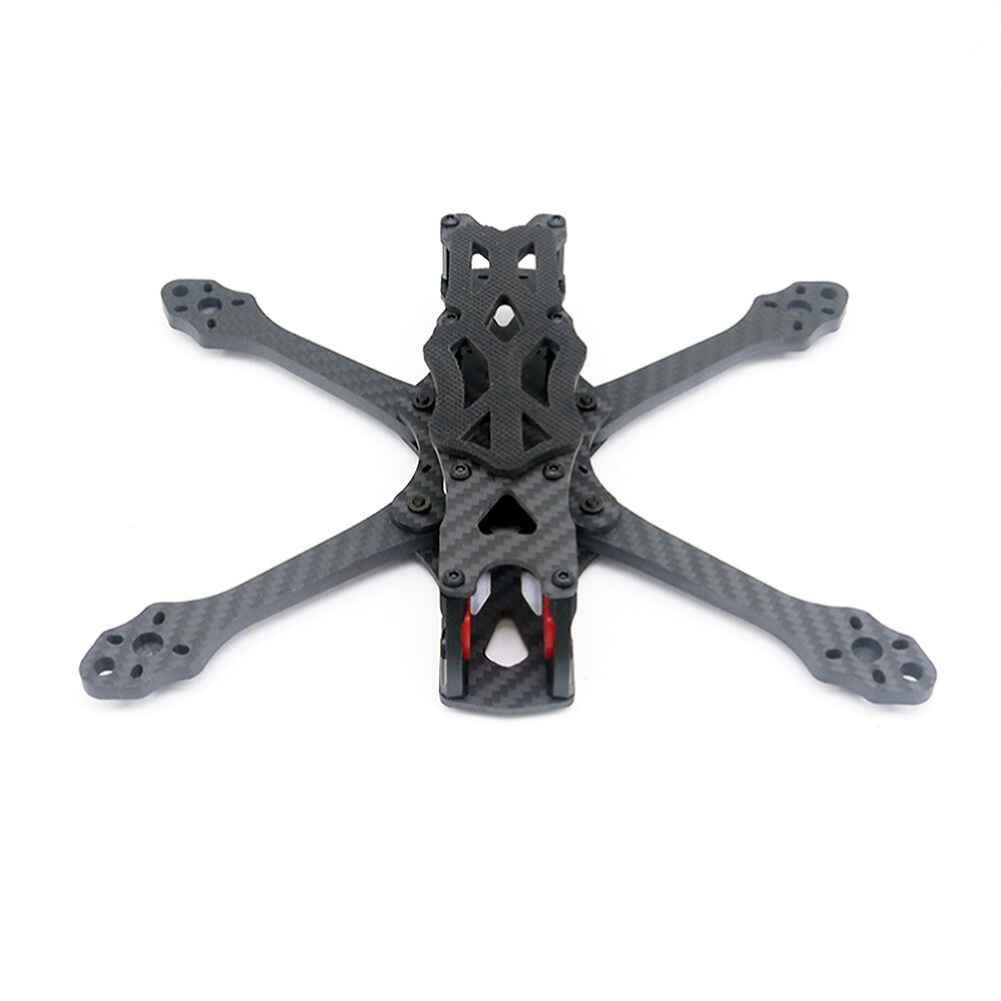

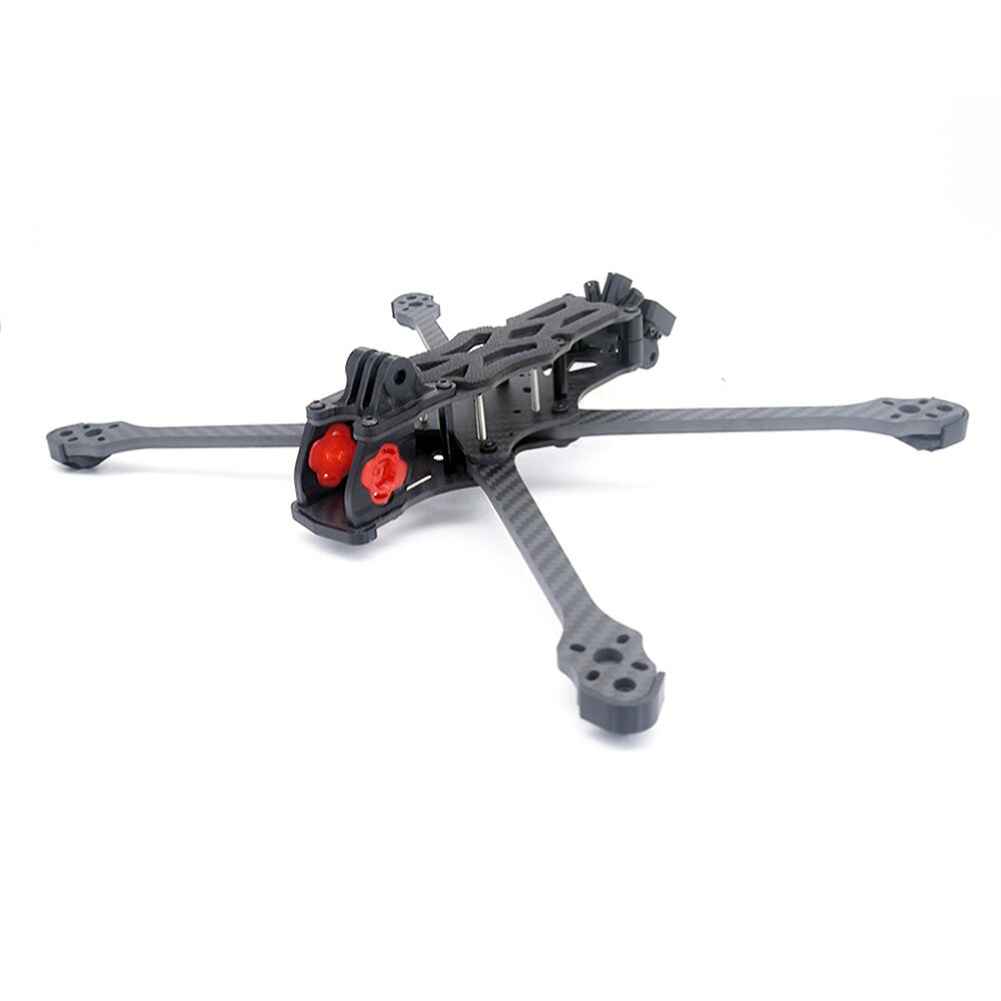

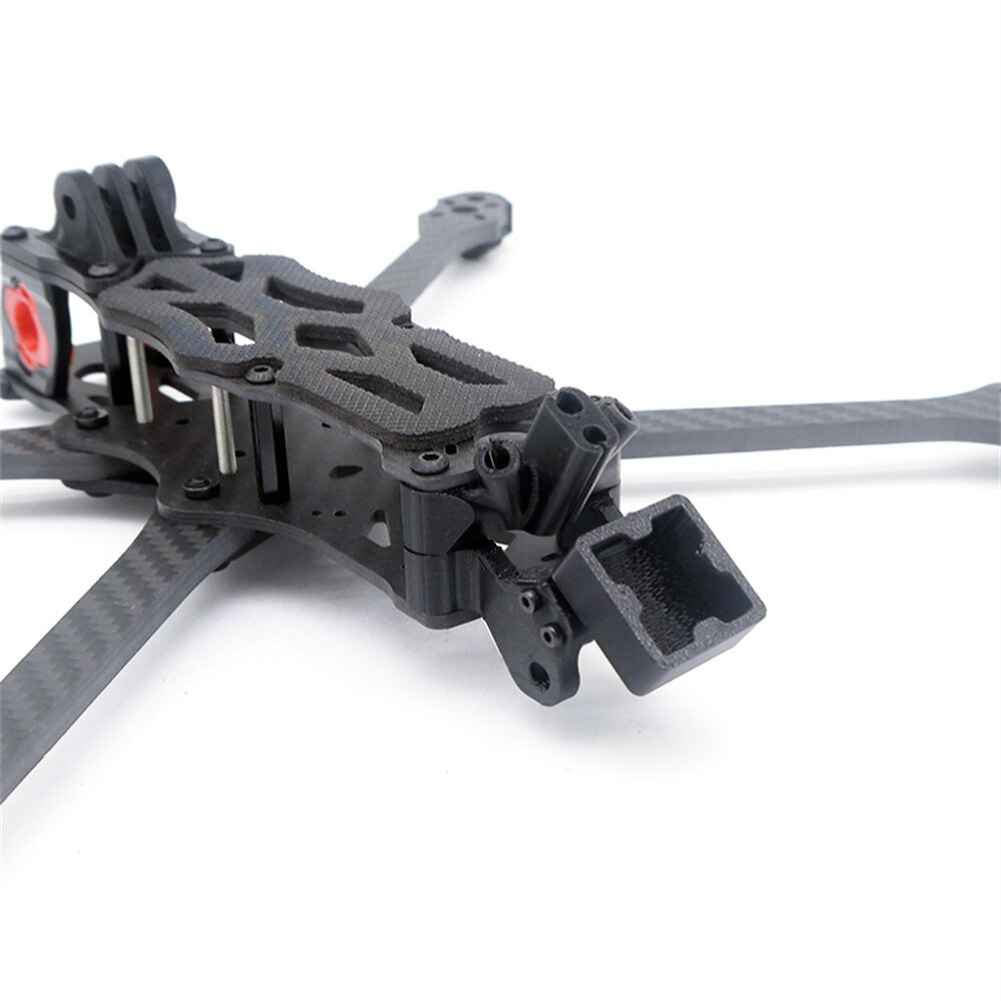

The TEOSAW APEX EVO X Frame Kit is designed for FPV racing drones, compatible with DJI O4 Pro. This kit supports multiple models including X5, X5 MAX, X6, X6 MAX, X7, and X7 MAX, accommodating 5 to 7-inch propellers. Made from high-quality 7075 magnesium aluminum alloy and 3K T700 level plate material, it offers durability and stability. The frame features an X-type split structure and comes unassembled for a customizable build. It includes precise hole spacing for flight control and motor installation, ensuring a seamless fit with various components like the DJI O4 PRO, DJI O3 Air Unit, and more. Ideal for hobbyists seeking a robust and adaptable drone frame.

Note:
– Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of 呼0.2mm. The size of the hole may have a standard manufacturing tolerance of 呼0.1mm.
– Comes unassembled. Need build by buyers.
Specification:
Brand: TEOSAW
Model: APEX EVO X5 / X5 Max / X6 / X6 Max / X7 / X7 Max
Item Name: 5 Inch / 6 Inch / 7 Inch Frame Kit

Model

APEX X5
(Support O4 Pro佩

APEX X5 MAX
(Support O4 Pro佩

APEX X6
(Support O4 Pro佩

APEX X6 MAX
(Support O4 Pro佩

APEX X7
(Support O4 Pro佩

APEX X7 MAX
(Support O4 Pro佩

Wheelbase:

225mm

275mm

315mm

Dimensions:

Approx. 165mm(L)x 213mm(W)x 35mm(H)(without printout)

Approx. 189mm(L) x 253mm(W)x 35mm(H)(without printout)

Approx. 212mm(L)x 286mm(W)x 35mm(H)(without printout)

Weight:

Approx.152g

Approx.175g

Approx.159g

Approx.182g

Approx.166g

Approx.189g

Structure:

X-type Split

Thickness:

Arm 5.5mm, upper plate 2.0mm, bottom plate 2.5mm, splint 2.5mm

Material of the Nose:

7075 Magnsium Aluminum Alloy CNC

Camera Side Panel:

3D Printed Parts TPU

Material of Aluminum Column:

7075 Hexagonal Aluminum Column

Applicable Propeller Size:

5-5.1 inch

6 inch

7 inch

Flight Control Hole Spacing:

20*20mm (M3), 30.5*30.5mm (M3)

Tail Image Transmission Installation Hole Spacing:

20*20mm (M2), 25.5*25.5mm (M2) 30.5*30.5mm (M3)

Camera Installation Width:

20mm/19mm (compatible with DJI O4 PRO/DJI O3 Air Unit/Analog, etc.)

Internal Height:

Approx. 20-28mm

Motor Installation Hole Spacing:

16*16mm (M3), 19mm*19mm (M3)

Applicable Image Transmission:

DJI O4 PRO/DJI O3 Air Unit/VISTA SKY Unit/Analog, etc.

Plate Material:

3K (T700 level)

Applicable GPS:

–

BZ181

–
