Description

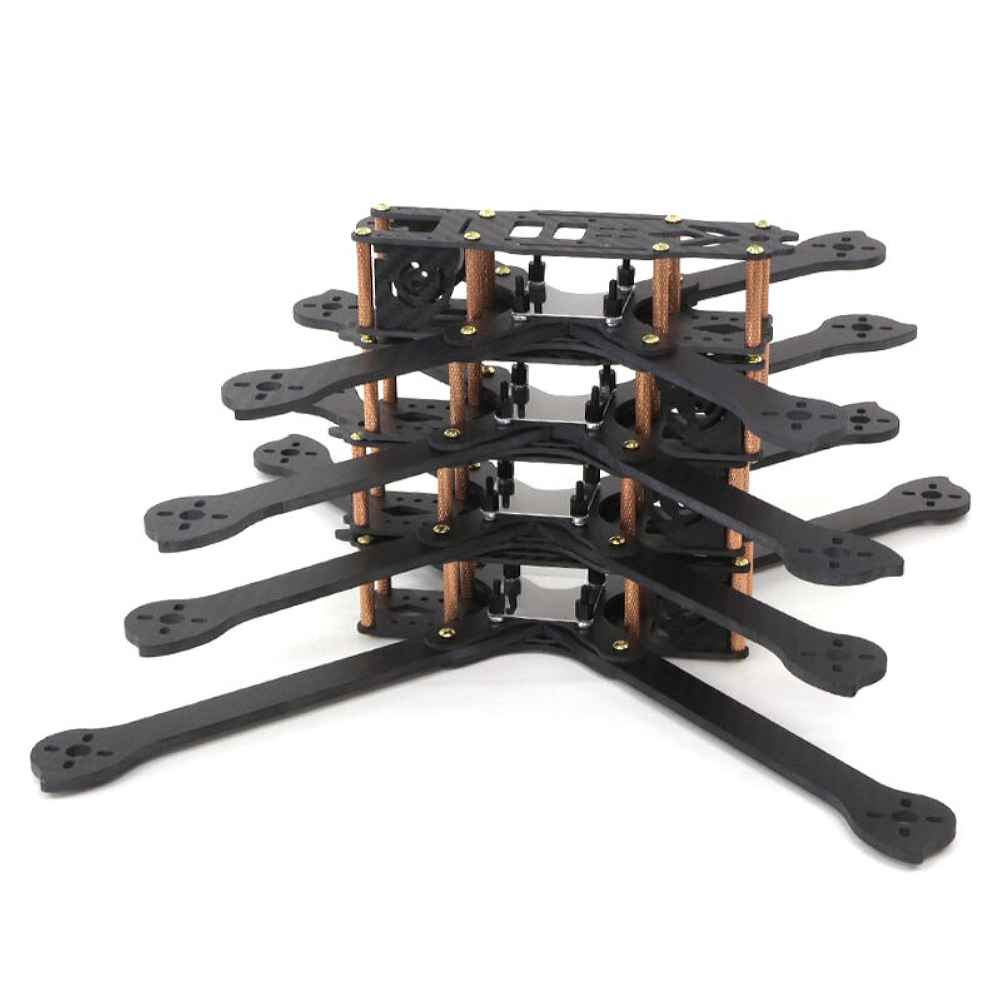

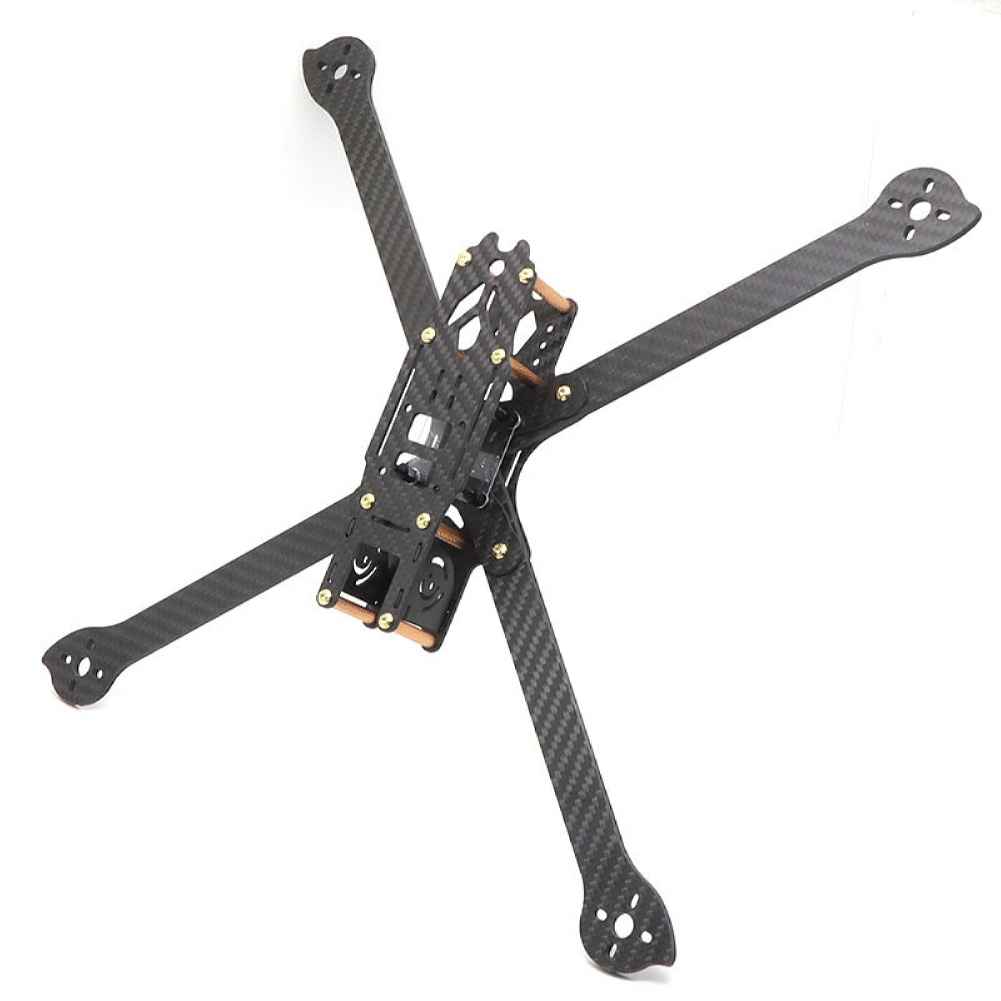

HSKRC XL5/6/7/8/9 232/283/294/360/390mm Carbon Fiber FPV Racing Frame kit for RC Drone
The HSKRC XL5/6/7/8/9 Carbon Fiber FPV Racing Frame Kit is expertly designed for RC drone enthusiasts. With wheelbases ranging from 232mm to 390mm, this frame kit offers versatility for various drone sizes. Constructed from durable carbon fiber and reinforced with aluminum columns, it ensures robust performance. The frame features a 4mm arm board and a 2mm center board, providing stability and support. It accommodates a 28mm camera installation distance and a 23mm frame space, supporting a two-board flytower. Compatible with F3/F4 flight controllers, this frame kit is ideal for propellers ranging from 5 to 9 inches, and motors from 2204 to 2306. Recommended for use with 20A to 60A ESCs and batteries from 1550mAh to 3300mAh.
HSKRC XL5/6/7/8/9 232/283/294/360/390mm Carbon Fiber FPV Raicng Frame kit for RC Drone
Specification:
Brand name: HSKRC
Item name: XL5/6/7/8/9 Frame kit
Wheelbase: 232/283/294/360/390mm
Meterial: Carbon Fiber + Aluminum column
Arm board: 4mm
Center board: 2mm
Camera install distance: 28mm
Frame Space: 23mm (Support 2 board flytower)

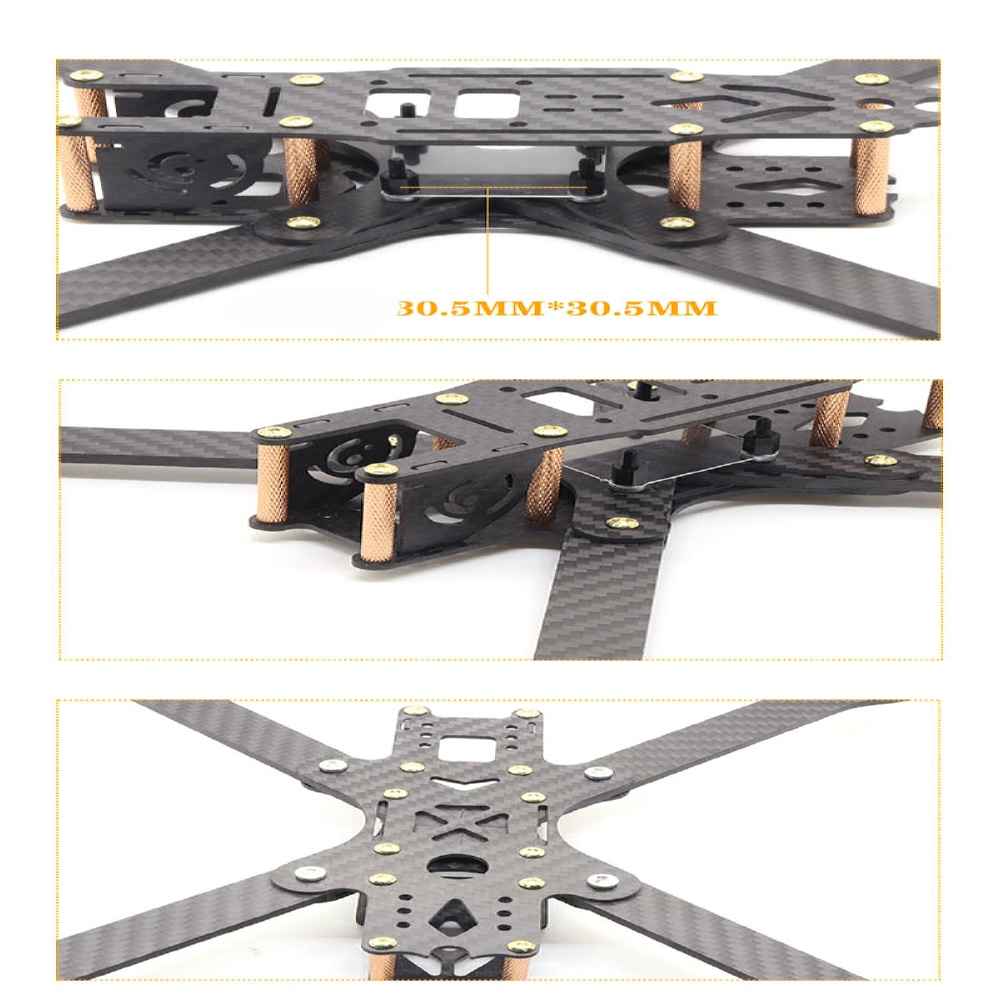

Flight Controller: F3/F4 30.5×30.5mm install hole
Frame Arm Spare Parts, Click here.

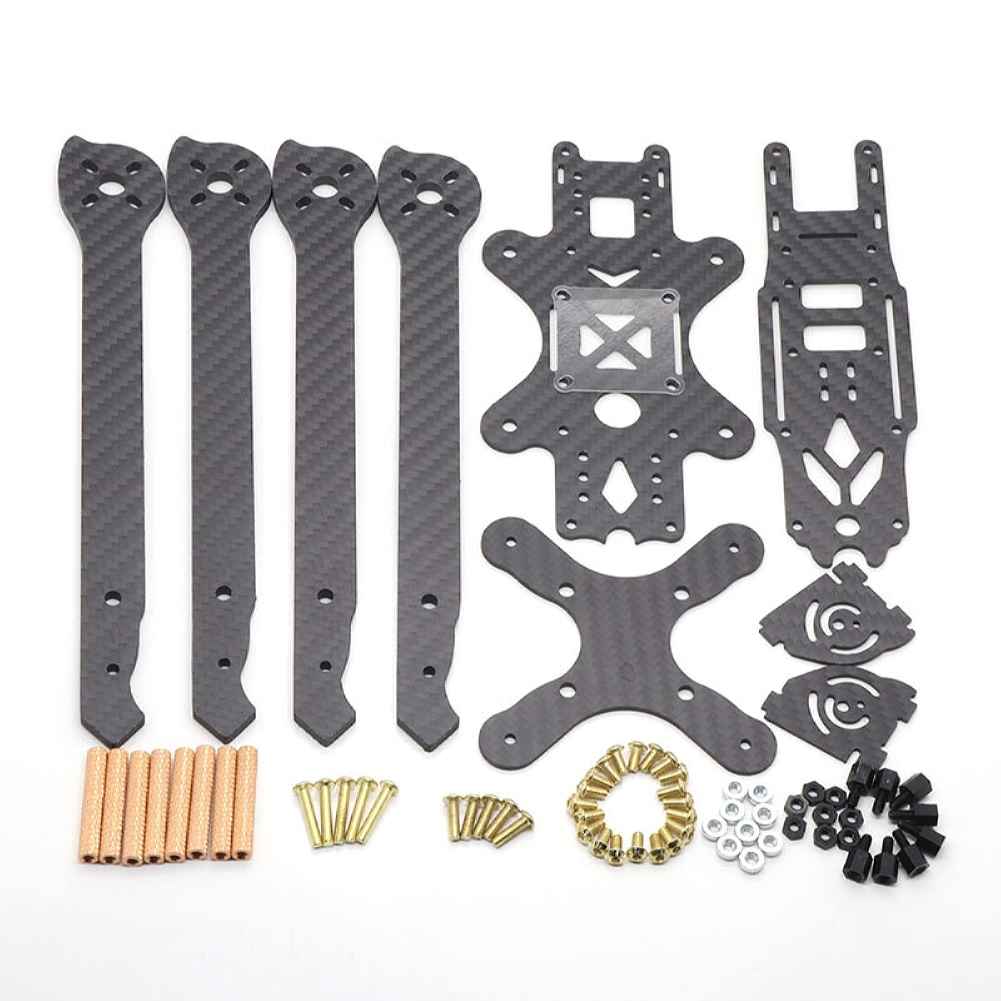

Package Included:
4 x Frame Arm
1 x 2mm Center board
8 x Aluminum column 30mm
5 x M3 6 screws
5 x M3 10 screws
20 x M3 6 screws
8 x M3 6+6 Nylon column
1 x Flight Controller insulation Plate
