Description
APEX HD 5 Inch 225mm Carbon Fiber Frame Kit 5.5mm Arm for DIY FPV Freestyle RC Racing Drone

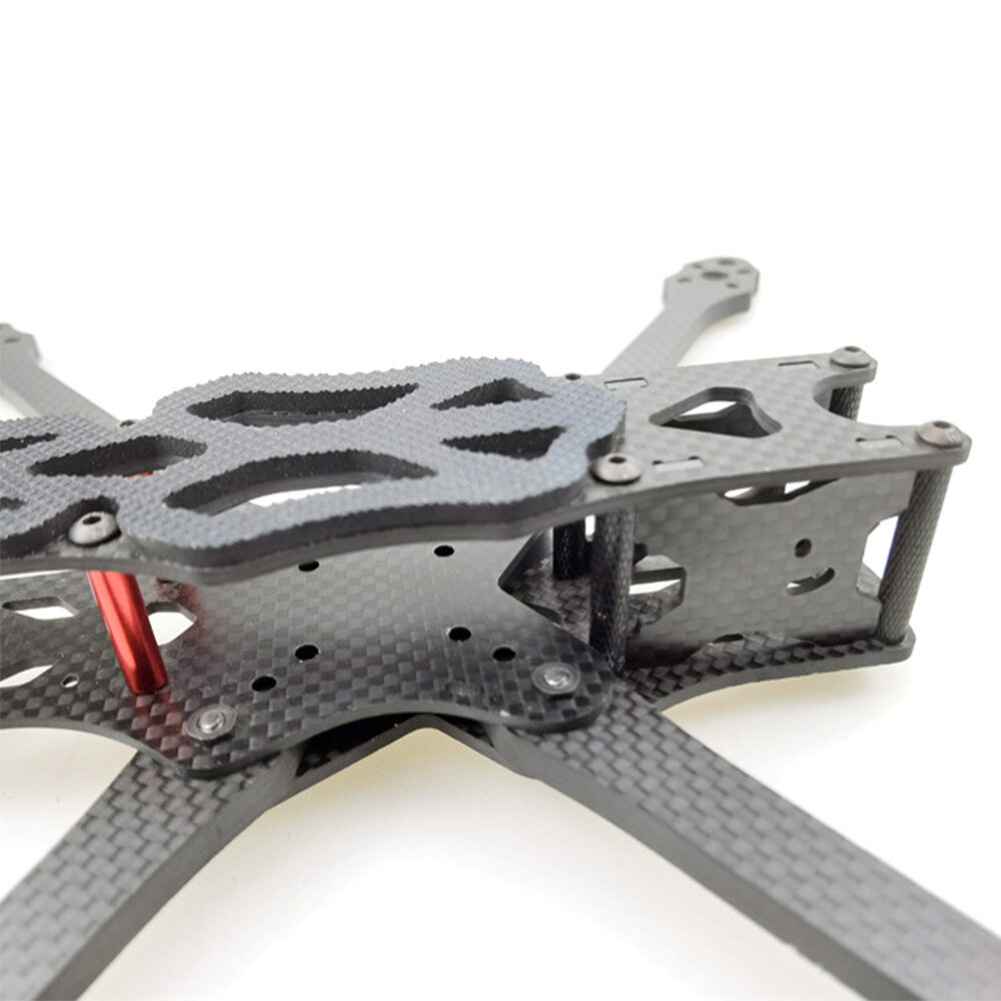

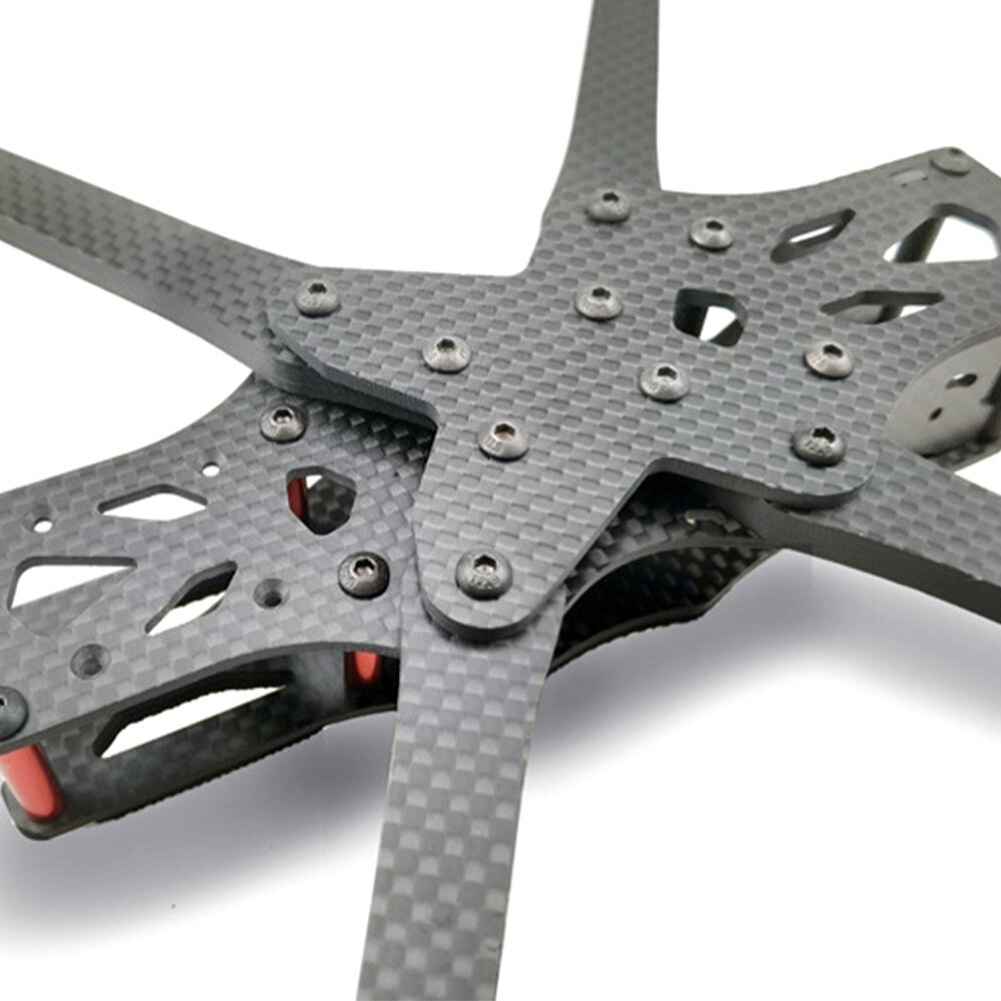

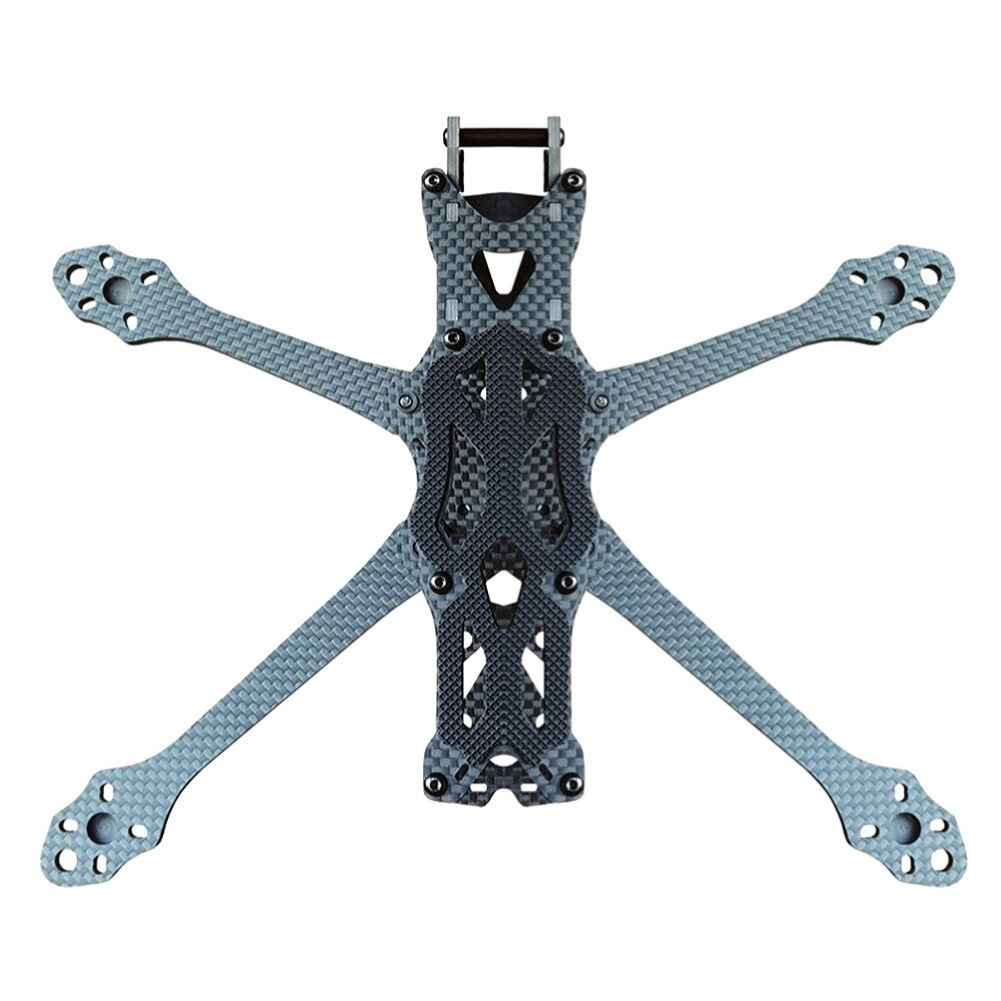

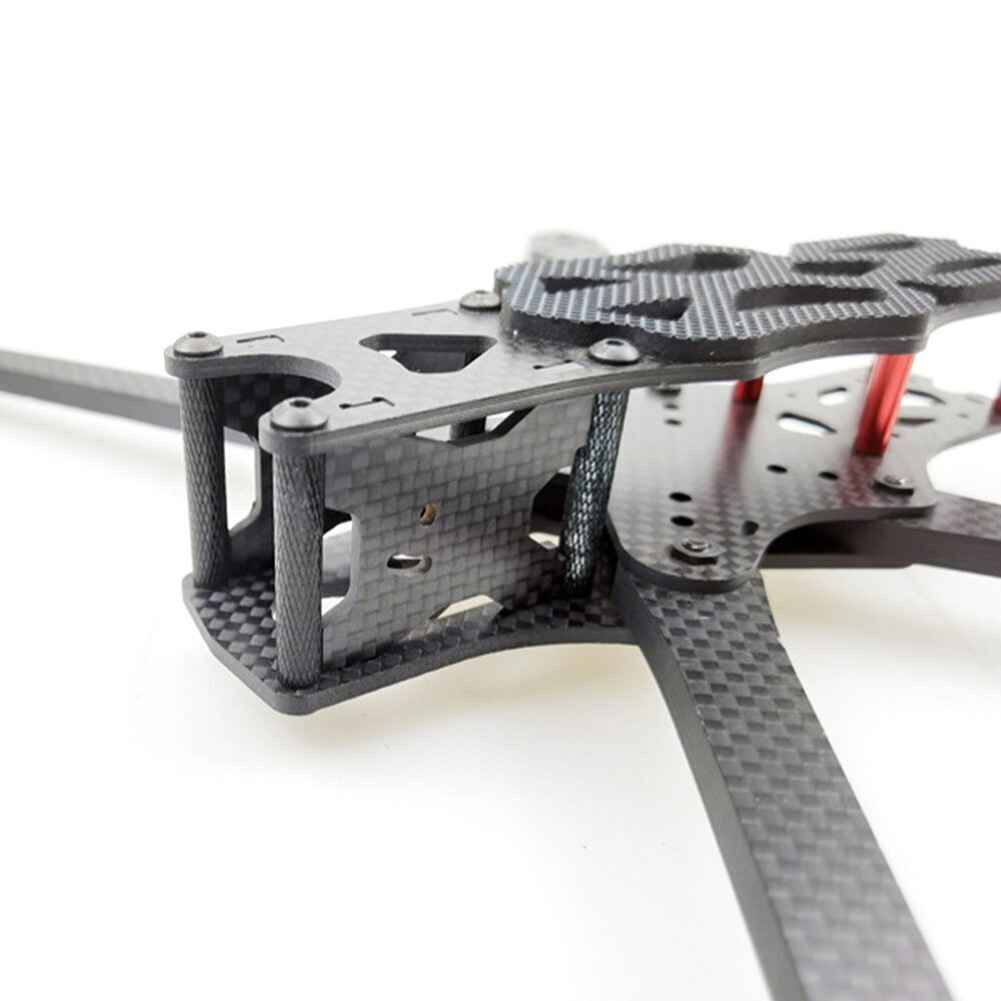

The APEX HD 5 Inch Frame Kit is designed for DIY FPV freestyle RC racing drones, offering a robust carbon fiber construction. With a wheelbase of 225mm and a frame type of H, this kit supports 5-inch propellers. It features a frame size of 135mm x 180mm and weighs 125g. The base plate is 2.5mm thick, while the medium and top plates are 2.0mm thick. The arms are 5.5mm thick, ensuring durability. It accommodates a camera installation distance of 22mm and is compatible with VTX and flight control installation hole distances of 30.5mm and 20mm. Recommended components include a 20x20mm or 30.5×30.5mm F4/F7 flight controller, 2204 to 2307 brushless motors, and a 3-6S 1500-2200mAh Lipo battery.
Specifications:
Model: APEX 5
Recommend Parts: ( NOT Included)
Flight controller : 20x20mm OR 30.5×30.5mm F4 / F7 Flight Controller
Brushless Motor: 2204/ 2205 / 2206 / 2207 / 2305 / 2306 / 2307 ( 16x16mm OR 19x19mm Mounting Hole)
ESC: 20-50A
Battery: 3-6S 1500-2200mAh Lipo
The Following Parts are Compatible: ( NOT Included)

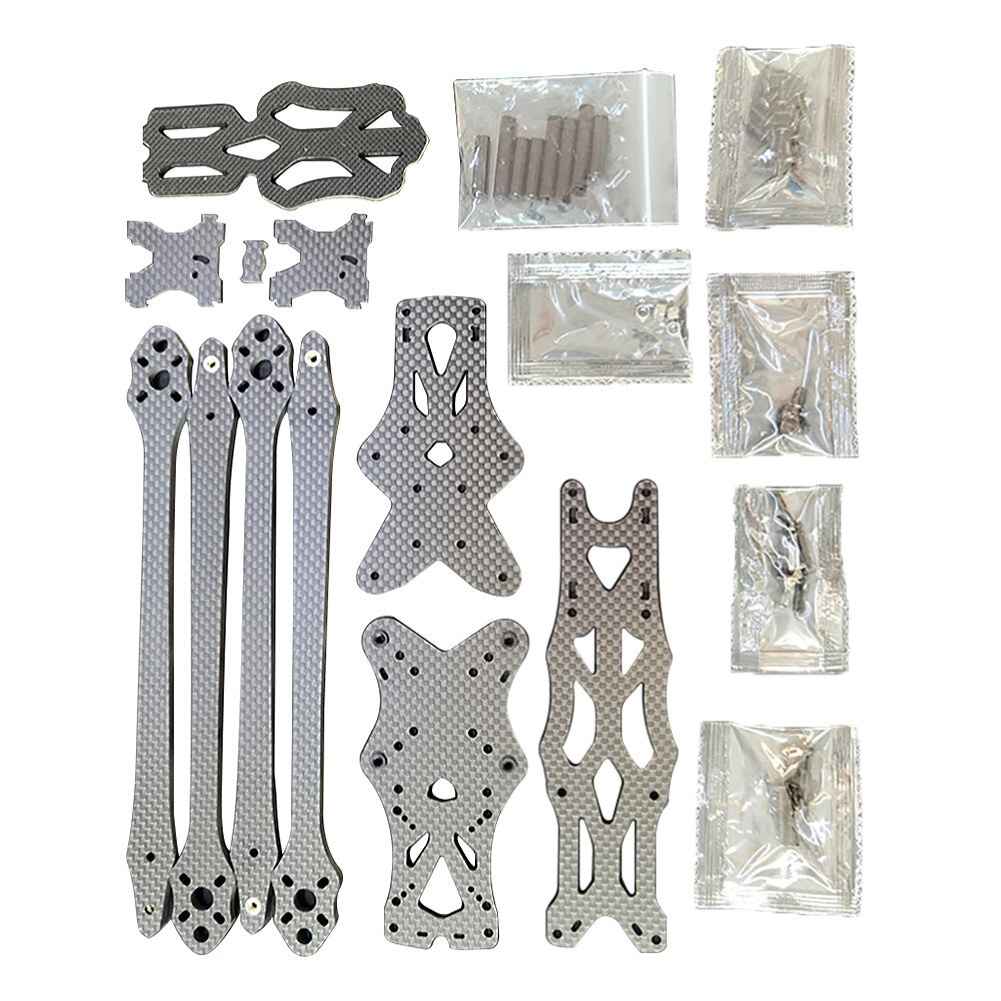

Package Included:
1 x Frame Kit
