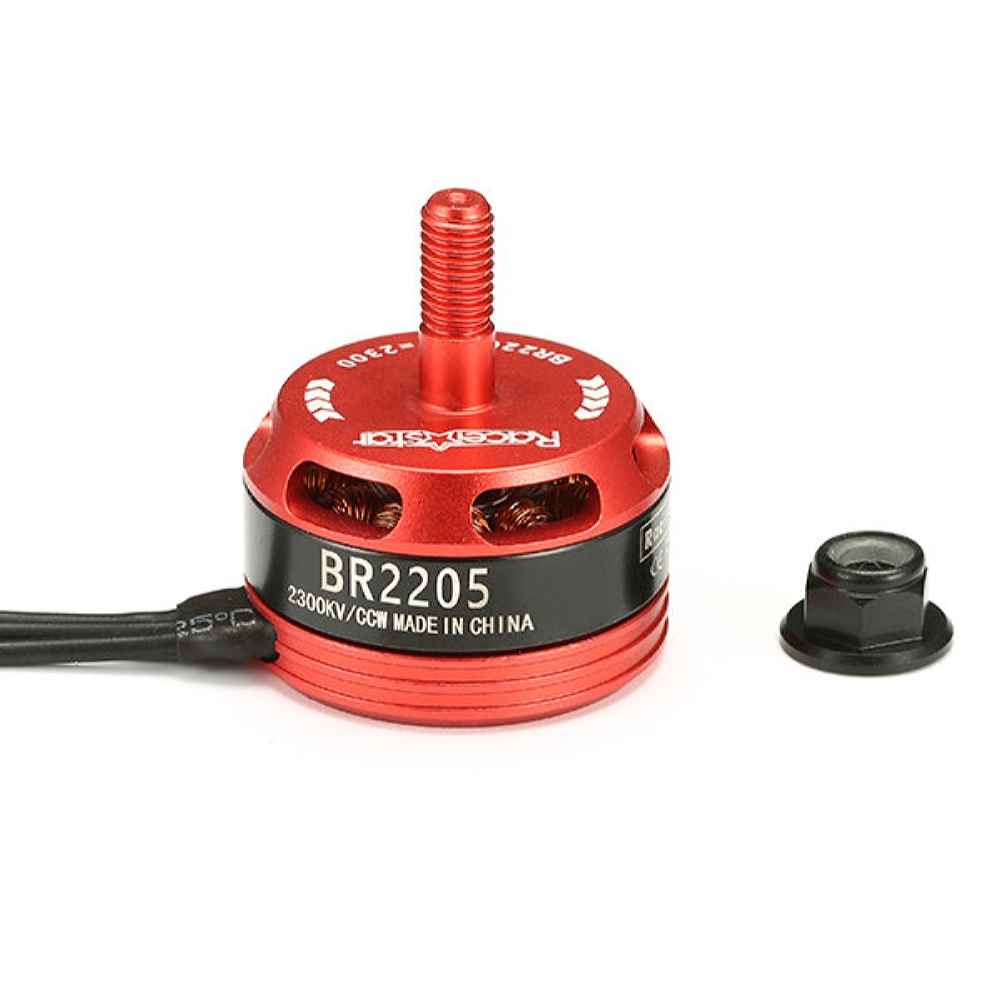

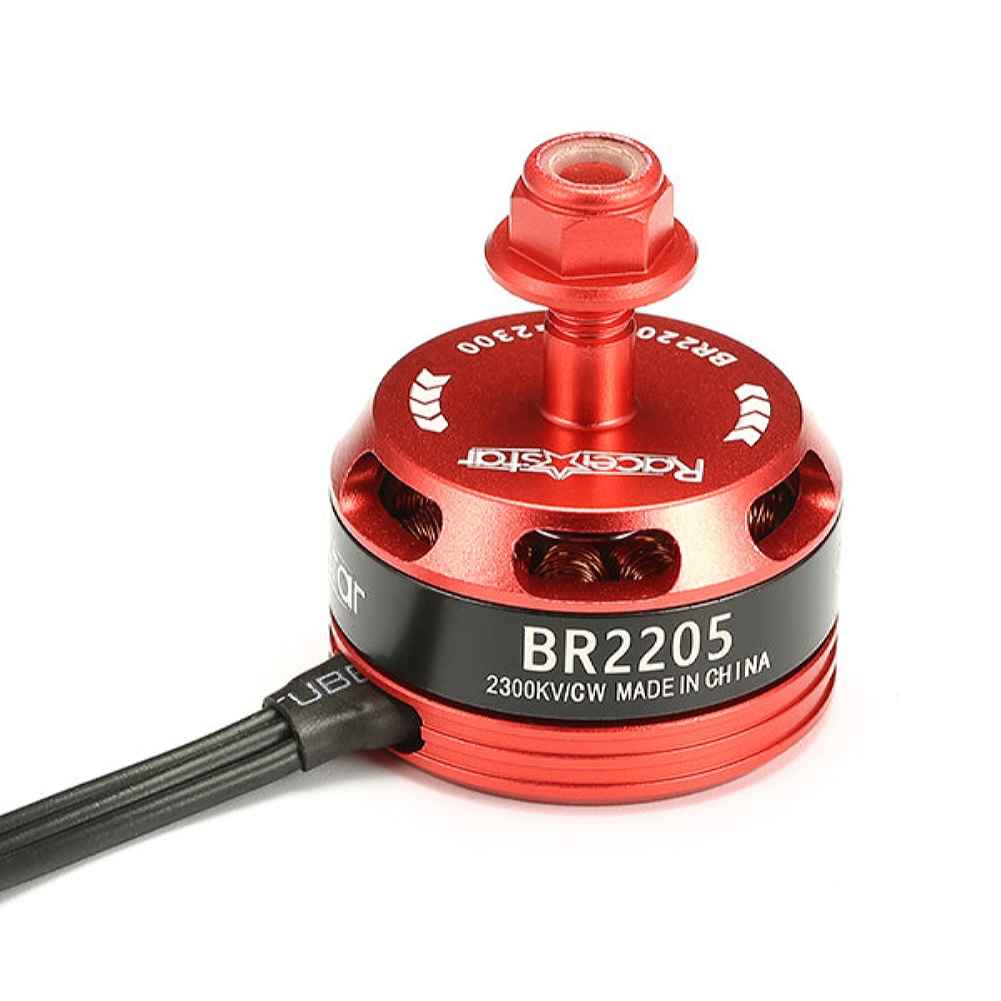

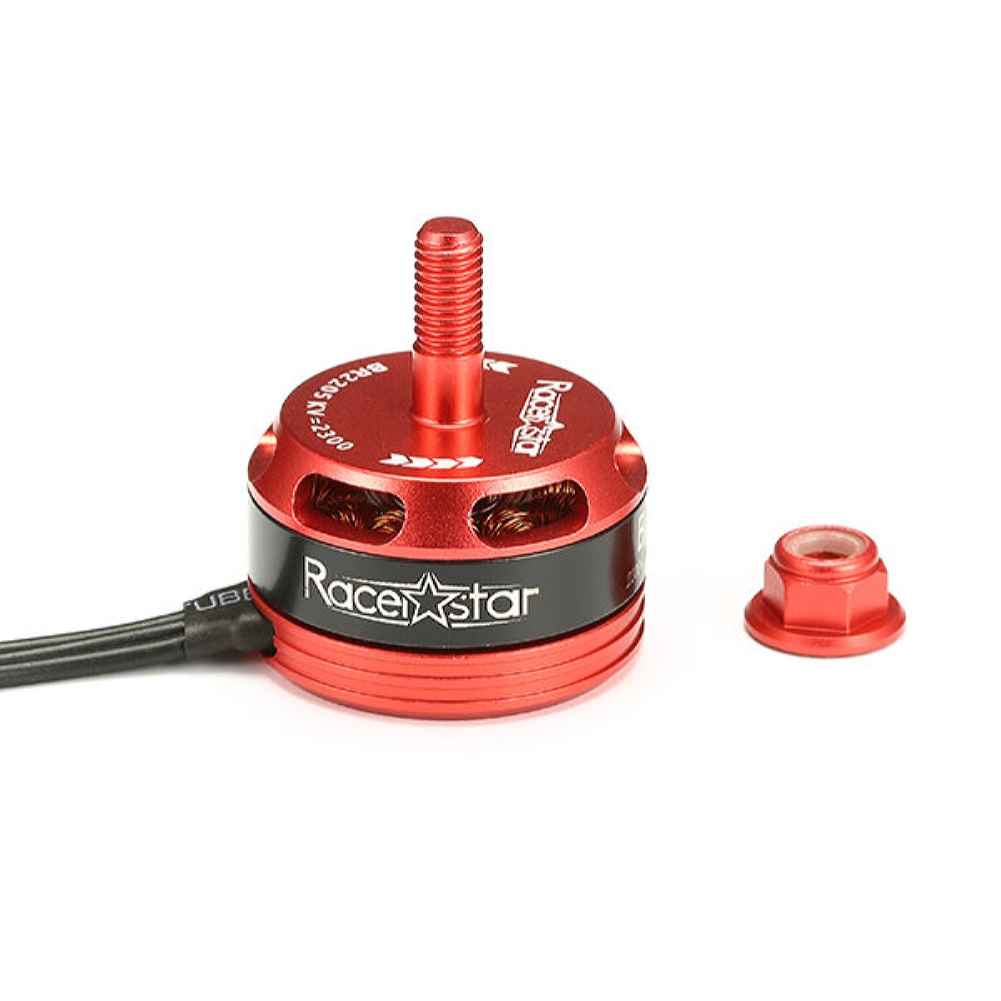

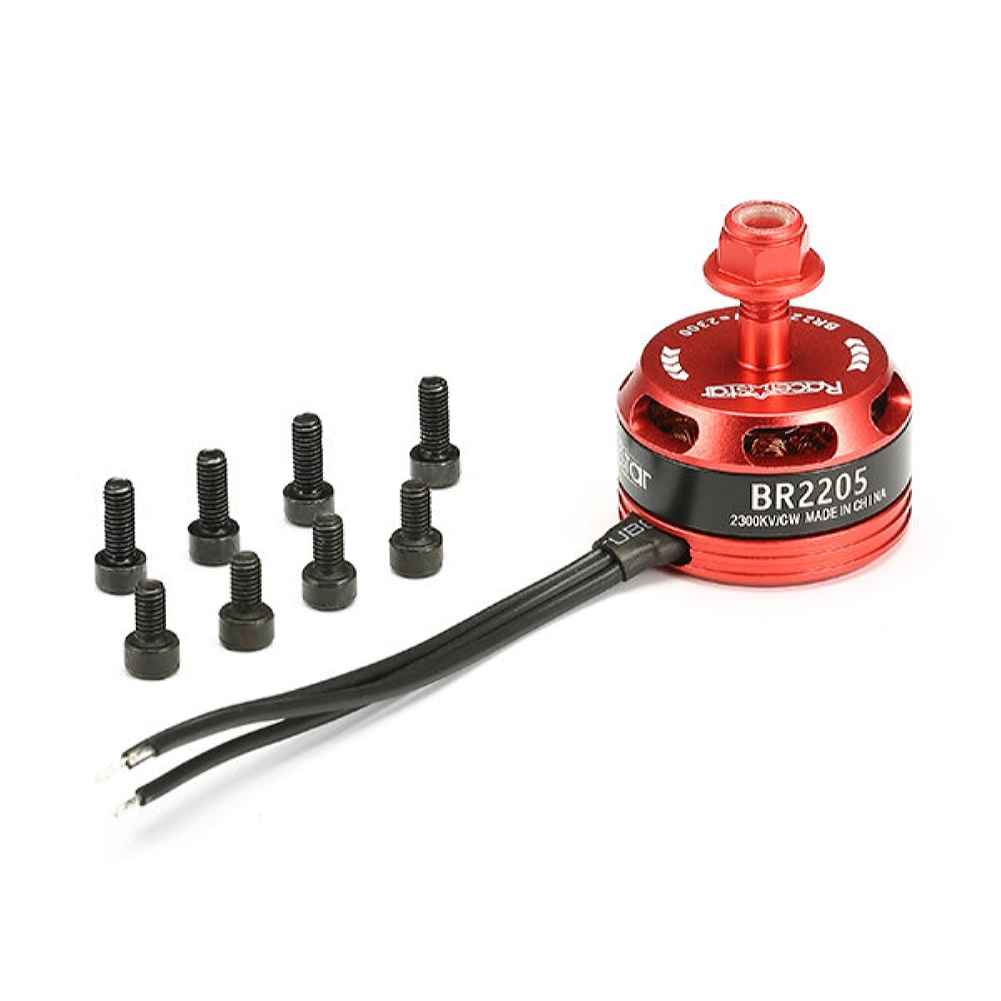

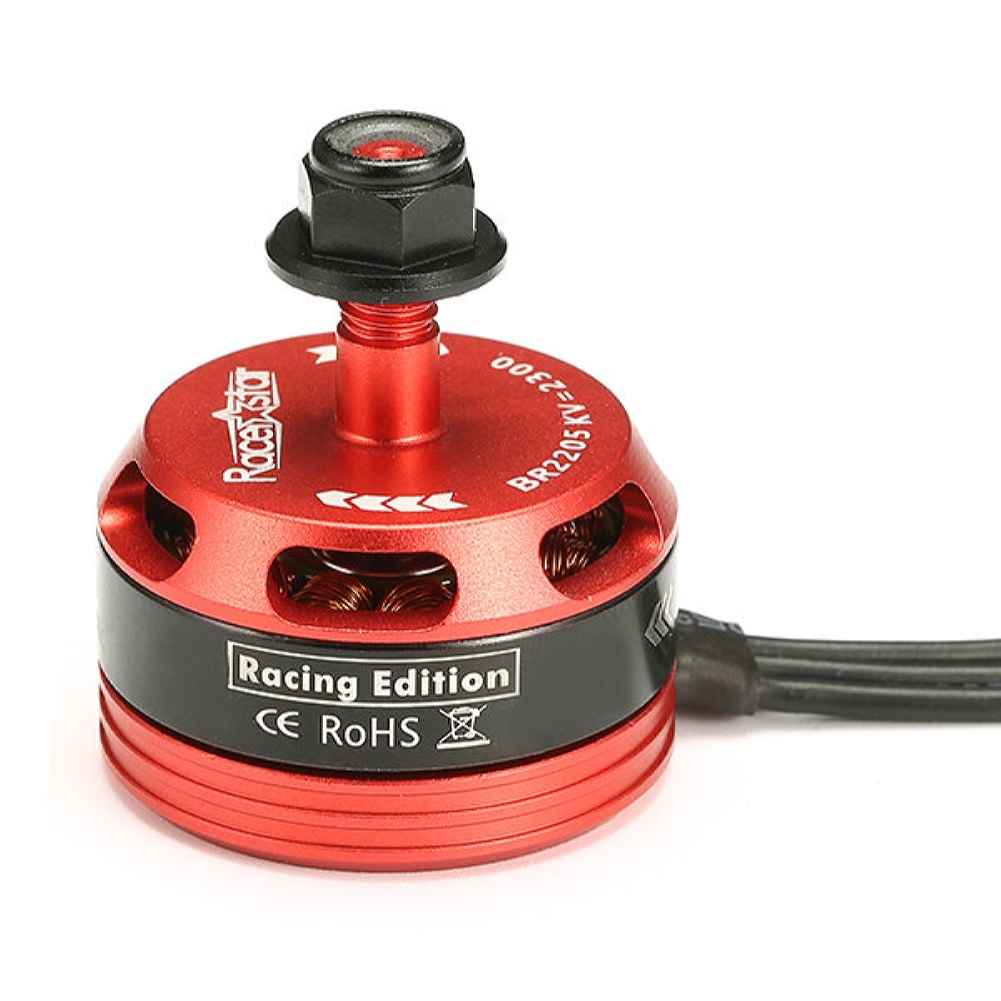

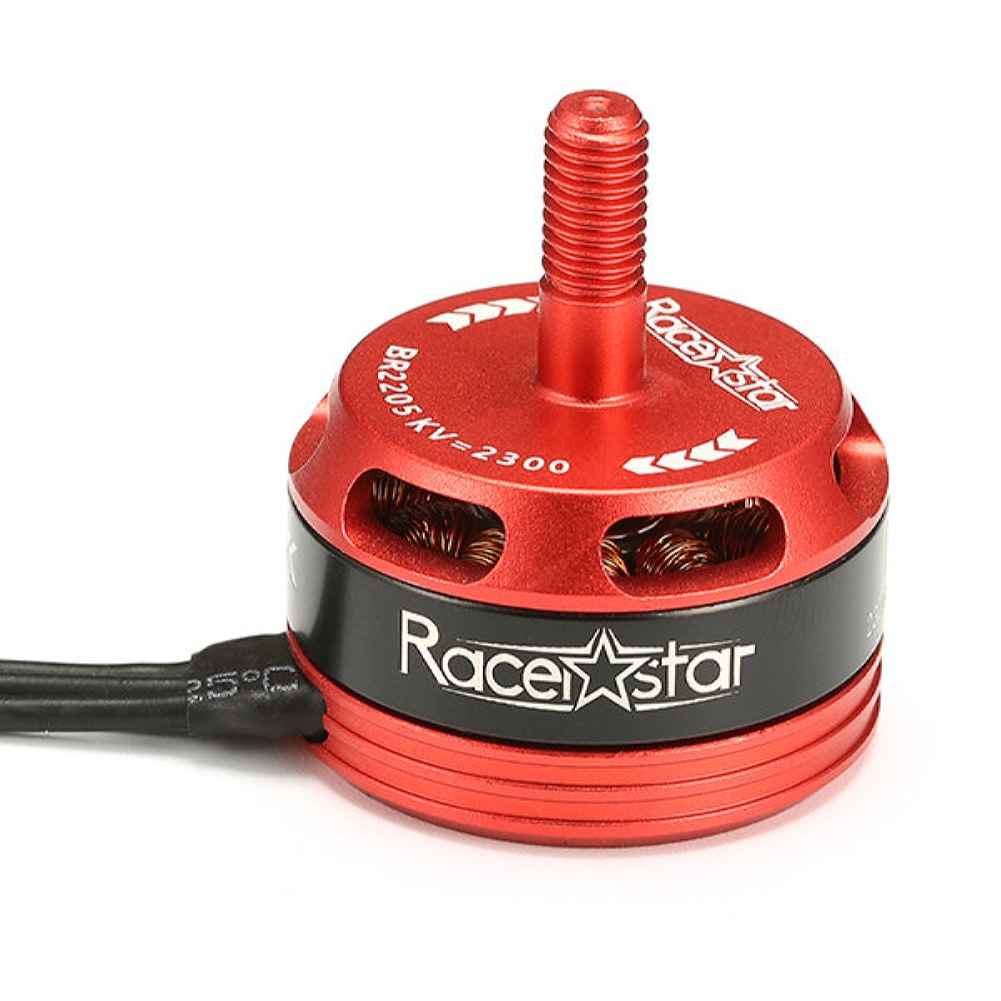

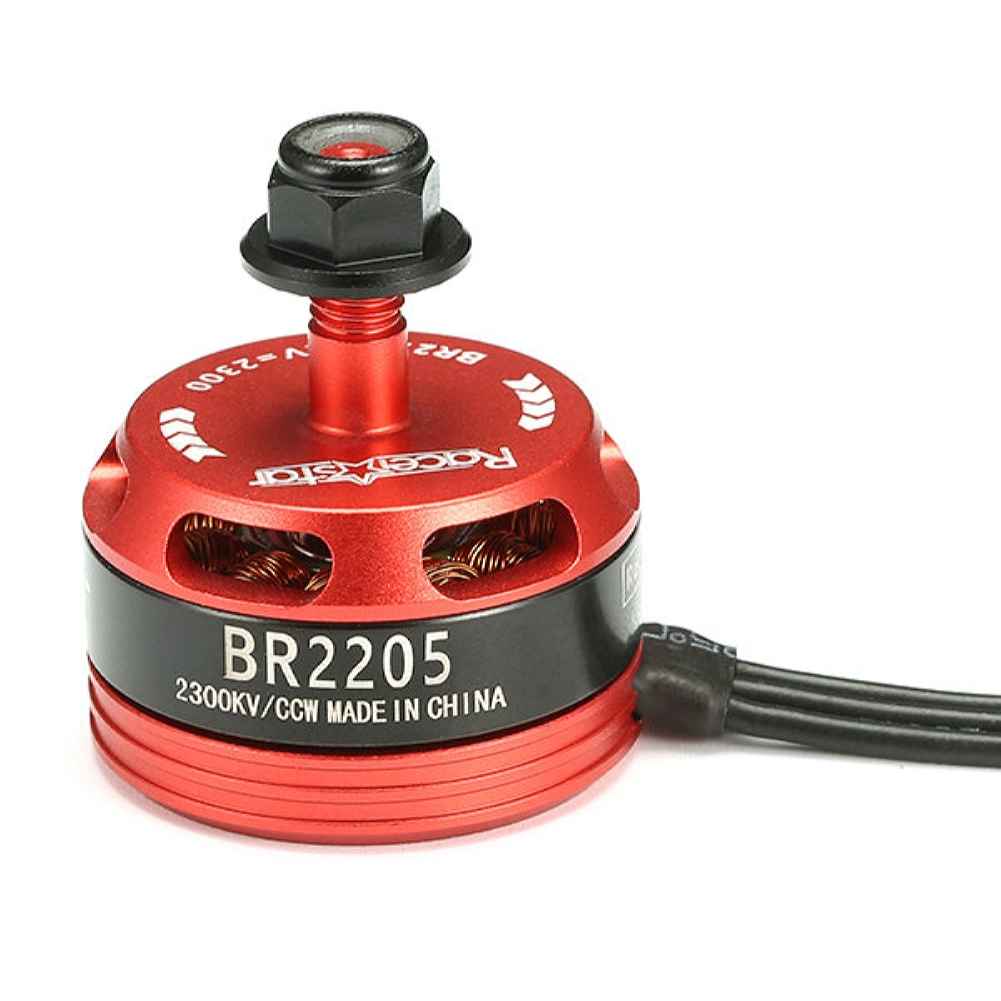

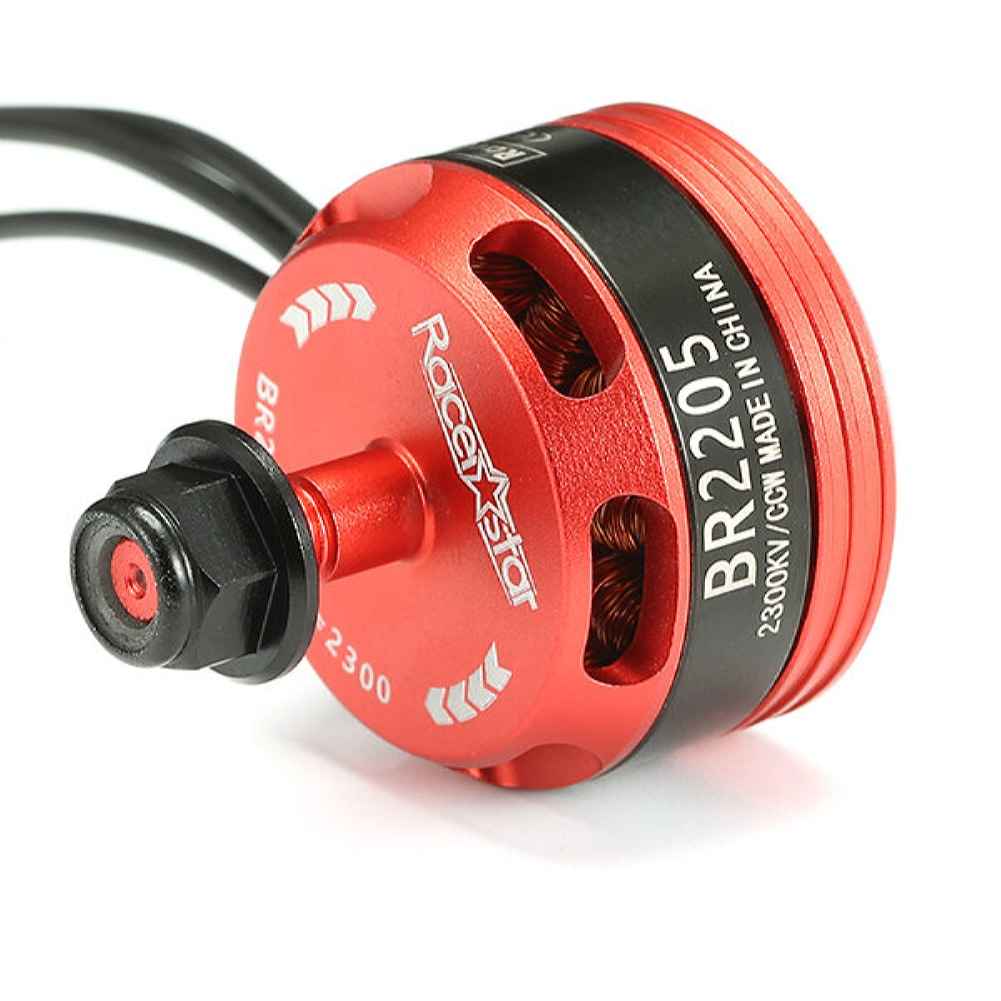

Racerstar Racing Edition 2205 BR2205 2300KV 2-4S Brushless Motor Red for 220 250 RC Drone FPV Racing
The Racerstar BR2205 2300KV Brushless Motor is designed for high-performance RC drone racing, compatible with 220, 250, and similar multirotor frames. This motor offers a robust RPM of 2300KV, operating efficiently with 2-4S LiPo batteries, and supports a maximum current of 27.6A with a power output of 408W. It features a compact design with a height of 31.5mm and width of 27.9mm, and includes an M5 shaft diameter and M3 motor mount hole size. The motor is lightweight at 28 grams and comes with color-coded caps for easy identification: red for CW and black for CCW.
Racerstar Racing Edition 2205 BR2205 2300KV 2-4S Brushless Motor CW/CCW For QAV250 ZMR250 260 280 RC Multirotor
Description:
Brand: Racerstar
Item name: BR2205 2300KV Brushless Motor
RPM/V: 2300KV
Height: 31.5mm
Width: 27.9mm
Shaft diameter: M5
Motor mount hole size: M3
Weight: 28 grams
Voltage: 2-4S
Battery: 2-4S lipo battery
Max.current: 27.6A
Max.power: 408W
Internal resistance:
Usage: for 250 260 280 Multirotor Frame Kit
CW screw thread motor comes with red cap
CCW screw thread motor comes with black cap
Package Included:
1 x BR2205 2300KV Brushless Motor
