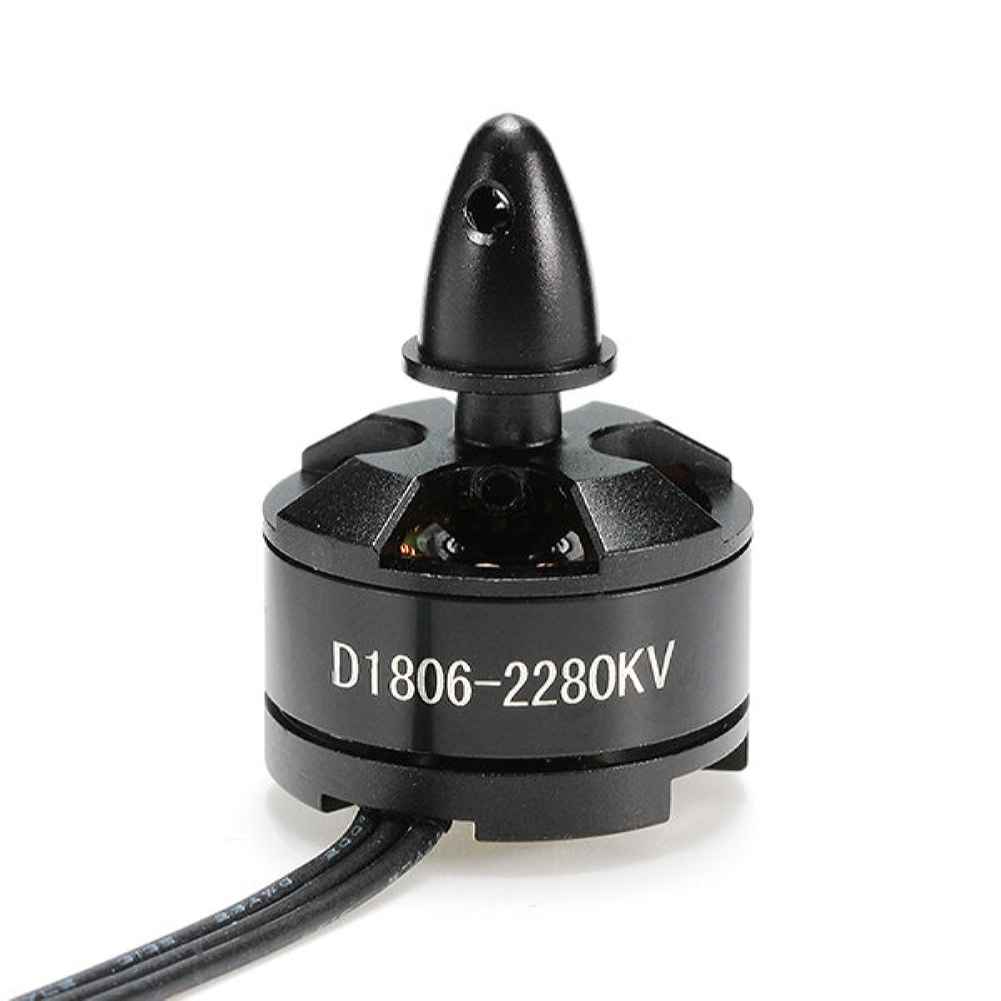

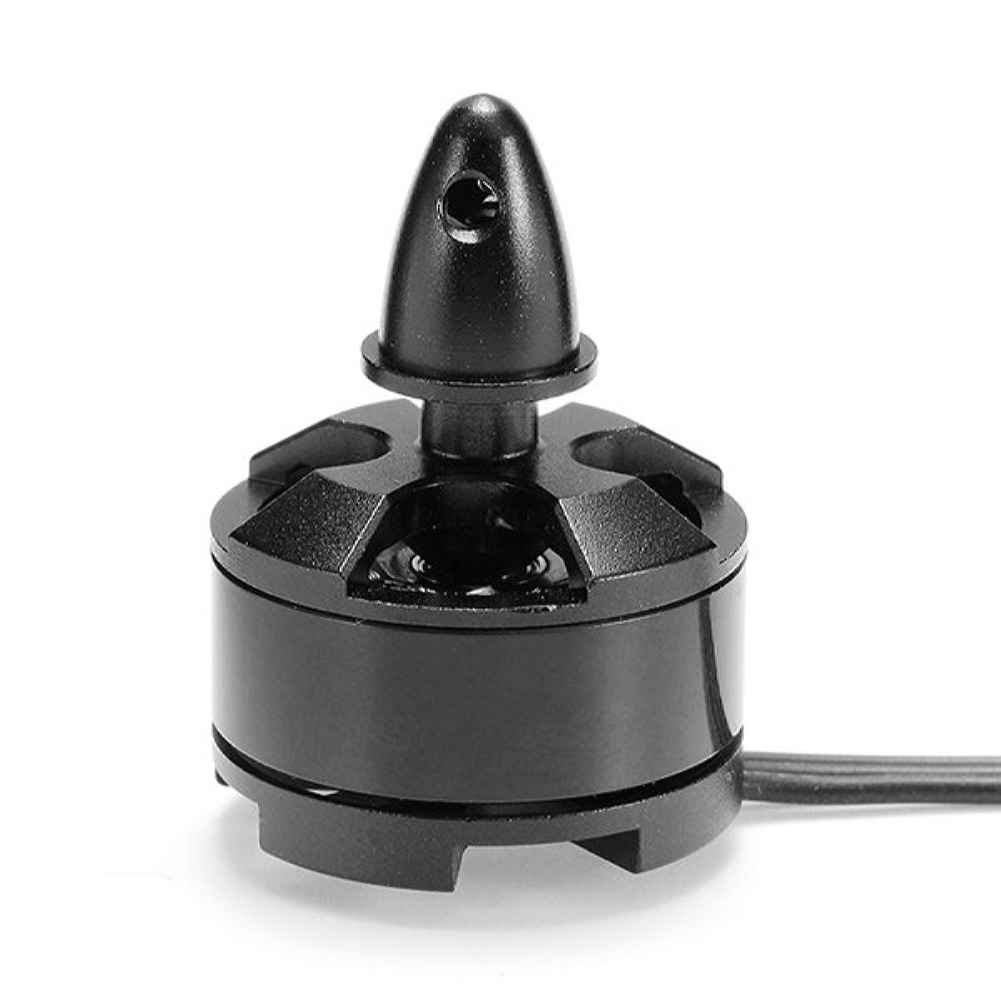

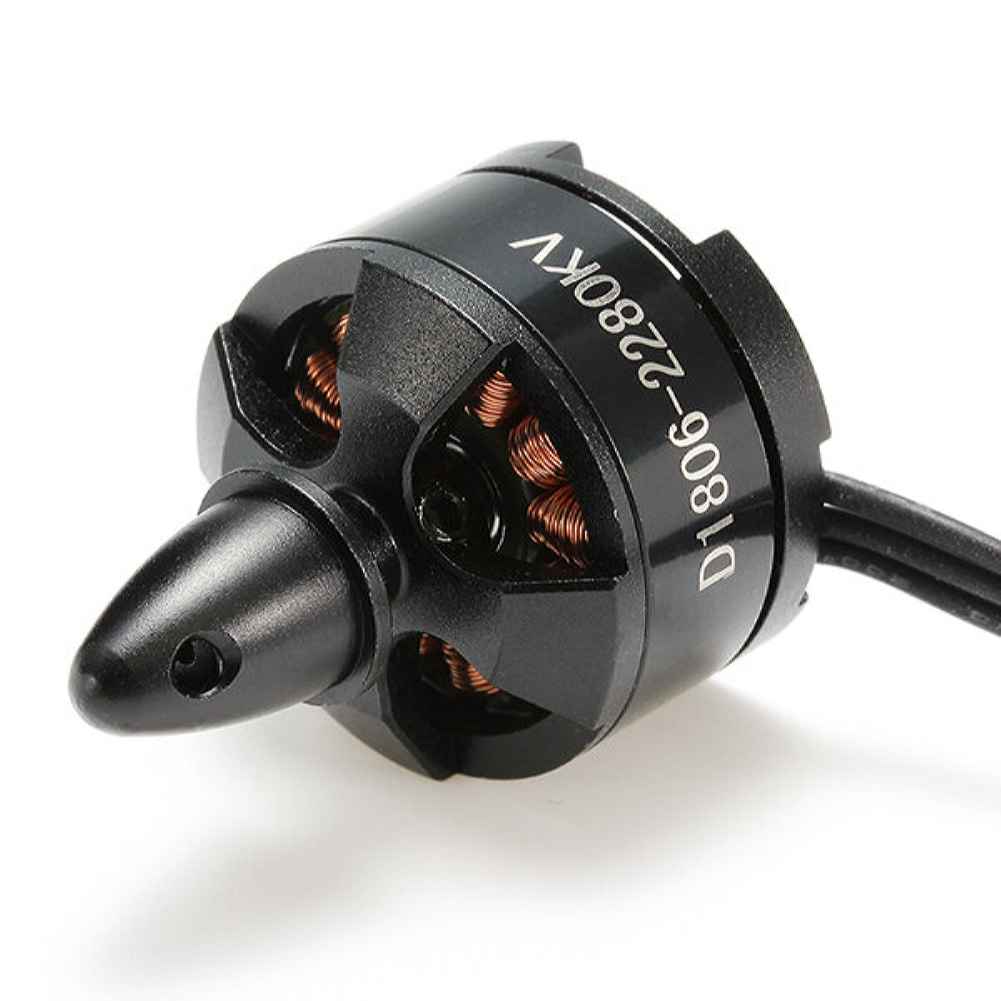

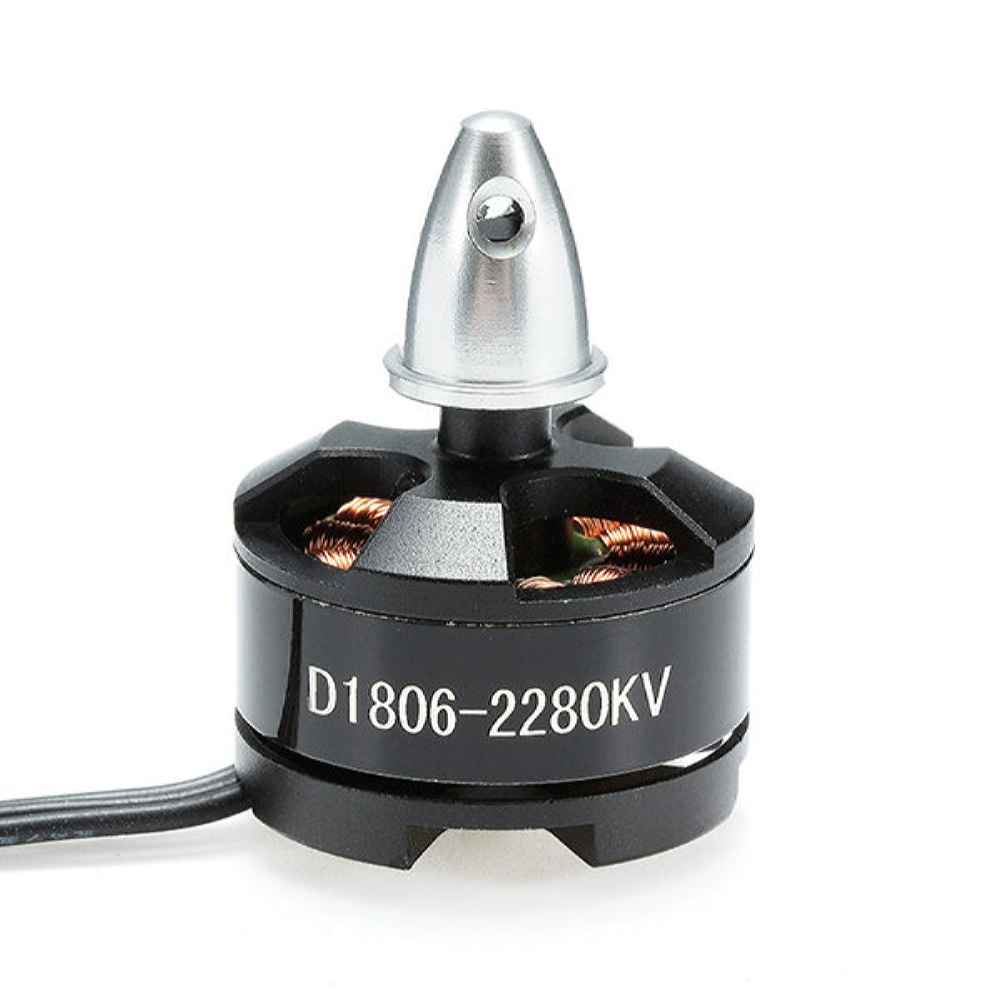

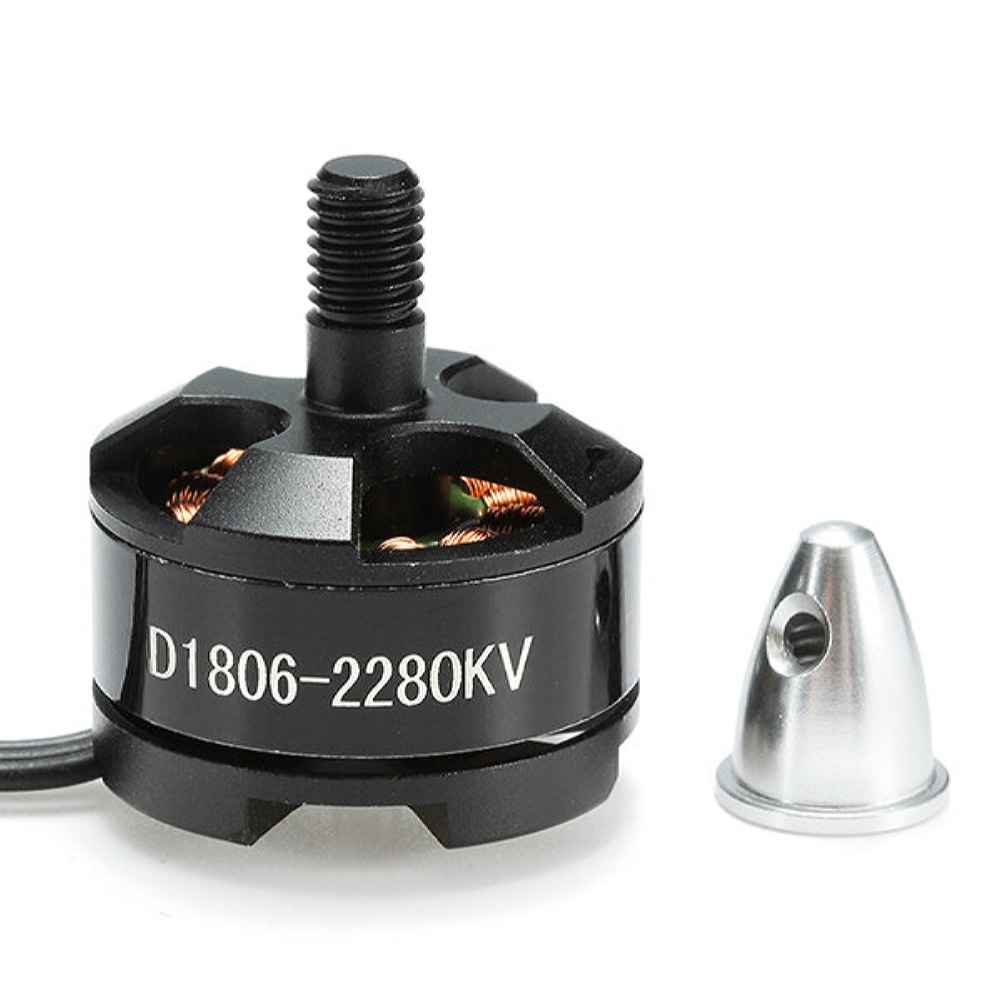

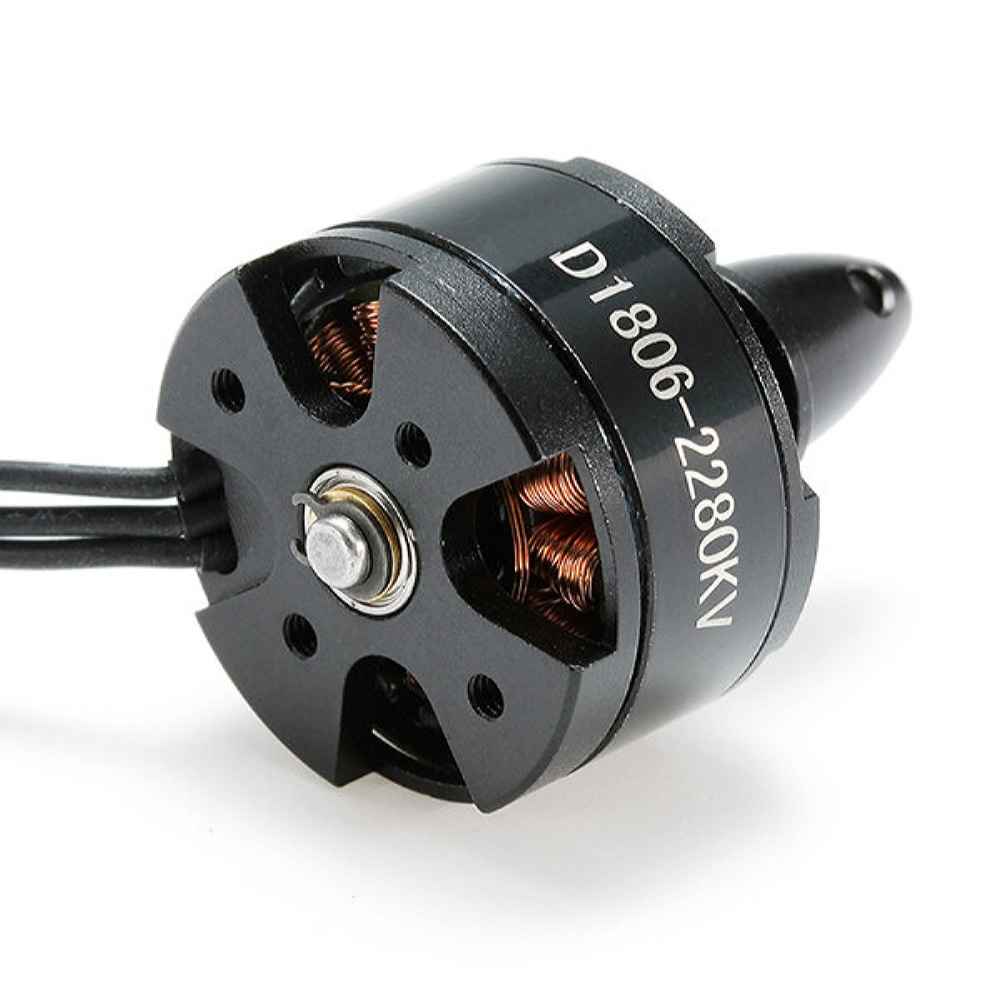

DXW D1806 1806 2280KV 2-3S Brushless Motor CW CCW For 200 210 220 250 RC Drone FPV Racing Multi Rotor
The DXW D1806 2280KV Brushless Motor is designed for optimal performance in FPV racing drones. With a KV rating of 2280KV, this motor is suitable for 200 to 250-sized glass FPV racing frames. It supports 2-3S LiPo batteries and has a shaft diameter of M5. The motor dimensions are 23mm in diameter and 16mm in length, weighing only 20g. Tested with 11.1V voltage and 6040 propellers, it delivers a load current of 11.5A, pull of 468g, power of 128W, and efficiency of 3.7g/W. This motor is ideal for enhancing the speed and agility of your multi-rotor racing drone.
Notice: Only 1 PC in pacakge.
Description:
Brand: DXW
Item name: D1806 2280KV
KV: 2280KV
Quantity: 1 PC
Shaft diameter: M5
Motor dimensions(Dia.*Len): ?23沁16mm
Weight (g): 20g
No.of Cells(Lipo): 2-3S
Usage: for 200 210 220 250 glass FPV racing frame
Tested with 11.1V voltage and 6040 propellers:
Load current: 11.5A
Pull: 468g
Power: 128W
Efficiency: 3.7g/W
Package Included:

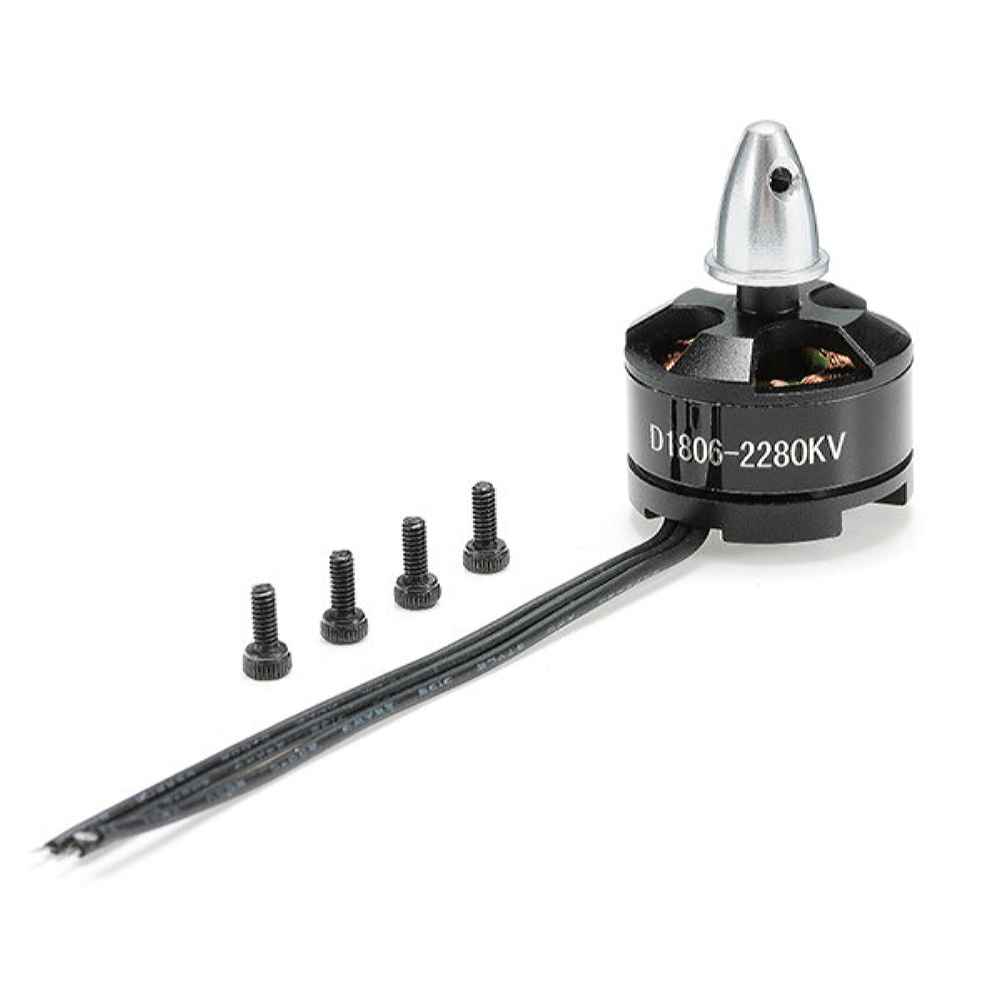

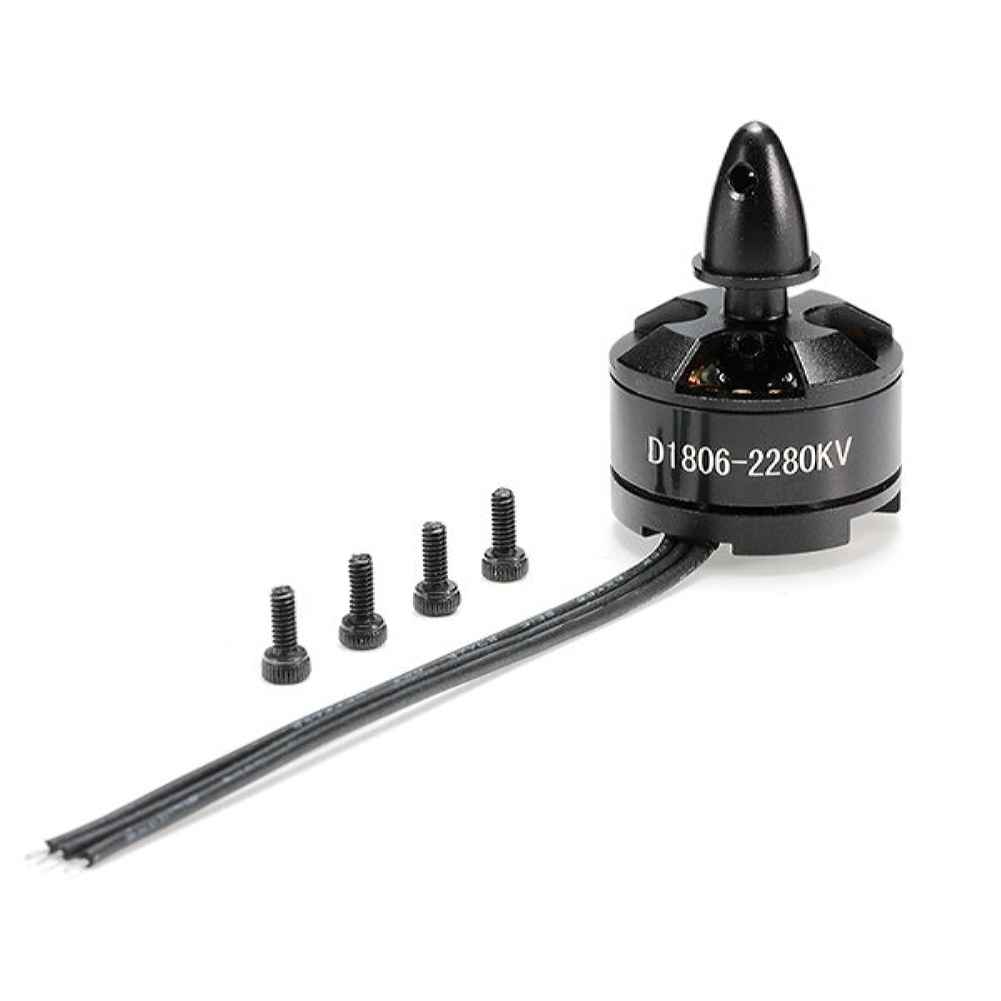

1 x D1806 2280KV Motor
