TEOSAW 533Pro 190mm Wheelbase 5mm Arm Thickness 5 Inch Carbon Fiber Frame Kit for DIY RC Drone FPV Racing
The TEOSAW 533Pro Frame Kit is the upgraded version of the 533Lite, designed for DIY RC Drone FPV racing enthusiasts. With a 190mm wheelbase and 5mm thick arms, this ultra-lightweight frame offers an optimal balance of weight and durability. It supports 5.0 to 5.1-inch propellers and features a quick-release structure for easy maintenance. The frame is compatible with NANO size cameras and 20x20mm flight controllers, allowing for future upgrades and a customizable flight experience. The X-type split aluminum column structure ensures stability and ease of assembly for all users.
Notice: 1. Comes unassembled. Need build by buyers.
2. This product has been upgraded from 533Lite to 533Pro. May 8, 2025
Specifications:
Brand: TEOSAW
Model: 533Pro
Wheelbase: 190mm

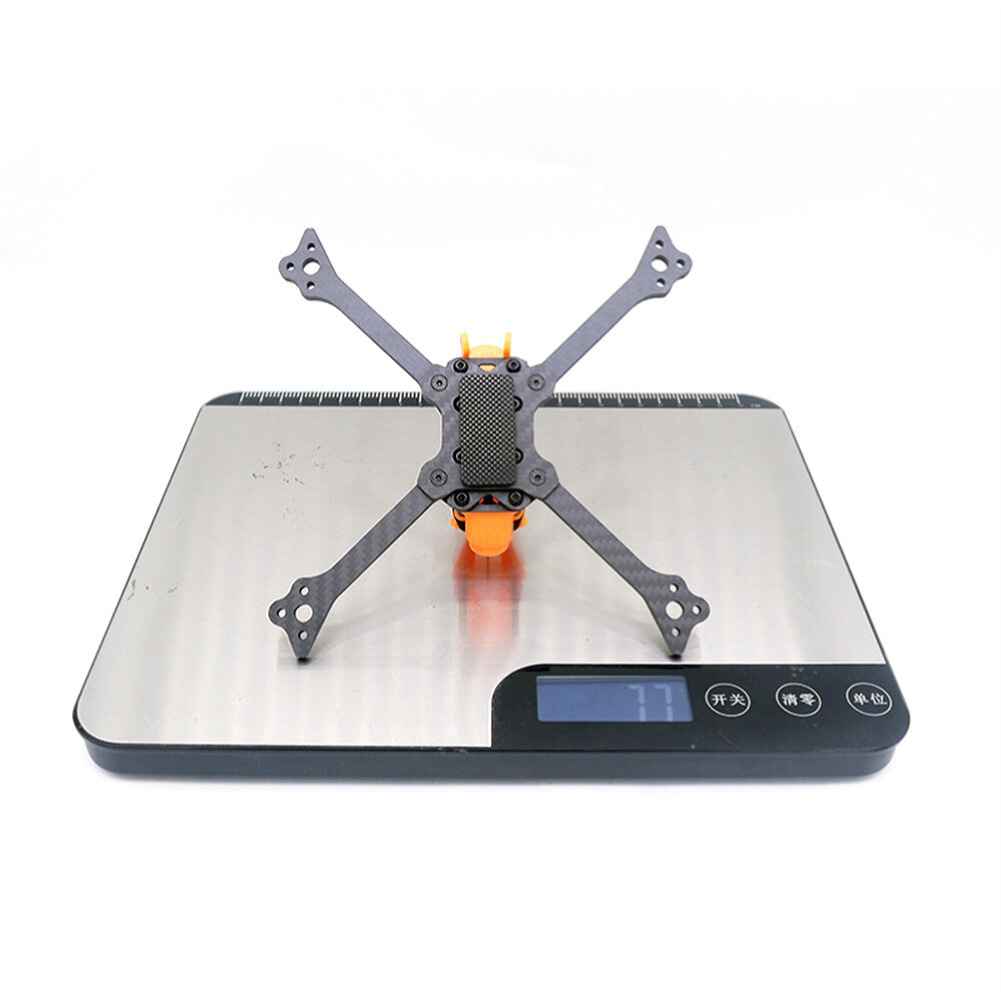

Weight: 77g
Arms Plate Thickness: 5.0mm
Clamping Plate Thickness: 3.0mm
Other Plate Thickness: 2.0mm
Recommend Propeller Size: 5.0 inch, Max 5.1 inch
Flight Controller Hole Distance: 20*20mm侈M3佩
Camera Installation Width: 14mm
Motor Installation Hole Position: 16*16mm侈M3佩
Structure: X-type Split
Aluminum Column Height: M3*25mm
Adapt to snail, nebula, aurora, vista sky terminal, etc., 915 antenna
Features:
Ultra-Lightweight Design: Even in the lightest configuration, it features 5mm arms and a sturdy, wobble-free midsection, giving the optimal blend of weight and durability.
Future-Ready Camera Solution: Adapts to the NANO (14×14) size cameras, offering flexibility for future camera upgrades and helping to maintain a low overall weight.
User-Friendly Flight Tower Installation: This frame supports 20x20mm flight tower installation, making the setup process easy and intuitive.
Changeable Flight Feel: Unique design allows pilots to modify their flight experience without adding extra weight or complexity.
Quick and Easy Maintenance: Thanks to the quick-release structure with a full carbon fiber mid-section, replacing an arm is as simple as loosening one screw.
Recommend Parts: ( NOT Included)
FC & ESC: 20x20mm HAKRC F7 2-6S FC & 35A BL_S 4in1 ESC Stack
Brushless Motor: iFlight XING-E Pro 2207 1800KV 3-6S /2450KV 2750KV 2-4S
Propeller: HQProp Ethix S3 Watermelon 5031 5×3.1 5 Inch 3-Blade Propeller
VTX: 20X20mm EWRF VTX 5.8Ghz 40CH 25-650mW Adjustable FPV Transmitter
FPV Camera: Caddx Ant 1.8mm 1/3 CMOS 1200TVL 16:9/4:3 Global WDR
Lipo Battery: ZOP Power 14.8V 850mAh 100C 4S LiPo Battery
Gaoneng GNB 22.8V 1100mAh 60C 6S LiPo Battery
Package Included:

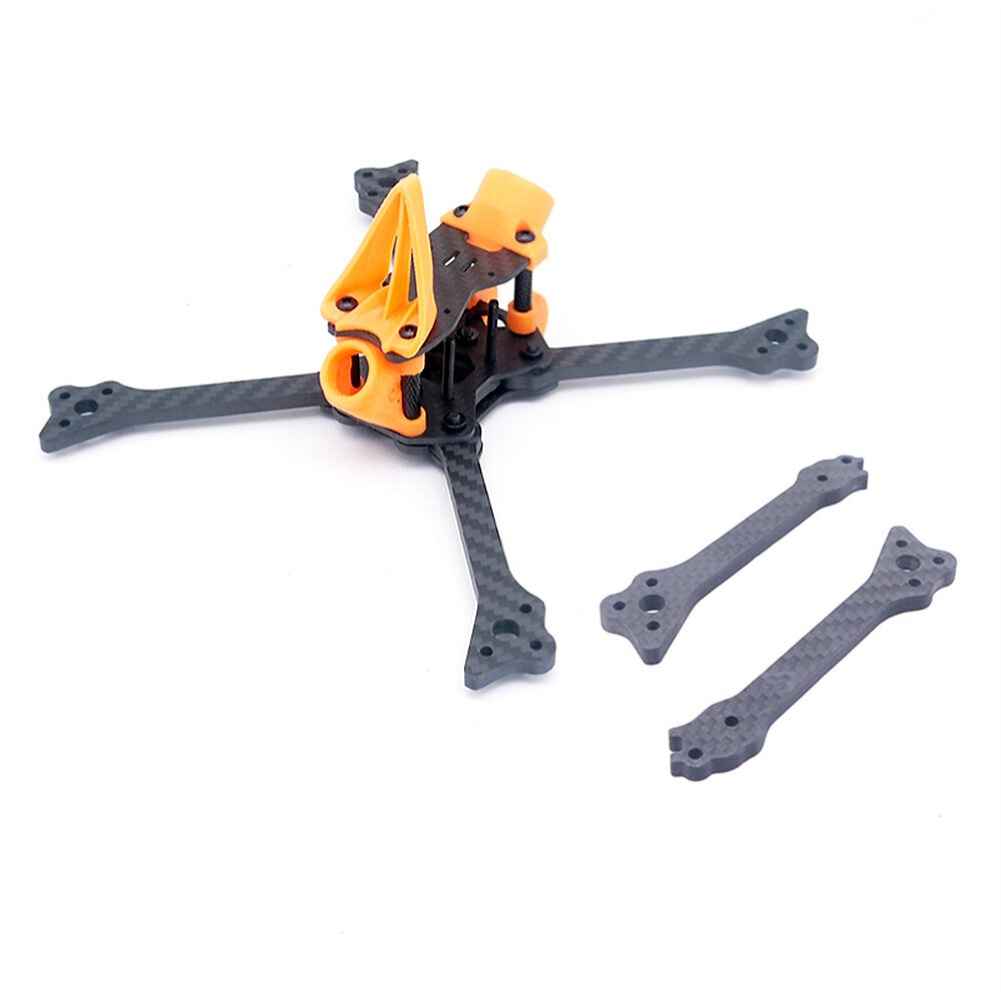

1x Empty Frame Kit
2x Additionally Replace Arm
