iFlight BLITZ ATF435 Flight Controller with OSD, 5V/9V BEC Output, Smartaudio Support, for RC FPV Racing Drones

Original price was: 67.98$.Current price is: 60.50$.

Advanced AT32F435CGU7 MCU and BMI270 gyro for optimal flight stability
Supports Smartaudio and IRC Tramp VTX protocols
Integrated 32MB Blackbox flash for detailed flight data
Multiple UART ports for VTX, GPS, sensors, and ESC telemetry
Compact, lightweight design with robust 30.5×30.5mm mount pattern

Model

Flight Controller

SKU: RC1996870 Category: Multi Rotor Parts Tags: 5V 9V BEC output flight controller, Blackbox flash flight data recorder, compact lightweight drone controller, iFlight BLITZ ATF435 flight controller, IRC Tramp VTX protocol flight controller, multi UART ports flight controller, RC FPV racing drone controller, Smartaudio support flight controller Brand: iFlight

Description

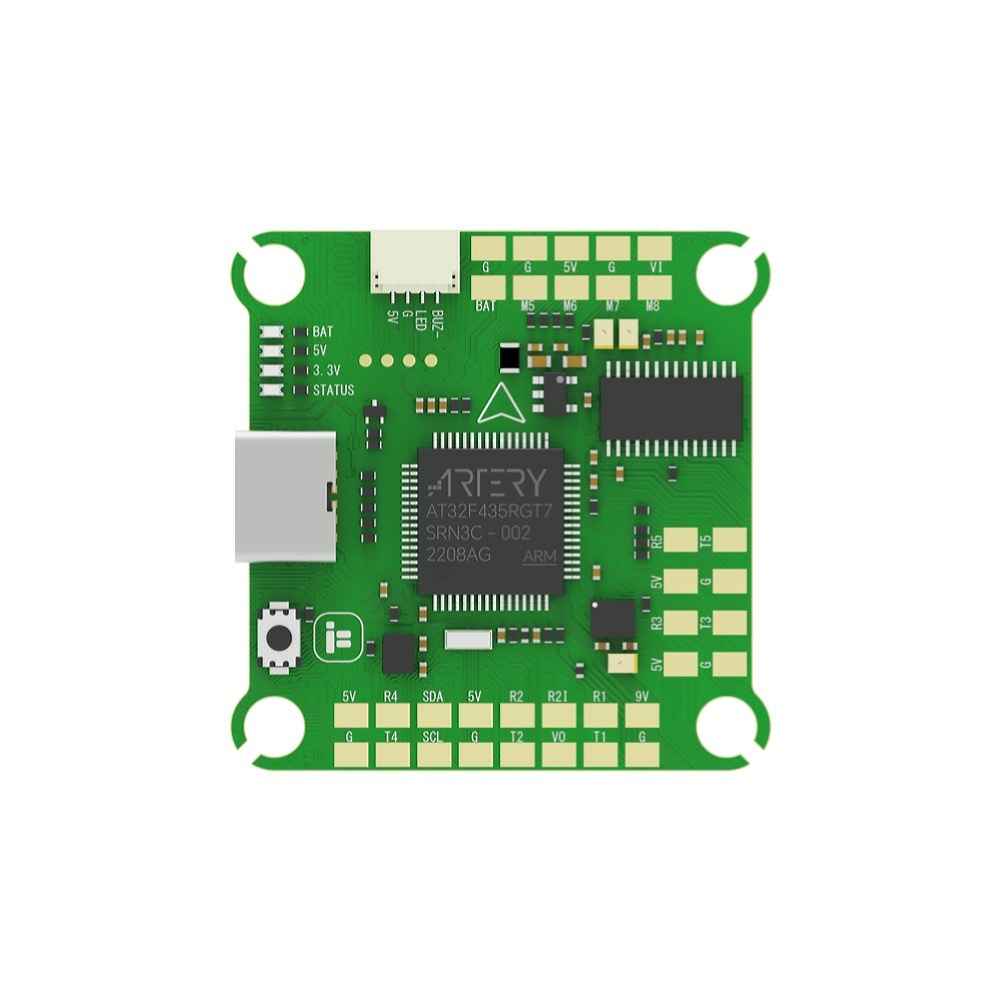

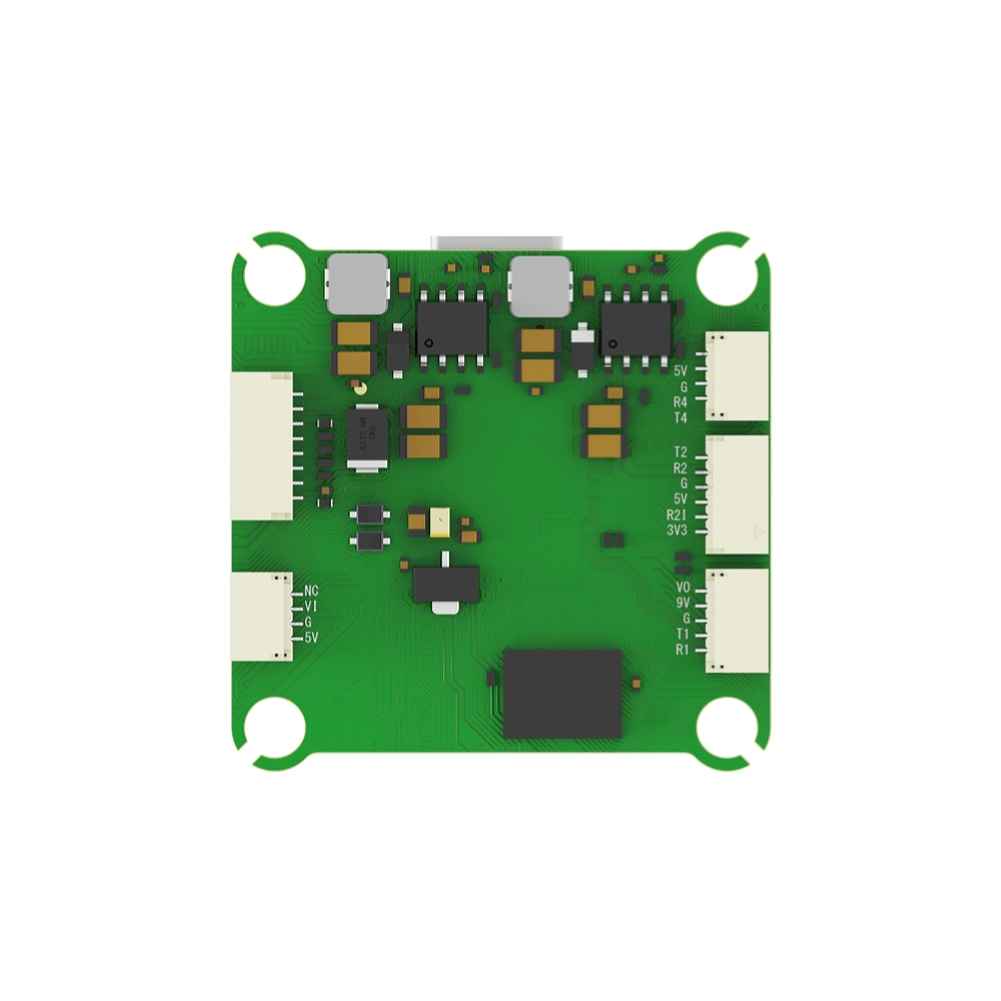

30.5×30.5mm iFlight BLITZ ATF435 Flight Controller OSD with 5V 9V BEC Output Support Smartaudio for RC FPV Racing Drone

The iFlight BLITZ ATF435 Flight Controller is designed for RC FPV racing drones, featuring a powerful AT32F435CGU7 MCU and BMI270 gyro for superior flight stability and precision. It includes a DPS310 barometer and an AT7456E OSD chip, with 32MB of Blackbox flash for comprehensive flight data recording. With support for Smartaudio and IRC Tramp VTX protocols, this controller offers versatile communication options. It provides multiple UART ports for connecting VTX, receivers, GPS, sensors, and ESC telemetry. The compact design, robust 30.5×30.5mm mount pattern, and lightweight build ensure easy integration into your drone setup. The controller also features a 5V 2.5A and 9V 2A BEC output, LED controller, and beeper pad for enhanced functionality.

Specifications: ( Diagram Picture)
Brand: iFlight
Model: BLITZ ATF435
MCU: AT32F435CGU7
Gyro: BMI270
Barometer: DPS310
OSD Chip: AT7456E
Flash: 32MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
I2C serial: SDA / SLA pads
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Firmware target: IFLIGHT_BLITZ_ATF435
Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter
Dimensions: 36.5*35 mm
Weight: 7.8g
BEC: 5V 2.5A / 9V 2A
Wiring Suggestion:
UART 1 for VTX HD / Analog
UART 2 for a Receiver
UART 3/4/5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemet
Features:
State-of-the-art MCU and Gyro combo ensuring optimal flight stability and precision.
Supports Smartaudio / IRC Tramp VTX protocol for flexible and reliable communication.
Integrated 32MB Blackbox flash for enhanced flight data recording.
Multiple UART ports, ideal for connecting VTX, Receiver, GPS, sensors, and ESC telemetry.
Compact design with a robust mount pattern and a weight of just 7.8g for seamless integration into any setup.
