Description

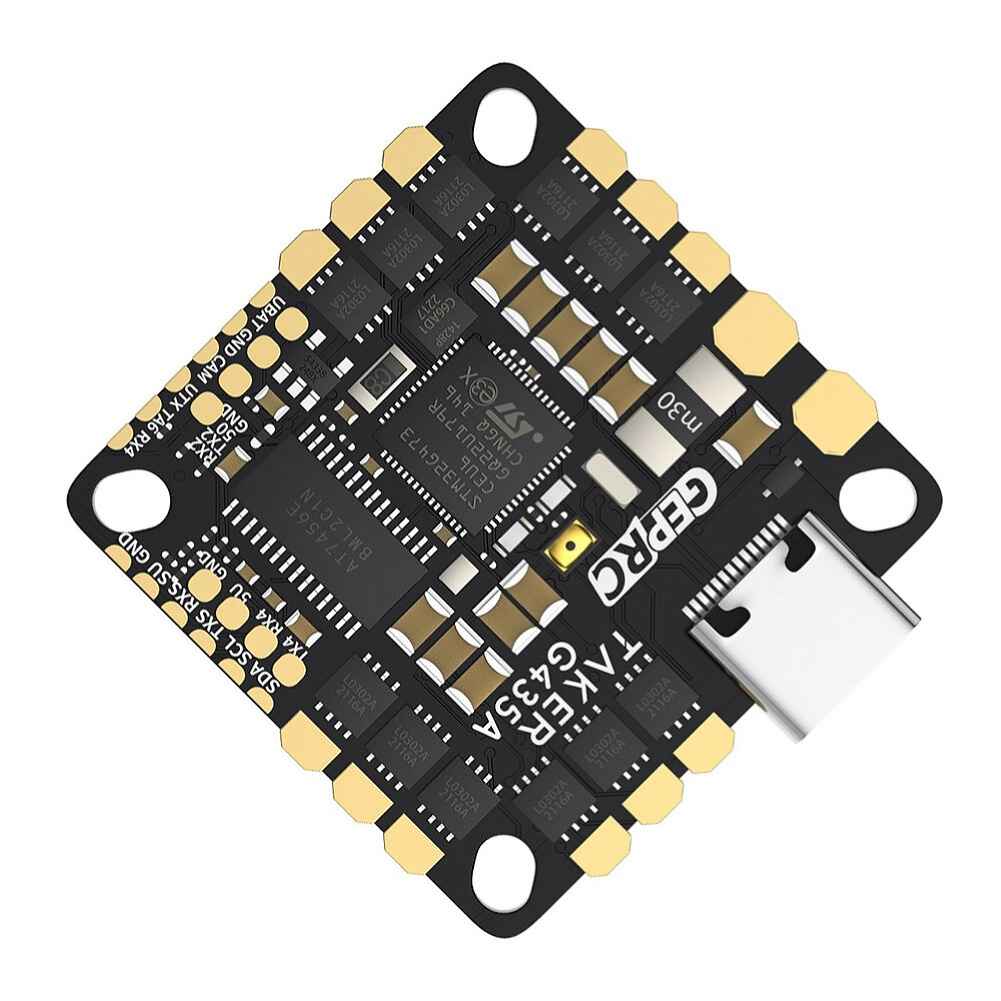

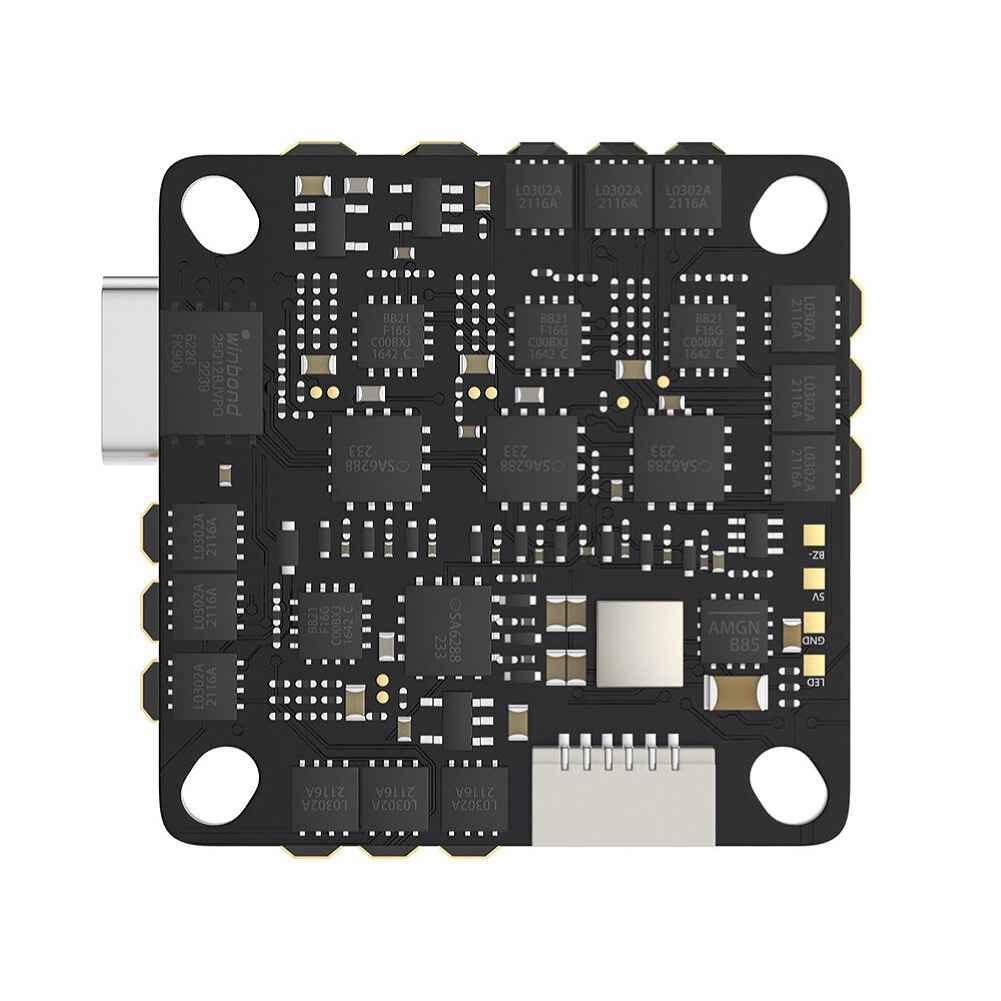

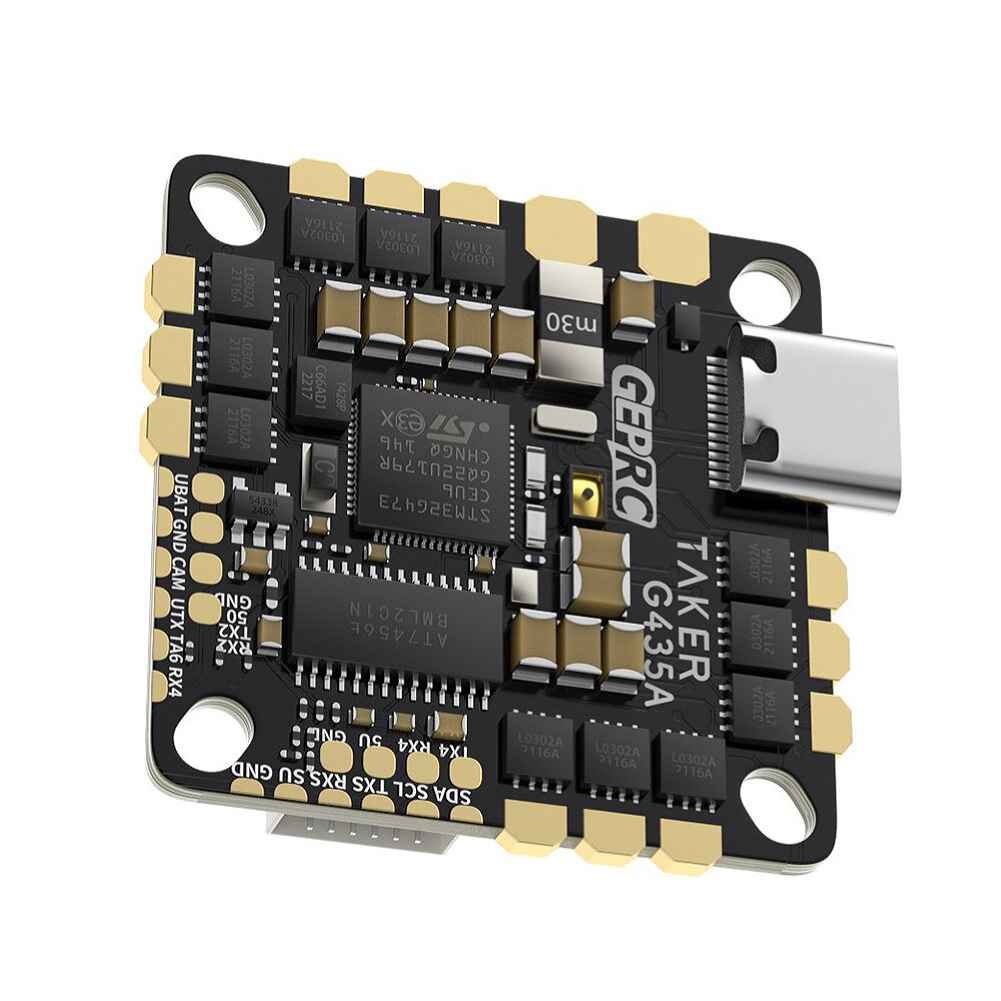

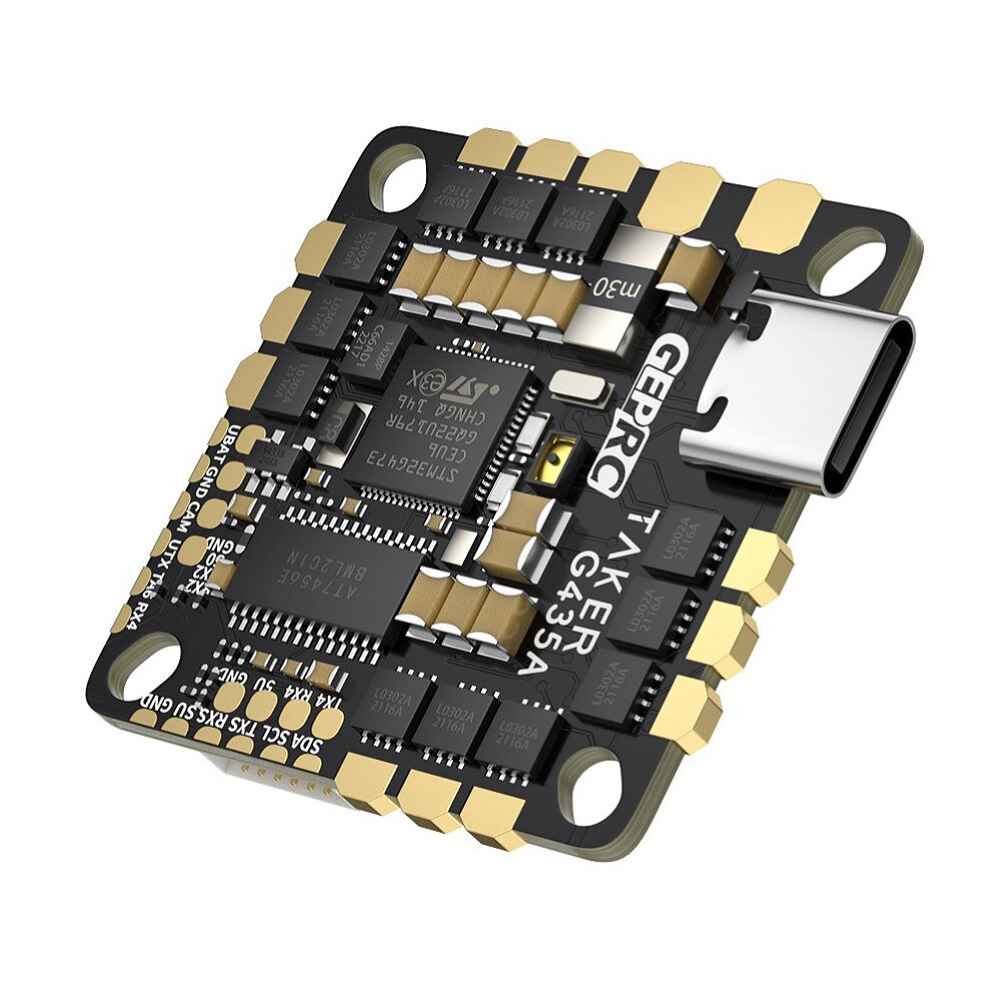

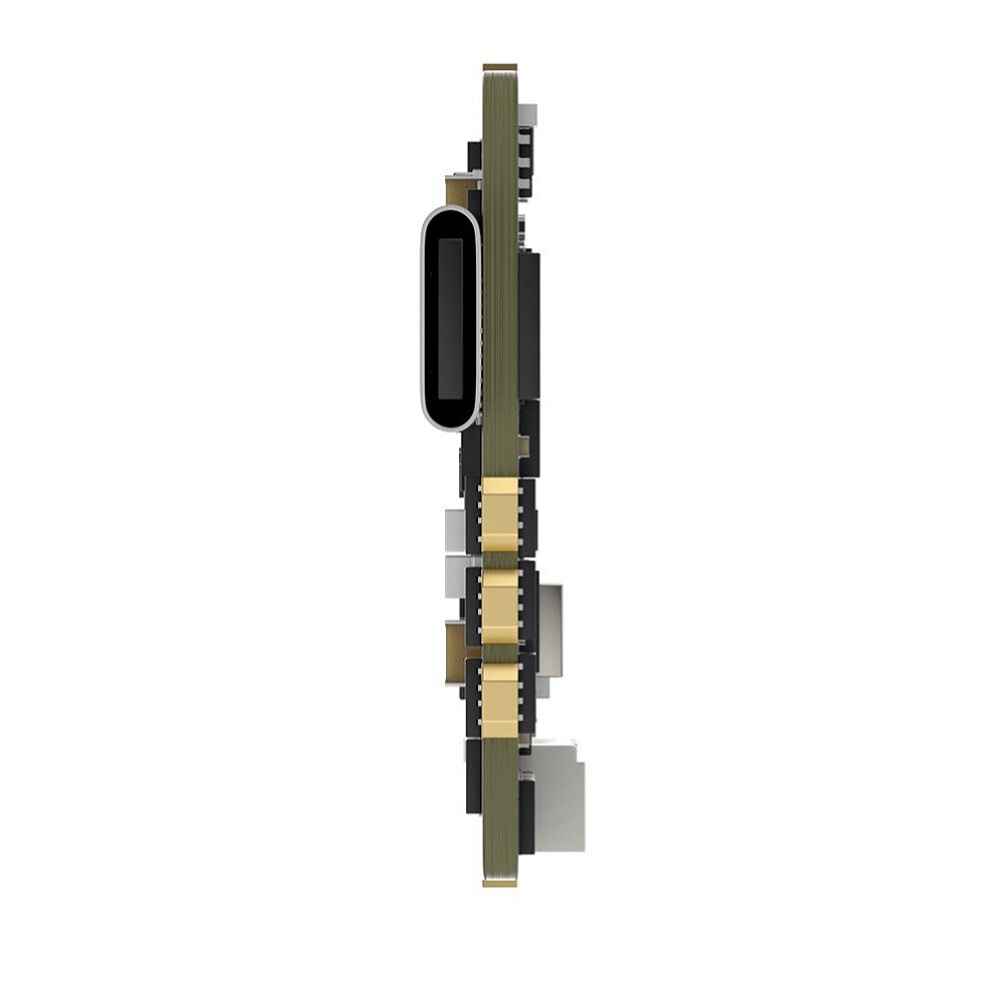

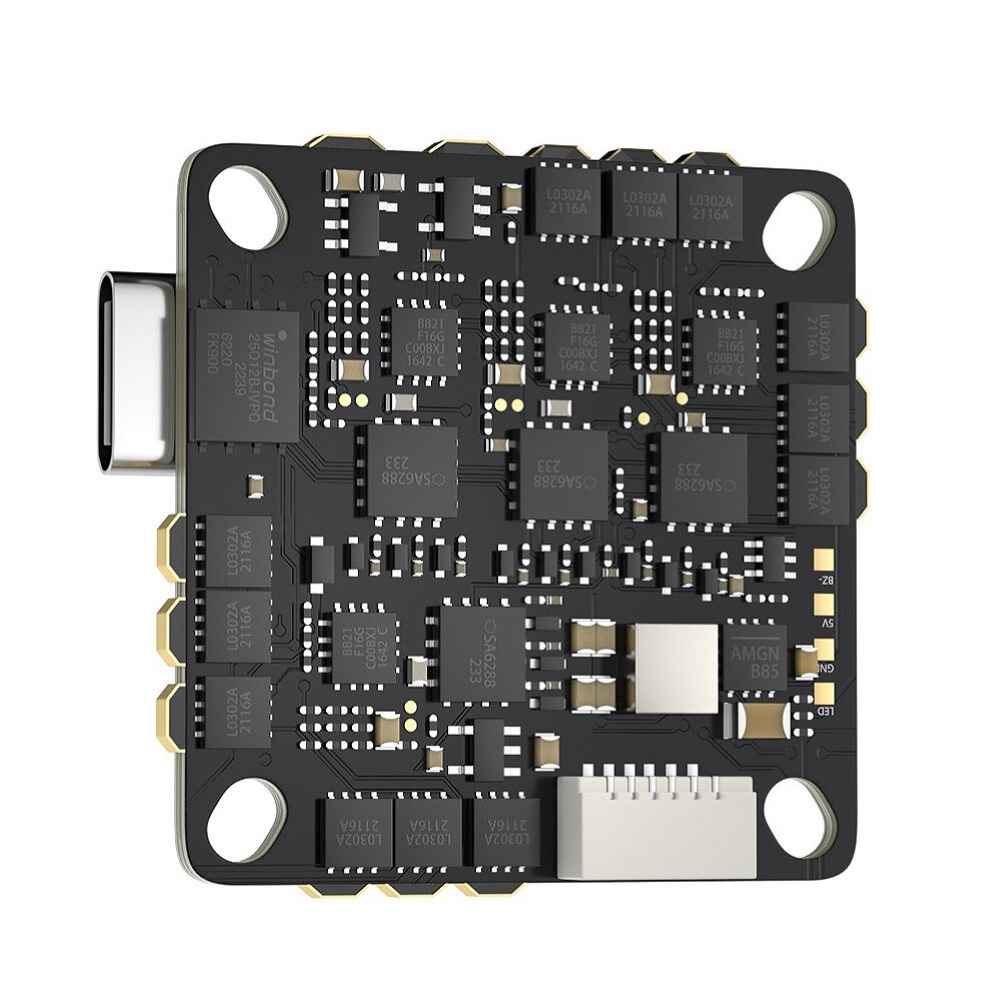

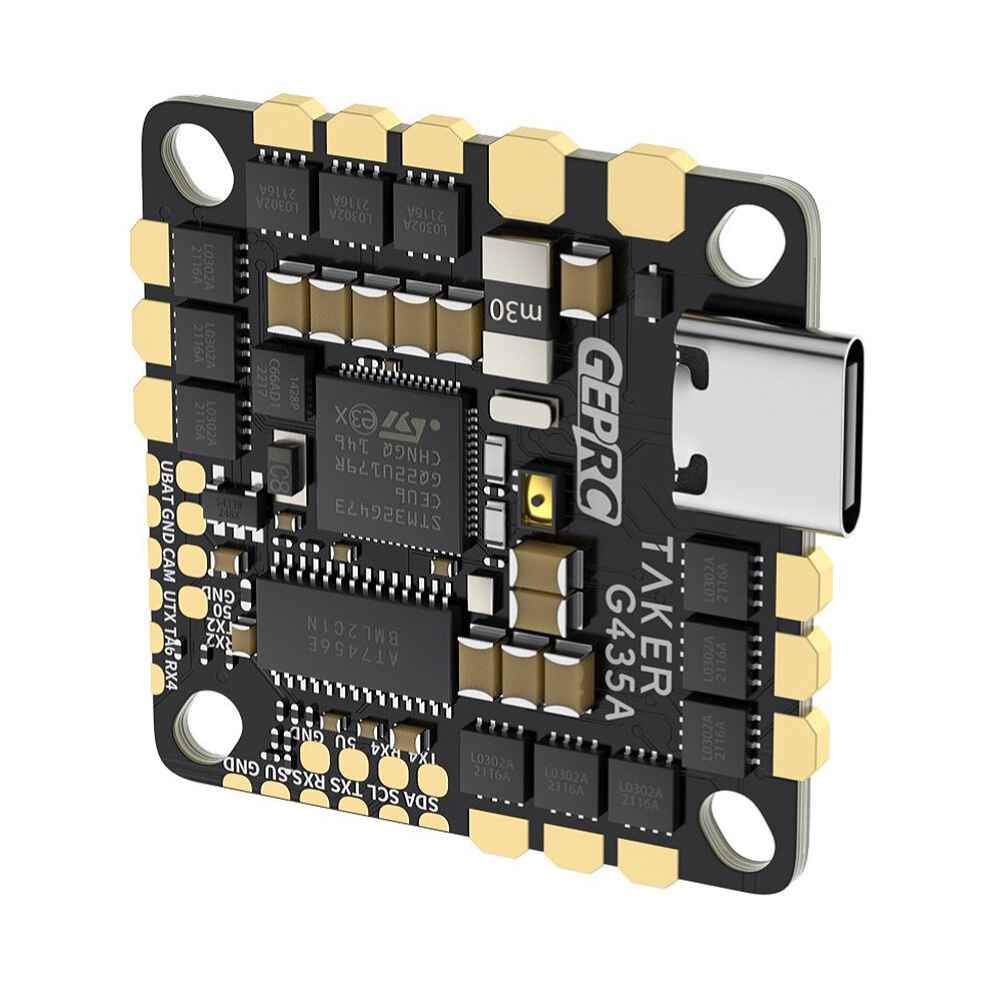

25.5×25.5mm GEPRC TAKER G4 35A AIO Flight Controller 4in1 ESC 2-4S for Cinelog25 V2 FPV RC Racing Drone
The GEPRC TAKER G4 35A AIO Flight Controller is expertly engineered for FPV RC racing drones, featuring a G473 main control with a robust 170MHz operating frequency for superior computing power. This lightweight controller, weighing only 7.7g, is designed with optimized power supply and motor wire pads for easy welding. It includes an upgraded Type-C USB interface and supports multiple frame compatibility with mounting holes of 25.5-26.5mm. With its compact design, the TAKER G4 35A ensures efficient performance, supporting Dshot600, Oneshot, and Multishot protocols, making it an ideal choice for drone enthusiasts seeking enhanced flight control.
Summary:
TAKER G4 35A is a newly developed AIO flight control by the GEPRC team. It adopts G473 main control and has more redundant computing power.
In response to market demand, the TYPE-C interface has been upgraded, and the power supply pad and motor wire pad have been optimized to make welding easier. It is compatible with two mounting holes of 25.5-26.5mm and can be compatible with more frames.
We are committed to pursuing flight controllers that are smaller in size, lighter in weight and stronger in performance.
Features:
1. Compact size and compatible mounting holes make installation convenient.

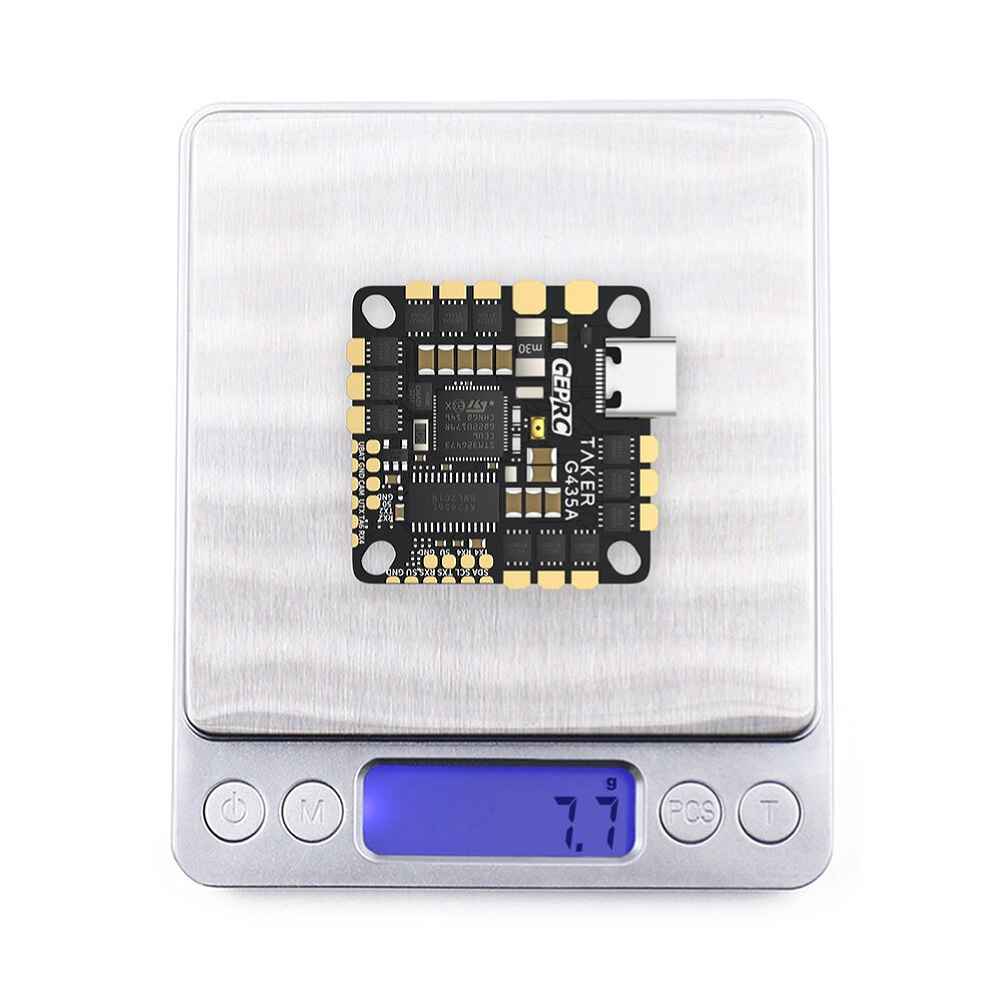

2. Light weight only 7.7g.
3. G473 main control, 170MHz operating frequency, abundant computing power.
4. Upgraded Type-c USB for better versatility.
Specifications: ( Manual)
Brand: Geprc
Model Name: TAKER G4 35A AIO
MCU: STM32G473CEU6
IMU: ICM 42688-P
Firmware target: TAKERG4AIO
OSD: Betaflight OSD w/ AT7456Ev
Uart: R1 T1 / R2 T2 / R4 T4 / R5 T5
Buzzer: YES
LED : YES
USB: Type-c USB
BEC output: 5V@3A
ESC MCU: BB21F16G
Continuous Current: 35A
Burst Current: 45A(5﹍)
lnput Voltage: 2-4S (LIPO Battery)
Supports: Dshot600,Oneshot,Multishot
Current meter: 210
target: J -H -15
Size: 33.4沁34.4mm Board
Install hole: 25.5-26.5 ?3.05mm
Weight: 7.7g
Includes:
1x TAKER G4 35A AIO
1x Capacitor
1x Cable Set
Package Included:
1 x TAKER G4 35A AIO 1 x Capacitor 1 x Cable Set
