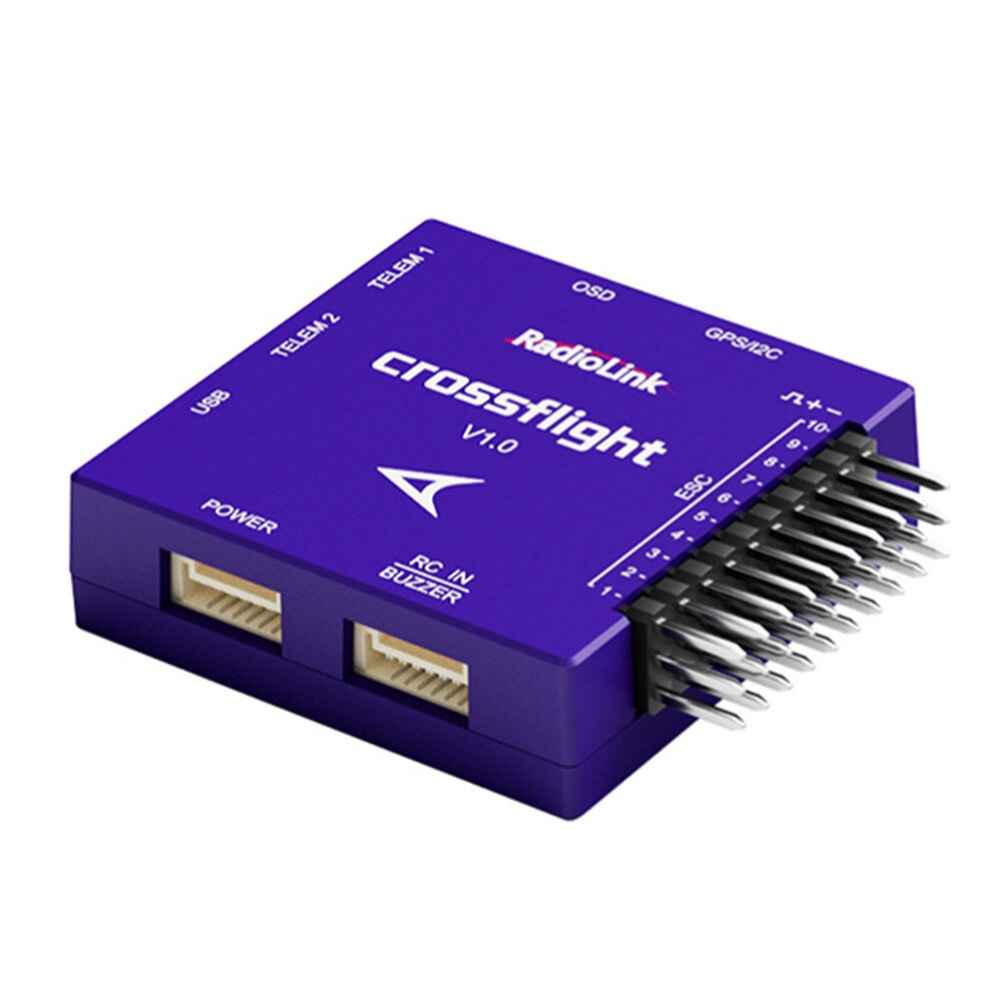

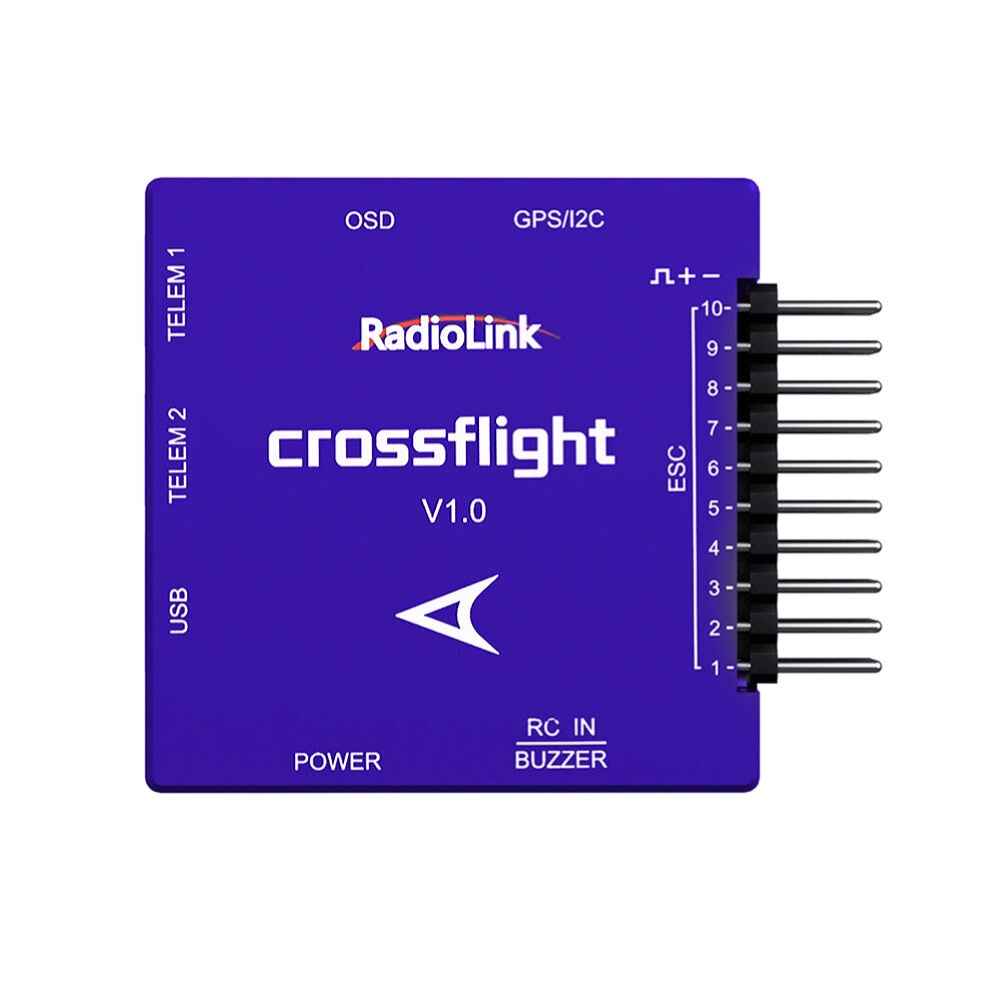

Radiolink Crossflight 2-12S Flight Controller with OSD Module for FPV Racing Drones, RC Cars, Boats

Description

Radiolink Crossflight Flight Controller 2-12S 10 PWM FC wih OSD Module for FPV Racing Drone RC Car Boat

The Radiolink Crossflight Flight Controller is designed for seamless integration with FPV racing drones, RC cars, and boats. It features a compact design with dimensions of 39.7 x 39.7 x 13mm and a lightweight build of 16.5g, ensuring minimal space usage and extended flight times. This controller offers 10 PWM outputs, adaptable to 3-8 axis multirotors, airplanes, helicopters, cars, and boats. With an integrated OSD module, it supports real-time graphical display of flight data. The advanced vibration damping software enhances sensor accuracy, providing stable altitude hold. Comprehensive support is available for installation and parameter adjustments, making it user-friendly for enthusiasts and professionals alike.

Specifications:
Connector: JST GH1.25 Connector
PWM Output: 10 PWM Output
Mavlink UART: 2(without CTSRTS)
USB Port: 1(Type-C)
GPS UART/I2C Port: 1
RC In Signal Input: PPM/SBUS
RSSI Output: Do not support
OSD Module: OSD Module Integrated
ESC Protocol: PWM
DSHOT Protocol: Do not support
ONESHOT Protocol: Do not support
Neopix Led: Support
Gripper Function: Support
RTK券Support
USB Voltage: 5V呼0.3V
Servo Voltage: Not applicable
Operating Temperature: -40~80﹠
Adaptable Models: 3-8 copter/Airplane/Helicopter/Car/Boat
Dimention: 39.7*39.7*13mm (1.56’*1.56’*0.51′)
Weight: 16.5g(0.58oz), 54g(1.9oz when all the connect wires included)
Power Module Specifications:
Input Voltage: 2-12S
Input Current: 90A
Output Voltage: 5.1V
Output Current(BEC): 2.5A
Input Current(connect to one ESC only): 20A
Hardware Specification:
Processor: HC32F4A0PITB
Gyro: ICM42670
Compass: VCM5883
Barometer: LPS22HB
FRAM: Without FRAM, use the internal flash to store parameters, 2617 waypoints for multi-copters, and 2623 waypoints for airplanes
Crossflight FC Main Features:

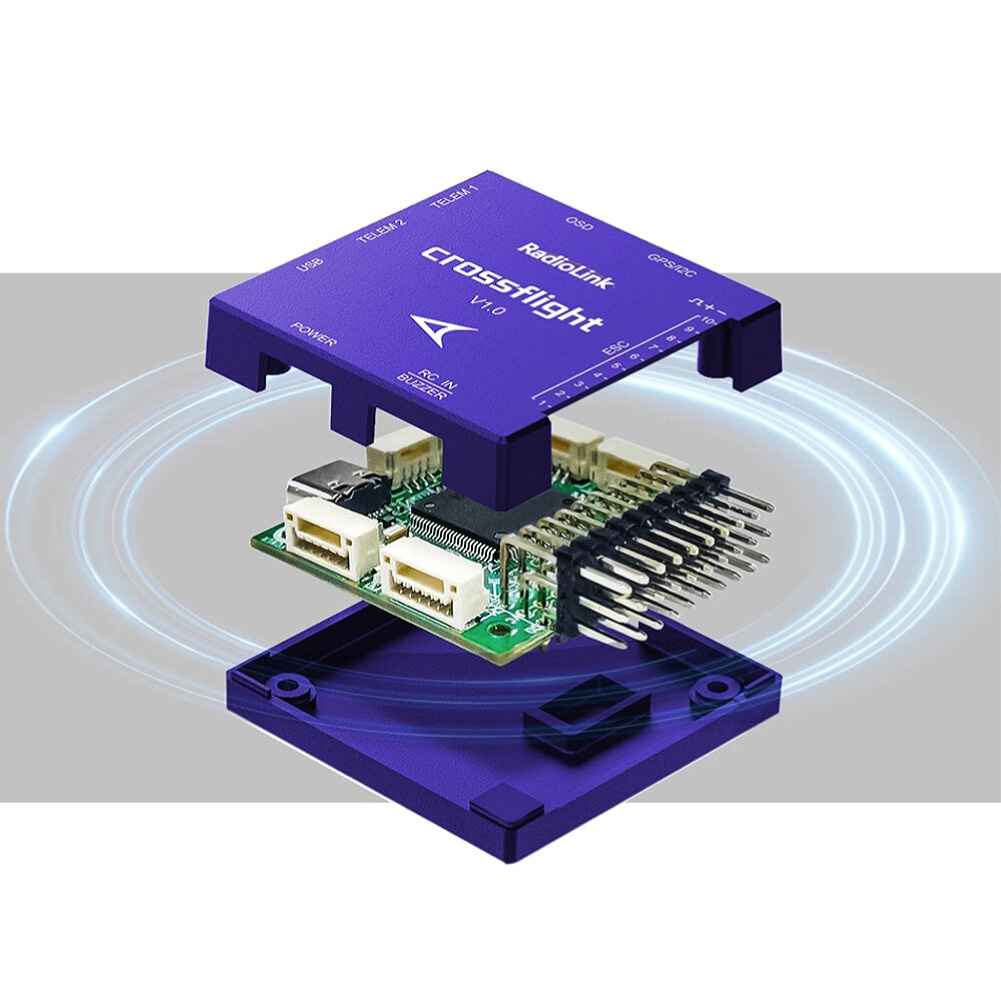

-Vibration Damping by Software: Ensure the accuracy of sensor data at all times, achieve better Altitude Hold effect, and make the flight more stable.
-OSD Module Integrated: Support real-time graphically display OSD information such as the flight direction and position of the aircraft without the need for an external OSD module.
-10 Channels PWM Output: Adaptable to 3-8 Axis Multirotor, Airplanes, helicopters, cars, boats and multiple industries.
-Mini Size as F4: Only 39.7*39.7*13mm and 16.5g, helps save space and reduce total weight to lengthen the flight time.
-Easier Installation and Setting: Offer comprehensive technical support including the usage guidance needed for all functions from basic use, PID parameter adjustment, log viewing, etc. of each model.
-Automation Software Testing System: The same Automation Software Testing System as PIXHAWK and MiniPix helps realizes test automation from the sensor to connection ports and interface.

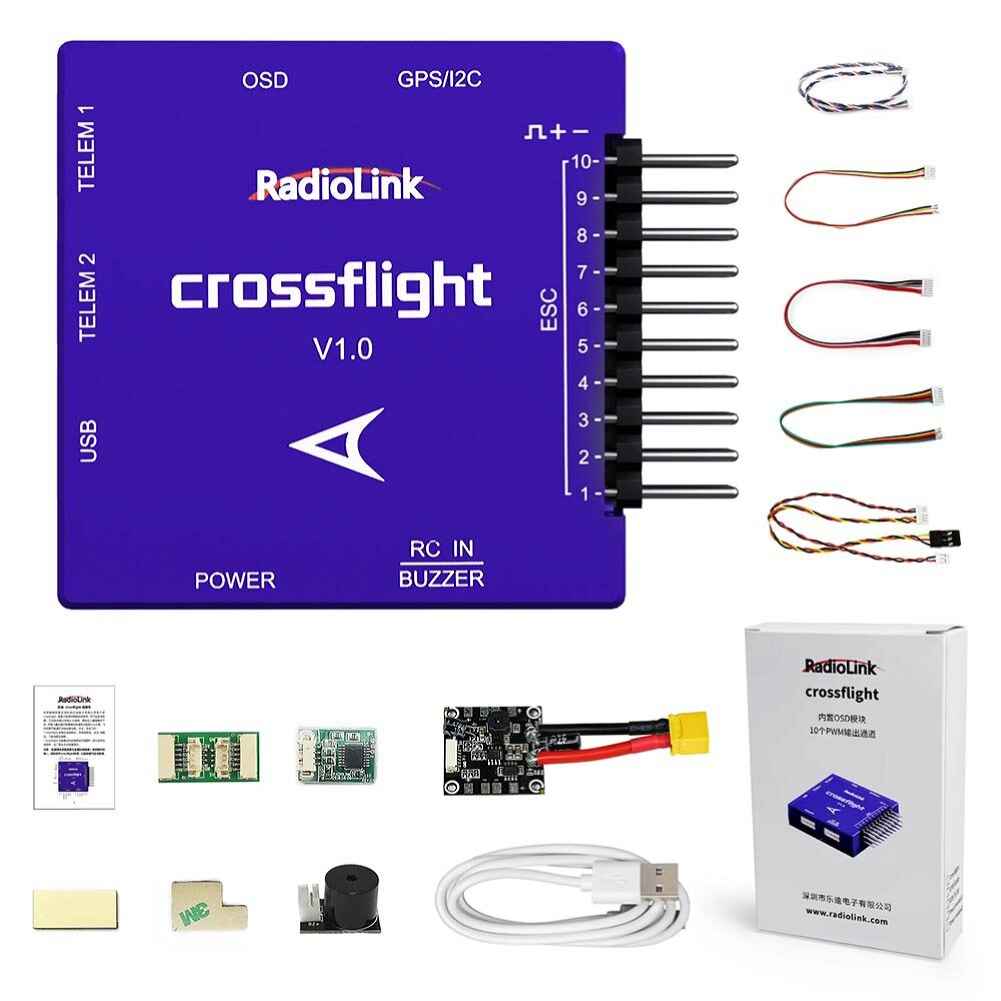

Package List:
1x Crossflight Flight Control
1x Power Module (Supports 2-12s Battery)
1x Buzzer
1x I2C Adapter Board
1x Flight Control Status Indicator Light
1x Buzzer & Receiver Cable
1x Power Module Cable
1x I2C Adapter Board Cable
1x OSD Port Cable (Connect Image Transmission & Camera
2x TELEM1&2 Port Cable
1x Flight Control Status Indicator Light Cable
1x Double Sided Sticker
1x Double Sided Sticker
1x Usb Cable
1x Instruction Manual
1x Color Box
Note:
* The crossflight can set parameters by Radiolink Mission Planner, ArduPilot Mission Planner, and QGC Mission Planner.
* The crossflight only can upgrade the firmware by Radiolink Mission Planner, and only can upgrade the firmware from Radiolink.
* You could download the Radiolink mission planner and firmware via our official website: https://radiolink.com/crossflight.

Package Included:
1 x Crossflight Flight Control
1 x Power Module (Supports 2-12s Battery)
1 x Buzzer
1 x I2C Adapter Board
1 x Flight Control Status Indicator Light
1 x Buzzer & Receiver Cable
1 x Power Module Cable
1 x I2C Adapter Board Cable
1 x OSD Port Cable
2 x TELEM1&2 Port Cable
1 x Flight Control Status Indicator Light Cable
1 x Double Sided Sticker
1 x USB Cable
1 x Instruction Manual
1 x Color Box
