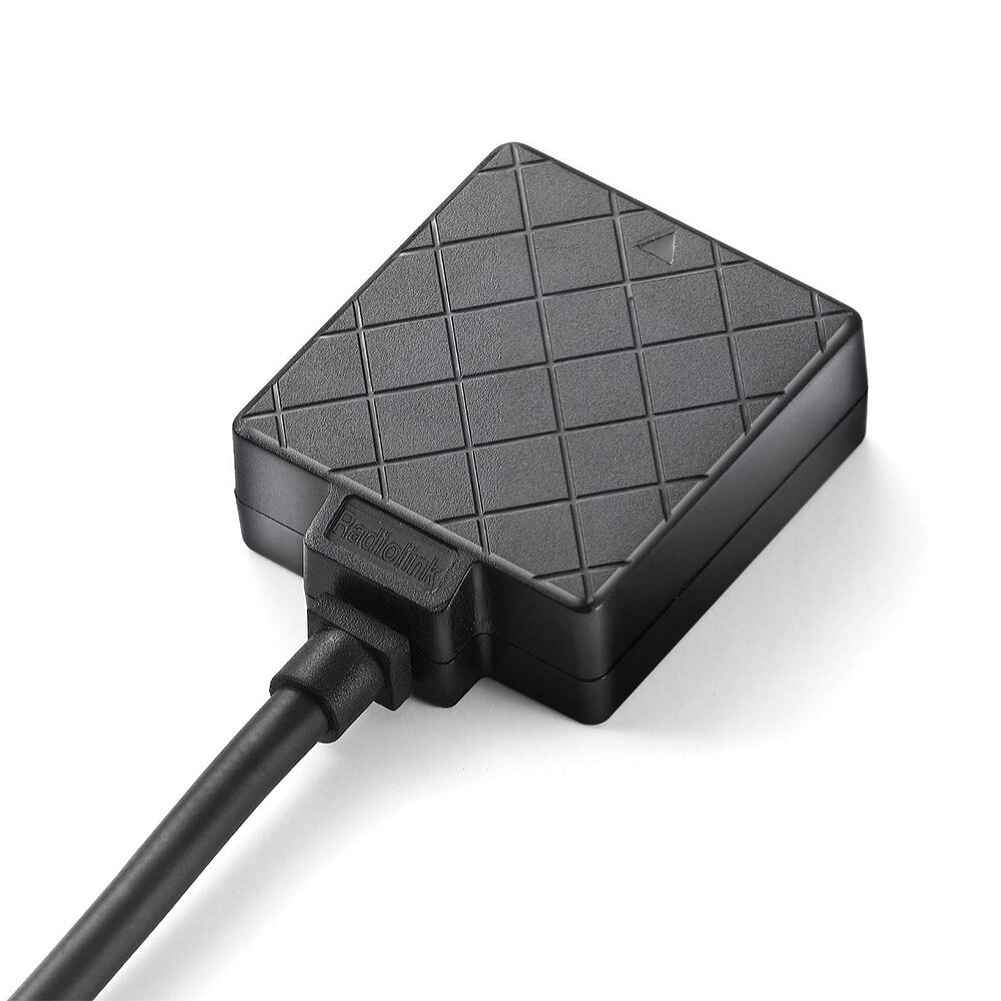

Radiolink M10N GPS Module for MiniPix Pixhawk F4 Flight Controller, Super Mini Size, High Precision, Dual Anti-Interference

Description

Radiolink M10N GPS Module for Crossflight MiniPix Pixhawk F4 Flight Controller Quadcopter Helicopter Airplane Drones

The Radiolink M10N GPS Module is designed for use with Crossflight MiniPix and Pixhawk F4 flight controllers, making it an ideal choice for quadcopters, helicopters, and drones. This compact GPS module boasts a super mini size of 1.25 x 1.18 x 0.47 inches and weighs just 0.7 ounces, perfect for racing drones. It features a high-precision U-box UBX-M10050(M10) chip with 72 channels, providing 50-centimeter positional accuracy and quick satellite positioning. The module supports multiple satellite systems, including GPS, QZSS, GLONASS, and BeiDou. With dual anti-interference technology, it effectively filters out interference, ensuring stable and reliable performance even in challenging environments.

Specification:
1) Positional Accuracy: 50 centimeters precision when working with concurrent GNSS.
2) Velocityprecision: 0.1m/s
3) Max height: 50000m
4) Max speed: 515m/s
5) Max acceleration: 4G
6) Max update rate: up to 10Hz
7) Sensitivity
Tracking & Nav.: -167dBm; Reacquisition: -163dBm; Cold start: -151dBm; Hot start: -159dBm.
8)Time to first fix: Cold start: 26s, Hot start: 1s.
9)Connect ports
Power supply: voltage 5呼5%V DC, current 50~55mA
10) Ports
A. GPS UART interface, baud rate: 9.6K
B. Geomagnetic I2C interface
Features :
?Super Mini Size?: This mini GPS for Radiolink miniPIX flight controller, only 1.25*1.18*0.47in,0.7oz, itㄙs perfect for you racing drone and quadcopter.
?Excellent Stable?: The ceramic antenna design have enhances the ability to get extremely weak signal even though interference by ideal filter.
?Top Configuration?: Design with U-box UBX-M10050(M10), 72-channel, is better than GNSS 7N. 2.5dbl ceramic antenna.
?Positional Accuracy and Quick?: 50 centimeters precision when working with concurrent GNSS, positioning 20 satellites in 6 seconds at open ground and valley station-keeping ability. Support reception of GPS, QZSS L1 C/A, GLONASS L10F, BeiDou B1. Triple-mode operation is available.
?Dual Anti-interference Technology?:De-interference- Two-stage filtering with 78db attenuation effectively filters out-of-band interference.Anti-interference- In-band input 1dB compression point -3dBm high linear LNA can minimize the impact of even a small amount of interference signals that pass the filter. Effectively resist strong signal interferenc, such as high-power image transmission on drones, high-voltage lines, etc.
Mini Size:
Super mini: The size is for 1.25*1.18*0.47in and the weight is 0.044Lb; Pilot can practice with super simple models when TS100 work with Radiolink mini flight controller and crossflight flight controller, best choice for racing drone beginner.
Top Configuration:
-GPS decoder chip: Radiolink M10N GPS, with u-blox UBX-M10050(M10N), 72-channel, is much better than single GNSS 7N.
-Geomagnetic: QMC5883L which with same technology as HMX5983 from Honeywell.
-Antenna: 2.5dbi high gain and selectivity ceramic antenna.
-Double Filter: SAWF(surface acoustic wave filter) from Murata.
Excellent Performance:
-50 centimeter position accuracy, positioning 20 satellites in 5 seconds at open ground and valley station-keeping ability.
-The pre-LNA low loss design that exact match the ceramic antenna have enhances the ability to capture extremely weak signals even though interference by ideal filter.
-Optimized circuit layout make sure it can seizing very weal signals and effective suppression of input interference at the same time.

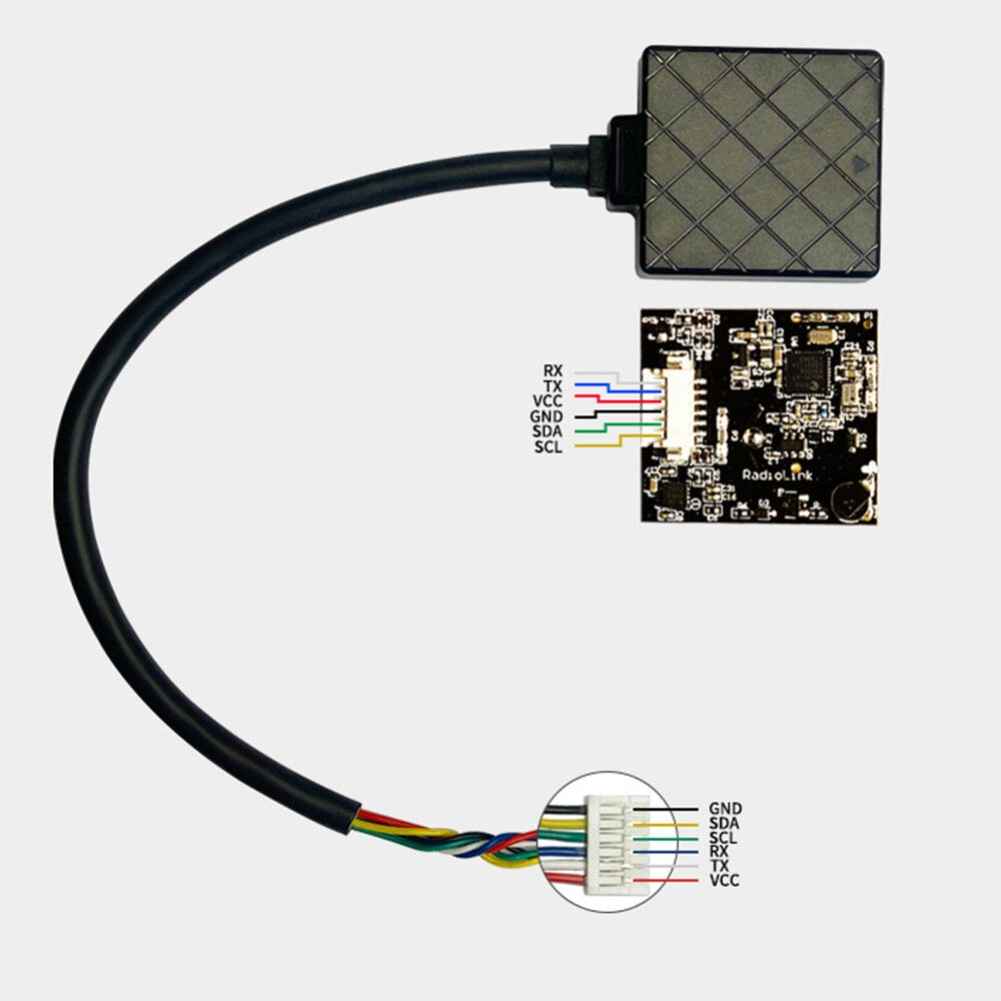

Definition of Wire:
Please check the Wire definition for Radiolink MiniPIX, TurboPIX and GPS, easy to use and connect, you can use the mini GPS with your F3 or F4 flight controller, maybe need to change the connect port ( depend on your FC connect port ).

Package Included:
1 x Radiolink M10N GPS Module
