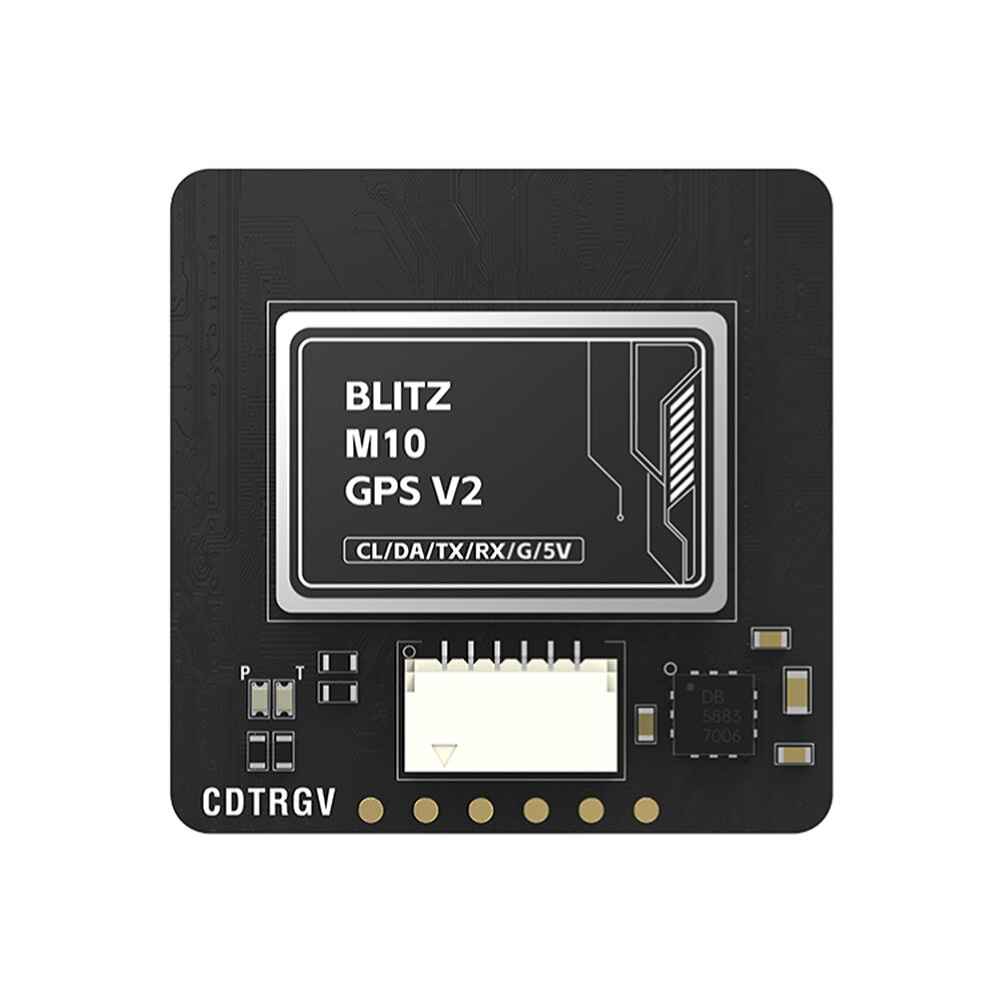

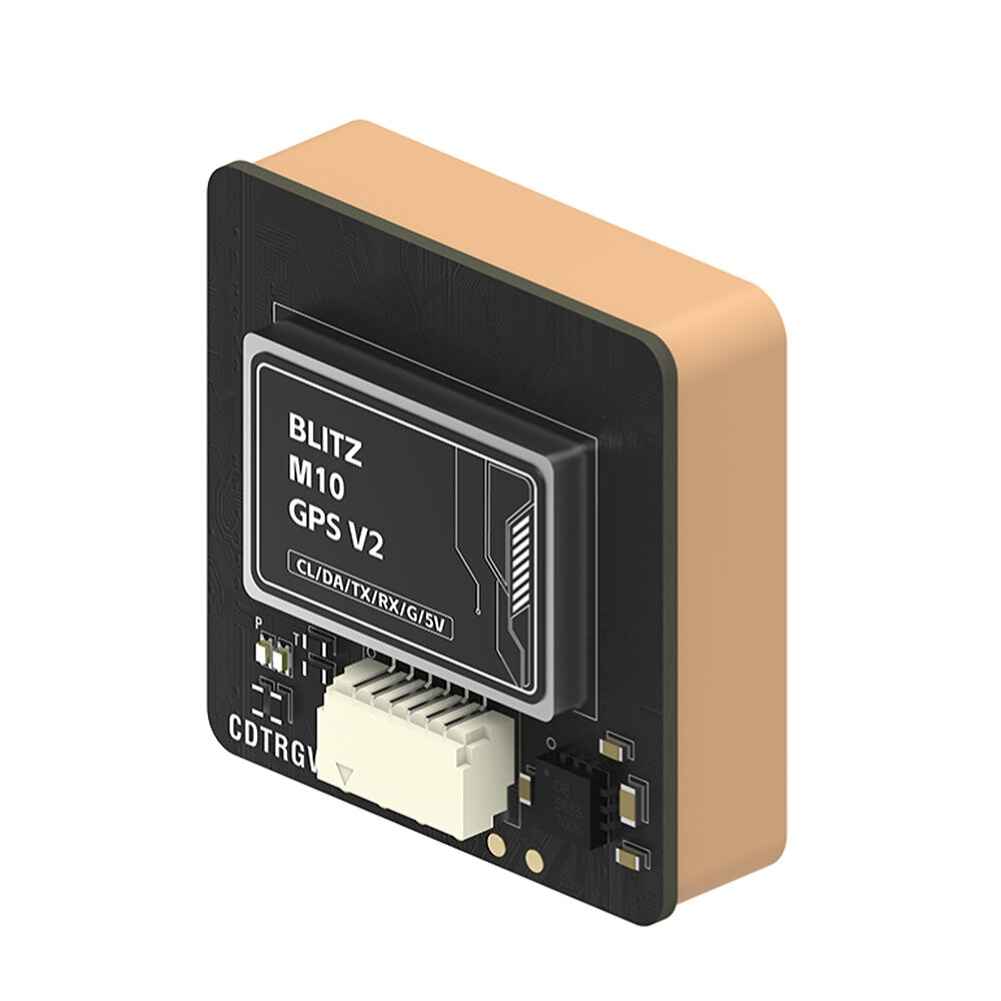

iFlight BLITZ M10 GPS V2 Module with QMC5883L Compass, 25x25mm Ceramic Antenna for FPV Racing Drone

Sale!

iFlight BLITZ M10 GPS V2 Module with QMC5883L Compass, 25x25mm Ceramic Antenna for FPV Racing Drone

Original price was: 77.98$.Current price is: 65.11$.

Advanced UBLOX M10 chip for strong signal and low power consumption
Integrated QMC5883L compass for precise navigation

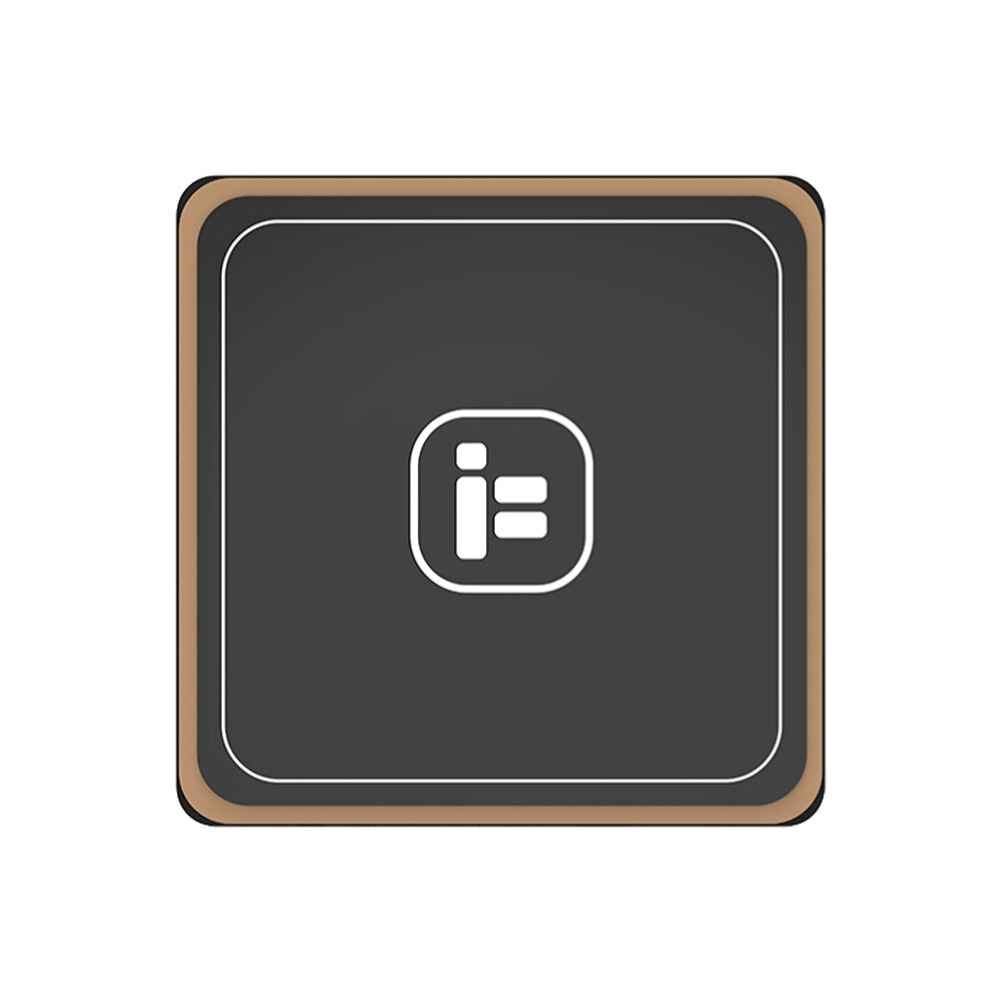

High-gain 25x25mm ceramic antenna for accurate GPS positioning
Built-in farad capacitor for faster hot start
10 Hz refresh rate for stable satellite connection

SKU: RC2006348 Category: Multi Rotor Parts Tags: 25x25mm ceramic antenna, fast satellite search GPS, FPV racing drone GPS, GPS with low power consumption, high-precision GPS for drones, iFlight BLITZ M10 GPS, QMC5883L compass module, RC airplane GPS module Brand: iFlight

Description

252511mm iFlight BLITZ M10 GPS V2 Module 25x25mm Ceramic Antenna QMC5883L Compass for RC Airplane FPV Racing Drone Quadcopter

The iFlight BLITZ M10 GPS V2 Module is an upgraded GPS solution designed for RC airplanes and FPV racing drones. Featuring the advanced UBLOX M10 chip, it ensures low power consumption and a robust signal. The module includes a QMC5883L compass and a high-gain 25x25mm ceramic antenna for precise positioning. With a built-in farad capacitor, it offers a rapid hot start and integrates an onboard LNA, RF filter, and TCXO for improved performance. The module supports a 10 Hz refresh rate, providing swift and stable satellite search capabilities, enhancing your flying experience.

Description:
The newly upgraded BLITZ M10 GPS V2 has arrived, offering faster and more stable satelite search. This advancement in technology provides users with a more reliable and efficient GPS experience.
Features:
-UBLOX M10 chip, , low power consumption, strong signal
-Compass module QMC5883L integrated
-Built-in farad capacitor for faster hot start
-High-gain 25x25mm GPS ceramic antenna, high-precision positioning
-Onboard LNA (Low Noise Amplifier), RF filter, and TCXO (temperature-compensated crystal oscillator)
-10 Hz Refresh rate
-Built-in Flash
Specifications:
Brand: iFlight
Model: BLITZ M10 GPS V2
Compass module: QMC5883L
Baud Rate: 4800bps-921600bps (Default – 115200bps)
Sensitivity: Tracking: -167dBm
Cold start: 27s
Hot start: 1s
Maximum height: 80000m
Maximum speed: 500 m/s
Speed accuracy: 0.05 m/s
Maximum acceleration: 蜼 4G
Refresh Rate: 10 Hz
GPS patch antenna size: 25 x 25 x 6 mm
Total dimensions: 25 x 25 x 11 mm
Weight: 16 g
Input Voltage: 3.3-5.5 V
GPS pin definition: RX/TX UART
Compass pin definition: SDA/SLA
GNSS: GPS+SBAS+Galileo+QZSS+Glonass
Packing List:
1 x BLITZ M10 GPS V2
1 x Cable set
