Description

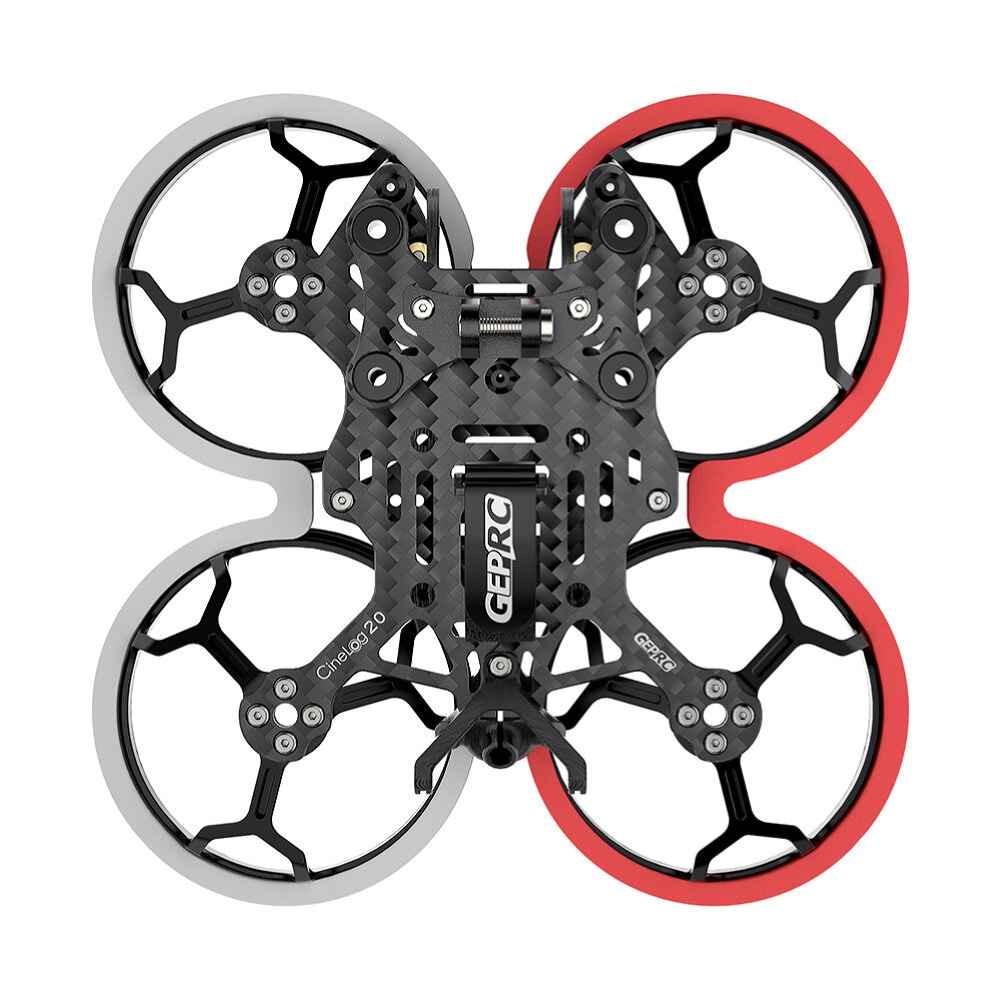

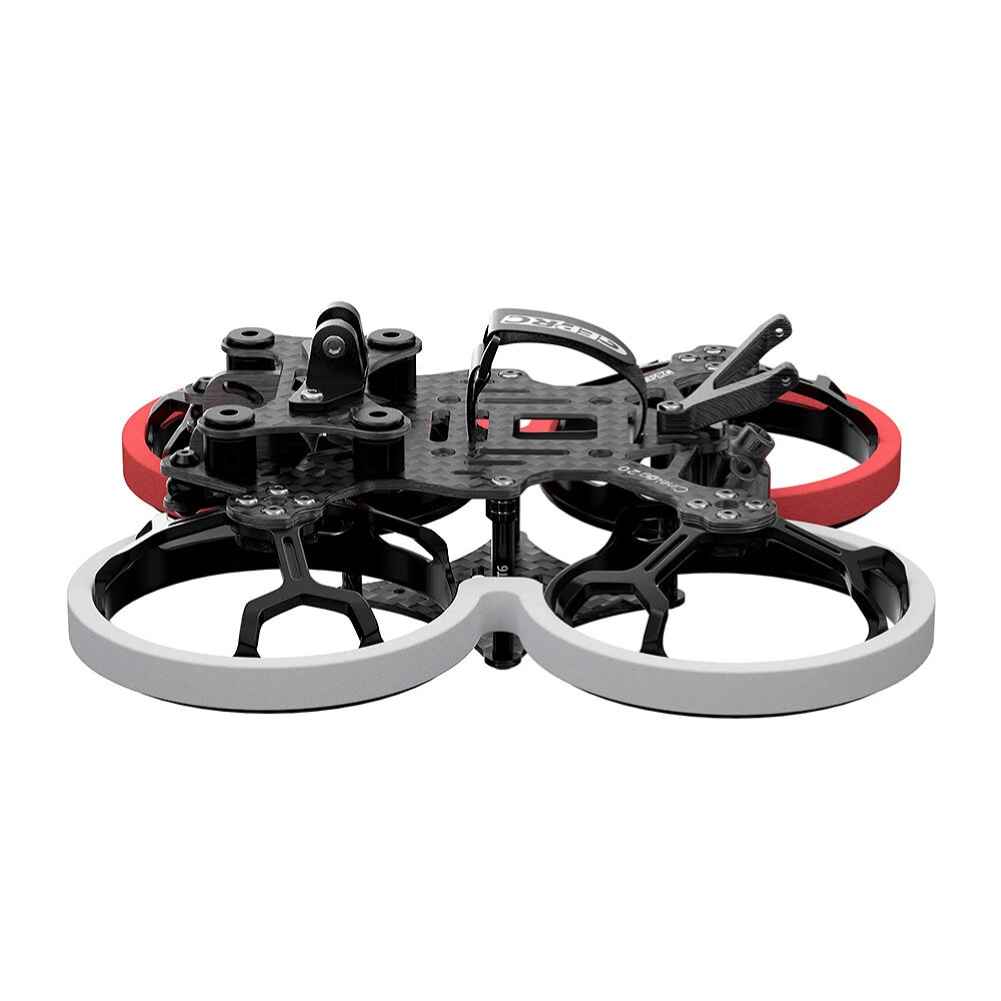

GEPRC CL20 100mm Wheelbase 2 Inch Frame Kit / Replace Bottom Plate AIO Arm for Cinelog20 DJI O3 HD FPV Racing Drone
The GEPRC CL20 is a newly developed 2-inch frame designed for maneuverability in tight spaces, ideal for the DJI O3 VTX. It features an under-mounted gimbal to minimize high-frequency vibrations and jello effects, ensuring smooth footage. The frame supports various camera models, including Naked 8, Naked 10, Insta360 Go2, and DJI Action2. With a flight controller mounting hole spacing of 25.5mm x 25.5mm, it accommodates multiple VTX configurations. The 9mm x 9mm motor mounting holes are suitable for larger 12-13 series motors, offering a compact yet robust design for confident flying. The CL20 frame combines aesthetics with engineering, featuring a shock-absorbing gimbal and a lightweight 2-inch pusher design.
Summary:
The GEPRC team has newly developed a 2-inch frame: GEP-CL20. The 2-inch frame can be shuttled in a narrow space, and can be adapted to DJI O3 VTX, and can also shoot shocking effects in a narrow space. The under-mounted gimbal can easily eliminate the high-frequency vibration and jello problems of the camera. Soft connection damping design of the camera gimbal and can also be mounted with a naked base, which supports the installation of Naked 8, Naked 10, Insta360 Go2 and compatible for DJI Action2 cameras.
The flight controller mouting hole spacing is 25.5mm*25.5mm, which is compatible with various VTX holes on the market with 20mm*20mm/25.5mm*25.5mm. The 9mm * 9mm motor mounting hole is used to install larger 12-13 series motors, and the compact body makes the flight more confident.
Specification:
Brand: Geprc
Model: CL20
Wheelbase: 100mm
Main plate: 2.5mm
Bottom plate: 1.5mm
Camera gimbal plate: 2.0mm
lens gimbal triangle plate : 1.5mm
Motor plate gasket: 2.0mm
FC mounting holes: 25.5mm x 25.5mm
VTX mounting hole: 20mm x 20mm /25.5mm x 25.5mm
Motor mounting hole: 9mm x9mm
FPV camera spacing: 20mm

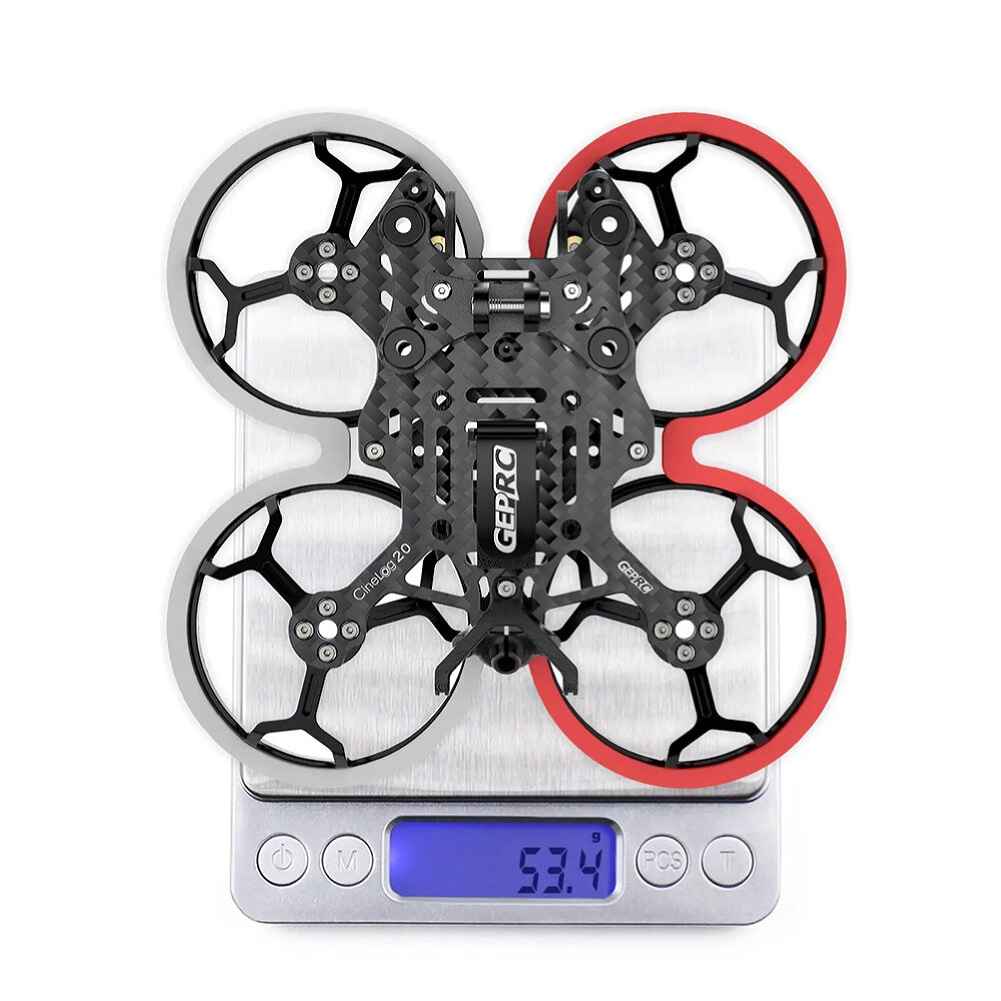

Weight: 53.4g
Recommend Parts: ( NOT Included)
Suitable propeller size: 2 inch propeller
Flight controller: GEP-F4-35A AIO (mounting hole: 25.5mm沁25.5mm)
Motor: 1303.5 (mounting hole: 9mm沁9mm)
ESC: 35A
Propeller: 2 inch
Recomended Battery: 4S 660mAh
Feature:
1. Combining aesthetics and engineering for compact design
2. Designed to mount a shock-absorbing gimbal under the independent FPV camera to reduce jello of FPV Goggles image.
3. 2 inch pusher design, small size and lightweight, more suitable for complex and narrow environments flight shooting.
4. SPEEDX2 1303.5 5500KV motor with Emax four-blade propellers make the flight shooting unhurried.
5. Design the outer EVA damping ring to effectively reduce the impact force.
Package Included:

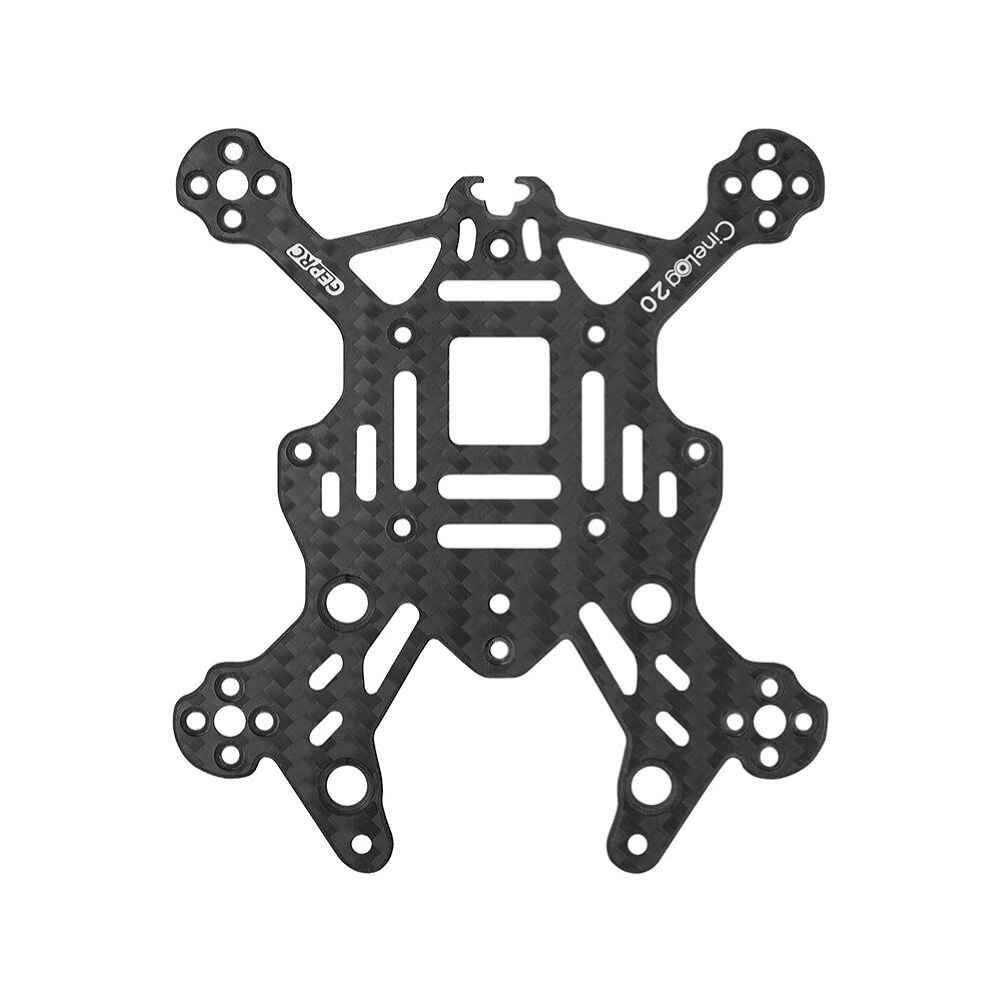

1 x Bottom Plate AIO Replace Arm Plate
1 x CL20 Frame (Unassembled)
