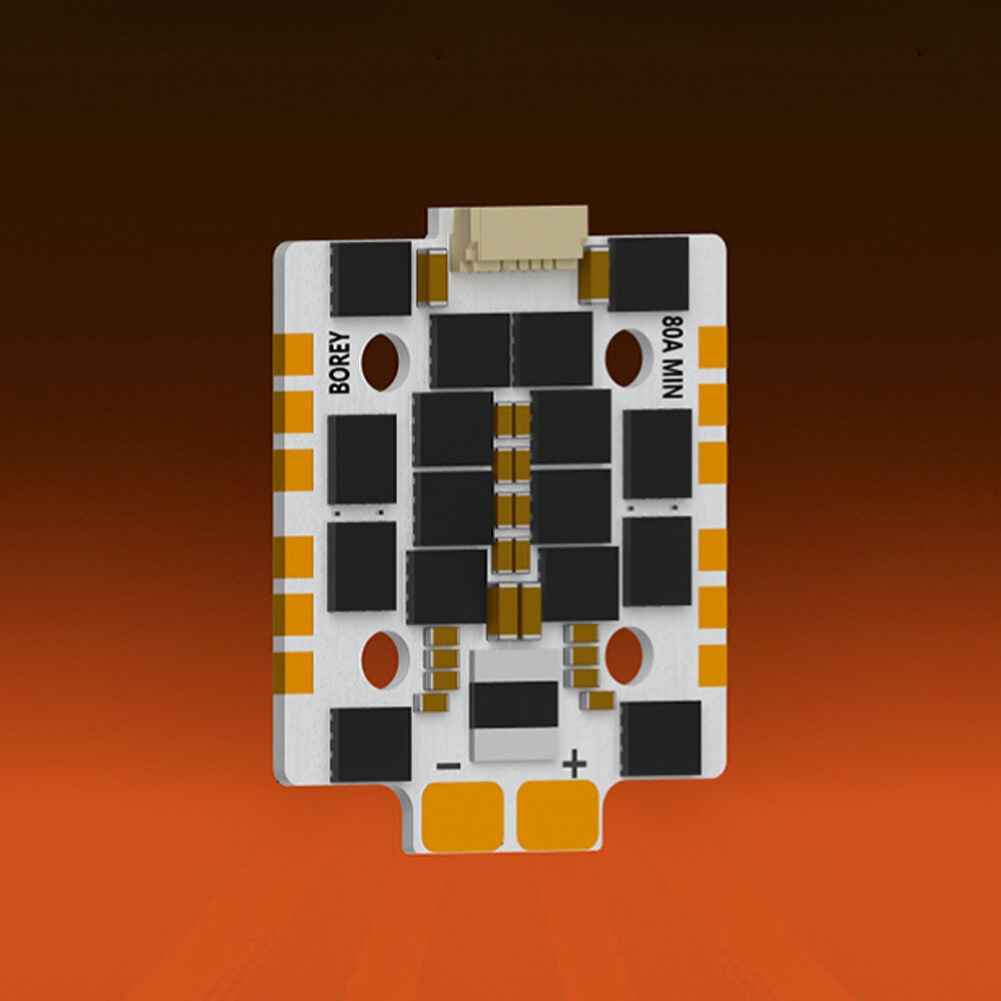

20mm*20mm ZEX BOREY Mini 80A 3-8S 4in1 AM32 ESC High Performance for RC FPV Racing Drone
The ZEX BOREY Mini 80A 4-in-1 AM32 ESC is engineered for high-performance RC FPV racing drones. With support for a wide range of ESC protocols, including DShot 150/300/600/1200 and MultiShot/OneShot/Proshot/PWM, this ESC offers versatile compatibility. It handles a continuous current of 80A and a burst current of 100A, ensuring reliable power delivery. Designed for 3-8S LiPo input voltage, it features a compact 20mm x 20mm mounting hole configuration, making it ideal for tight builds. The included ESC telemetry support provides real-time data for enhanced performance monitoring. Weighing just 14.3g, this ESC combines lightweight design with robust capability.
Specification:
Brand: ZEX
Model: 80A mini ESC
Component: AM32_ZEX_BOREY_F421_2.17.hex (Confirmed) BLHeli (Supported)
Continuous Current: 80A * 4
Burst Current: 100A
External Capacitance: 1000譙F 35V
ESC Protocol: Supports DShot 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc.
Input Voltage: 3-8S LiPo (7.4V-29.6V)
Output Voltage: VBAT
ESC Telemetry: Supported
Mounting Hole: 20mm*20mm x M4

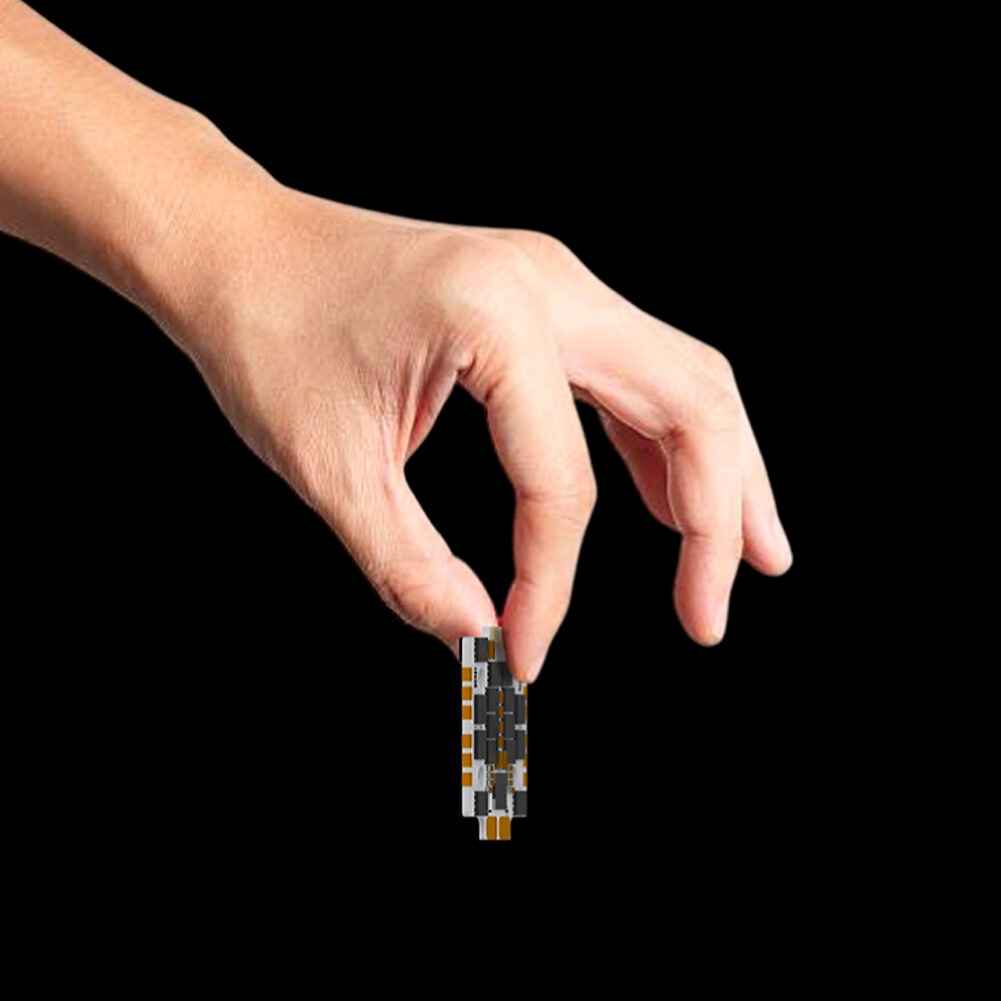

Weight: 14.3g

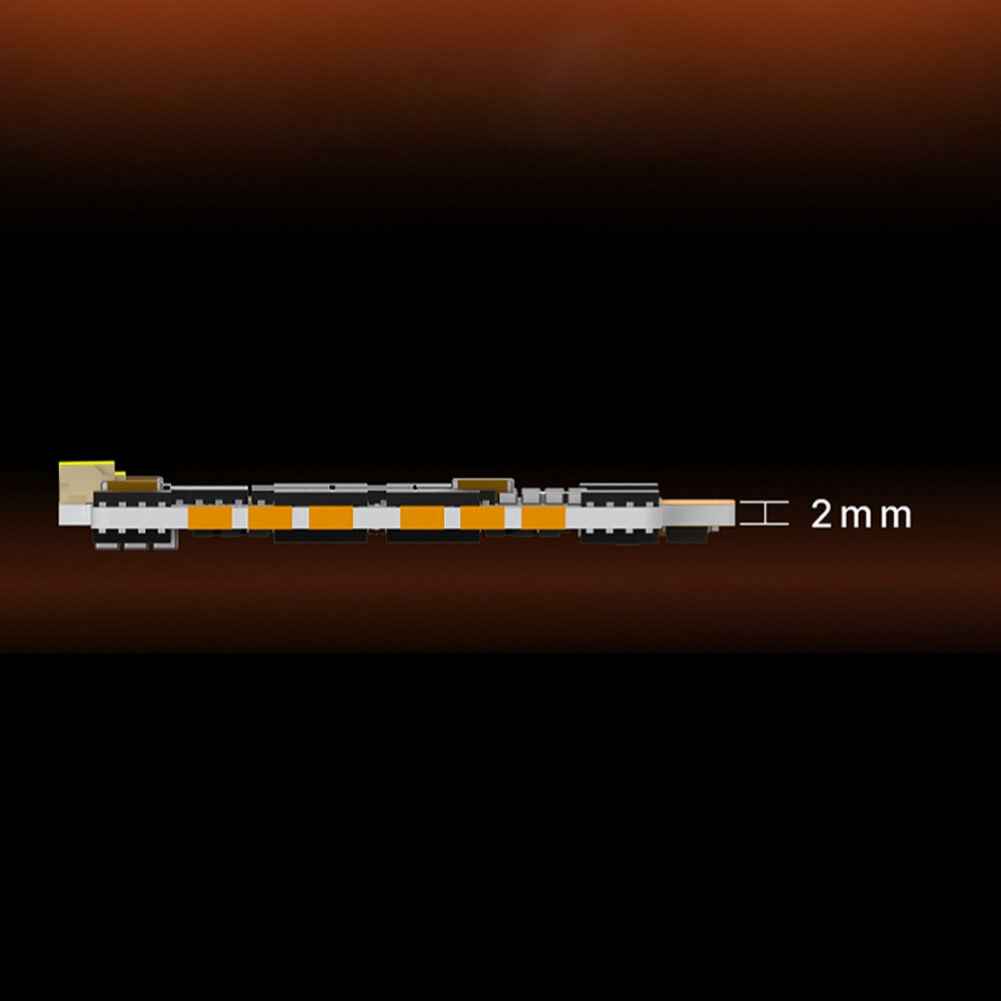

Dimension: 42.5(L) * 36.3(W) * 6.9(H)
Package Included:
1 x 80A mini ESC
