Description

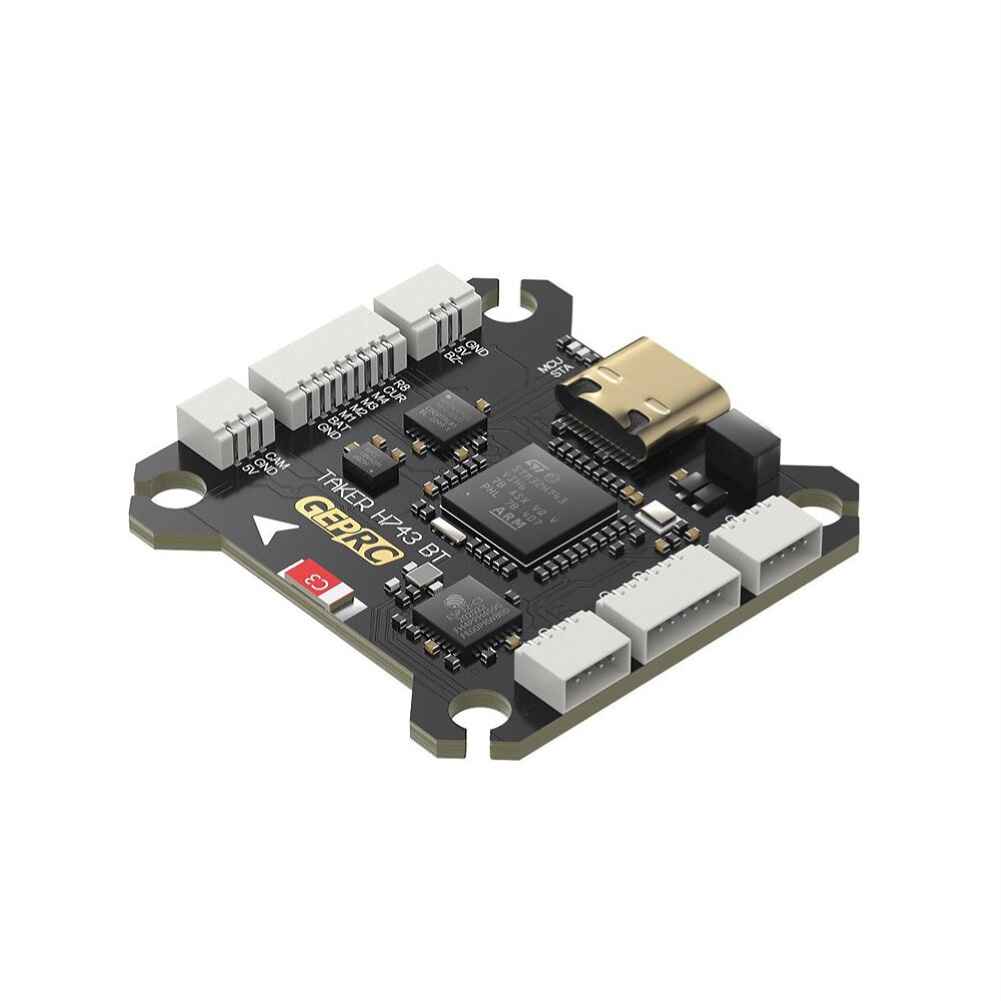

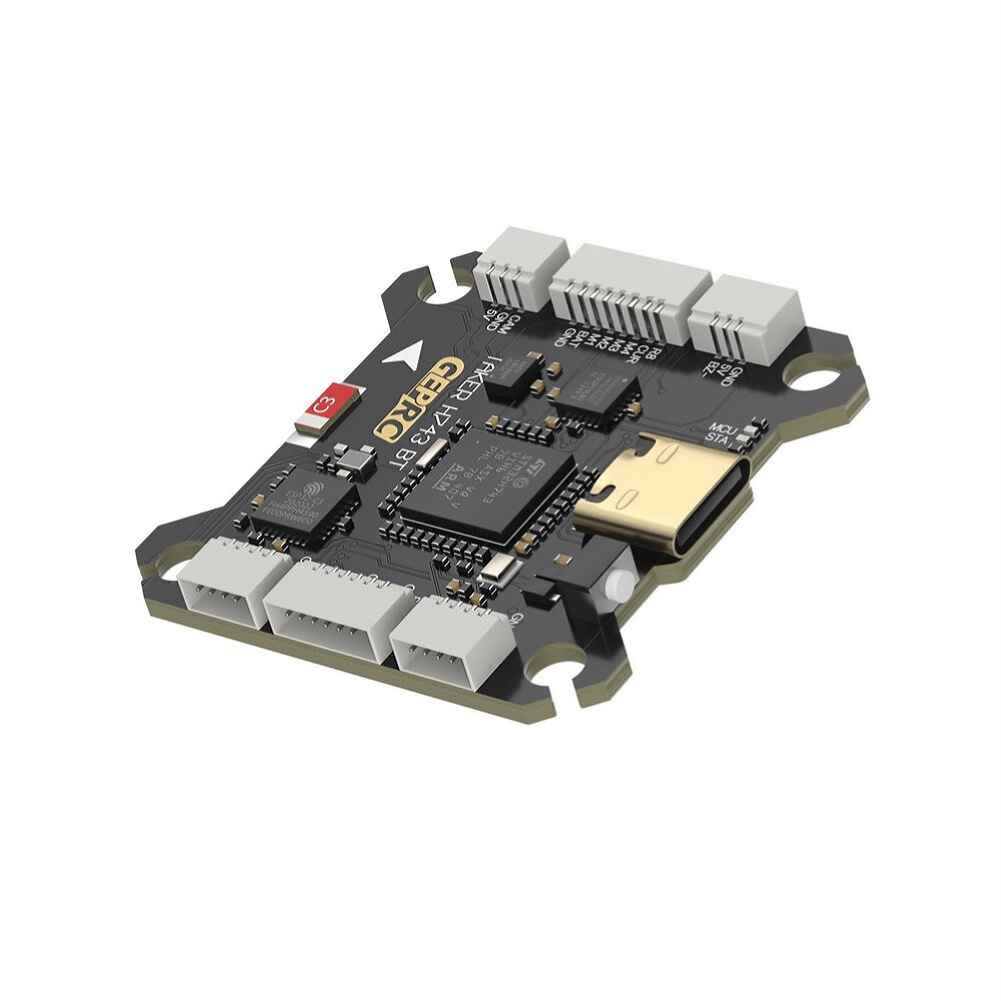

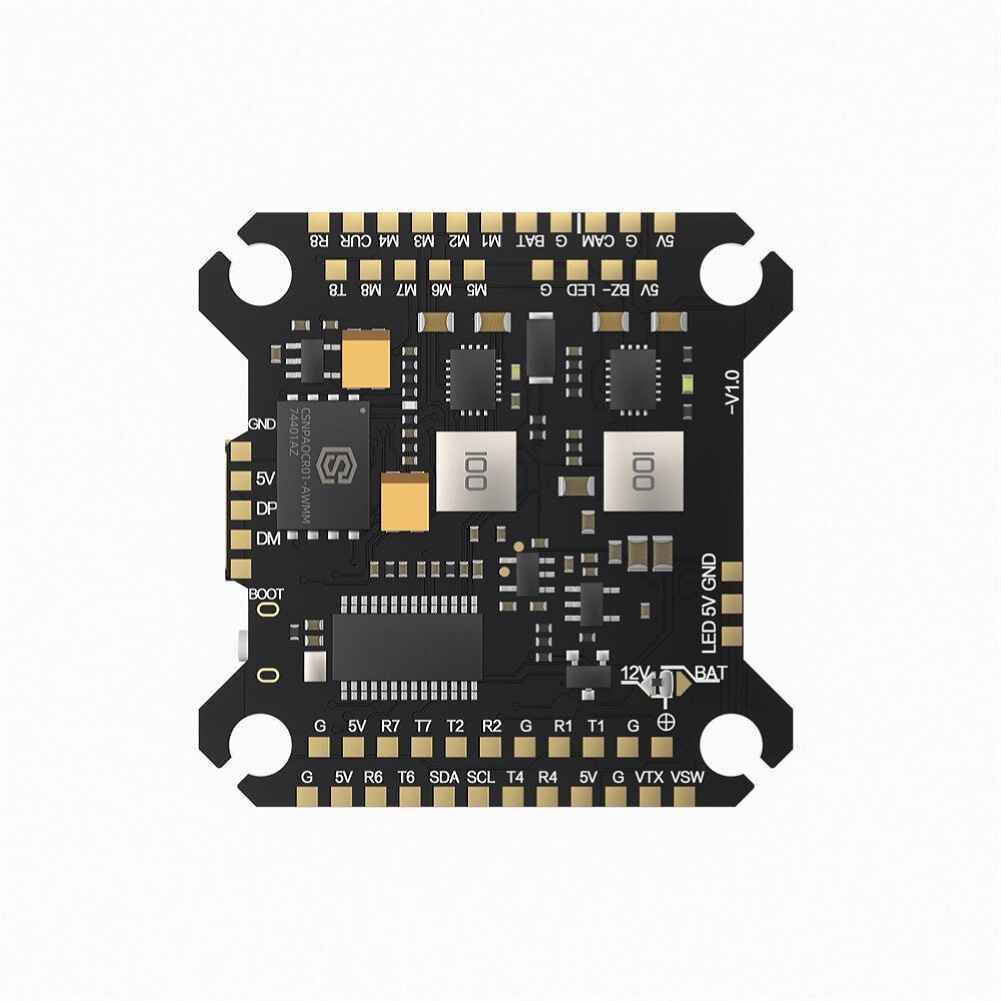

30.530.5mm GEPRC TAKER H743 BT Dual Gyro 3-6S Flight Controller with 5V 12V BEC Output for RC FPV Racing Drone
The GEPRC TAKER H743 BT Flight Controller is engineered for high performance in RC FPV racing drones. Powered by the STM32H743 MCU, it features dual gyroscopes (MPU6000 and ICM42688-P) for enhanced stability and precision. This controller includes 512M of black box storage and Bluetooth for easy parameter tuning. With an integrated LC filter and a Type-C USB interface, it offers seamless connectivity and power management. The direct plug-in compatibility with the DJI Air Unit and integrated barometer further enhance its functionality. The flight controller supports multiple firmware options and provides dual BEC outputs (5V@3A and 12V@2.5A), making it versatile for various configurations.
Features:
– Addopts the high-performance STM32H743 as the main controller
– Equipped with MPU6000 and 42688-P dual gyroscopes
– 512M of black box storage
– Bluetooth parameter tuning
– Integrated LC filter
– Upgraded type-C USB interface
– Direct plug-in compatibility with DJI Air Unit
– Integrated Barometer
– Features 7 groups of UART
– 12V@2.5A + 5V@3A dual independent BEC
– Offers multiple firmware options
Specification:
Brand: GEPRC
Model: TAKER H743 BT Flight Controller
MCU: STM32H743
IMU: MPU6000 + ICM42688-P(dual gyro)
Air Unit Connection: Directly plugs into DJI Air Unit
Black Box券512M onboard
Bluetooth: Supported
Barometer: Supported
USB Interface: Type-C
OSD: BetaFlight OSD w/ AT7456E chip
BEC Output: 5V@3A,12V@2.5A dual BEC
Firmware Target: GEPRC_TAKER_H743
Size: 38.5沁38.5mm, mounting hole size 30.5沁30.5mm
Input Voltage: 3-6S LiPo
UART Ports: 7 groups (UART3 fixed for Bluetooth)
Power Filtering: Integrated LC filter
Weight券8.4g
Package Included:
1 x FC board
1 x DJI O3 3-in-1 connection cable
1 x FC adapter cable
1 x sh1.0 4pin silicone cable
1 x Camera connection cable
1 x VTX connection cable
1 x Buzzer connection cable
4 x Silicone grommets
