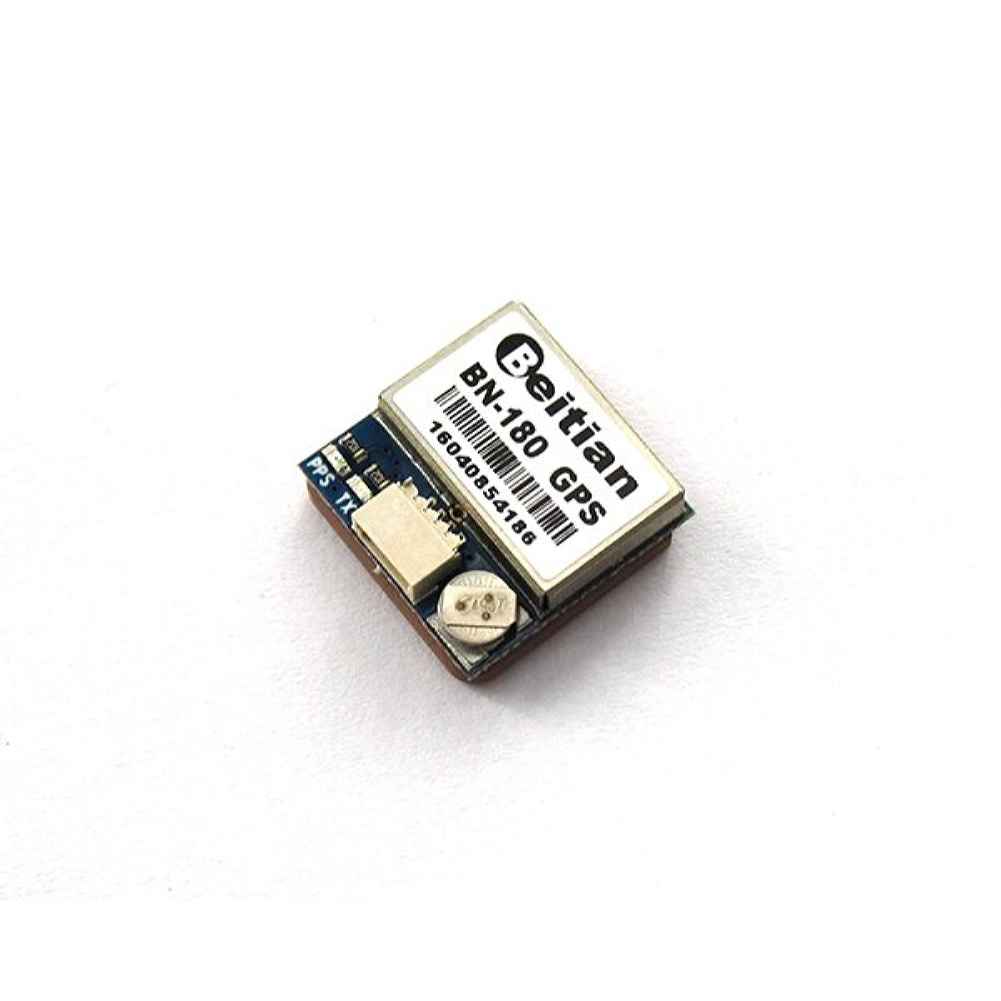

Beitian BN-180 Mini Dual GLONASS+GPS Antenna Module, 18mm Micro GPS for CC3D F3 RC Drone Airplane

Price range: 28.73$ through 80.76$

Ultra-compact design: 18mm x 18mm x 6mm, 4.9g
Supports GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS
High sensitivity: -167dBm tracking, -160dBm reacquisition
72-channel search capability for precise positioning
Wide operational temperature range: -40‵C to +85‵C

SKU: RC1208587 Category: Multi Rotor Parts Tags: Beitian BN-180, dual GLONASS GPS, GPS antenna for F3, GPS for airplanes, GPS module for CC3D, GPS with 72 channels, mini GPS antenna module, RC drone GPS module Brand: Beitian

Description

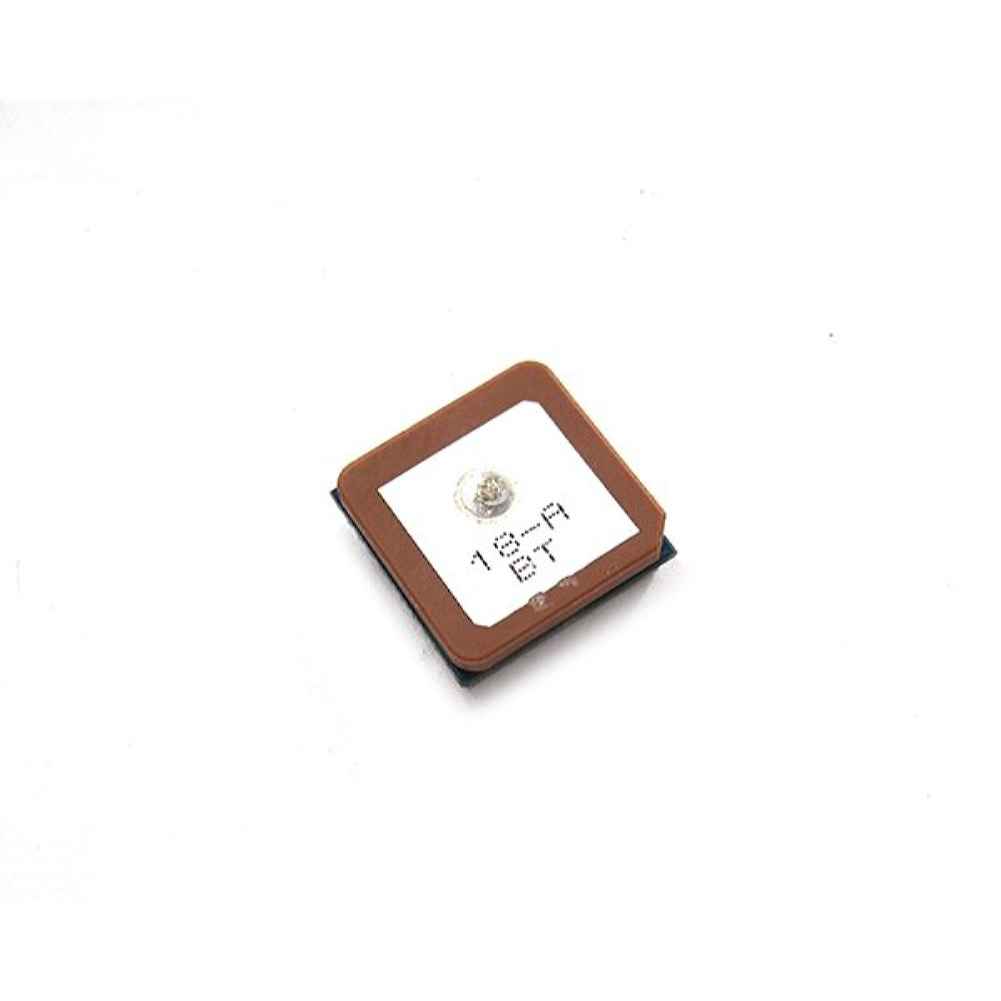

Beitian Smallest Mini Dual GLONASS+GPS BN-180 Micro Double GPS Antenna Module UART TTL For CC3D F3 RC Drone Airplane

The Beitian BN-180 is a compact dual GLONASS and GPS antenna module, measuring just 18mm x 18mm x 6mm and weighing 4.9g. It supports multiple satellite systems, including GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS, with a 72-channel search capability. The module offers high sensitivity, with tracking at -167dBm and reacquisition at -160dBm. It provides precise horizontal positioning with 2.0 m CEP accuracy. The BN-180 supports a data rate from 4800bps to 921600bps, defaulting at 9600bps, and is compatible with NMEA-0183 or UBX protocols. Operating within a wide temperature range, it is ideal for RC drones and airplanes, ensuring reliable performance even in extreme conditions.

Description
Dimension :官18mm*18mm*6mm
Weight : 4.9g
Connector : 1.00mm spacing between the 4pins patch seat
Specification
Electrical Characteristics
Chipset : M8030-KT
Receiving Format :官GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo
Channels : 72 Searching Channel
Sensitivity
Tracking : -167dBm
Reacquisition : -160dBm
Cold start : -148dBm
Hot start : -156dBm
Accuracy
Position Horizontal : 2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)
Speed : 0.1m/sec 95% (SA off)
Timing : 1us synchronized to GPS time
Acquisition Time
Cold Start : 26s
Warm start : 25s
Hot start : 1s
Data and Update Rate
Support Rate : 4800bps to 921600bps,Default 9600bps
Data Level : TTL or RS-232,Default TTL level
Data Protocol : NMEA-0183 or UBX, Default NMEA-0183
Single GNSS : 1Hz-18Hz
Concurrent GNSS : 1Hz-10Hz,Default 1Hz
Operational Limits
Altitude : 50,000m Max
Speed: 515m/s Max
Acceleration : Less than 4g
Power consumption
VCC : DC Voltage 3.0V-5.5V,Typical: 5.0V
Current : Capture 50mA/5.0V
Operating temp :官-40 ‵C ~ +85‵C
Storage Temp : -40‵C ~ +105‵C
Indicator :
TX LED:blue.The data output, TX LED flashing
PPS LED:red.PPS LED not bright when GPS not fixed,flashing when fixed

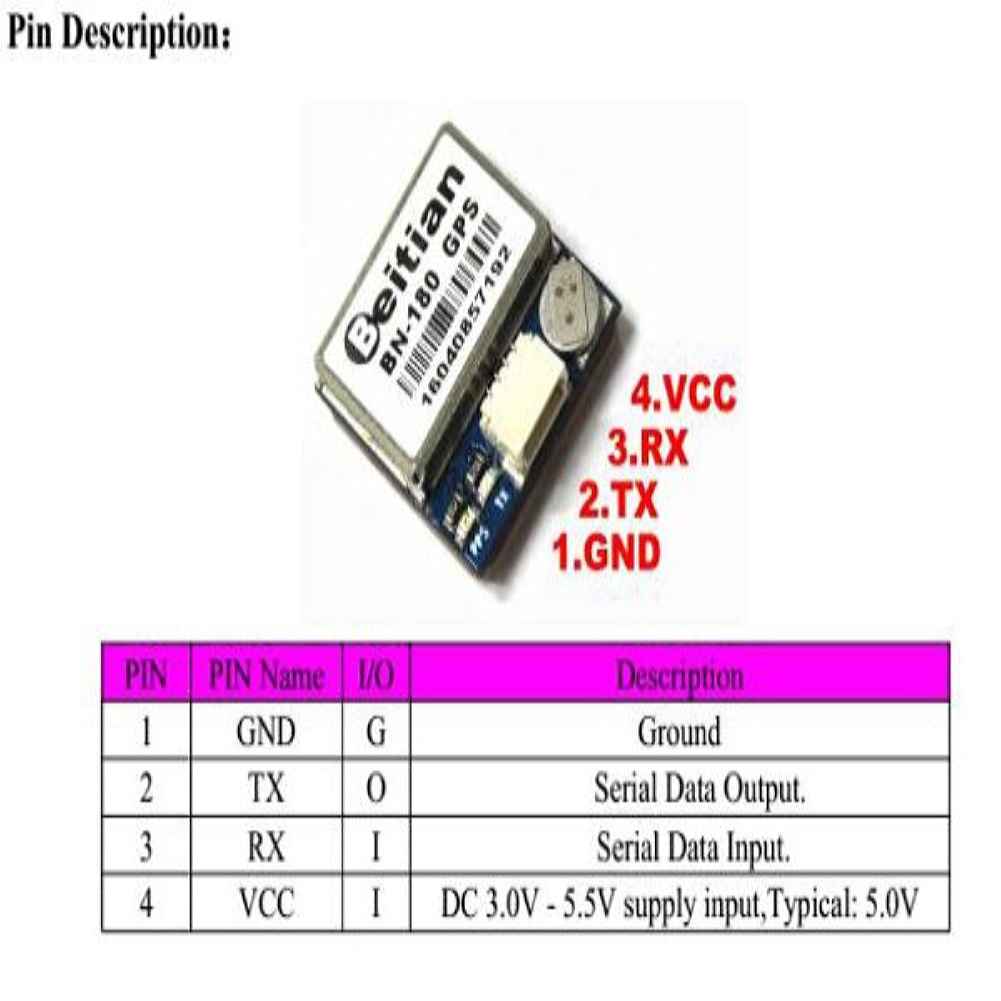

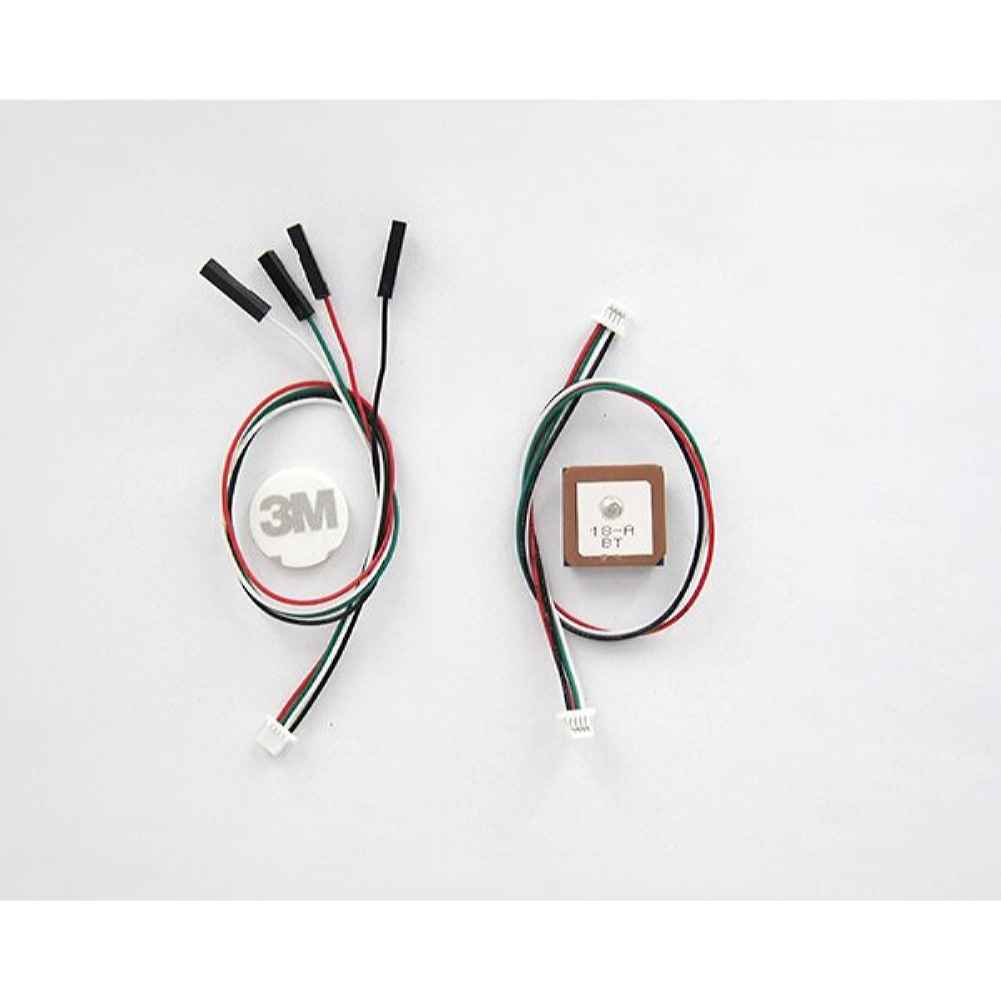

Wiring:
GND,TX output,RX input,VCC(3.0v-5.5v)
