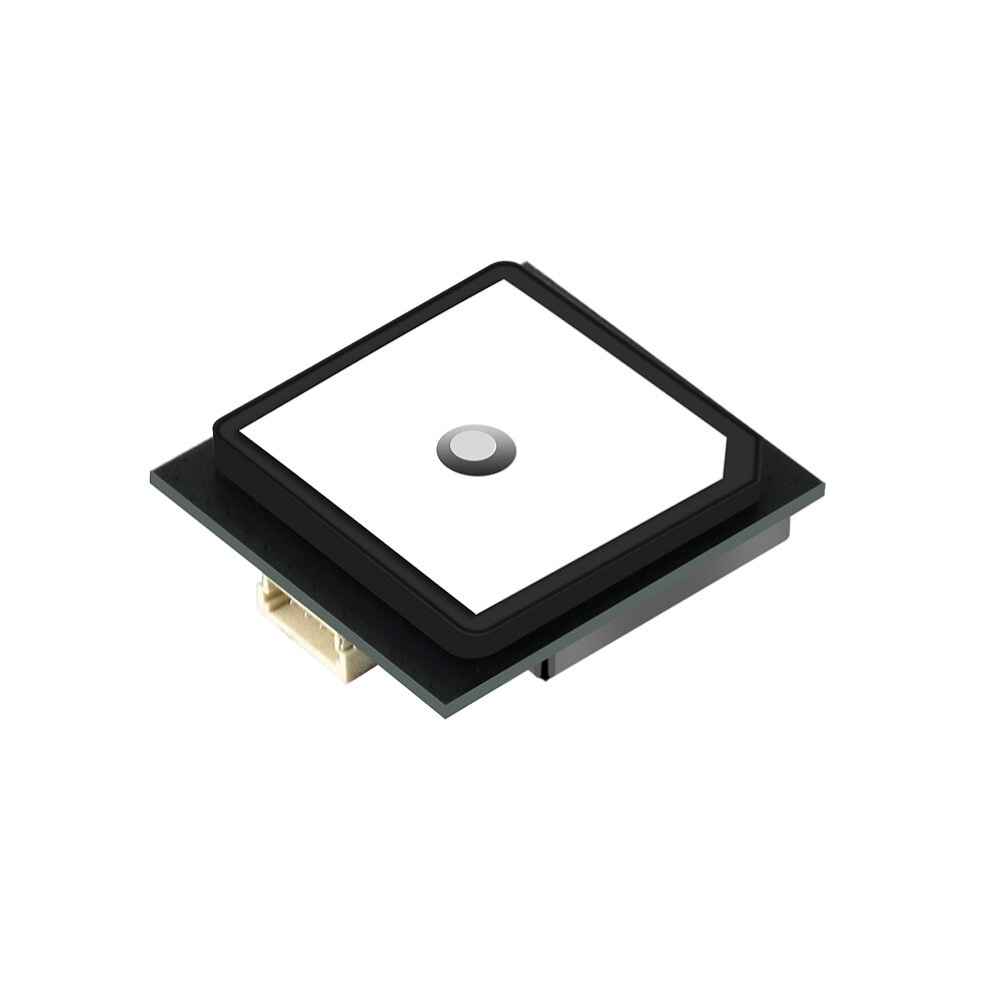

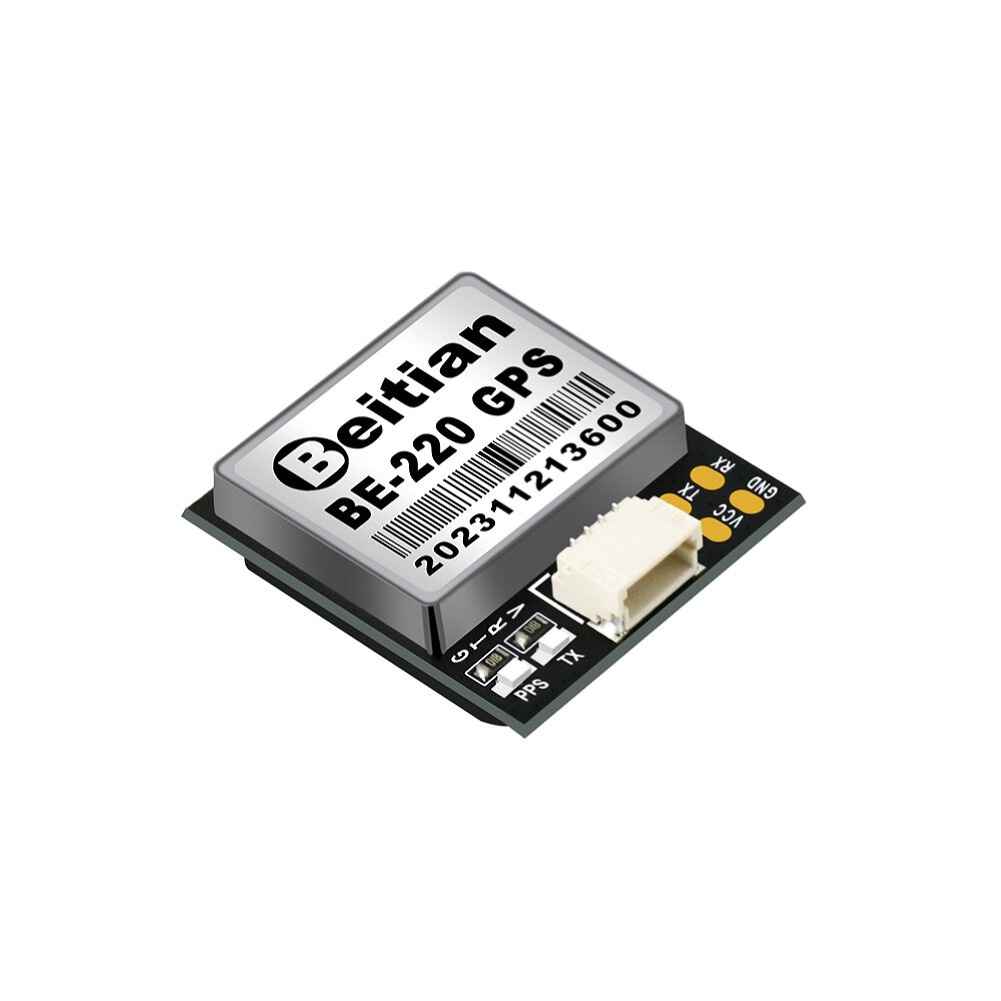

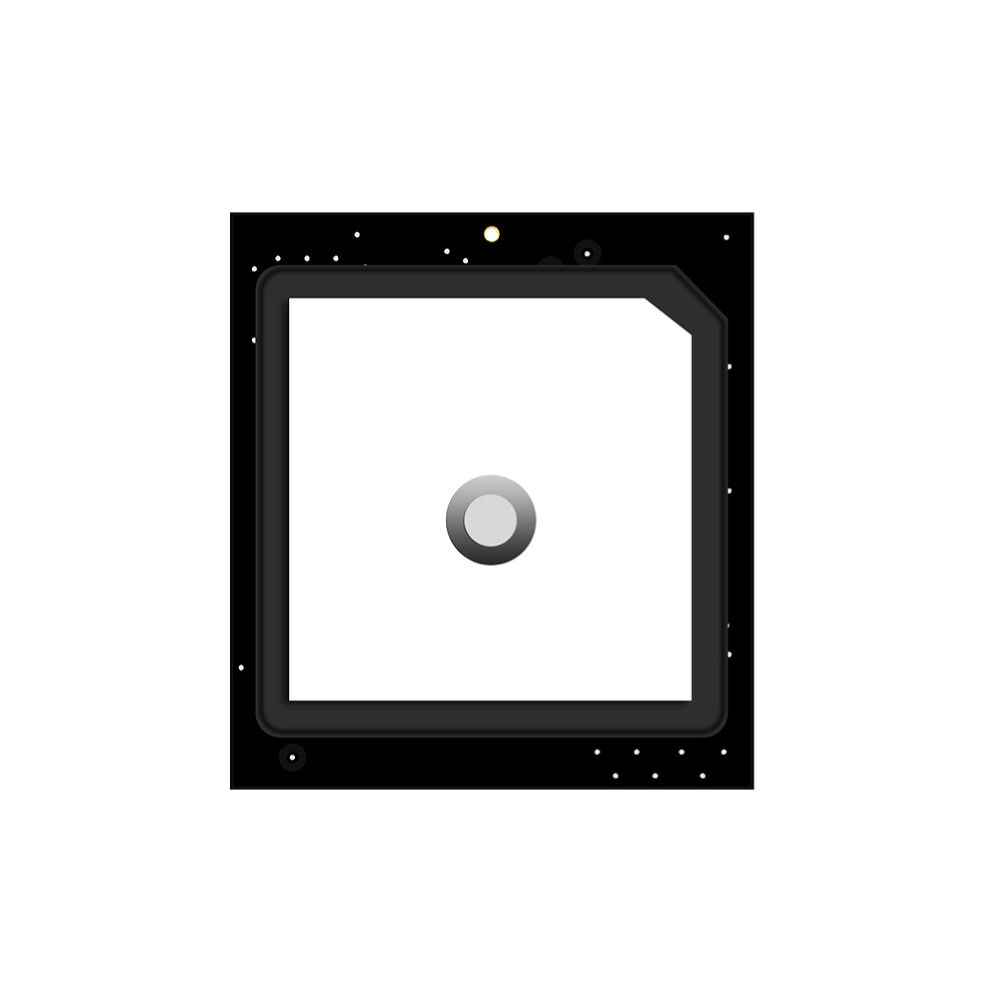

Beitian BE-220 GPS Module GLONASS TTL Level BN-220 Upgrade Version For APM Pixhawk CC3D Naze32 F3 F4 Flight Controller RC Drone Airplane
The Beitian BE-220 GPS Module is an upgraded version designed for APM Pixhawk, CC3D, Naze32, F3, and F4 flight controllers. It features a M10050 chip supporting GPS, GLONASS, and other navigation systems, ensuring high precision with a horizontal accuracy of 2 meters CEP. The module offers excellent reacquisition sensitivity at -160dBm and supports data output rates from 4800bps to 921600bps. It operates efficiently within a wide temperature range and altitude, making it ideal for RC drones and airplanes. The BE-220 includes a FLASH memory to retain configuration settings and operates at a typical power consumption of 15mA at 5.0V. With a compact design, it is easy to integrate into various flight systems.
Specifications:
Brand Name: Beitian
Item Name: BE-220
Chip: M10050
Receiver Type: GPS L1 C/A, QZSS L1 C/A/S, BDS B1I/B1C, Galileo E1B/C, SBAS L1 C/A, WAAS, EGNOS, MSAS, GAGAN.
Default Position System: GPS, BDS, GALILEO
Augmentation System: SBAS, QZSS
Channel: N/A
Tracking & Navigation: -166dBm
Reacquisition Sensitivity: -160dBm
Cold Start Sensitivity: -148dBm
Hot Start Sensitivity: -160dBm
Position Horizontal Accuracy: 2 m CEP
Speed Accuracy: 0.05m/s
Dynamic Heading Accuracy: 0.3 deg
1PPS Time Accuracy: RMS 30ns, 99% 60ns
Cold Start Acquisition Time: 27s
Hot Start Acquisition Time: 1s
Auxiliary Start Acquisition Time: 1s
Data Output Support Rate: 4800bps to 921600bps, Default 38400bps
Data Output Level: TTL Level
Data Output Protocol: NMEA, UBX
Data Output NMEA Message: RMC, VTG, GGA, GSA, GSV, GLL
Data Output Update Rate: 0.25Hz-18Hz, Default 1Hz
FLASH: With FLASH, the configuration can be changed, and the power will not be lost.
Frequency of Time Pulse Signal: 0.25Hz-10MHz can be configured, the default period is 1s, and the high level lasts for 100ms
Operational Altitude Limits: 80000m
Operational Speed Limits: <500m/s
Operational Acceleration Limits: <4g
Power Consumption of VCC: DC Voltage 3.6V-5.5V, Typical: 5.0V
Power Consumption of Current: 15mA/5.0V
Dimension: 22.0mm*20.0mm*6.0mm
Weight: 5.3g
Connector: 1.00mm 4pins connector
Operating Temp: -40 ‵C ~ +85‵C
Storage Temp: -40‵C ~ +105‵C
TX LED: Blue. The data output, TX LED flashing.
PPS LED: Red. PPS LED not bright when GPS not fixed, flashing when fixed.
