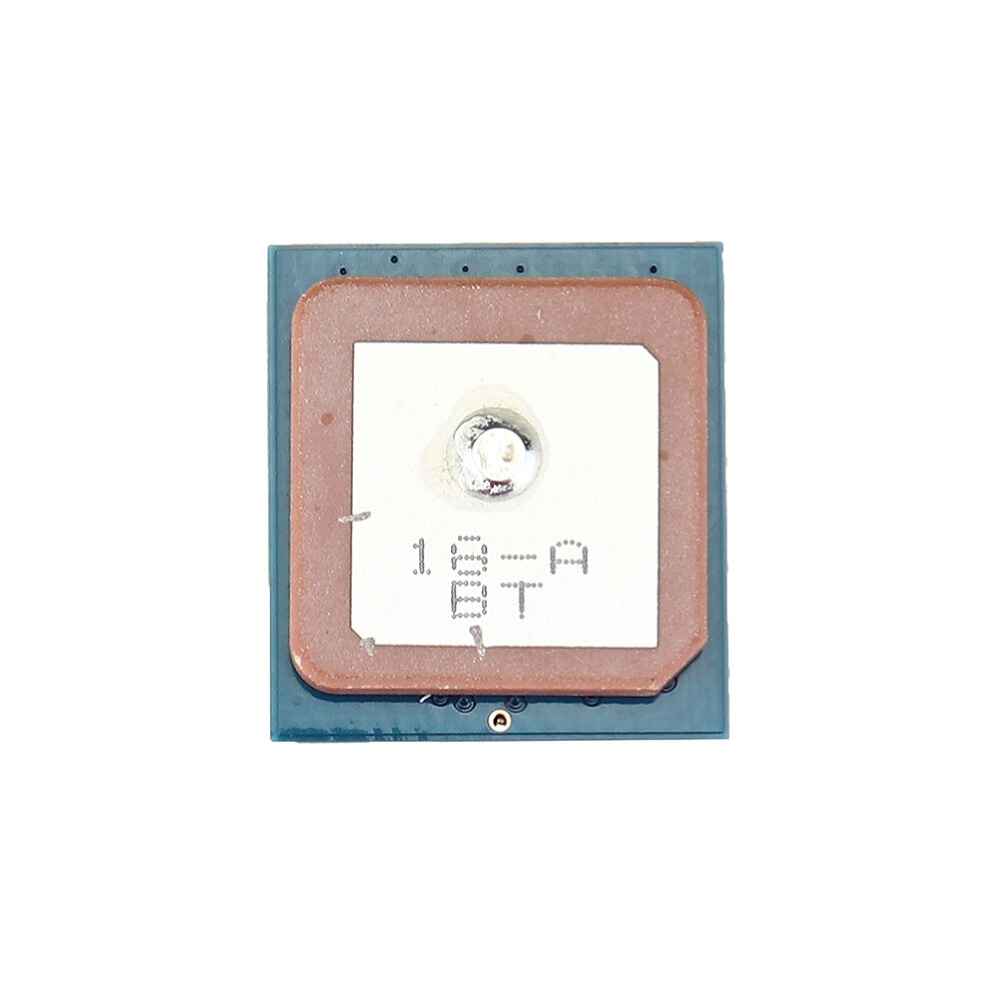

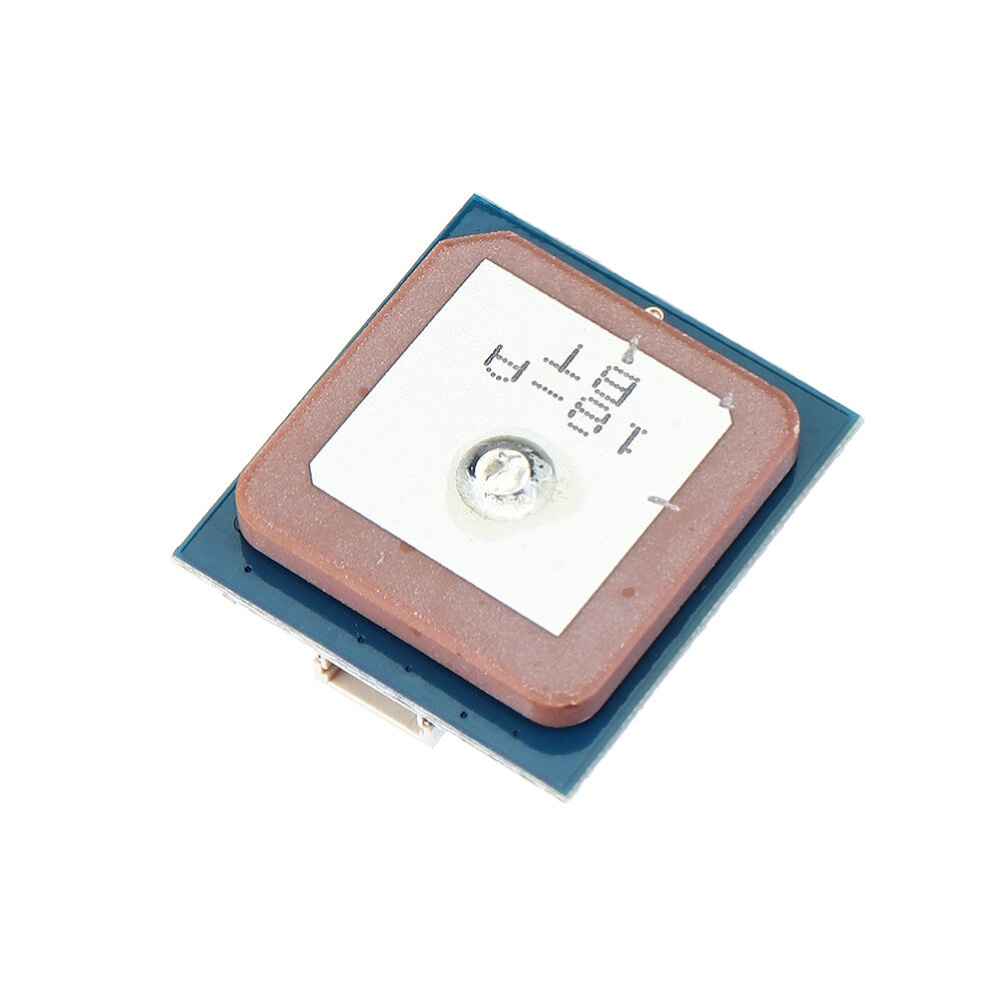

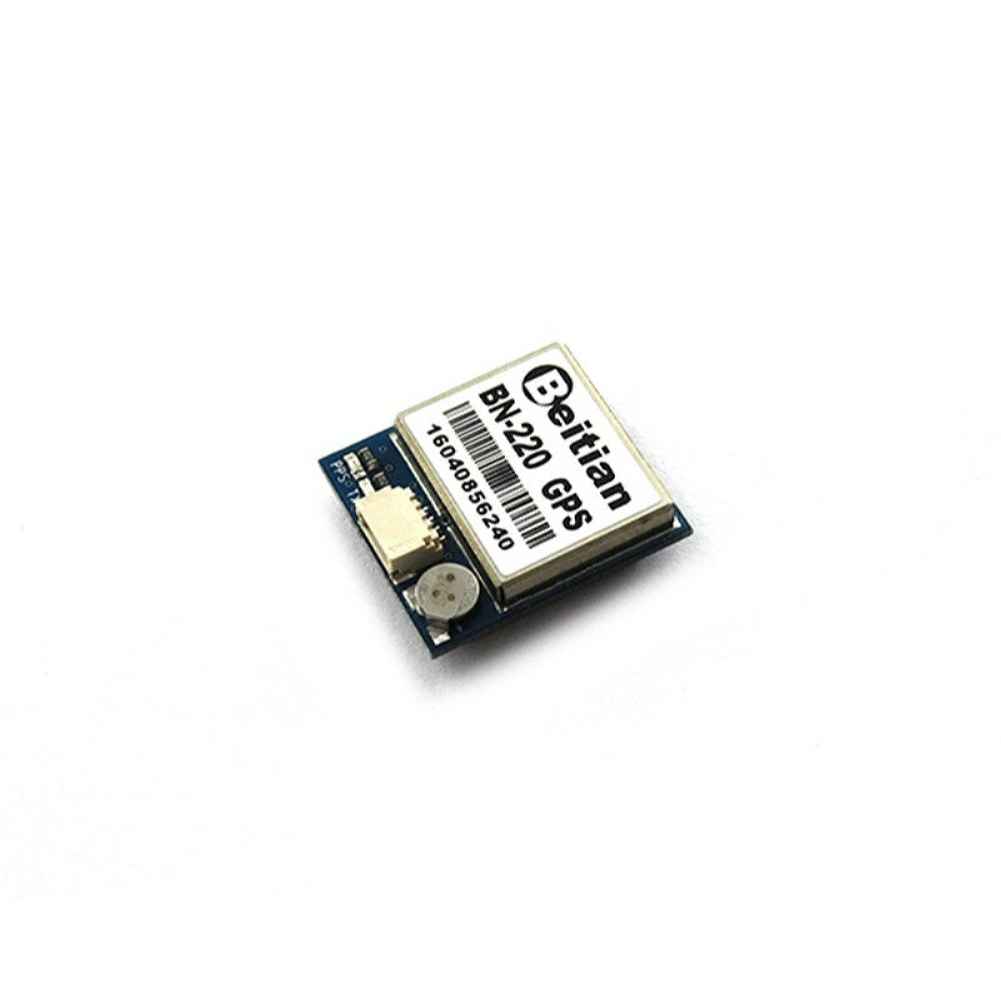

Beitian Dual BN-220 GPS GLONASS Antenna Module TTL Level RC Drone Airplane
The Beitian Dual BN-220 GPS GLONASS Antenna Module is designed for RC drones and airplanes, providing accurate positioning with its multi-GNSS support, including GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS. It features a compact design with dimensions of 22mm x 20mm x 6mm and weighs only 5.3g. The module offers excellent sensitivity and quick reacquisition times, with a cold start of 26 seconds and a hot start of just 1 second. Operating within a voltage range of 3.0V to 5.5V, it is efficient with a typical current consumption of 50mA at 5.0V. The BN-220 supports data rates from 4800bps to 921600bps, with a default of 9600bps, and provides data output in NMEA-0183 format.
Description User Manual
Dimension :官22mm*20mm*6mm
Weight : 5.3g

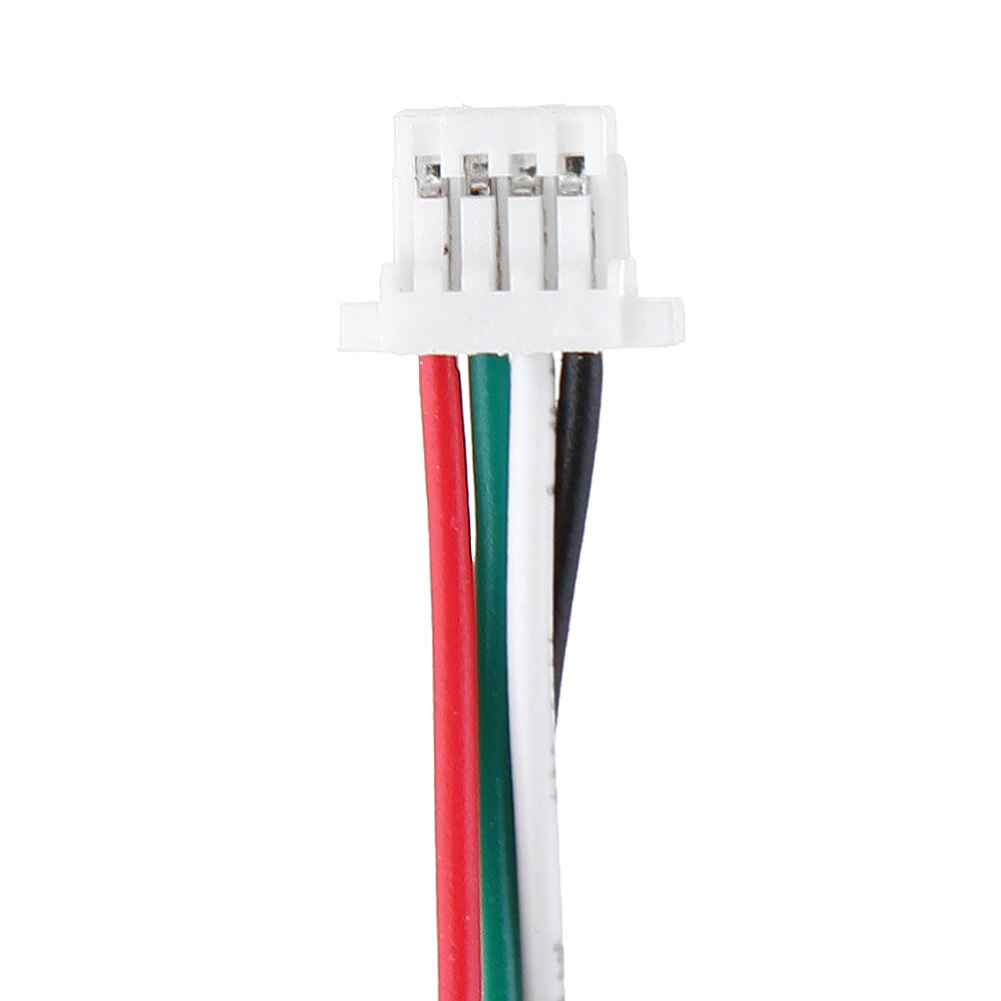

Connector : 1.00mm spacing between the 4pins patch seat
Specification
Electrical Characteristics
Chipset : 8030-KT
Receiving Format :官GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo
Channels : 72 Searching Channel
Sensitivity
Tracking : -167dBm
Reacquisition : -160dBm
Cold start : -148dBm
Hot start : -156dBm
Accuracy
Position Horizontal : 2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)
Rate : 0.1m/sec 95% (SA off)
Timing : 1us synchronized to GPS time
Acquisition Time
Cold Start : 26s
Warm start : 25s
Hot start : 1s
Data and Update Rate
Support Rate : 4800bps to 921600bps,Default 9600bps
Data Level : TTL or RS-232,Default TTL level
Data Protocol : NMEA-0183 or UBX, Default NMEA-0183
Single GNSS : 1Hz-18Hz
Concurrent GNSS : 1Hz-10Hz,Default 1Hz
Operational Limits
Altitude : 50,000m Max
Rate : 515m/s Max
Acceleration : Less than 4g
Power consumption
VCC : DC Voltage 3.0V-5.5V,Typical: 5.0V
Current : Capture 50mA/5.0V
Operating temp :官-40 ‵C ~ +85‵C
Storage Temp : -40‵C ~ +105‵C
Indicator :
TX LED:blue.The data output, TX LED flashing
PPS LED:red.PPS LED not bright when GPS not fixed,flashing when fixed
Wiring:
GND,TX output,RX input,VCC(3.0v-5.5v)
Package Included:
1 x BN-220 GPS Module

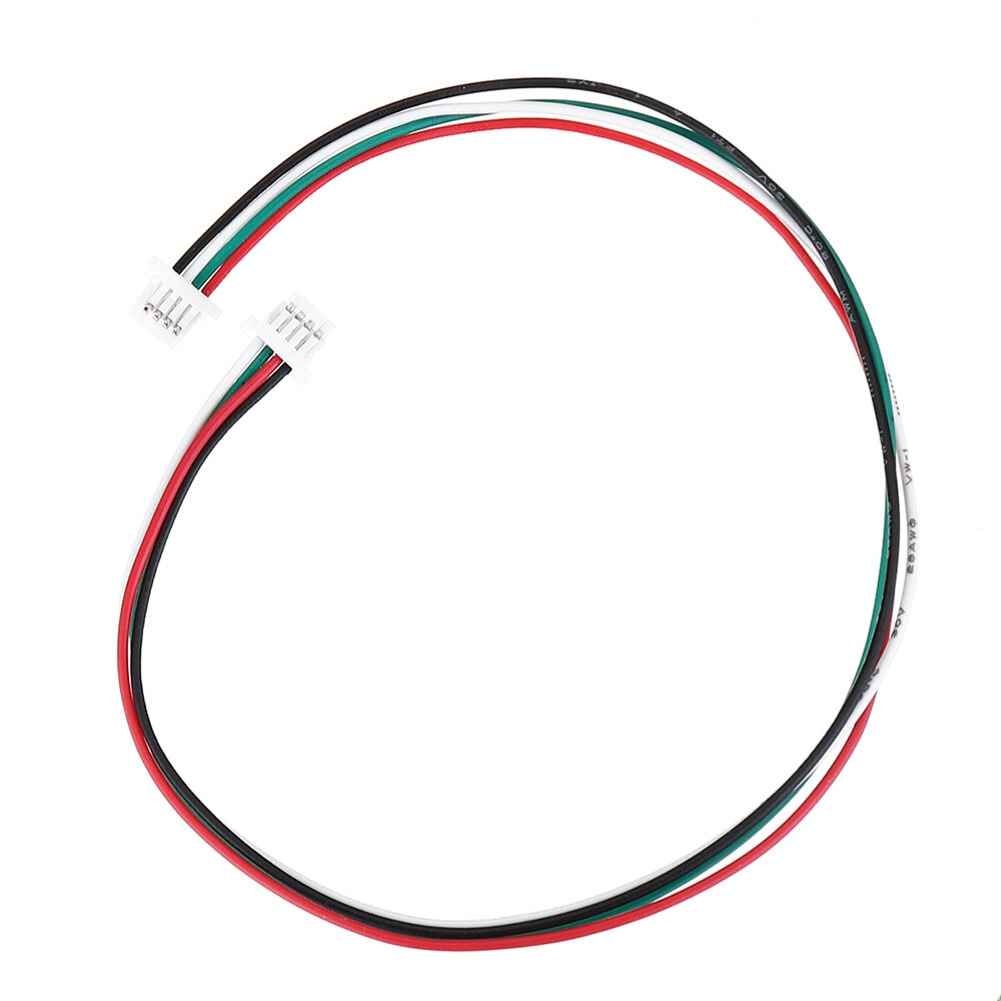

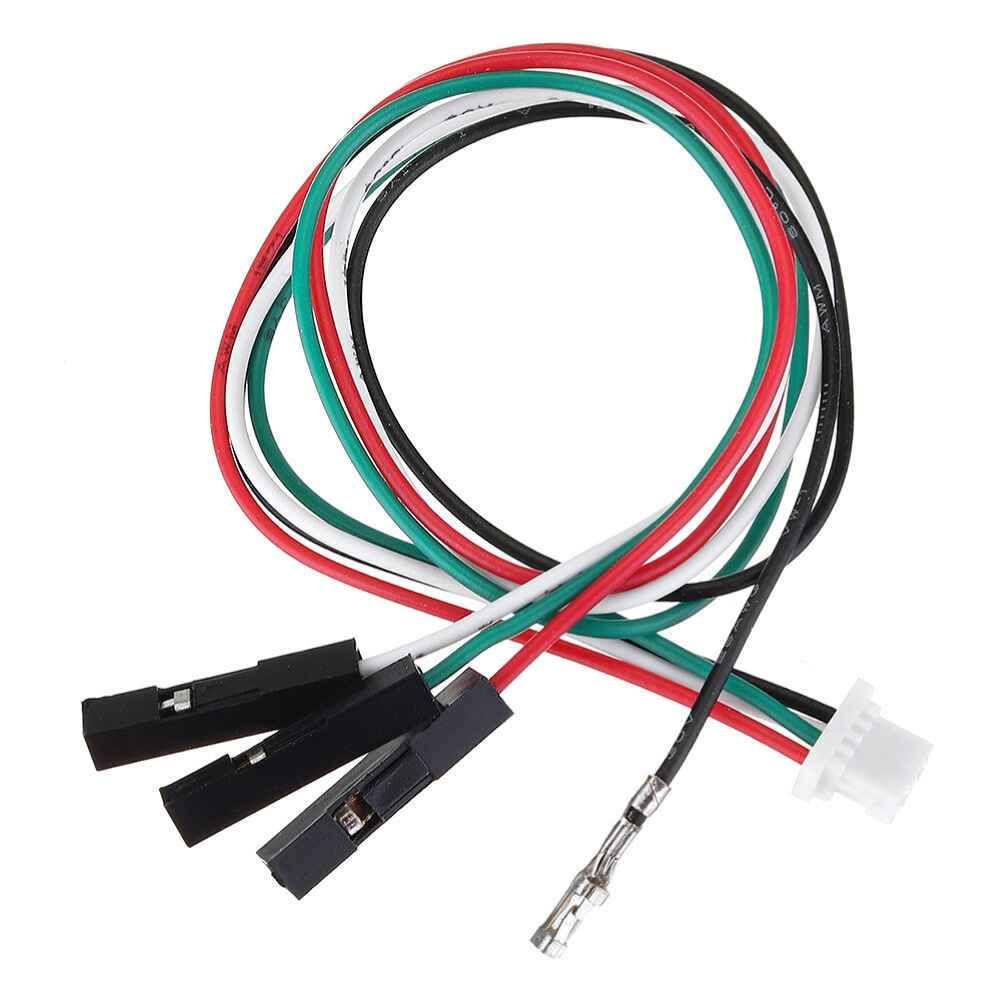

2 x 15cm Cable
