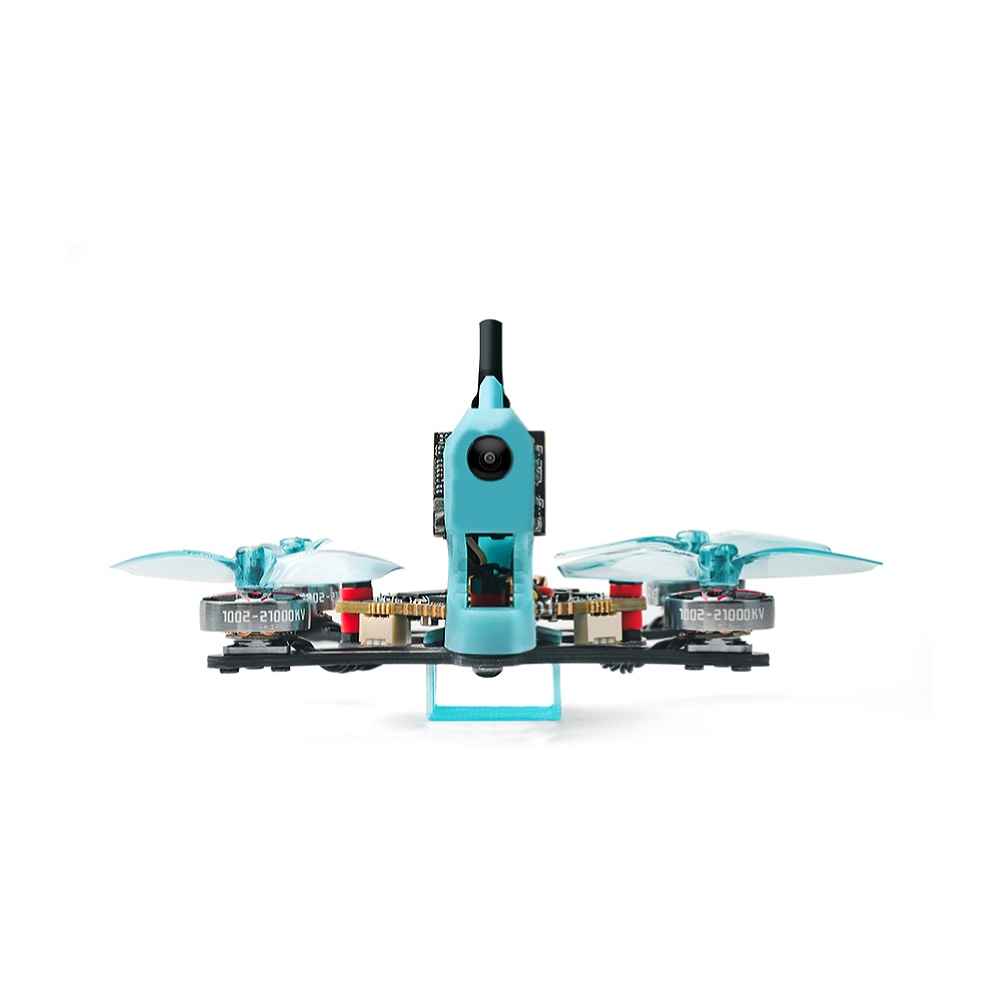

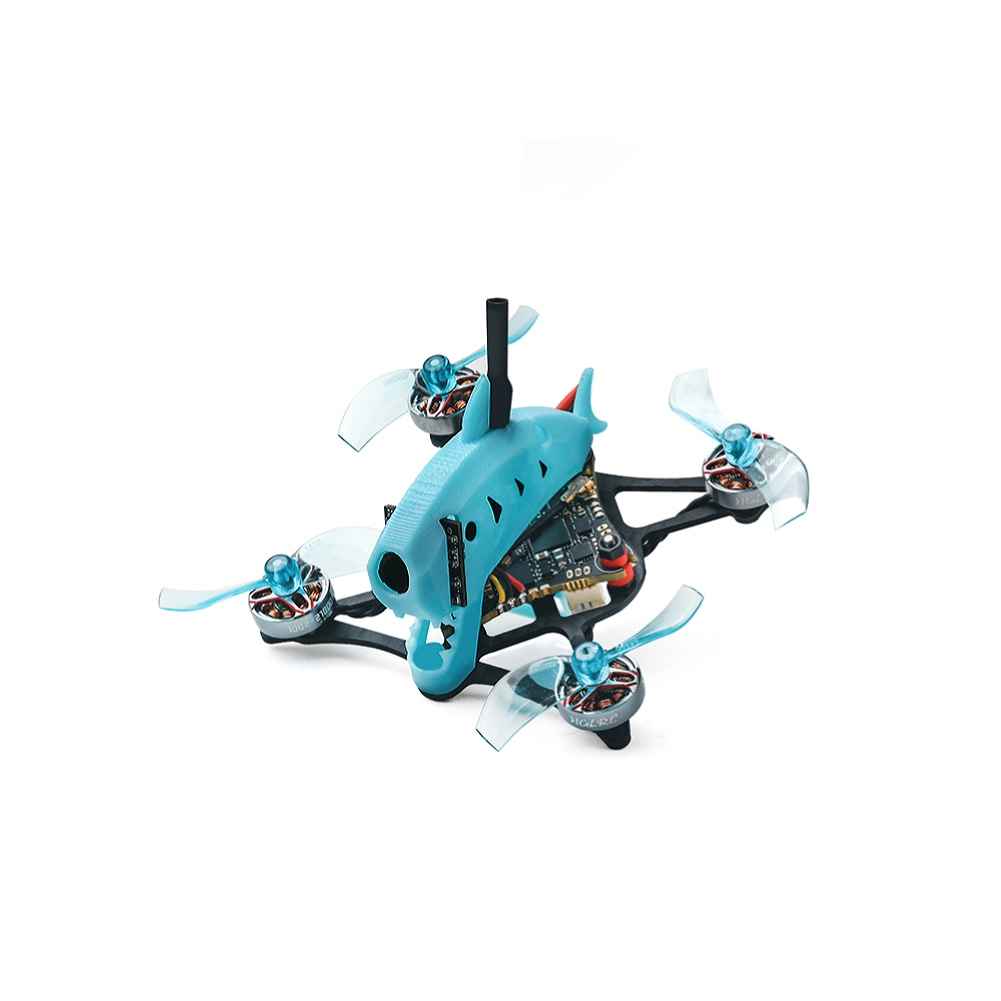

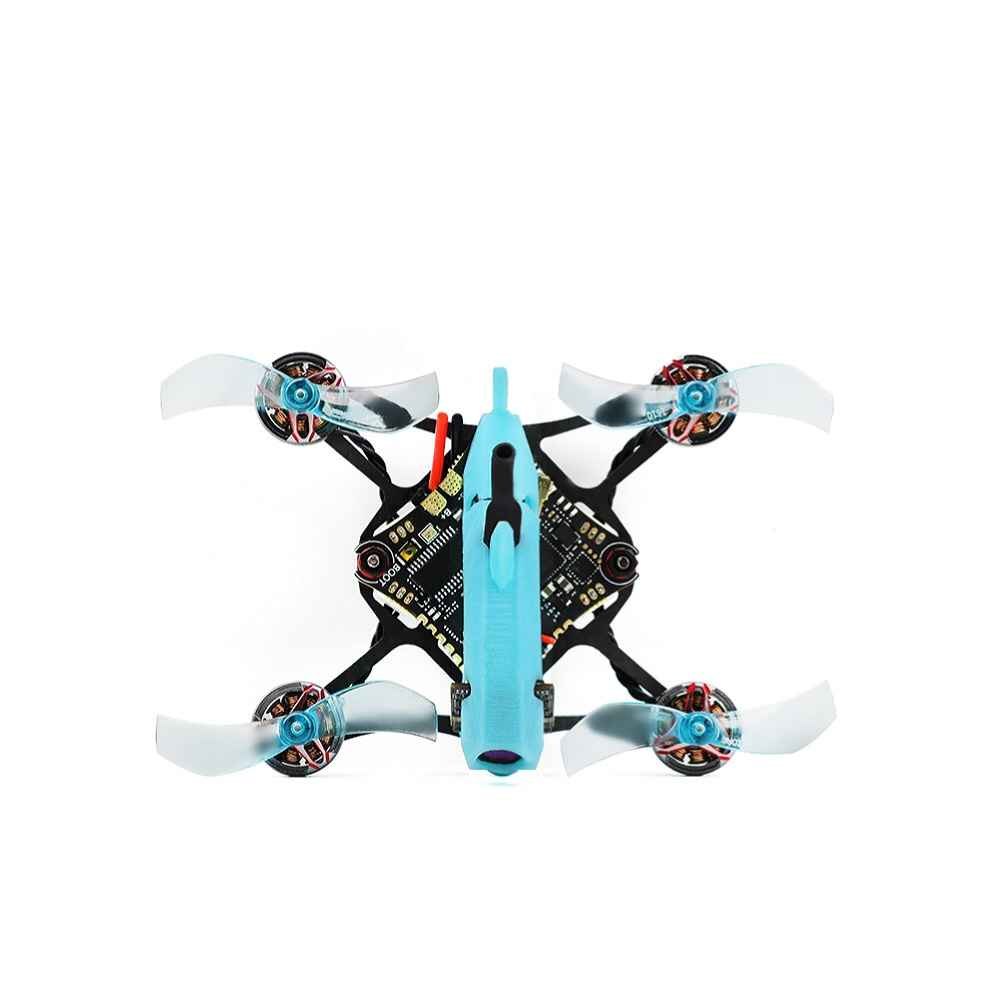

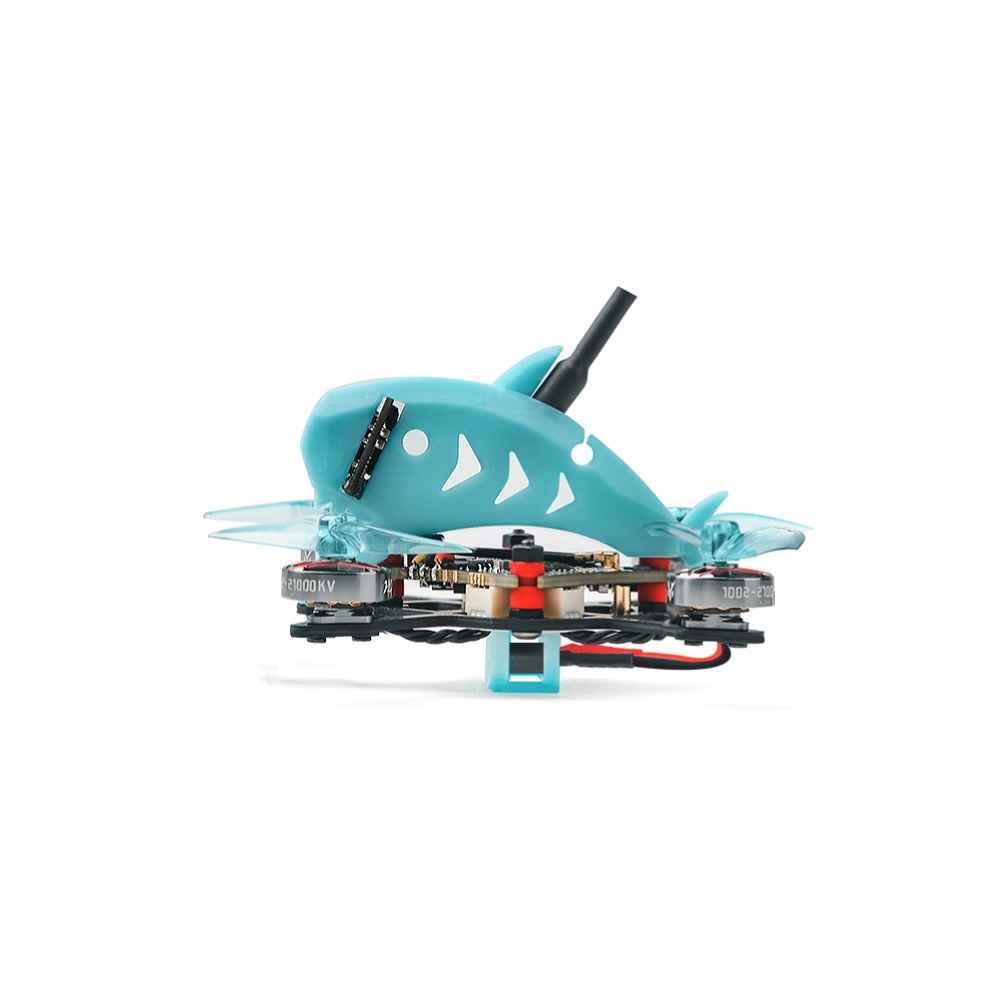

HGLRC Drashark 75mm 1.6 Inch F4 1S Toothpick FPV Racing Drone BNF with 200mW VTX CADDX FPV Camera
The HGLRC Drashark is a compact 1.6-inch toothpick FPV racing drone, perfect for both indoor and outdoor flights. Inspired by the agility of a dragon and the precision of a shark, this drone features the new Zeus 5-in-1 AIO system, integrating ESC, flight control, 5.8G VTX, and an ELRS receiver with Betaflight OSD. Equipped with a CADDX camera, it delivers crystal-clear images. The built-in 200mW VTX supports up to 48 channels for stable transmission. Powered by SPECTER 1002 motors and Gemfan 1610 two-blade propellers, it offers a smooth flight experience at just 70 decibels. Weighing approximately 30g, it provides a flight time of about 5 minutes on a single battery. The flight controller includes a 16MB black box for easy data review. Compatible with a 1S 550mAh high voltage battery (not included).
Introduction:
-HGLRC Drashark (Dragon shark) is a 1.6 inch toothpick fpv drone, suitable for indoor or outdoor light flight.
-Drashark Naming inspiration from Dragon , Shark, So translated as Drashark, hence the name.

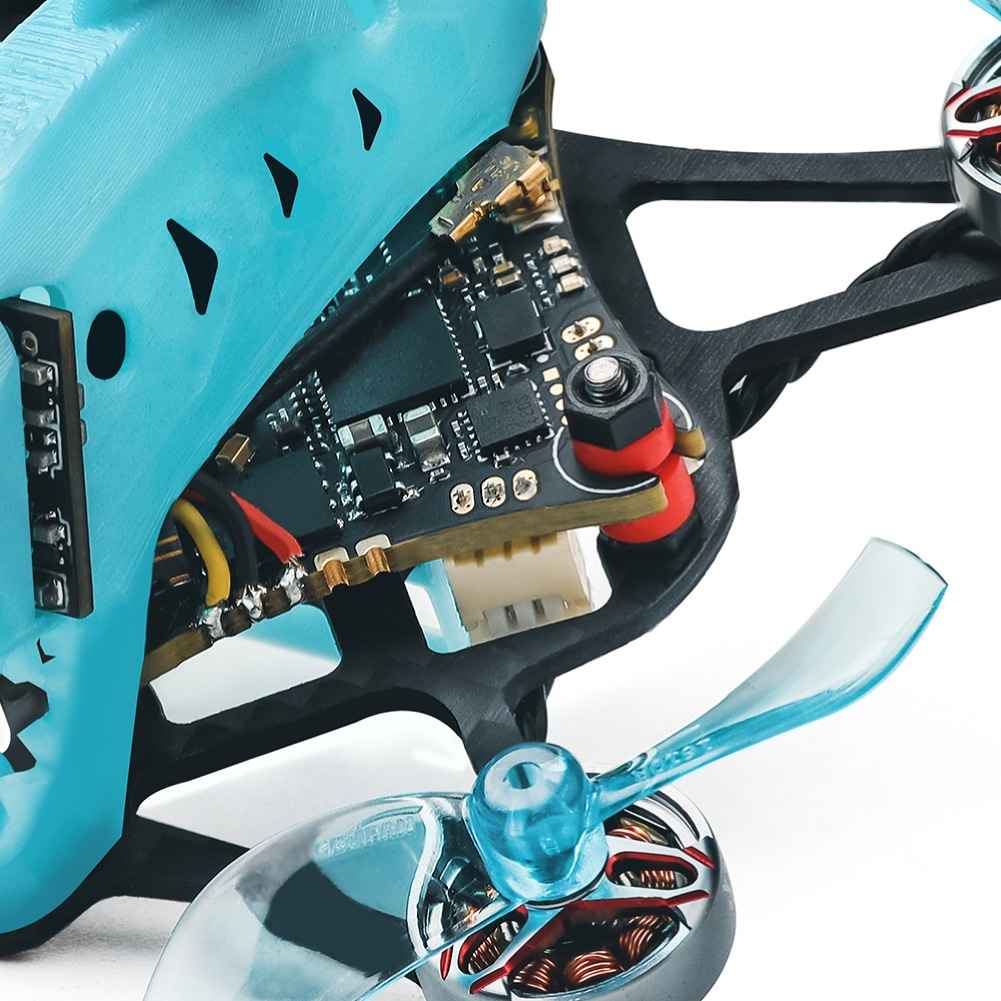

-The new Zeus 5 in1 AIO integrated ESC, flight control, 5.8G VTX , elrs receiver and Betaflight OSD.
-Using Caddx camera, clear and sharp picture.
-Built-in integrated 200mw simulation map transmission, up to 48 CH, stable and efficient.
-The drone with the new SPECTER 1002 motor, strong power.
-Standard Gemfan1610 two-blade propeller, silky flight and flight sound is only 70 decibels.
-Light and handy size , the weight of about 30g, a single battery life of about 5 minutes.
-Straight plug motor, no welding is more convenient.
-Built-in integrated SPI elrs3.0 receiver, built-in antenna, can be connected to black sheep receiver, customized miniature T-shaped antenna, reduce weight.
-Flight controller is equipped with a stable 16MB black box, easy to view flight control data.
Recommended Lipo Battery: ( not included)
1s 550mah high voltage battery A30 plug ( compatible BT2.0 plug).
Specification:
Brand: HGLRC
Model: Drashark
Frame: Drashark 75mm frame
Flight controller: ZEUS5 ES24 1S 5A AIO
MCUㄩSTM32F411
GyroㄩBMI270
Built-in receiver: SPI ExpressLRS 2.4G
Built-in VTX: 25-100-200 mW (adjustable)
integrated ESC: Continuous current: 5A; peak current: 7A (10s)
Electromodulation protocol: Dshot600, Oneshot, Multishot; electric firmware: O-H-5 (Bluejay)
Flight control firmware: HGLRCF411SX1280
Input voltage: 1 S 2.9-4.35v (Lipo)
Installation hole position: 25.5X25.5mm.M2
Motor: SPECTER 1002 21000kv Motor
Propeller: Gemfan 1610 two-blade
weight: 30g
Packing list:

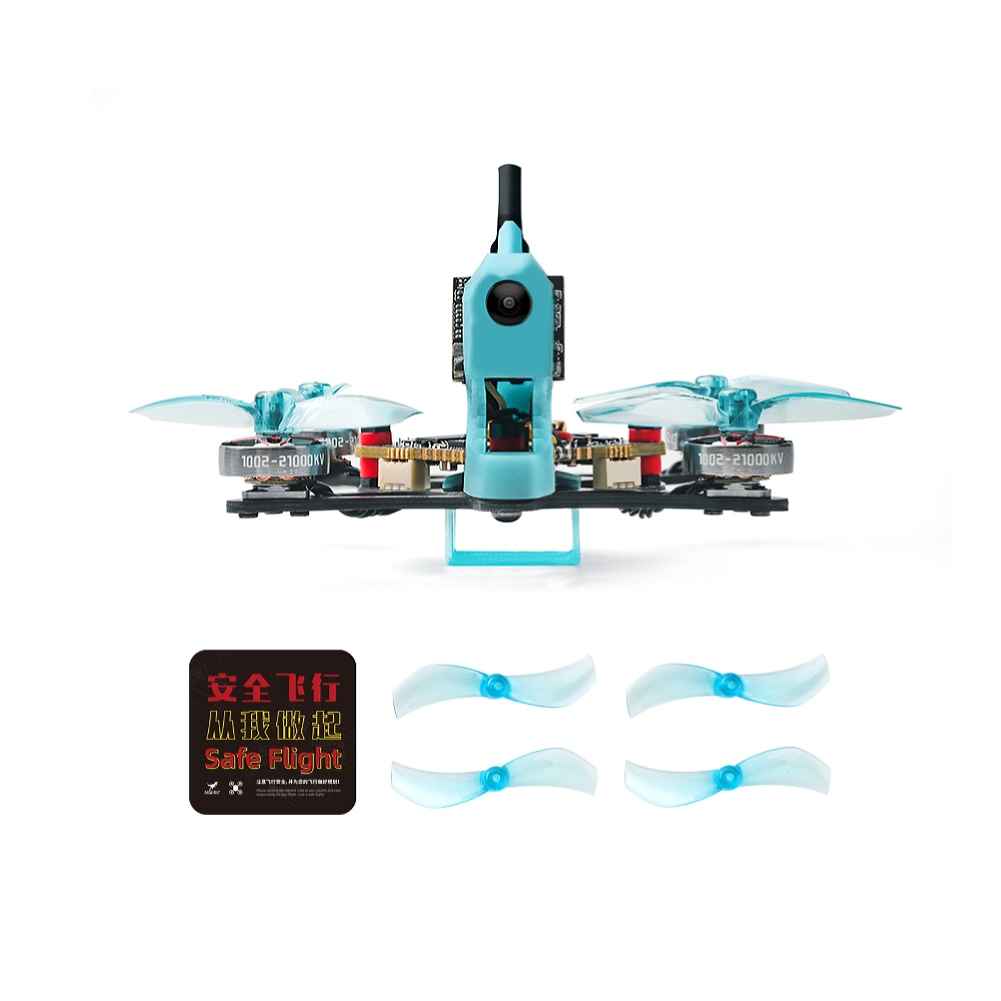

1x Drashark drone
1x Drashark TPU green battery compartment
1x Gemfan 1610 two-blade propeller 40mm-PC blue 1.5mm (4 pairs / pack)
Package Included:
1 x Drashark drone
1 x Drashark TPU green battery compartment
1 x Gemfan 1610 two-blade propeller 40mm-PC blue 1.5mm (4 pairs / pack)
