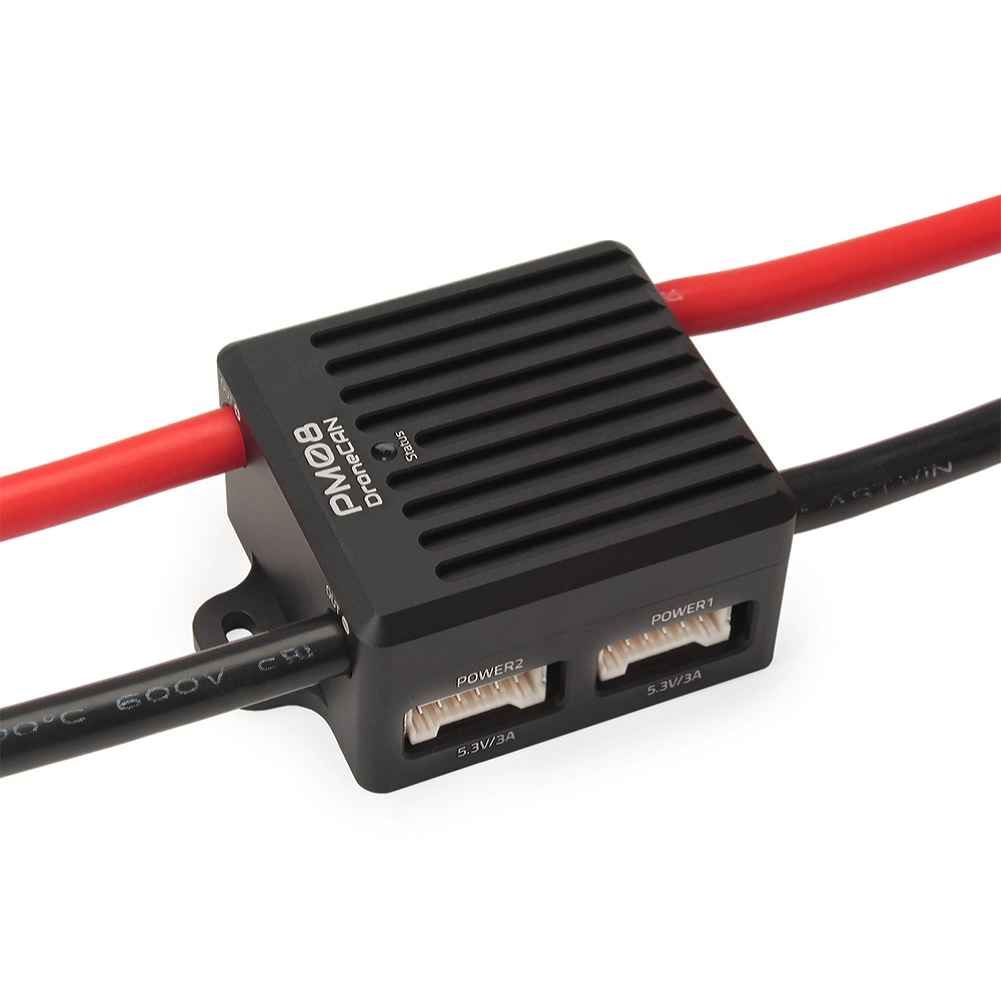

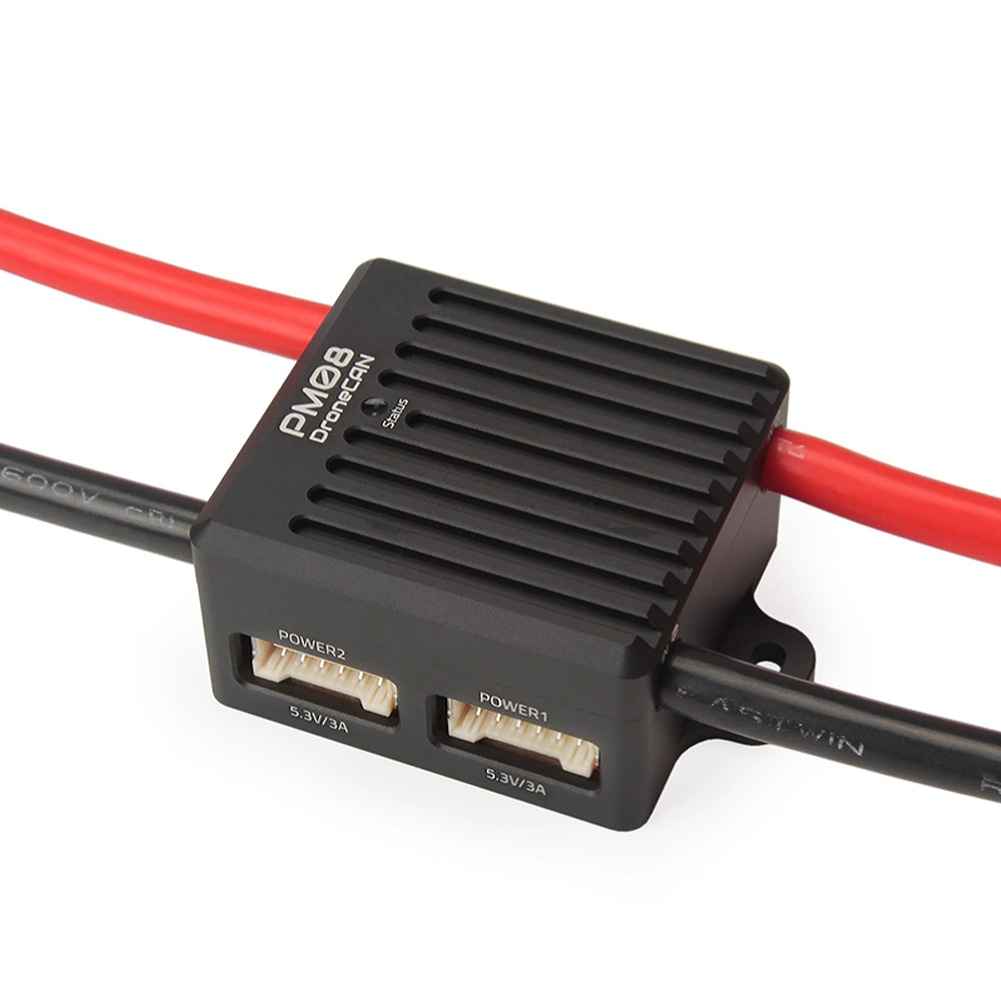

Holybro PM08-CAN 14S 200A Power Module DroneCAN Protocol Two 5V BEC Ouput for PX4 Flight Controller Multi-Rotor Drone
The Holybro PM08-CAN Power Module is engineered for multi-rotor drones, featuring a robust STM32F405RG processor with 168MHz speed and 1024KB flash memory. It supports a wide voltage input of 7 to 60.9V, accommodating 2S to 14S batteries, and offers a continuous current of 200A with bursts up to 400A. Equipped with DroneCAN protocol, it ensures reliable communication. The module includes two 5V BEC outputs, each providing 3A, and features a compact design with a high-efficiency aluminum heat dissipation shell. Its advanced temperature and current sensors enhance accuracy and performance, making it ideal for PX4 flight controllers.
Specifications
Processor: STM32F405RG 168MHz 1024KB Flash 196KB RAM
Voltage input: 7~60.9V (2S~14S)
Continuous current: 200A
Burst current
400A @ 25﹠ 1 sec
1000A @ 25﹠ < 1 sec
Max current sensing: 376A
Voltage accuracy: 呼0.1V
Current accuracy: 呼5%
Temperature accuracy: 呼1﹠
Power port output: 5.3V/3A each port
Protocol: DroneCAN
Operating temperature : -25﹠~105﹠
Firmware upgrade: Support
Calibration: Support
Power & CAN Port: Molex CLIK-Mate 2mm 6Pin

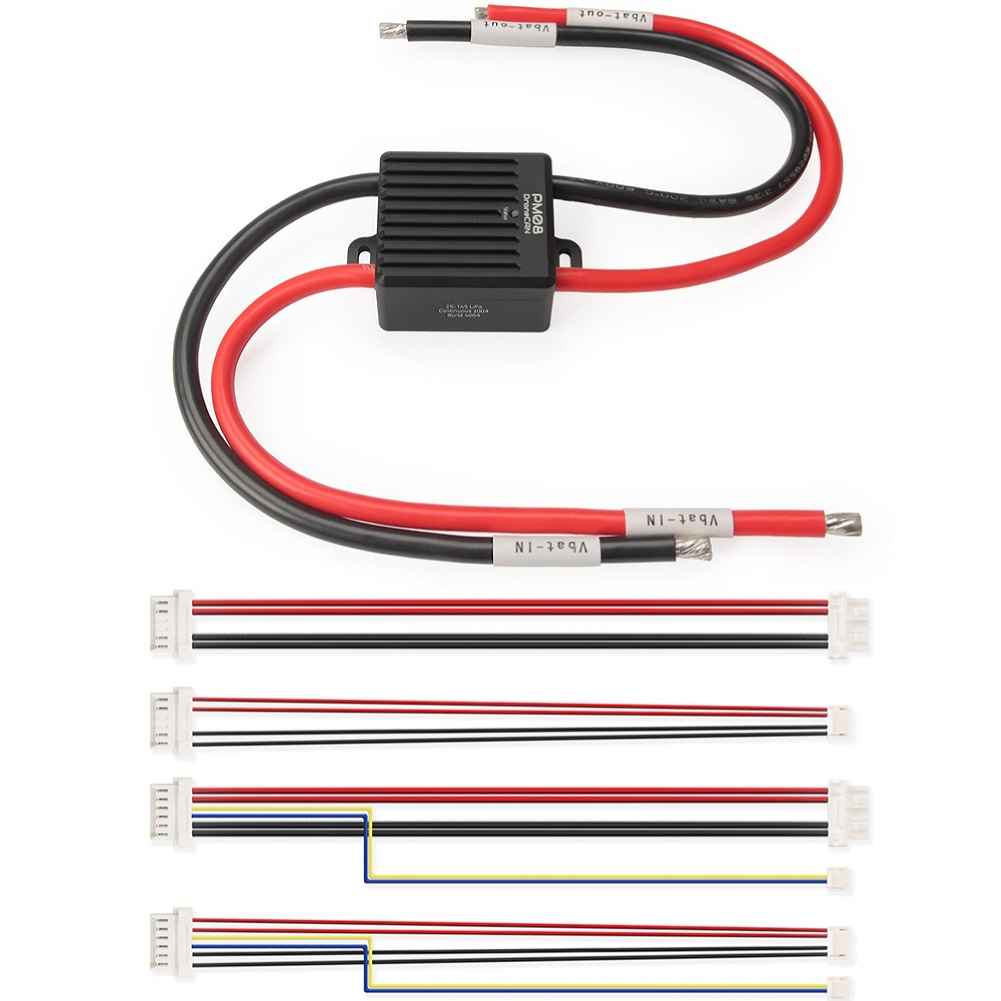

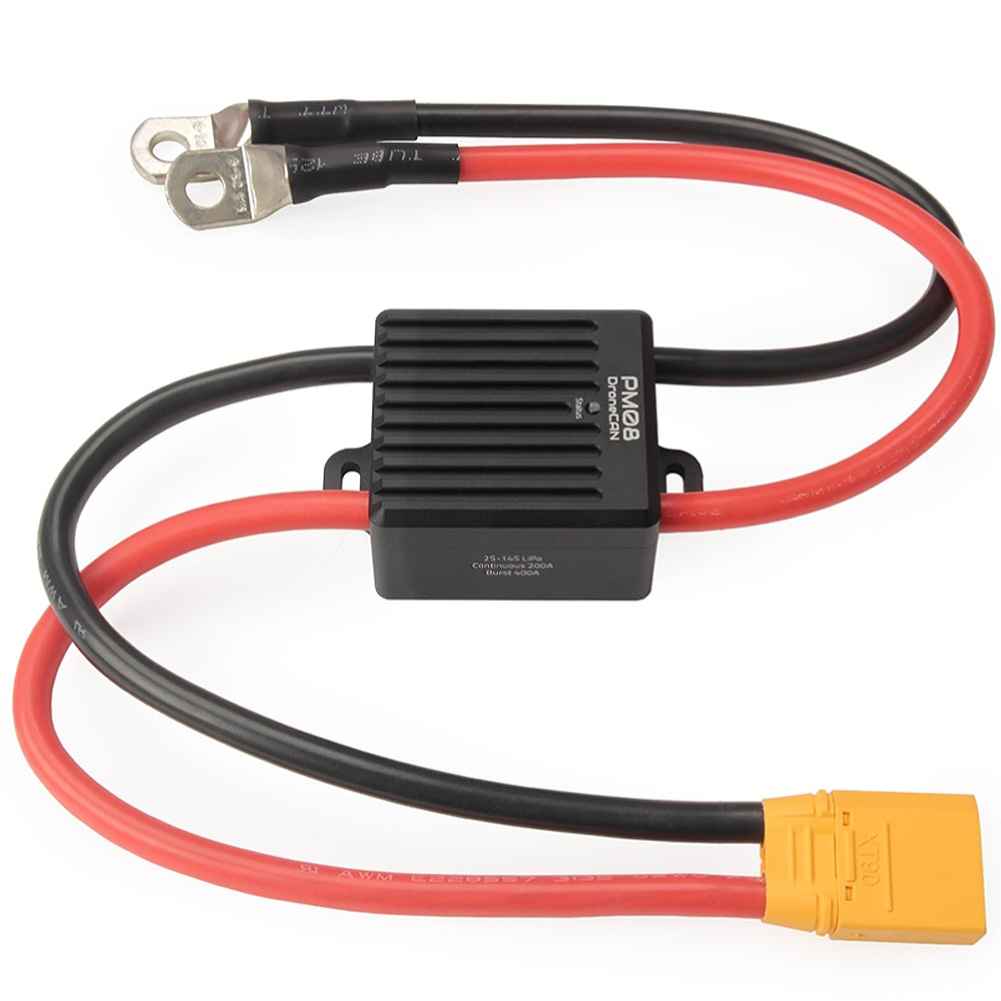

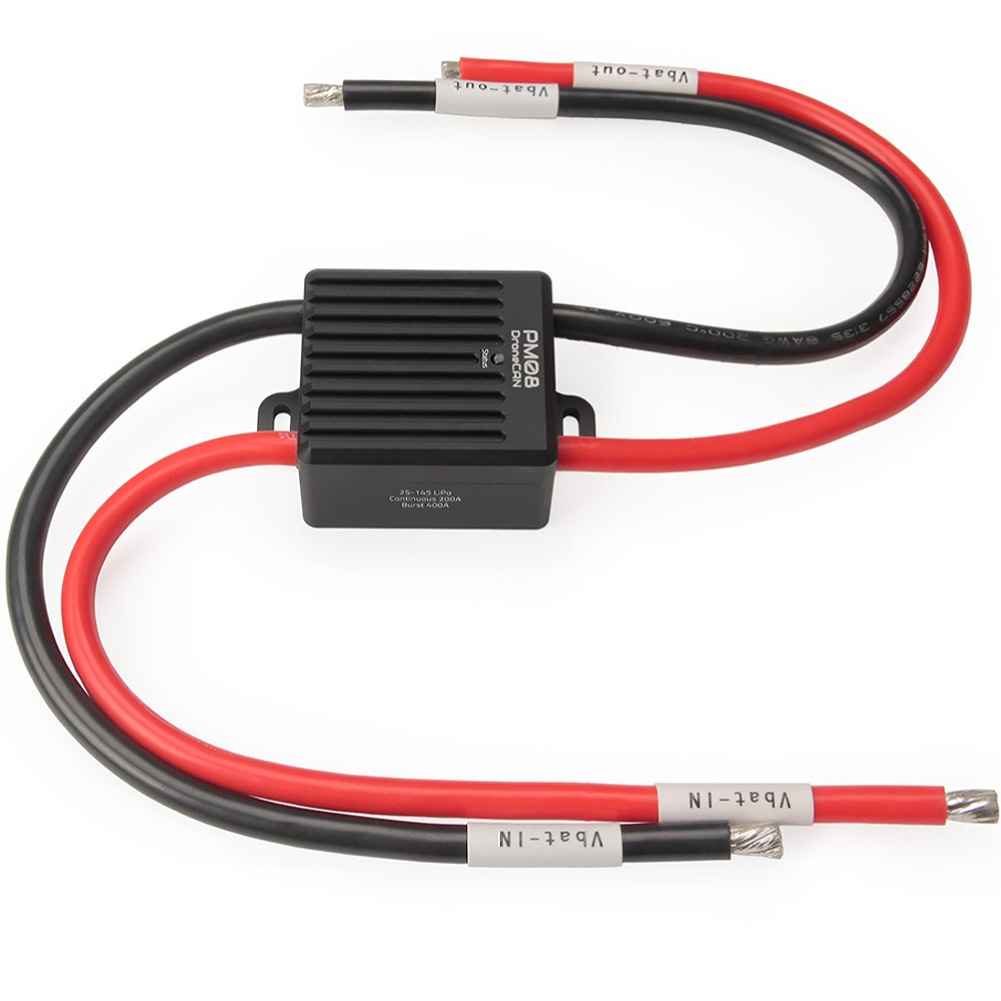

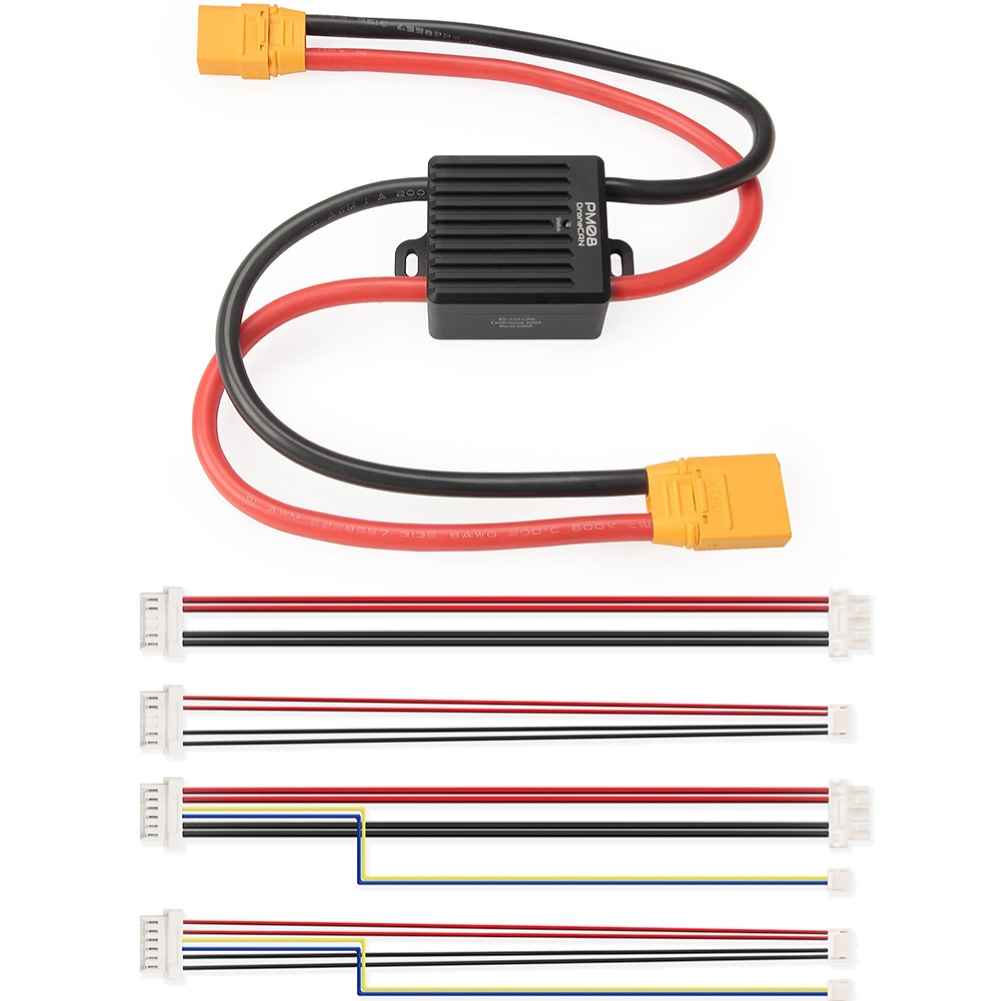

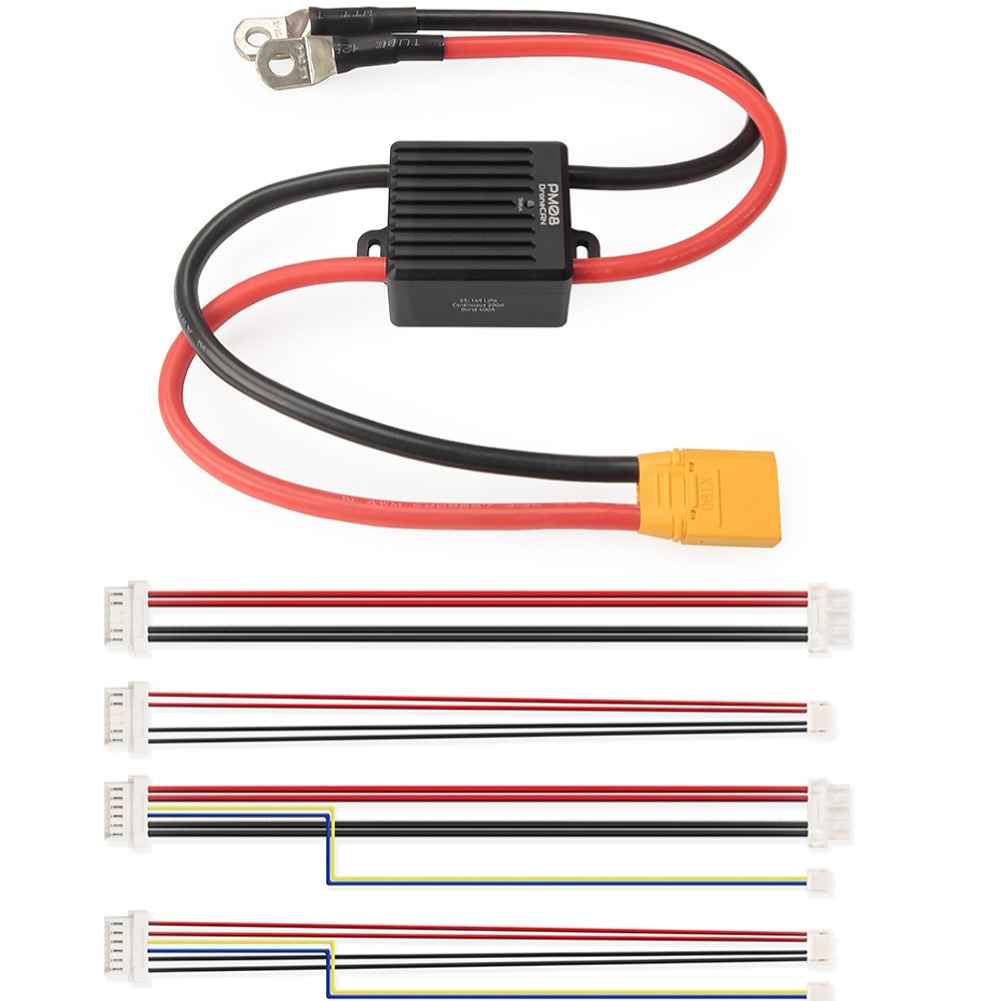

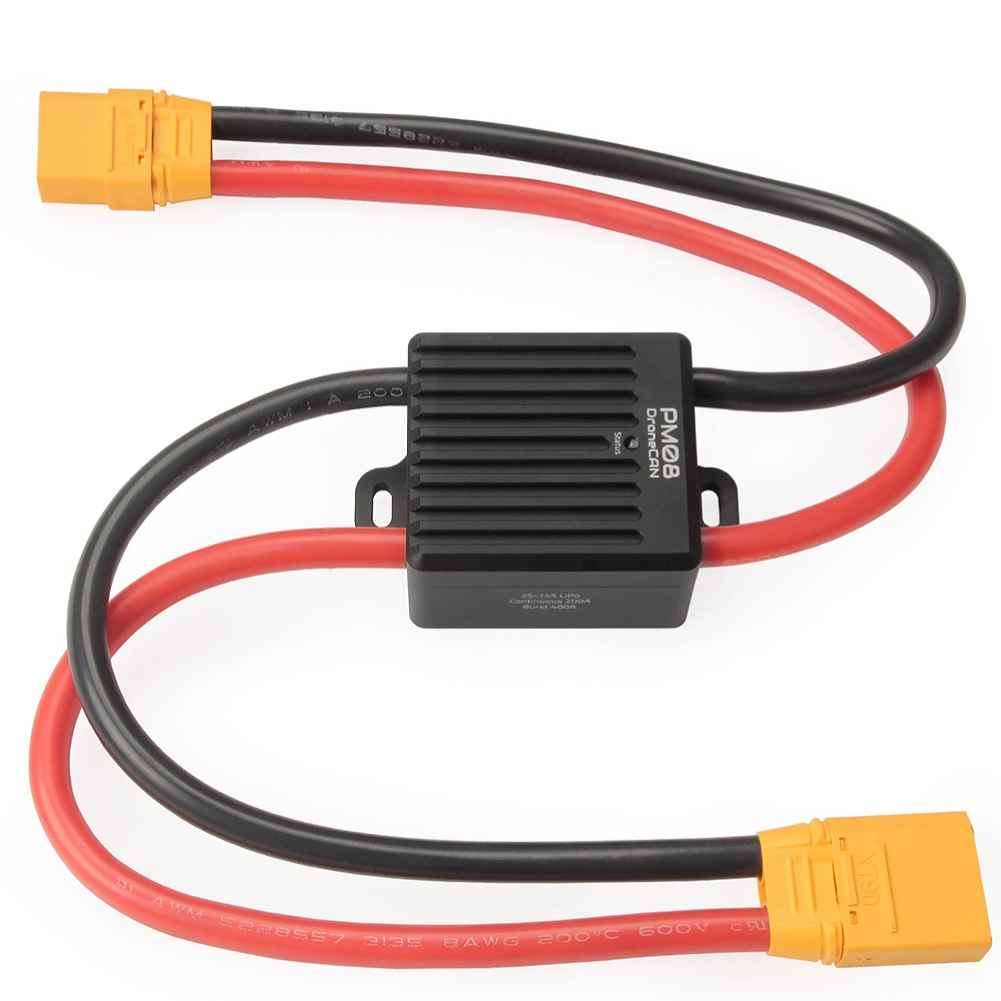

Battery IN/OUT Options: XT90 Connectors/Tinned Wires/XT90 & Ring Terminals
Flashing quickly continuously: MCU is in the bootloader stage, waiting for firmware to be flash
Flashing quickly for 3 seconds, and then on for 1 second: Waiting for CAN connection
Flashing slowly (one-second intervals): CAN is successfully connected
Size: 45mm沁41mm沁26mm (Not Include Cable)
Weight: 185g (Include Cable)
Feature:
1.Supports 2-14S & 200A Cont, 400A Burst
2.DroneCAN Communication Protocol
3.Small & Compact Design
4.Two 5V Output with Independent BEC IC and Circuitry
5.Separated Sensor and BEC Board to Minimize Electrical Noise Interference
6.Galvanically Isolated Current Sensor IC (AEC-Q100 Grade 1 qualified)
7.High Accuracy Temperature Sensor for Temperature Monitor
8.High-Efficiency Aluminum Heat Dissipation Shell
Package Included:
1 x XT90 Connectors/Tinned Wires/XT90 & Ring Terminal
