Flywoo GOKU GM10 Nano V3 GPS Module with Compass, M10050 Chip, Betaflight INAV Compatible, for RC Airplane FPV Racing Drone

Sale!

Flywoo GOKU GM10 Nano V3 GPS Module with Compass, M10050 Chip, Betaflight INAV Compatible, for RC Airplane FPV Racing Drone

Original price was: 83.98$.Current price is: 68.44$.

Advanced M10050 GNSS chip for precise positioning
Plug-and-play setup, no soldering needed
Supports Betaflight 4.3.x and INAV 5.0.0 firmware
Compatible with GPS, GLONASS, Galileo, BeiDou, and QZSS
Built-in compass for enhanced navigation

SKU: RC2008715 Category: Multi Rotor Parts Tags: Betaflight GPS module, Flywoo GOKU GM10 GPS, FPV racing drone GPS, INAV GPS compatibility, Nano V3 GPS module, plug-and-play GPS module, RC airplane GPS module, ultra-accurate GPS positioning Brand: Flywoo

Description

2PCS Flywoo GOKU GM10 Nano V3 GPS Module M10050 Latest Chip with Compass Support Betaflight INAV for RC Airplane FPV Racing Drone Quadcopter

The Flywoo GOKU GM10 Nano V3 GPS Module features the advanced M10050 GNSS chip, providing ultra-accurate positioning and rapid star search capabilities. Optimized for convenience, this module supports Betaflight and INAV systems, offering a plug-and-play setup with no soldering required. It is designed for outdoor enthusiasts and professionals seeking reliable and precise navigation. The GM10 V3 GPS includes a built-in compass and supports multiple satellite systems, ensuring comprehensive coverage. Compatible with Betaflight firmware 4.3.x and above, and INAV firmware 5.0.0 and above, this module is a powerful upgrade for your RC airplane or FPV racing drone.

Introduction.
With the latest M10050 GNSS chip, it offers ultra-accurate positioning and faster star search speeds than the previous GM8 V2.
The GOKU GM10 Nano V3 GPS with compass is designed for convenience, featuring a plug-and-play setup without the need for soldering.
Experience cutting-edge technology for precise navigation. Whether you’re an outdoor enthusiast or a professional, GOKU ensures
reliability, accuracy, and effortless usability. Upgrade to the GOKU GM10 V3 GPS series and elevate your navigation experience.
-Note: The chip of GOKU GM10 V3 GPS is M1005. Only BF4.3x version firmware can use Ublox protocol. BF4.2x and earlier firmware can only use NMEA protocol But there is no difference in performance between the two protocols
-BETAFLIGHT: Use firmware above 4.3.0
– INAV: Use the latest 6.0.0 configurator, the latest firmware above 5.0.0
Description:
Brand: FLYWOO

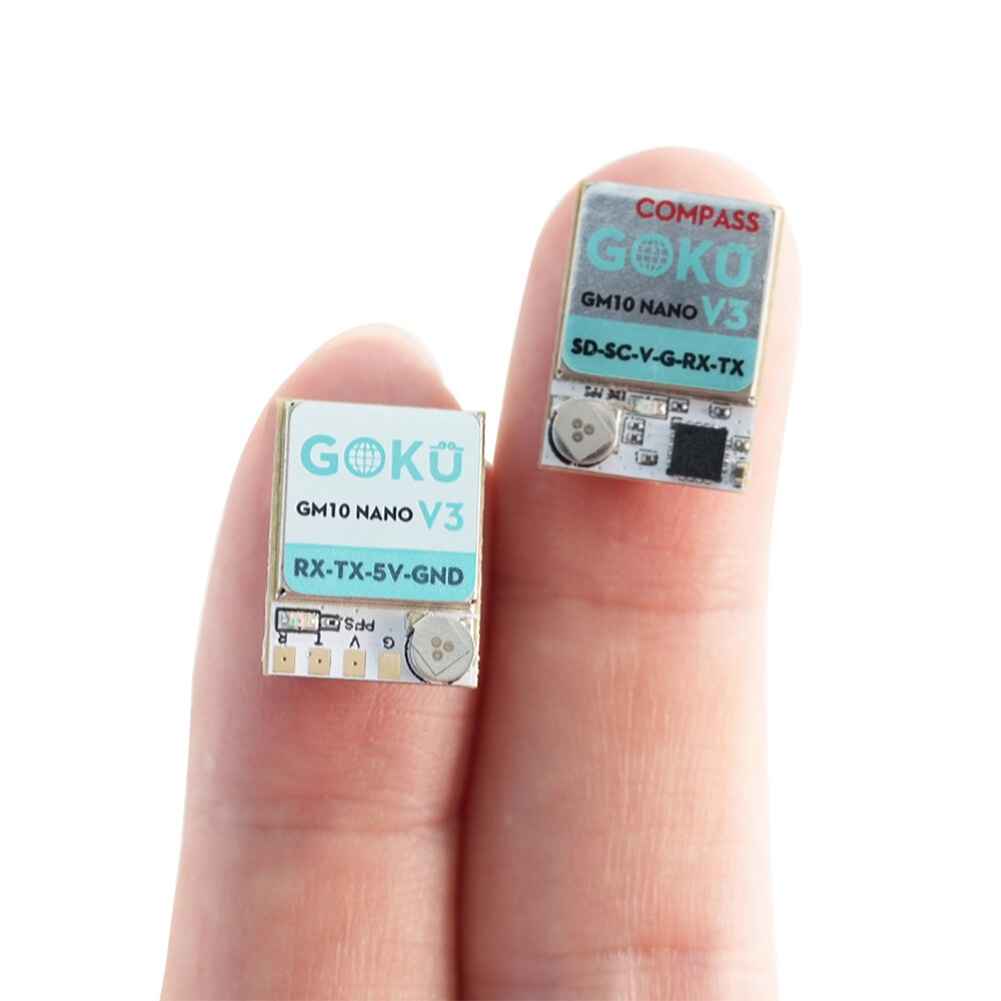

Model: GM10 NANO V3 GPS w/compass
Dimension :12x17x5mm

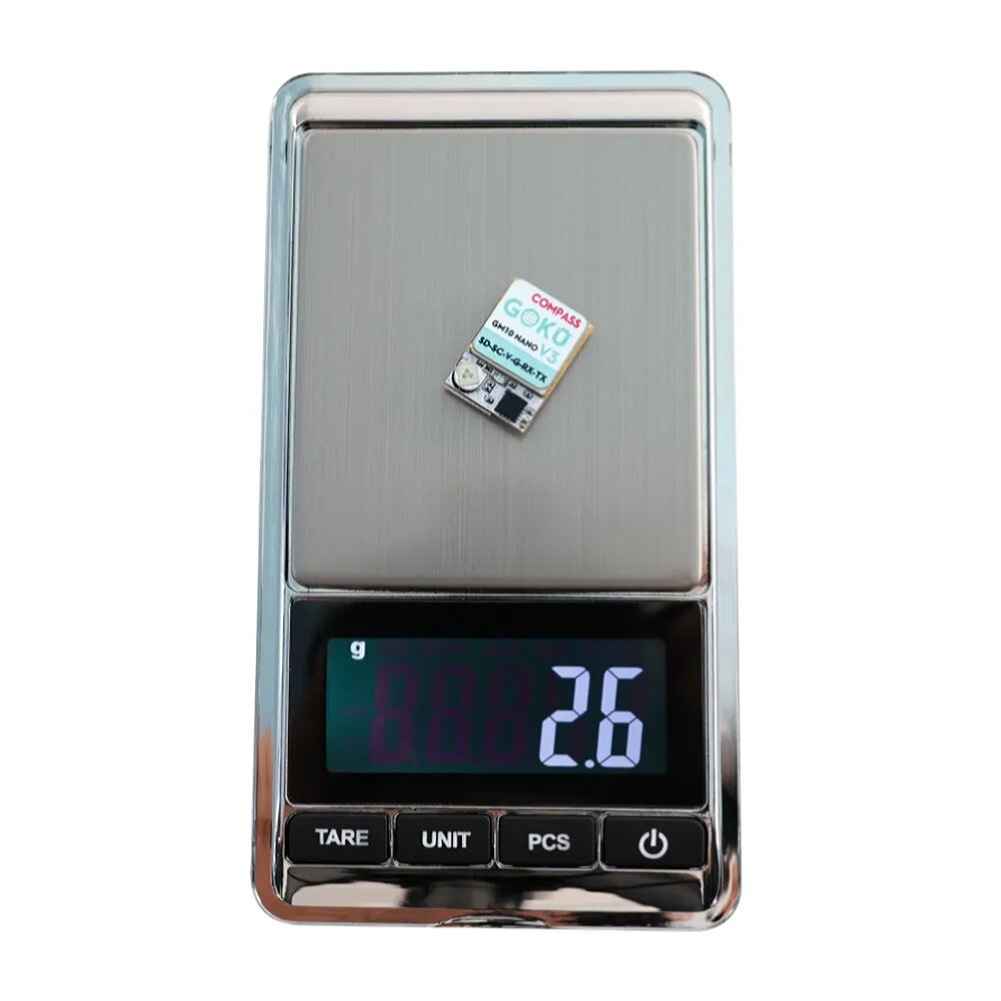

Weight : 2.6g
Connector : 4pins Pad
Features:
1. GPS Module. Three Modules.
2. 4pins Pad, ultra light weight
3. With a compass and a plug.
4. Plug and play, no need for soldering.
Specification:
Electrical Characteristics
Chipset : M10050(Tenth Generation Chip)
Receiving Format : GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
Default Protocol : GPS,Galileo,BeiDou
Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1
Channels : 72 Searching Channel
Sensitivity:
Tracking: -162dBm
Reacquisition: -160dBm
Data and Update Rate:
Support Rate: 4800bps to 921600bps,Default 115200bps
Data Level: TTL or RS-232,Default TTL level
Data Protocol: BF4.3.X(UBLOX)/BF4.2.X(NMEA)
Output frequency: 1Hz-10Hz佾Default 10Hz
Operational Limits:
Altitude: 50,000m Max
Velocty: 500m/s Max
Acceleration: Less than 4g
Power consumption:
VCC : DC Voltage: 3.3-5V
Operating temp:官-40 ‵C ~ +85‵C
Storage Temp: -40‵C ~ +105‵C
Indicator:
PPS LED: Yellow. PPS LED not bright when GPS not fixed, flashing when fixed.
The Module’s Pins: RX TX 3.3-5V GND

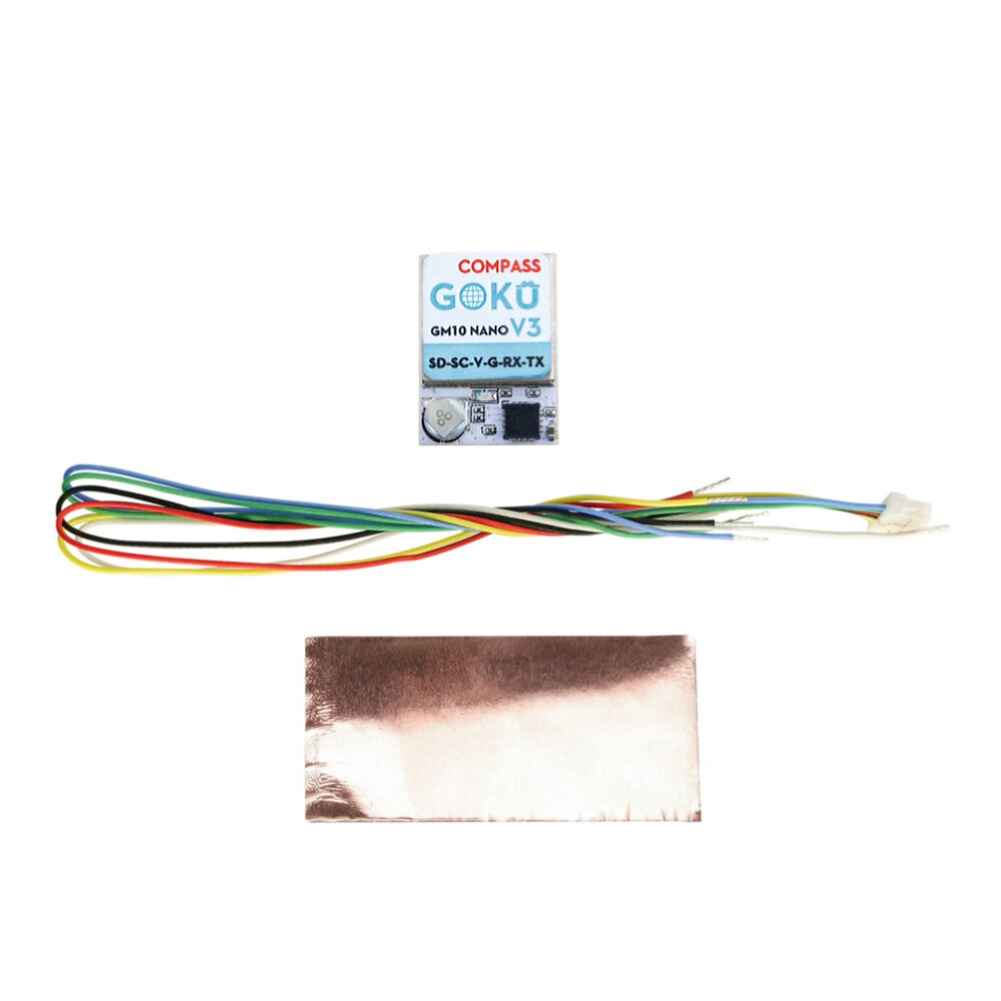

Includes:
1x GM10 NANO V3 GPS w/compass
1x 100mm Cable
1x Copper Foil
