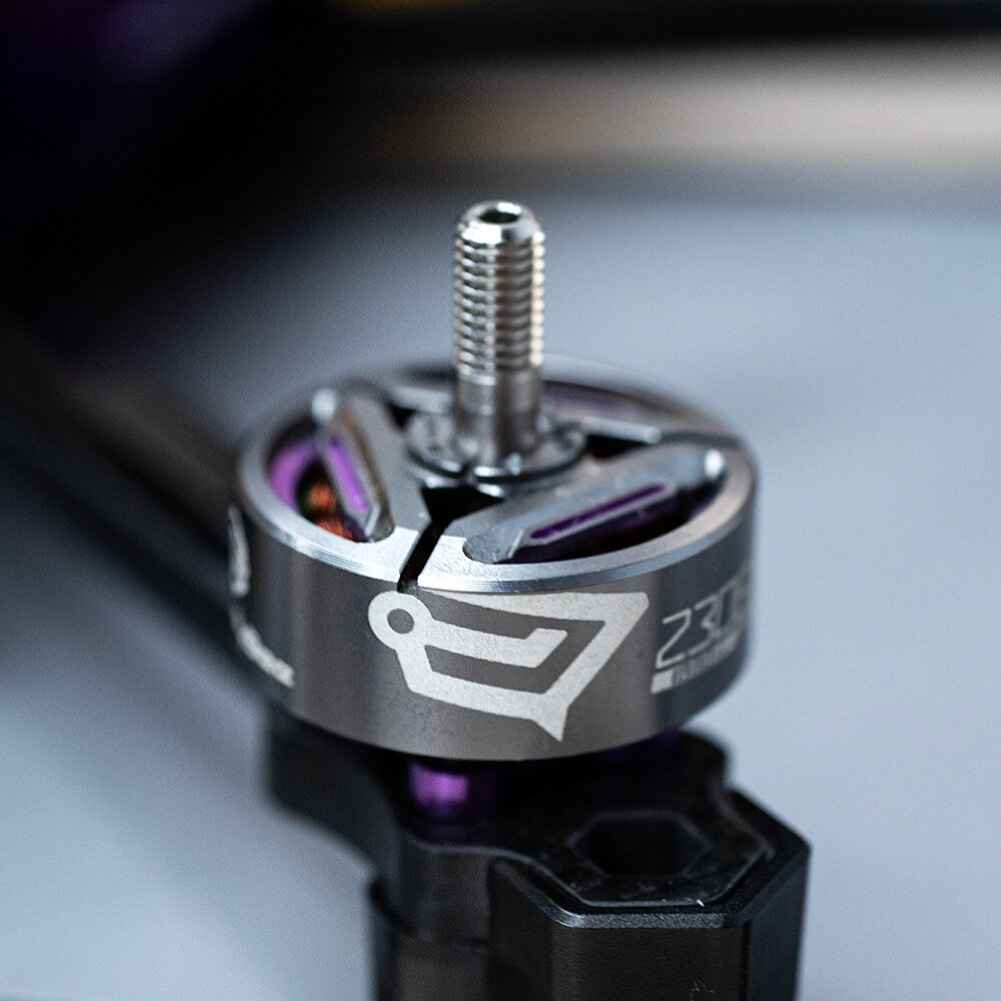

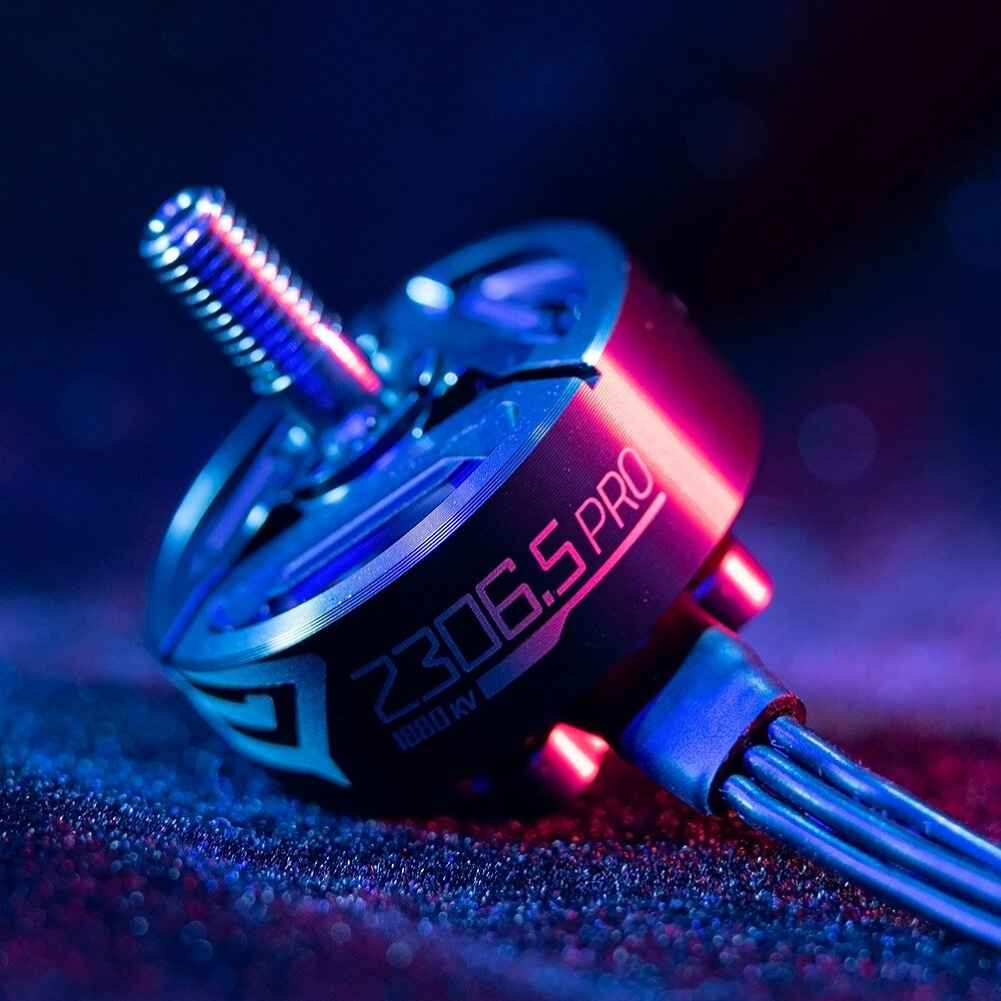

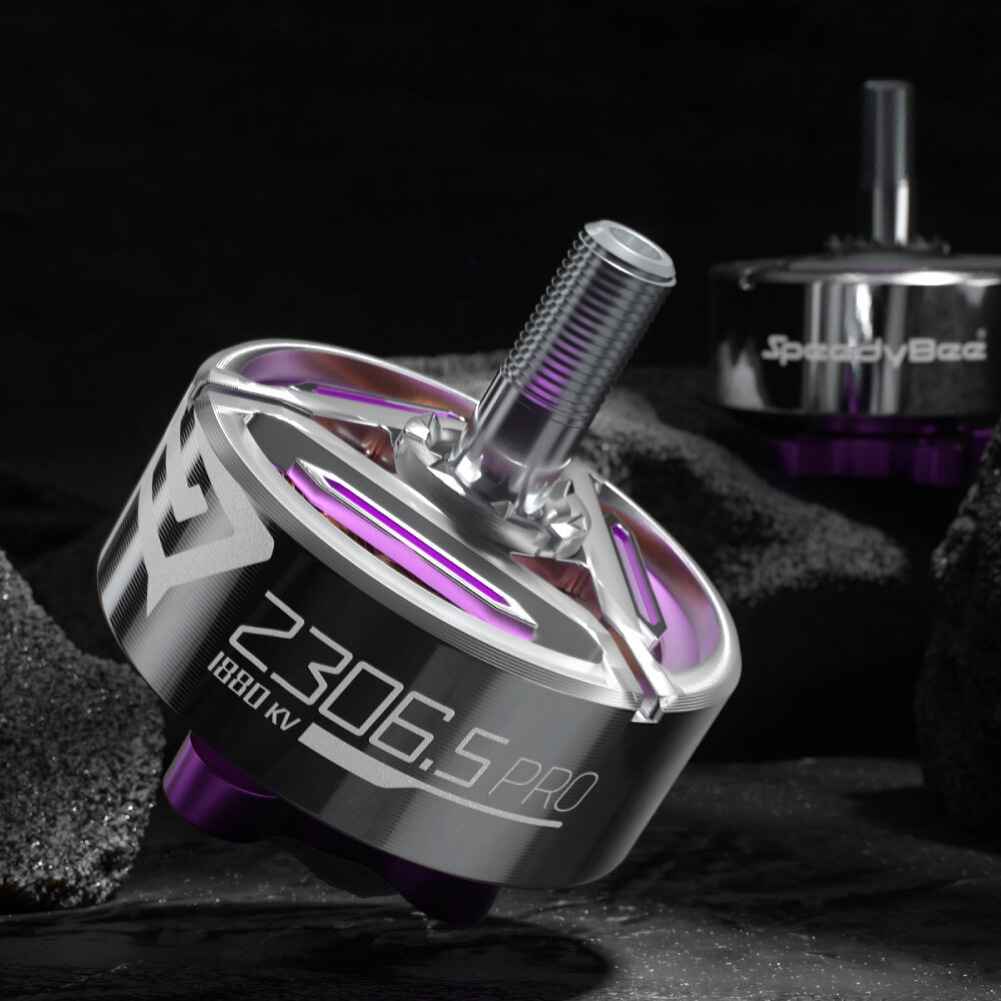

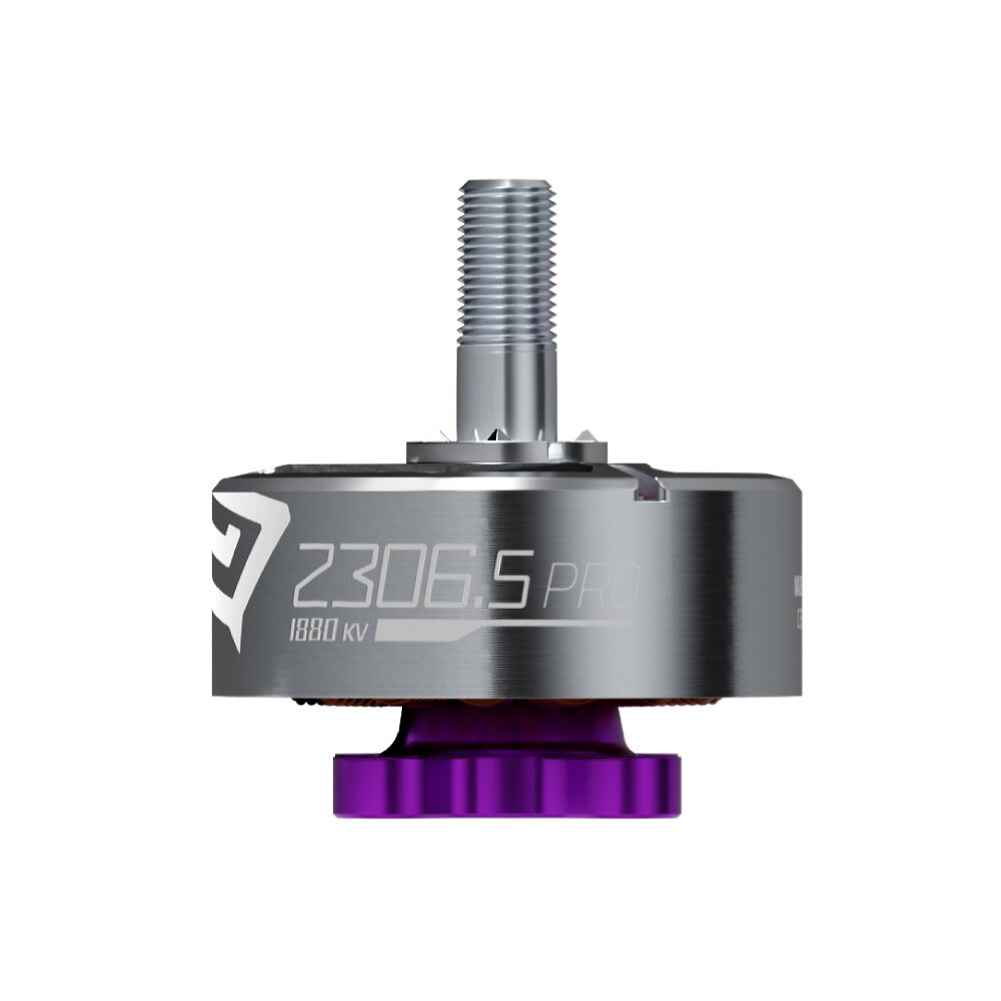

SpeedyBee 2306.5 1880 KV Brushless Motor for Mario5 RC FPV Racing Drone
The SpeedyBee 2306.5 1880 KV Brushless Motor is engineered for the Mario5 RC FPV racing drone. With a configuration of 12N14P and motor dimensions of 29 x 31.55 mm, it ensures optimal performance. This motor includes a rotor dynamic balance test of approximately 5 mg and features an M5 nut thread mount position. The stator mount position is D:16 M x 4, with a shaft diameter of 4 mm. It delivers a maximum power of 775.7 W and a maximum thrust of 1.59 kg, making it ideal for 5-inch racing drones. The motor is equipped with 150 mm of 20 AWG silicone rubber wire for output and weighs 34.6 g with the cable.
Specification:
Brand: SpeedyBee
Motor Model: 2306.5
KV: 1880 KV
Configuration: 12N14P
Motor Dimensions: D:29 沁 31.55 Mm
Rotor Dynamic Balance Test: 沌5 Mg
Thread Mount Position: M5 Nut
Stator Mount Position: D:16 M沁4
Shaft Diameter: In: 4 Mm
Output Specification: 150 Mm (20 Awg Silicone Rubber Wire)
KV Value: 1880 KV
Idle Current: 1.26A/10V
Maximum Current: 33.8A
Maximum Power: 775.7 W
Phase Resistance (With Cable): 66m
Maximum Thrust: 1.59 Kg
Total Weight (With Cable): 34.6 G
Applicable Model: 5-Inch Racing Drone
Package Included:
1 x 1880 KV Brushless Motor
1 x M5 Aluminum Alloy Locknut
1 x M3 x 6 Pan Head Screws
4 x M3 x 8 Pan Head Screws
4 x M3 x 9 Pan Head Screws
4 x M3 x 11 Pan Head Screws
1 x Pad
1 x Washer
