Description

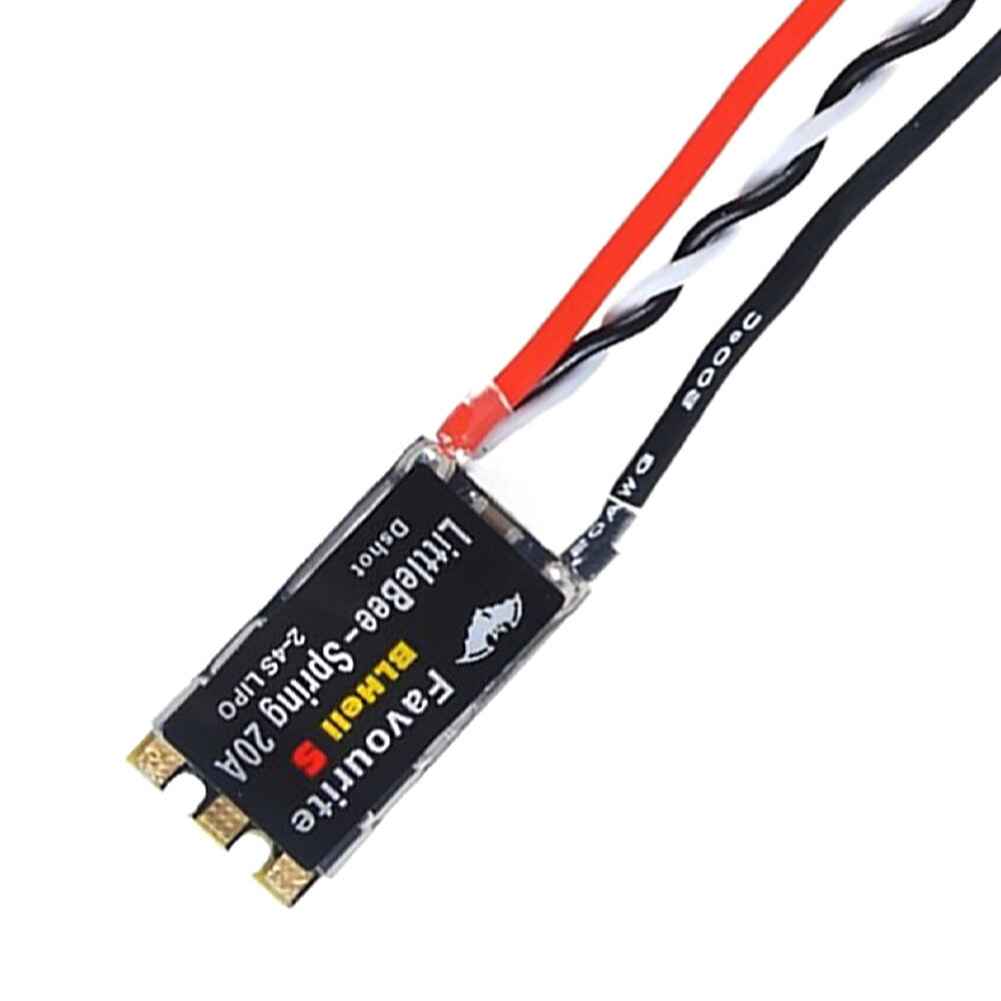

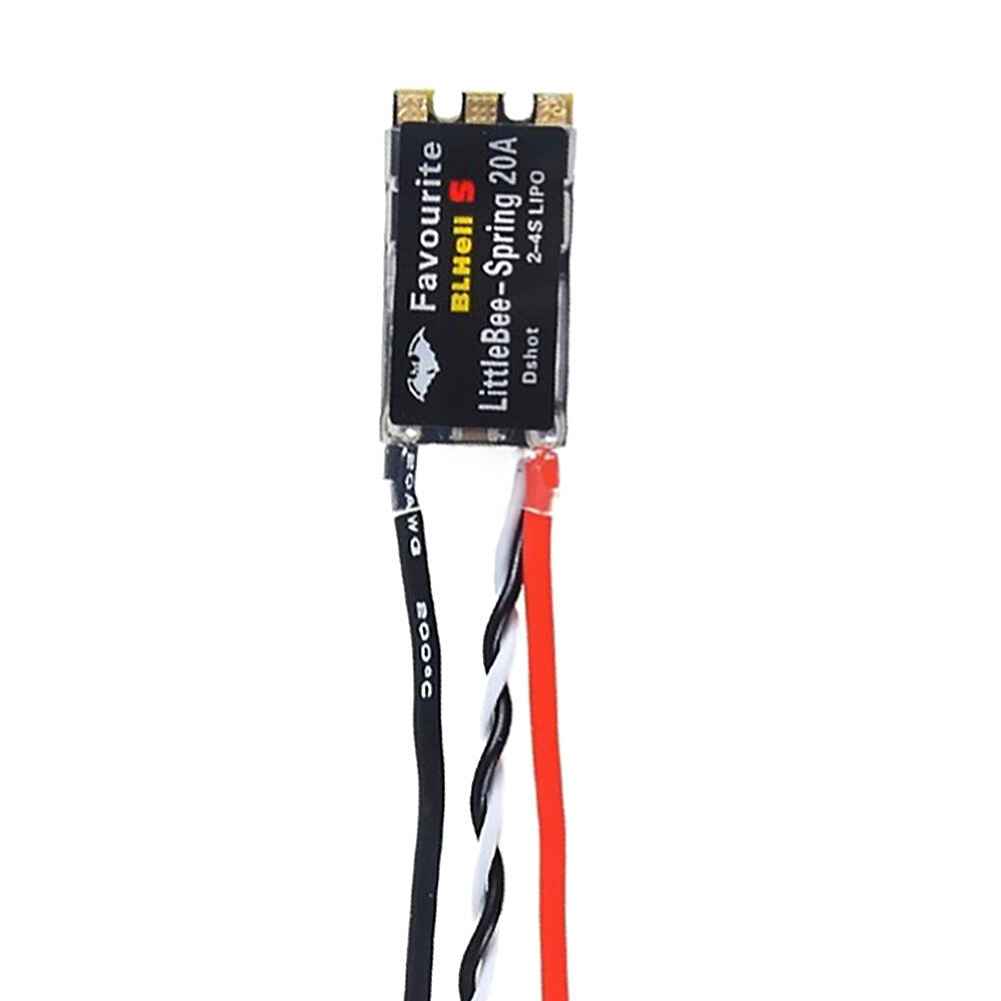

4PCS LittleBee 20A 2-6S BLHeli_S OPTO Brushless ESC for DIY RC Drone FPV Racing
The LittleBee 20A 2-6S BLHeli_S OPTO Brushless ESC is designed for FPV multicopter and quadcopter enthusiasts. This electronic speed controller supports damped mode, Oneshot125, Oneshot42, and Multshot for precise control. It features both low and high side Nfets, ensuring fast switching speeds with a dedicated driver chip. The ESC operates with an input voltage of 2-6S Lipo and can handle a continuous current of 20A, with a burst current up to 25A for 10 seconds. Its compact size of 35 x 18 x 5mm and lightweight design at 9g, including power and signal wires, make it ideal for DIY RC drone racing projects.
Features:
-LittleBee 20A ESC BLHeli_S OPTO Electronic Speed Controller 2-6S Brushless for FPV Multicopter Quadcopter.
-Support Damped mode,Oneshot125, Oneshot42 and Multshot.
-MOS:Both low and high side fets are Nfets.
Specifications:
Input Voltage: 2-6S Lipo
BEC Output: No
Continue Current: 20A
Burst Current: 25A up to 10S
Size: 35*18*5mm/1.4*0.7*0.2inches
Weight: 9g
Weight: 9g(include Power and signal wire)
Support Damped mode, Oneshot125, Oneshot42 and Multshot
Main IC: SILABS EFM8BB21F16, MCU run 48MHz
MOS: Both low and high side fets are Nfets
Switching speed is very fast, it has dedicated driver chip
BLHeli_S Bootloader andamp; Firmware
Package Included:
1 x 20A ESC BLHeli_S OPTO 2-6S Brushless for FPV Multicopter Quadcopter
