Description

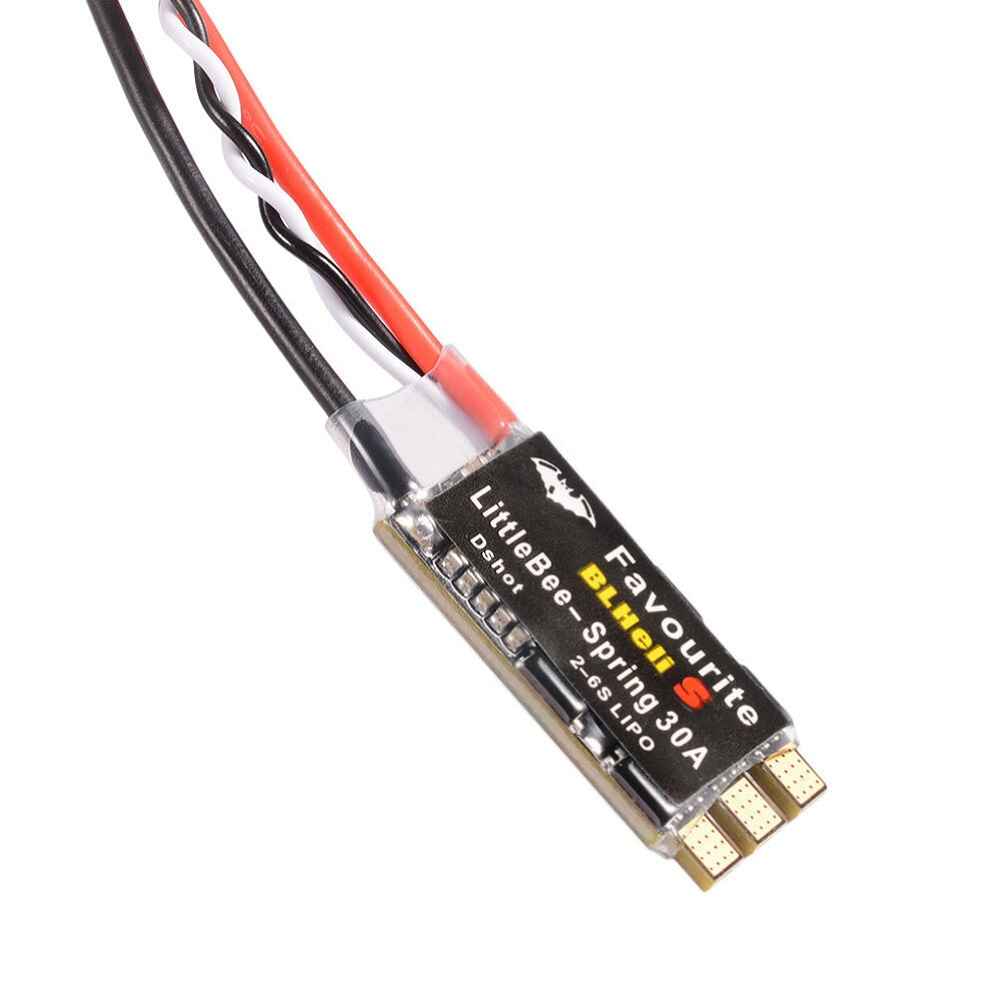

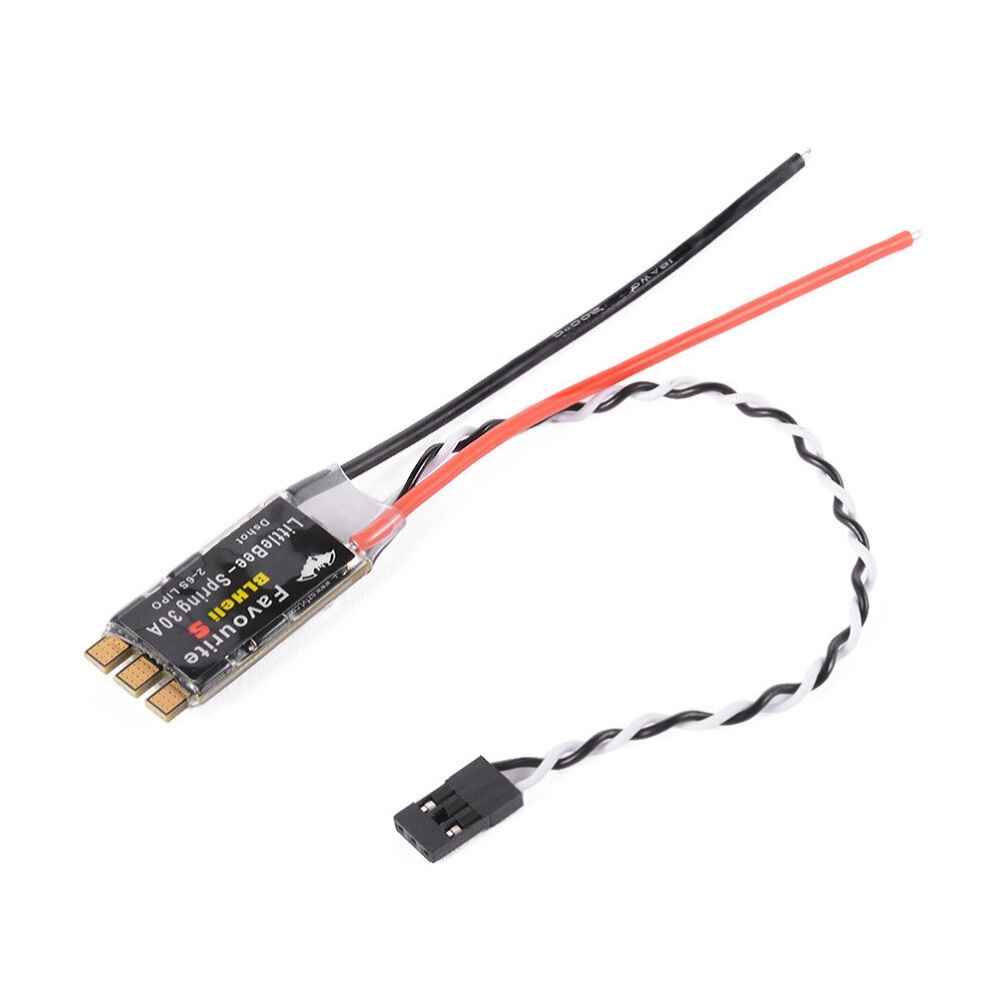

4PCS LittleBee 30A S BLHeli_S OPTO 2-6S Brushless ESC for DIY RC FPV Racing Drone
The LittleBee 30A S BLHeli_S OPTO Electronic Speed Controller is designed for FPV multicopters and quadcopters. It supports a wide range of input voltages from 2-6S Lipo batteries and offers a continuous current of 30A with a burst current capacity of 35A up to 10 seconds. The ESC is equipped with advanced features such as Damped mode, Oneshot125, Oneshot42, and Multshot, ensuring precise control and fast switching speeds. The main IC is the SILABS EFM8BB21F16, running at 48MHz, with both low and high side fets being Nfets. Compact in size, each ESC measures 35 x 18 x 5mm and weighs only 9g, including power and signal wires.
Features:
-LittleBee 30A S ESC BLHeli_S OPTO Electronic Speed Controller 2-6S Brushless for FPV Multicopter Quadcopter.
-Support Damped mode,Oneshot125, Oneshot42 and Multshot.
-MOS:Both low and high side fets are Nfets.
Specifications:
Input Voltage: 2-6S Lipo
BEC Output: No
Continue Current: 30A
Burst Current: 35A up to 10S
Size: 35*18*5mm/1.4*0.7*0.2inches
Weight: 9g
Weight: 9g(include Power and signal wire)
Support Damped mode, Oneshot125, Oneshot42 and Multshot
Main IC: SILABS EFM8BB21F16, MCU run 48MHz
MOS: Both low and high side fets are Nfets
Switching speed is very fast, it has dedicated driver chip
BLHeli_S Bootloader andamp; Firmware
Package Included:
4 x 30A ESC
