LS220 220mm Wheelbase 5 Inch T700 Carbon Fiber Frame Kit Compatible with DJI O3 WalkSnail Nebula Aurora Vista Air Unit RC FPV Racing Drone
The LS220 5 Inch Frame Kit offers a robust 220mm wheelbase crafted from lightweight T700 carbon fiber, making it ideal for FPV racing drones. This unassembled, X-shaped frame is designed for customization, compatible with DJI O3, Snail, Nebula, Aurora, and Vista Air Units. It features a 6.0mm thick arm, 3.0mm bottom plate, and 2.0mm top and clamping plates, ensuring durability and stability. The frame supports multiple mounting options for flight controllers, VTX, and motors, providing flexibility for various setups. Please note, this is an empty frame kit and does not include components like FC, ESC, motors, propellers, VTX, camera, or battery.
Notice:1. It is Empty Frame Kit, not include FC,ESC, Motor, Propeller, VTX, Camera, Battery, etc.2. It Comes unassembled. Need build by buyers.
Specifications:
Model: LS220
Item Name: 5 Inch Frame KitWheelbase: 220mm

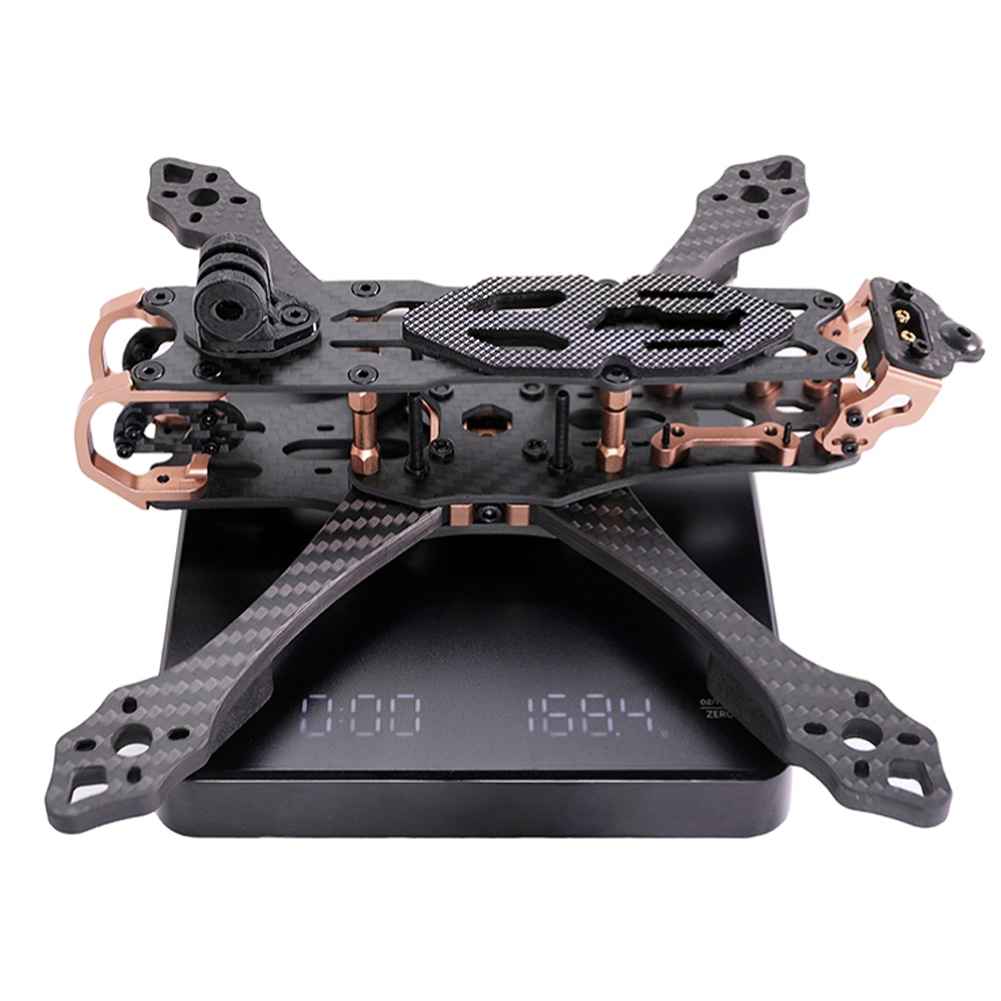

Weight: about 168.4g
Arm Thickness: 6.0mm
Bottom Plate Thickness: 3.0mm
Top Plate Thickness: 2.0mm
Clamping Plate Thickness: 2.0mm
Flight Controller Mounting Hole: 20*20mm (M3), 30.5*30.5mm (M3)
VTX Mounting Hole: 20*20mm (M3), 25.5*25.5mm (M1.6)
Motor Mounting Hole: 16*16mm (M3), 19*19mm (M3)
Support Camera: 19/20mm
Structure: X-shaped Split
Aluminum Column Height: M3*23mm
Suitable for DJI O3, Snail, Nebula, Aurora, Vista Air Unit, etc.
Recommended Parts (For Reference Only, Not Include):
Motor: MAMBA TOKA 2306.5 1650KV 1770KV 4-6S 2770KV 3-4S / Emax ECO II 2807 6S 1300KV 5S 1500KV 4S 1700KV
FC&ESC: 20x20mm SpeedyBee F405 Mini F4 / 30.5*30.5mm iFlight BLITZ F745 FC 55A BLHeli_32 32Bits 4In1 Brushless ESC Stack
VTX&Camera: DJI O3 Air Unit
Propeller: HQProp Freestyle 5043 5 Inch 3-Balde Propeller Ethix S5 5040 5×4 5 Inch 3-blade Propeller
Package Included:
1 x 220mm Wheelbase 5 Inch Frame Kit
