Description

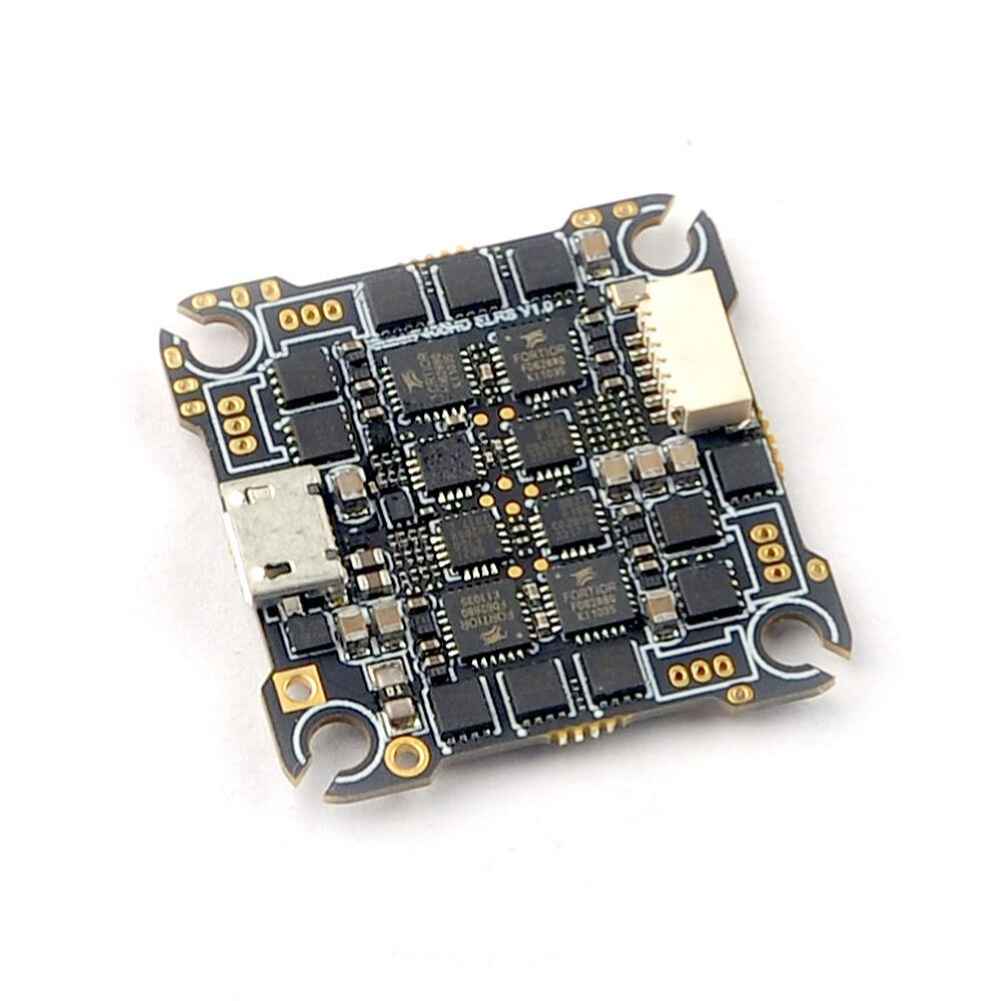

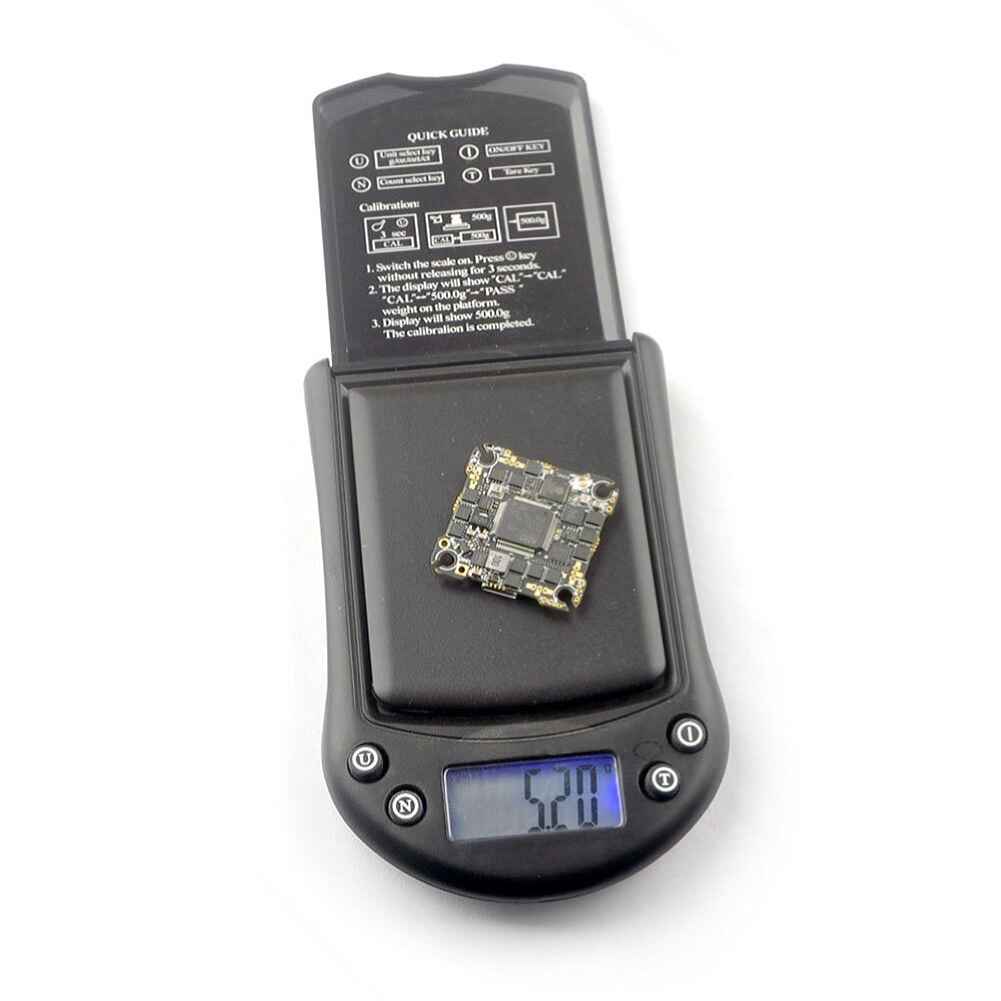

25.5×25.5mm Happymodel Super F405HD ELRS AIO 3in1 F4 Flight Controller Built-in Serial Port 2.4G ELRS Receiver 20A ESC
The Happymodel Super F405HD ELRS AIO Flight Controller is an advanced solution for building 2-4S HD digital FPV whoops. It features an integrated 2.4GHz ExpressLRS receiver and a 20A Blheli_s ESC with Bluejay firmware pre-installed, supporting 2-4S battery input. The controller includes a powerful STM32F405RGT6 MCU, ICM42688 gyro sensor, and a reserved 6-pin socket for DJI HD equipment. Designed for high performance, it supports continuous currents of 20A and peak currents of 25A. The built-in voltage and current meter sensors enhance functionality, while the onboard 4in1 ESC and BMP280 barometer ensure precise control. The default firmware is BetaflightF4, with DSHOT150/300/600 protocol support.
The Super F405HD ELRS AIO flight controller comes with integrated UART 2.4GHz ExpressLRS receiver and 20A Blheli_s ESC(Bluejay firmware pre-installed) which could support 2-4s battery. Bigger Mosfet could support high to 20A currents and reserved 6 pin socket for DJI HD equipment plug and play. Itㄙs a great solution of build 2-4S HD digital FPV whoop.
Specifications:
Brand: Happymodel
Model: Super F405HD ELRS AIO
Onboard voltage and Amperage meters settings:
Voltage meter scale setting 110
Amperage meter scale setting 470
Binding procedure:
1. Supply power to the flight controller by plug USB, wait until the red LED on the FC is off, immediately turn off the power, and then repeat again the above steps. When the FC is powered on for the third time, the red LED light will start to double-flash, which means that the Receiver enters the binding mode
2. Please make sure your ExpressLRS tx module firmware is v3.x.x. And go to ExpressLRS.lua from ↗TOOLS∫ menu of your radio transmitter. Then hit [Bind] to binding with the onboard ExpressLRS receiver. The red LED should blinking slowly first then turn to solid, that means binding was successfully. If the red led keep tri-flash after binding ,please change Model Match tab value from ↗off∫ to ↗on∫ or from ↗on∫ to ↗off∫
Receiver LED status meanings:
Red LED solid means bind successful or RC link established; Red LED double-flash means get into bind mode; Red LED flash slowly means no RC signal input from TX module; Red LED continuous flash fast means ExpressLRS wifi enabled; Red LED tri-flash means model mismatch need to change model match from ↗off∫ to ↗on∫.
UART description:
ELRS receiver was connected to UART2 default out of factory.
Usually UART1 was used for MSP OSD with HD VTX.
UART6 could be used for GPS or other serial equipment.
IRX6 is an inverted serial RX6 for SBUS input.
IRX6 and TX6/RX6 couldnㄙt be used at the same time.
NOTES:
If upgrade firmware to betaflight 4.4.x , need to add custom Defines ↗GYRO_SPI_ICM42688P ACC_SPI_ICM42688P∫ from build configuration of betaflight configurator otherwise gyro will not working.
If you want to enable Barometer , please connect to betaflight configurator and go to CLI command ,then type the following command:
resource I2C_SCL 2 B10
resource I2C_SDA 2 B11
set baro_bustype = I2C
set baro_i2c_device = 2
save

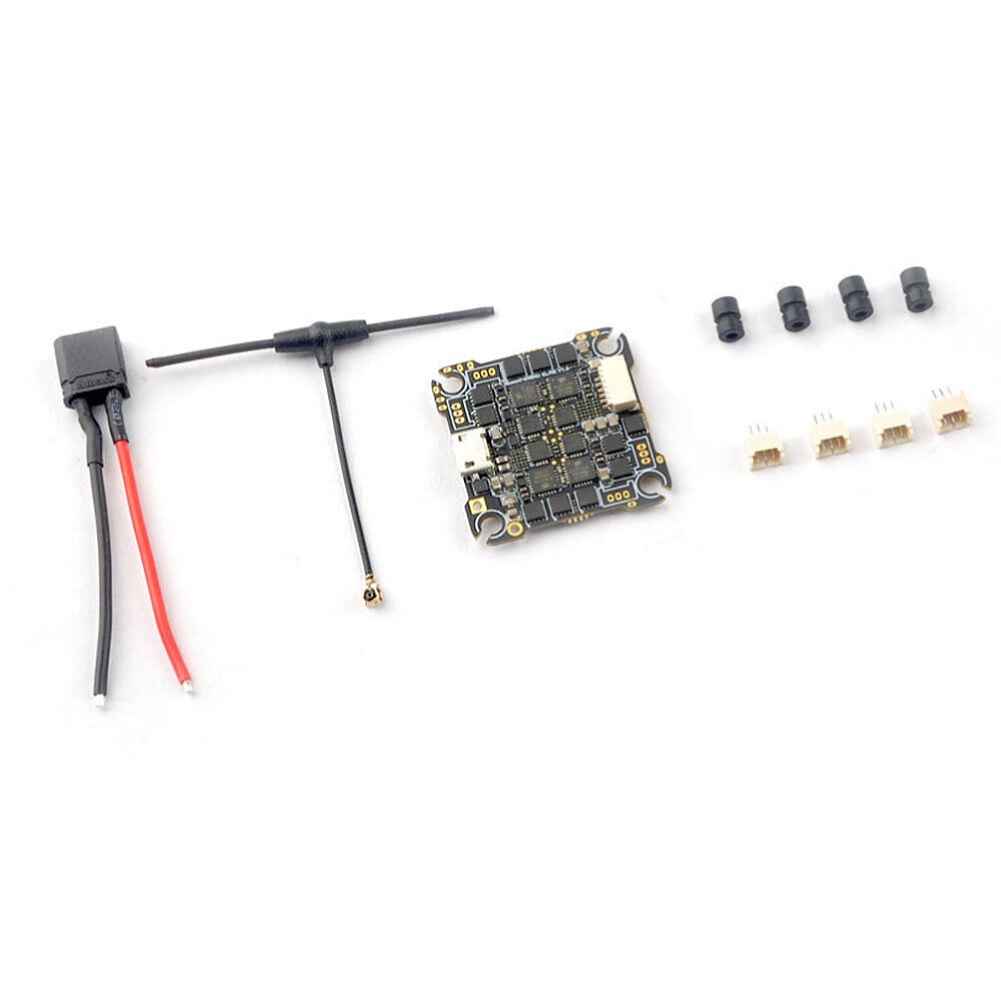

Package Included:
1 x Happymodel Super F405HD ELRS AIO Flight Controller
