SEQURE 28120 120A Brushless ESC with BLHeli_32/AM32 Firmware, 2-8S Support, for Drones, UAVs, RC Cars & Boats

Description

SEQURE 28120 Brushless Electric Speed Controller ESC 2-8S Power Supply 120A BLHeli_32 / AM32 Firmware Support 128KHz PWM Frequency Suitable for Multi-Axis Drones Fixed-Wing UAV Model Boats Climbing Vehicles RC Car Models

The SEQURE 28120 Brushless Electric Speed Controller (ESC) is engineered with a 32-bit high-performance STM32G071 processor, operating at a frequency of up to 64MHz. It supports a maximum motor PWM frequency of 128KHz, ensuring smooth and efficient performance. This ESC features high-power MOSFETs combined with a CNC metal radiator for effective heat dissipation under high current loads, ensuring stable and continuous operation. It accommodates various motion modes, including unidirectional, bidirectional, and braked motors, and offers multiple protections such as low voltage, temperature, locked rotor, and current protection. With support for all Dshot signals and protocols like PWM, Oneshot, and Multishot, the ESC provides comprehensive signal compatibility. The adjustable BEC outputs and customizable RGB LED settings enhance its versatility for use in multi-rotor drones, fixed-wing UAVs, model boats, and RC cars.

Product Description:
(1) Adopting 32-bit high-performance processor STM32G071, with a working frequency of up to 64MHz and maximum support 128KHz motor PWM frequency.

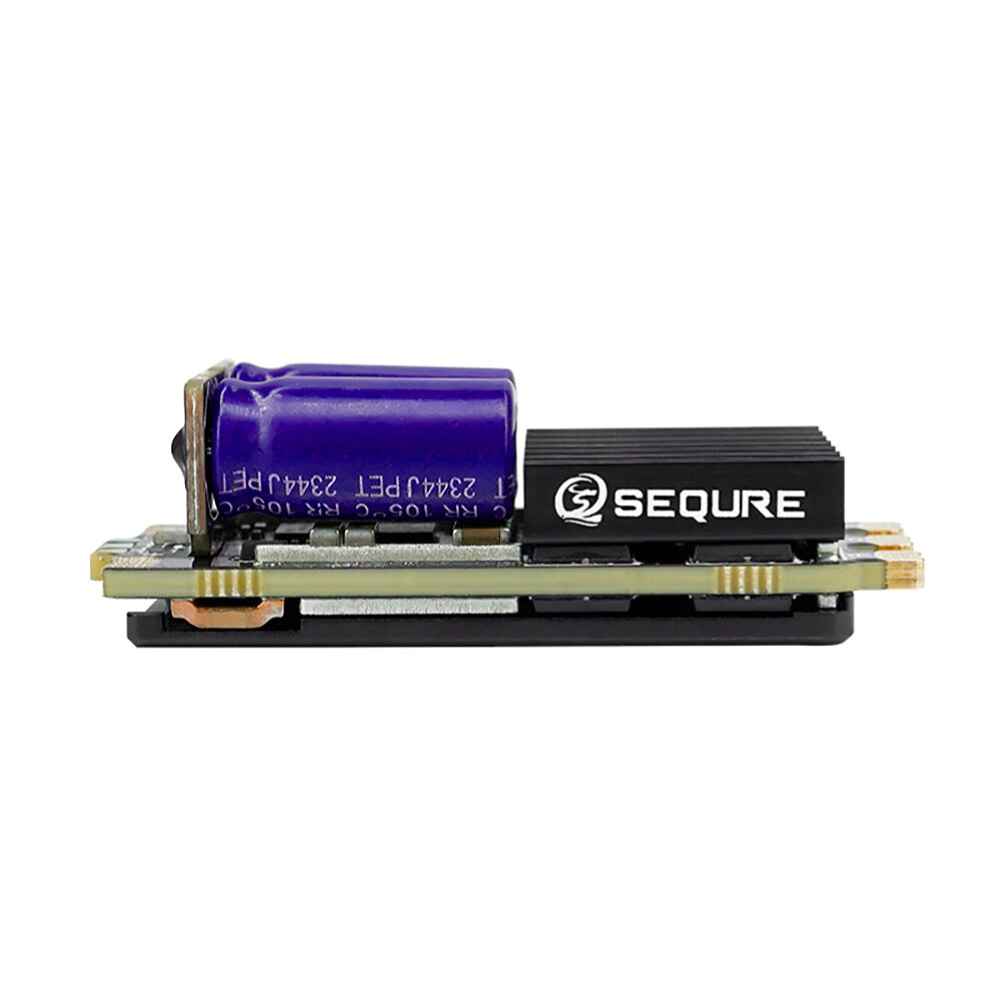

(2) Adopts high-power MOSFET, and combines with CNC metal radiator, this esc dissipates heat effectively under high current load and works stably & continuously.
(3) Supports multiple motion modes such as unidirectional, bidirectional, and braked motors.
(4) Supports multiple protections such as low voltage protection, temperature protection, locked rotor protection, and current protection.
(5) The ESC automatically detects the throttle signal when it is powered on, supports all Dshot signals, and also supports signal protocols such as PWM, Oneshot and Multishot.
(6) Visual programming parameter adjustment tool supports motor timing, throttle calibration, current detection, motor steering, telemetry signal and other settings.
(7) Onboard RGB LED color light settings, multiple LED colors can be customized.
(8)BEC supports adjustable outputs of 5V/4A, 6V/4A, 7.2V/4A, 8.2V/4A, and 12V/3A, which can directly supply power to external devices such as receivers and servos, making the application of ESC more extensive and flexible .
(9) Widely used in model airplane plant protection machines, multi-rotor drones, RC model ships and cars.
Parameters of Product:

mso-char-indent-count:0.0000;’>SQESC 28120

Processor

mso-char-indent-count:0.0000;’>STM32G071

Input voltage

mso-char-indent-count:0.0000;’>DC 7V-33.6V侈2-8S Lipo佩

Continuous current (good heat dissipation)

mso-char-indent-count:0.0000;’>120A

Maximum current (good heat dissipation)

mso-char-indent-count:0.0000;’>150A

Support firmware

mso-char-indent-count:0.0000;’>BLHeli_32佾AM32

mso-char-indent-count:0.0000;text-align:center;’>BEC(if any)

mso-char-indent-count:0.0000;’>5V/4A, 6V/4A, 7.2V/4A, 8.2V/4A, 12V/3A adjustable

Signal protocol

Dshot (All),PWM,Oneshot,Multishot,etc.

Programming parameter adjustment

Support

Throttle calibration

Support

Timing angle setting

Support

Current detection

Support

Telemetry signal

Support

Motor steering settings

Support

RGB LED color lights

Support

Power cable(if any)

14AWG

Application scenarios

Suitable for multi-axis drones, fixed-wing aircraft models, multi-rotor drones, plant protecti

Package Included:
1 x SEQURE 28120 Brushless Electric Speed Controller ESC
