HGLRC Rekon Y6 5-Inch Long Range Frame Kit for DJI O3 & 5.8G Analog FPV Racing Drone

Description

HGLRC Rekon Y6 Spare Part 5 Inch Long Range Frame Kit Support DJI O3 5.8G Analog for DIY RC FPV Racing Drone

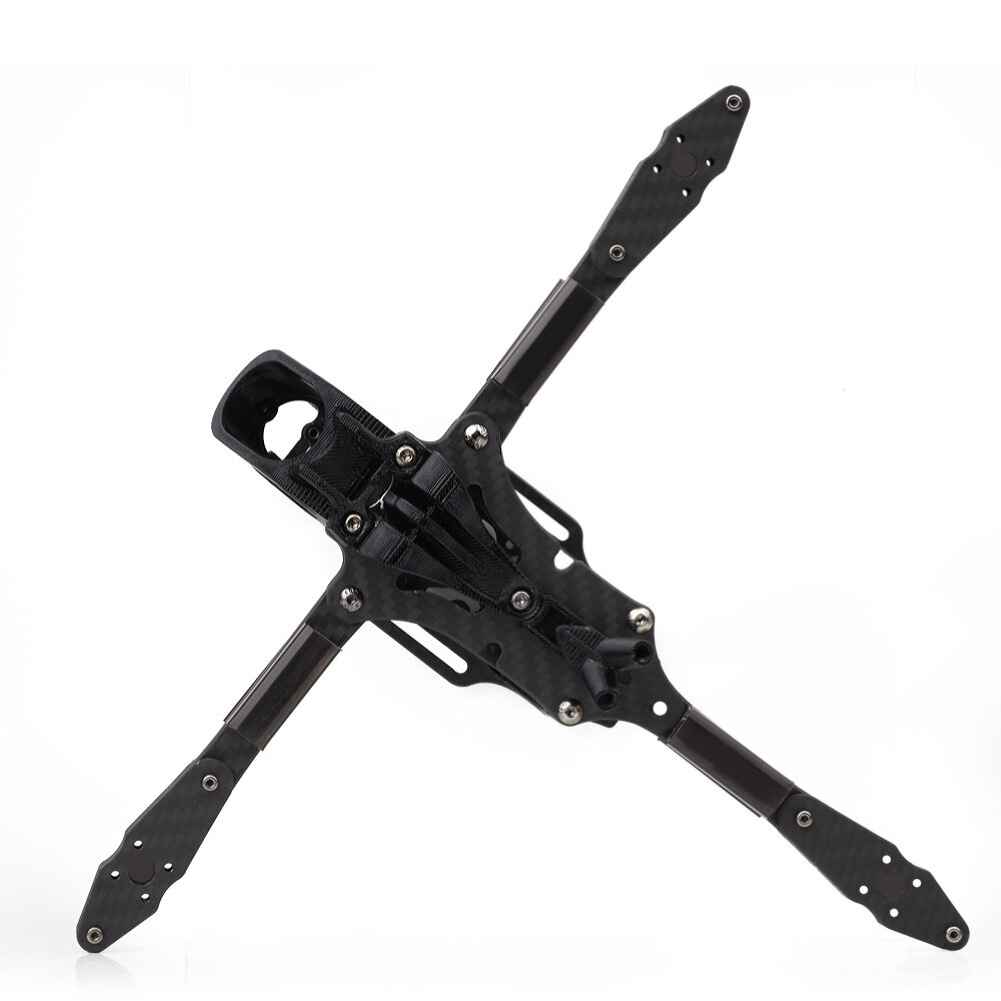

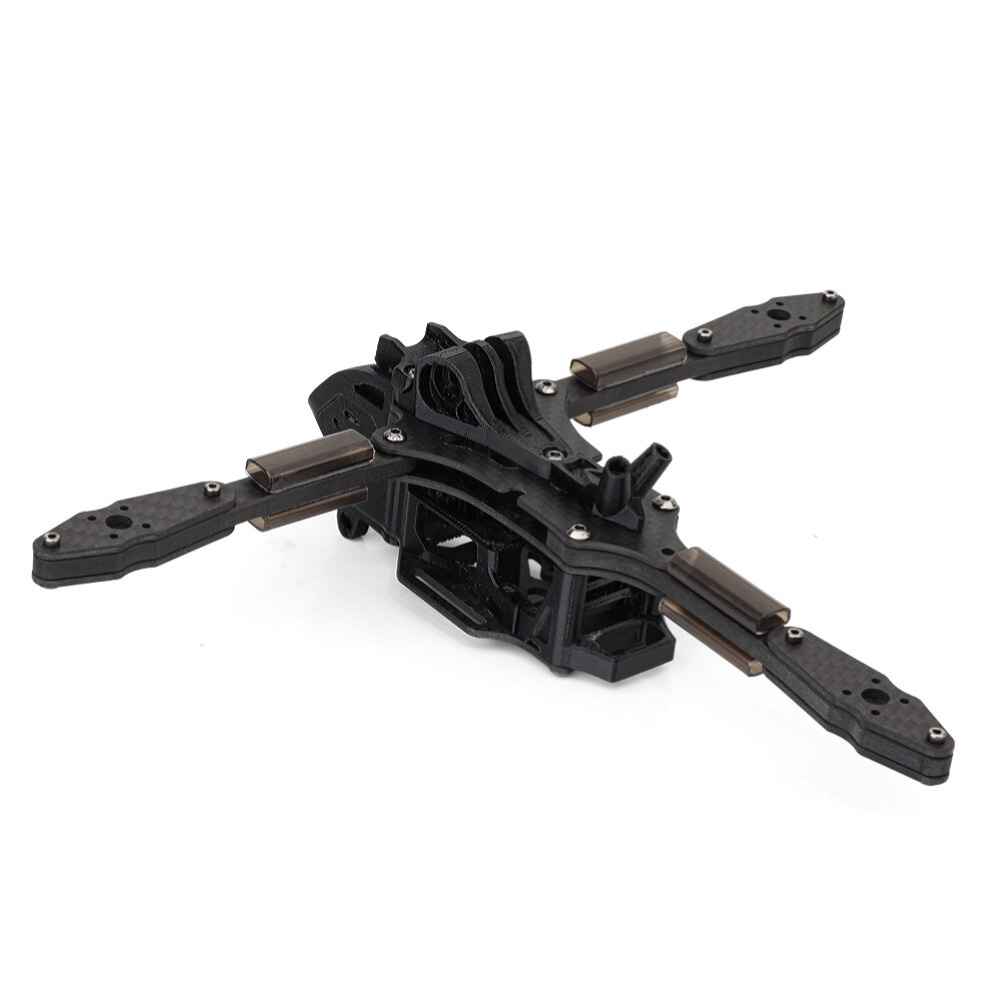

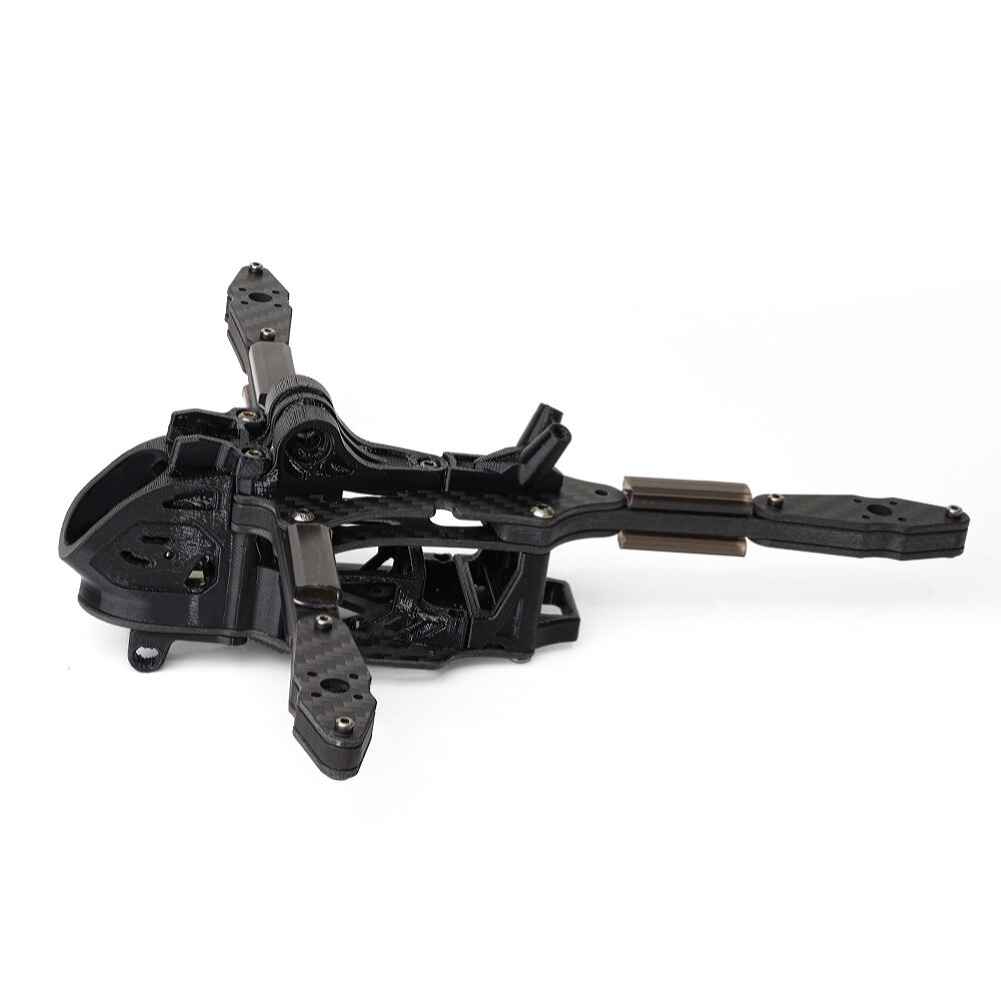

The HGLRC Rekon Y6 5-Inch Long Range Frame Kit is designed for DIY RC FPV racing enthusiasts. This kit offers a 50% increase in propeller area compared to standard 5-inch quadcopters, allowing it to carry a full-sized action camera while maintaining a compact design. The fixed power connector ensures stability by preventing shaking during flight. It features a side antenna mount, enabling customizable antenna installation to eliminate signal dead zones. The propellers are strategically placed to stay out of the camera’s view, ensuring clear video capture. The frame is made from durable 3K carbon fiber and includes an M100mini GPS holder for stable flight.

Noctice: Comes unassemble. Need assemble by buyers
Selling point:
* Offers a 50% increase in propeller area compared to a standard 5∫ quadcopter to carry full-sized action camera, while maintaining a compact design.
* Fixed power connector: avoids instability caused by shaking of the connector during flight, making the flight more stable
* Reserve the side antenna Mount: you can change the antenna installation position by yourself, or install a dual-antenna receiver to effectively solve the signal dead zone
*Unobstructed Camera Views: Propellers are designed to stay out of the action cameraㄙs view, enabling clear, unimpeded video capture
*Equipped with M100mini GPS holder: It can be equipped with M100mini GPS, which is compact and exquisite and has stable flight.
Specification:
Brand: HGLRC
Model:Rekon Y6
Item Name: 5 Inch Long Range Frame Kit
Material:3K Carbon fiber
Type: 5 inch
Wheelbase: front 200mm佾after 170mm
Top plate thickness:2mm
Bottom plate thickness:2mm
Middle plate thickness:2mm
Front arm thickness: 5mm
Rear arm thickness: 5mm
Motor fixing seat a:2mm
Motor fixing seat b:2mm
Bottom plate support券2mm
Top and middle plate space:25mm
Flight controller mounting hole:25.5×25.5mm
Camera mount:19*19mm/20x20mm
Motor mounting hole:12*12mm
Weight:119g
Recommended parts:(not included)

FC AIO ESC

25.5X25.5mm SPECTER F722 40A 4-6S AIO

Brushless Motor

HGLRC SPECTER 2004 1800KV 4-6S Brushless Motor

Propeller

iFlight Nazgul 5030 5 Inch 5x3x3 3-Blade Propeller

for Digital HD

DJI O3 Air Unit

for Analog

Caddx Ratel 2 1200TVL

Lipo Battery

GEPRC 6S 3000mAh 18650 Battery XT60

Package Included:
1x 2mm top plate
1x 2mm base plate
1x 2mm mid plate
2x 6mm front arm
1x 6mm rear arm
3x 2mm Motor fixing amount a
3x 2mm Motor fixing amount b
1x 2mm Bottom plate support
4x M3 25mm black Reticulate pattern aluminum post
4x M3 10 Screws
3x M3 22 Screws
3x M3 14 Screws
3x M3 8 Screws
4x M3 6 Screws
11x M2 10 Screws
4x M2 7 Screws
31x M2 4 Screws
3x M2 3 Screws
3x M5 20 Screws
1x M5 self-locking nuts (red)
5x M2 self-locking nuts
2x M2 Stainless steel nut
2x Rekon battery straps 20x250mm
1x Battery Anti-slip pad
1x Typec Male adapter
1x Y6 frame adjustment port Typec female connector
1x Connection line for parameter adjustment port
1x TPU black holder mount for GoPro
1x TPU black GPS Fixed seat
1x TPU black XT60+Receiver fixing parts
1x TPU black Simulated version hood
1x TPU black Simulated image flyer antenna base
1x TPU black Bottom receiver antenna fixing buckle
1x TPU black Side receiver antenna fixing base
1x TPU black Bottom plate support protective pad
1x TPU black hood for DJI O3
1x TPU black HD image transmission dual antenna base
