iFlight BLITZ F745 Flight Controller & E55 55A BLHeli_32 4In1 ESC Stack for FPV RC Racing Drones

Price range: 117.02$ through 193.95$

Advanced iFlight BLITZ F745 Flight Controller with STM32F745 MCU
BLITZ E55 4-in-1 ESC supporting 2-6S LiPo input
Easy installation with DJI HD VTX plug-and-play connector
Supports Betaflight, INAV, and Ardupilot firmware
Multiple UART ports for versatile connectivity

SKU: RC2018038 Category: Multi Rotor Parts Tags: 55A BLHeli_32 ESC, Ardupilot drone controller, Betaflight compatible stack, DJI HD VTX connector, E55 4-in-1 ESC stack, FPV racing drone controller, iFlight BLITZ F745 controller, RC drone flight controller Brand: iFlight

Description

30.5*30.5mm iFlight BLITZ F745 Flight Controller E55 55A BLHeli_32 32Bits 4In1 Brushless ESC Stack for FPV RC Racing Drone

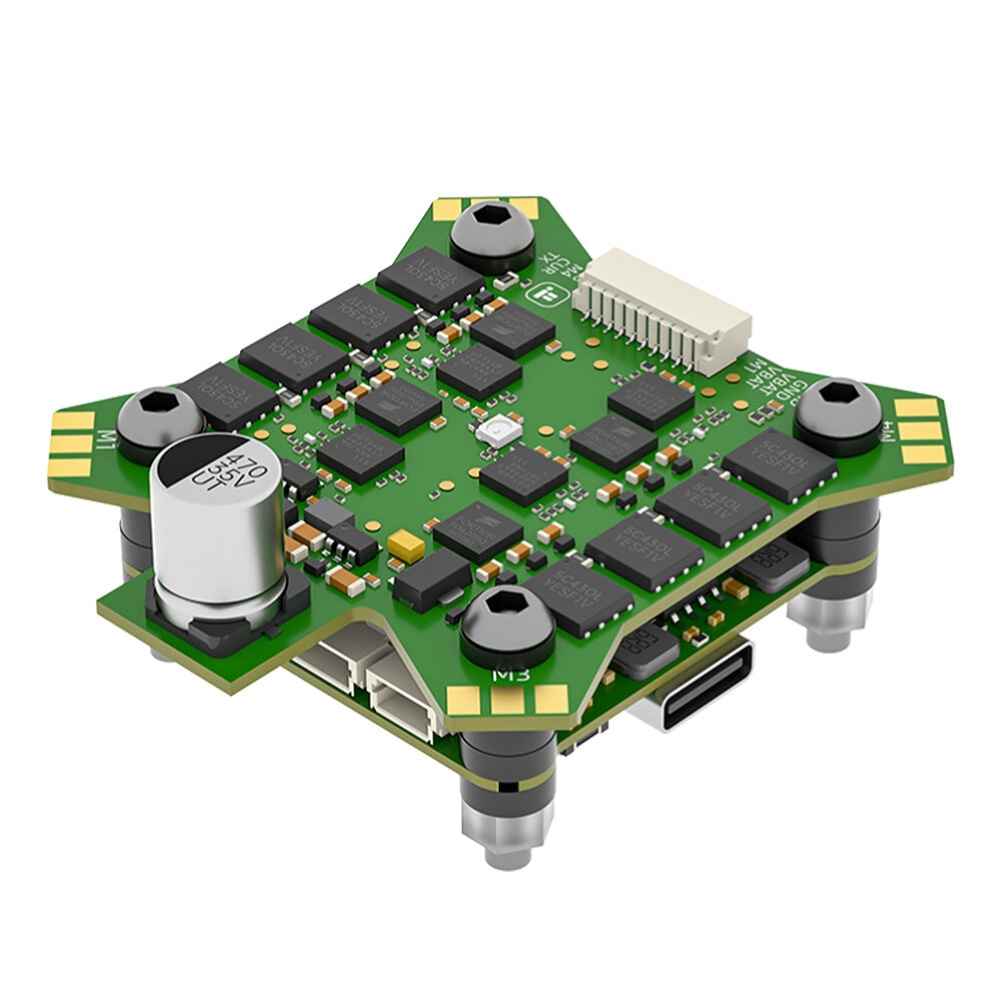

The iFlight BLITZ F745 Flight Controller and E55 4-in-1 ESC stack is designed for FPV RC racing drones, offering advanced features and reliable performance. The F745 Flight Controller includes an STM32F745 MCU, ICM42688 gyro, DPS310 barometer, and AT7456E OSD chip with 32MB Blackbox flash. It supports up to 6 UARTS and various VTX protocols, with a 5V/9V BEC output. The E55 ESC is compatible with 2-6S LiPo batteries, providing 55A constant and 65A burst current. It features DShot support and a DJI HD VTX connector for easy installation. This stack is compatible with Betaflight, INAV, and Ardupilot firmware, making it a versatile choice for drone enthusiasts.

Specification:
Brand: iFlight
Model: BLITZ F745, BLITZ E55
Optional Version: ESC ( Only E55 ESC)/ FC+ESC ( F745 FC & E55 ESC)

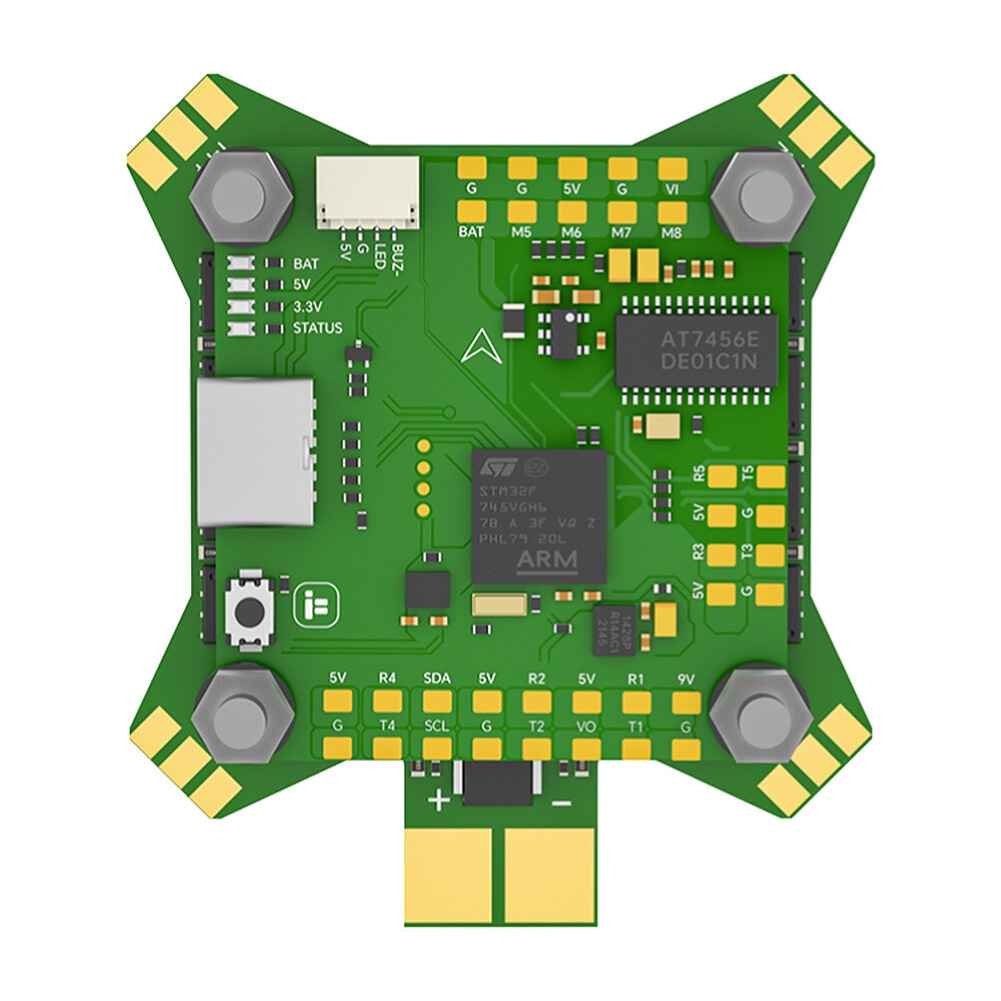

BLITZ F745 Flight Controller

MCU: STM32F745
Gyro: ICM42688
Barometer: DPS310
OSD Chip: AT7456E
Flash: 32MB (Blackbox flash)
UARTS: 6
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Mount pattern: 30.5*30.5mm
Dimensions: 36.5*35 mm
Weight: 7.8g
BEC:
Output 5V 2.5A continuous output current, 3A peak current (15 seconds)
Output 9V 2.5A continuous output current, 3A peak current (15 seconds)
BF Firmware target: IFLIGHT_BLITZ_F7_AIO
Ardupilot Firmware券arduplane_with_bl
Wiring Suggestion
UART 1 for VTX HD / Analog
UART 2 for a Receiver
UART 3/4/5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemet

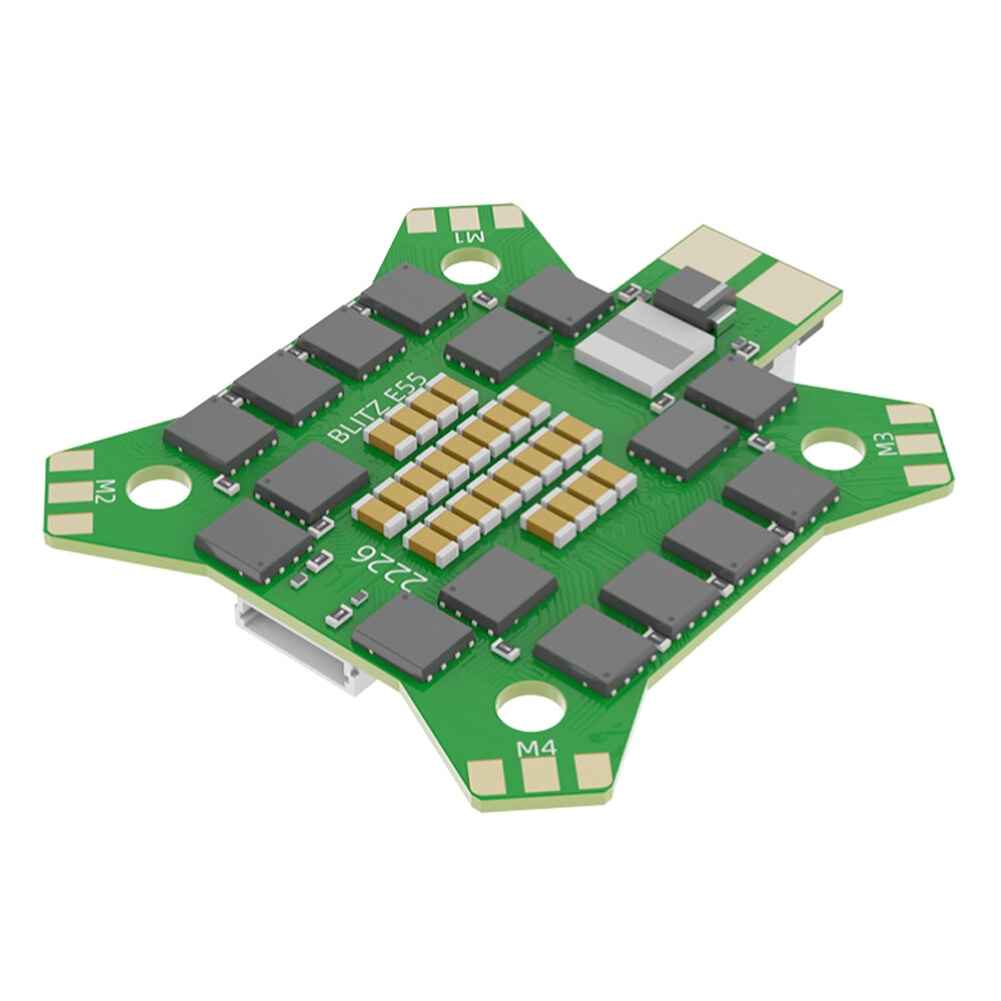

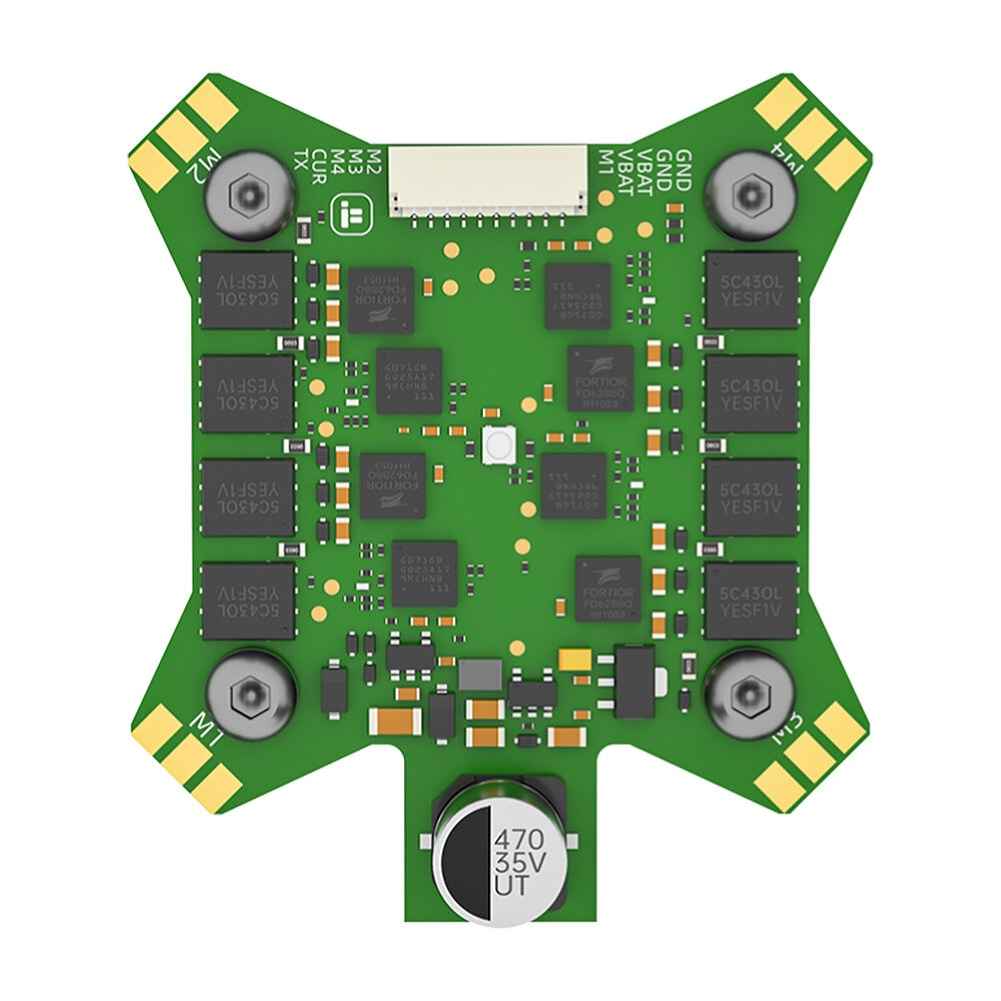

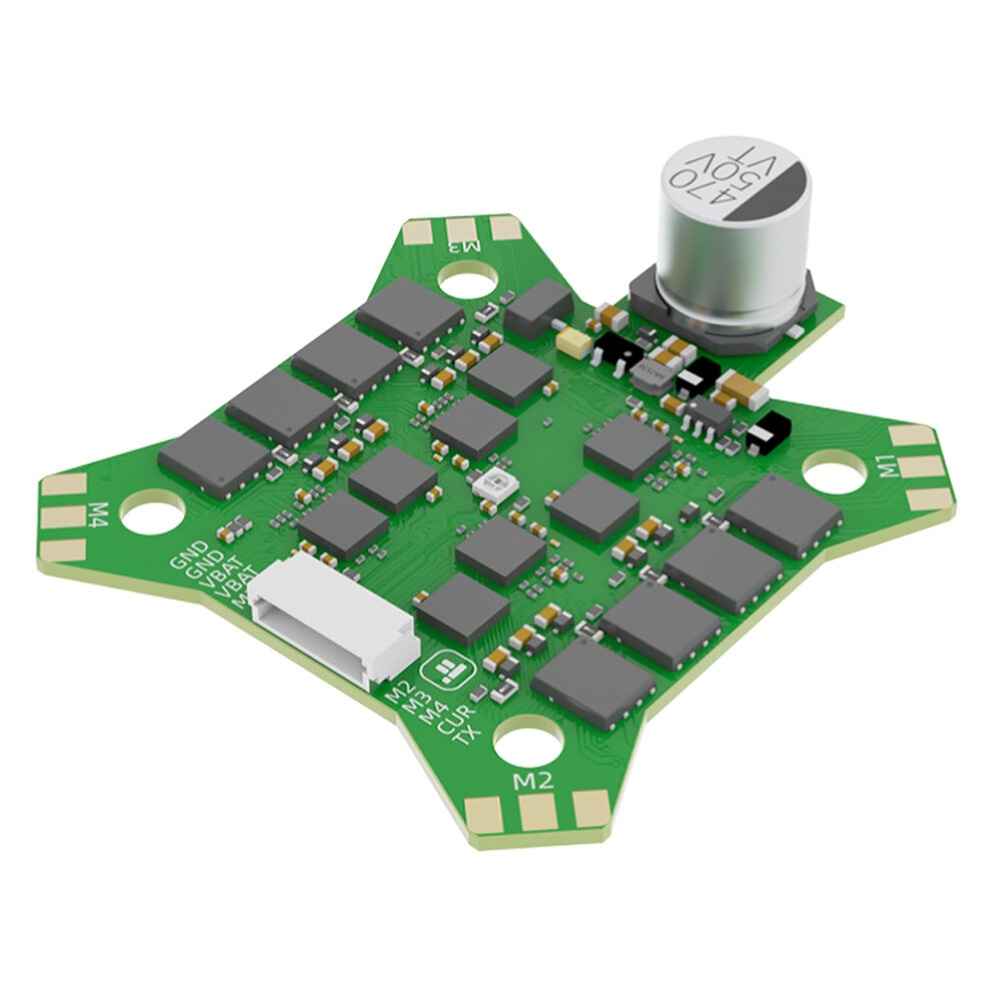

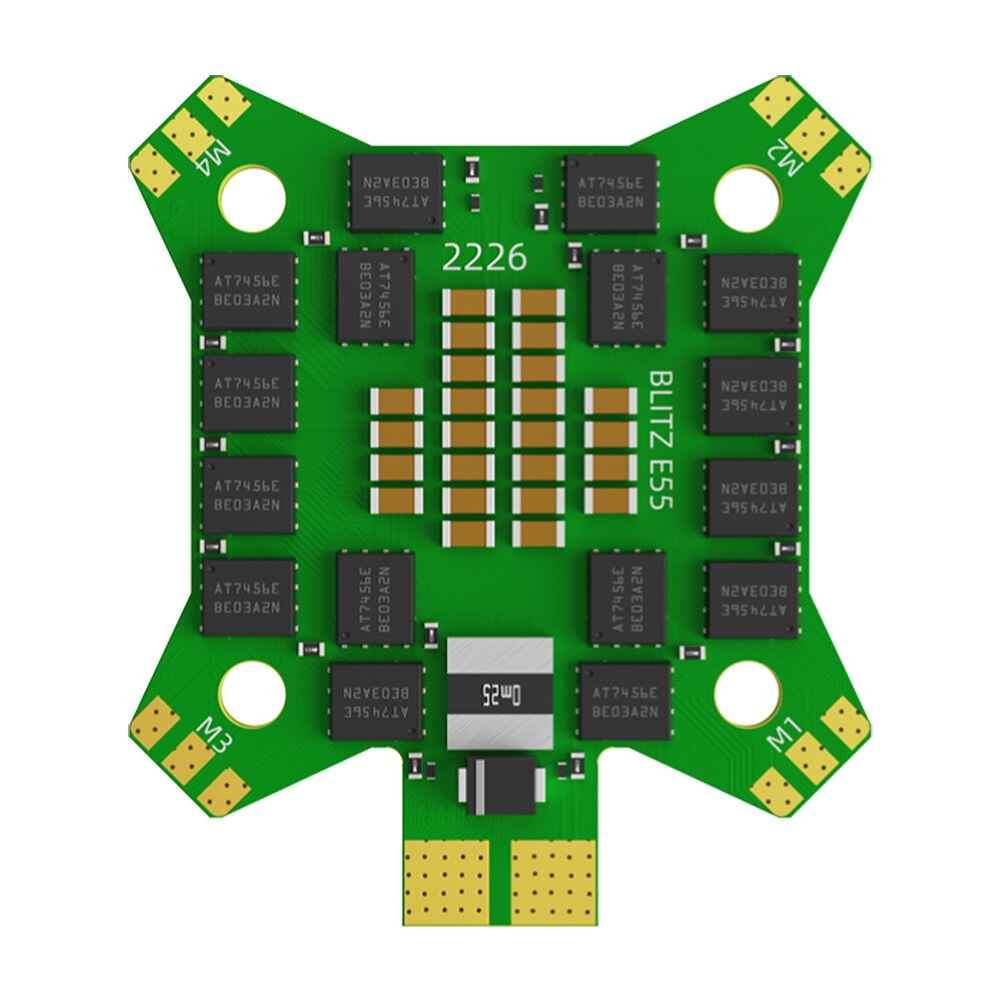

E55 4in1 ESC

Supports 2-6S lipo input
MCU: G071
Constant: 55 Amps
Burst: 65 Amps
Current sensor: Yes
BEC: No
Current rate: 200
Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
Target: IFLIGHT_BLITZ_G3 32.9
Mounting Holes: 30.5*30.5mm/?4mm
Weight: 15.3g

Features:
1. Improved circuit design, better components and lower electrical noise!
2. DJI HD VTX Connector (Plug-and-Play / No soldering required).
3. FC indicator LEDs for visual debugging.
4. Support Betaflight, INAV, Ardupilot firmware.

Package Included:
1 x BLITZ F745 Flight Controller
1 x BLITZ E55 4IN1 2-6S ESC
1 x Silicon grommets
1 x Wire harness for F7 Flight controller
