Description

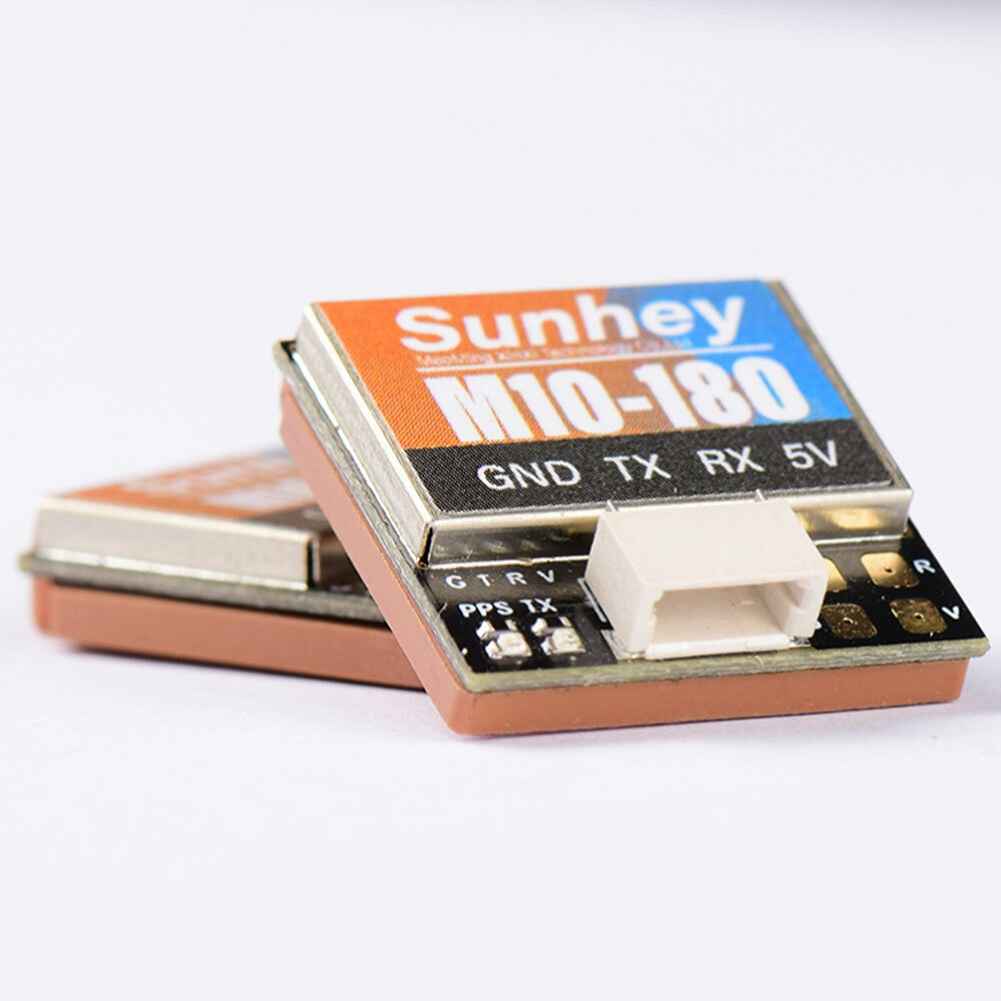

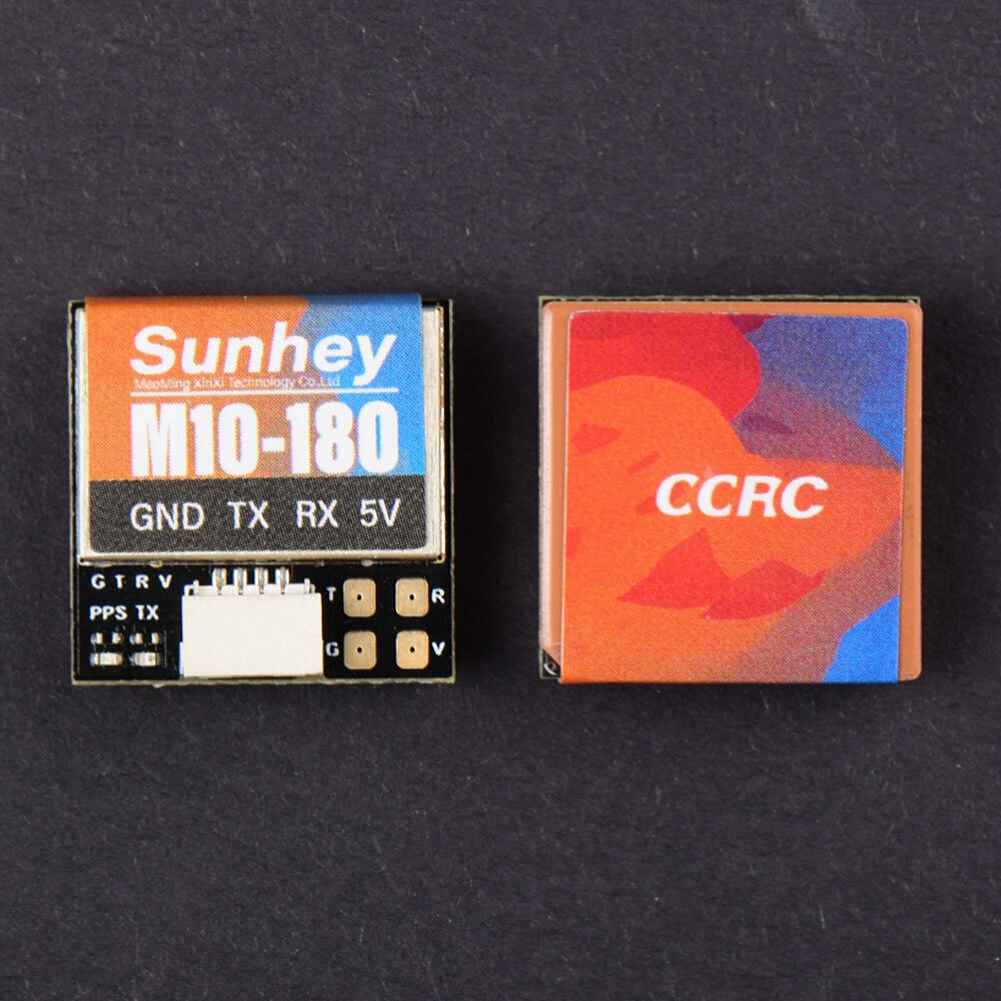

M10 Series M10-180 M10C-180 GPS Module for RC Helicopter Quadcopter Airplane FPV Racing Drones
The M10 Series GPS Module, designed for RC helicopters, quadcopters, airplanes, and FPV racing drones, offers enhanced positioning speed and satellite tracking capabilities. It features a swift cold start time of 26 seconds and a hot start time of just 1 second, ensuring efficient operation. The M10C-180 version includes an integrated electronic compass for precise direction discernment. With a high-efficiency ceramic antenna, the module guarantees strong signal reception and reliable performance. Its compact size and lightweight design make it ideal for small aircraft, fitting seamlessly without adding unnecessary bulk.
Specifications:
Item Name: GPS Module
Optional Version: A ( M10 180) / B ( M10C 180 , come with Compass)
Number of concurrent satellits: 3
Maximum update rate: 10Hz
Agreement: NMEA/UBX
Maximum number of satellits: 32
Positioning accuracy: 1.5m CEP
Hot start: Supported
Starting speed: Cold start 26′ Hot start 1′
BAUD: 4800-921600bps default115200bps
Height restrictions: 沌50000m
Speed limit: 沌500m/s
Acceleration limit: 沌4g
Working voltage: 5V
Operation temperature: -40﹠~+85﹠
Antenna size: 18沁18沁2mm
Product size: 18沁18沁6mm
Product weight: 4.5g
PPS indicator light: Blue light, always on when powered on; Flashing after positioning
TX indicator light: Power on and send TTL data flashing
Features:
The RC M10 Series GPS Module is a cost-effective gadget that spotlights enhanced positioning speed and numerous satellie tracking.
Equipped with a swift cold start time of 26 seconds and a hot start time of 1 second, it assures efficient operation.

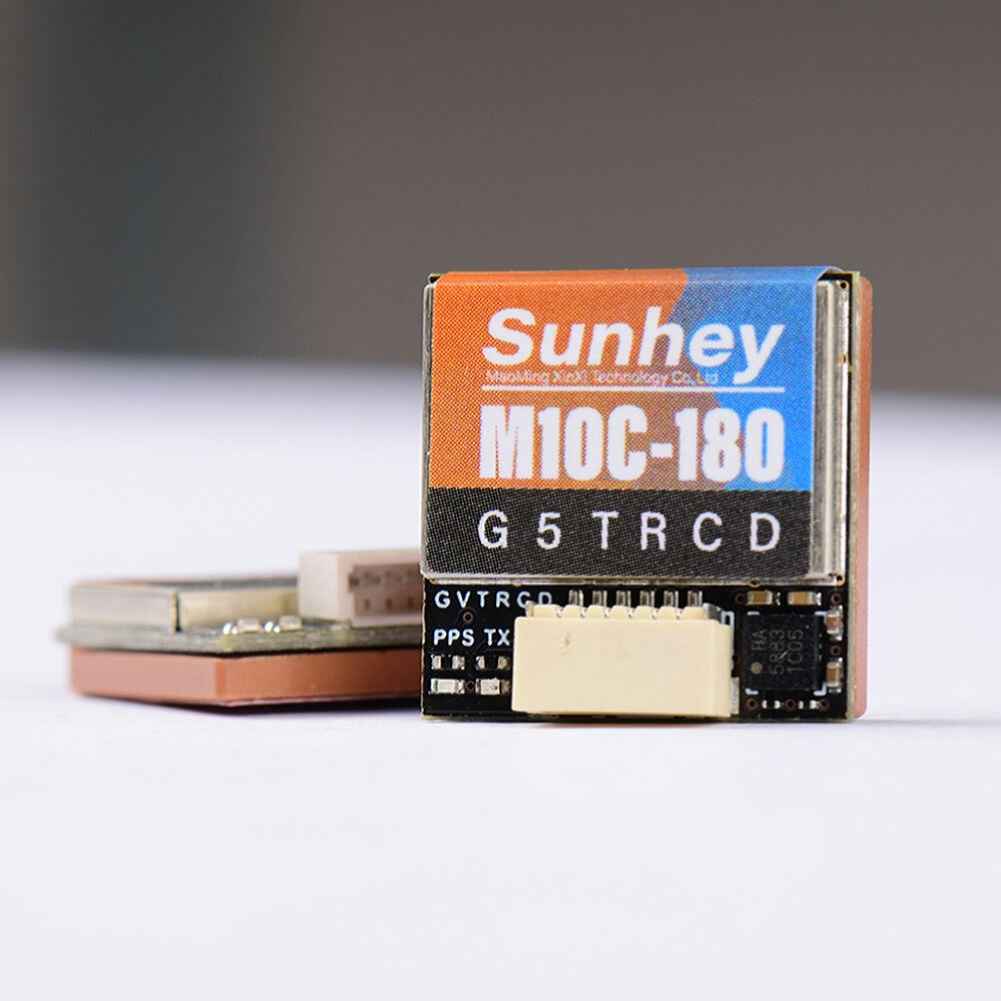

The M10C-180 GPS version comes with an integrated electronic compass for accurate direction discernment.

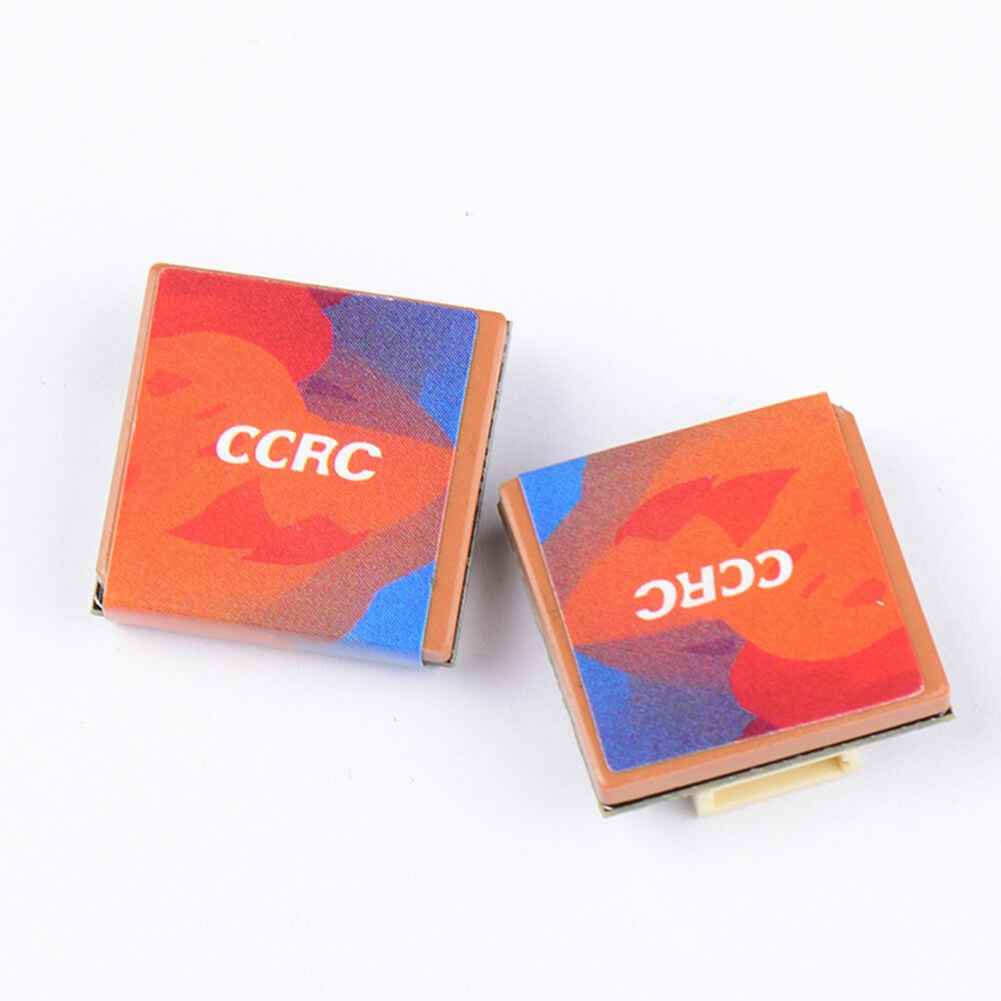

The high-efficiency ceramic antenna ensures effective signal reception and reliable performance.
Its mini size and light weight make it perfect for even the smallest aircraft, ensuring it fits perfectly without causing any inconvenience.
Package Included:
1 x GPS Module
