TEOSAW APEX X5/X6/X7 Frame Kit for 5-7 Inch Drones, Compatible with DJI O3 Air Unit, VISTA, Analog VTX, 225mm-315mm Wheelbase

Description

TEOSAW APEX X5 X6 X7 225mm 275mm 315mm Wheelbase 5 6 7 Inch Frame Kit Compatible with DJI O3 Air Unit VISTA Air Unit Analog VTX PFV Racing Drones

The TEOSAW APEX X5/X6/X7 Frame Kit is designed for FPV racing drones, offering compatibility with DJI O3 Air Unit, VISTA, and Analog VTX. This versatile frame kit supports 5-inch, 6-inch, and 7-inch propellers, with wheelbases ranging from 225mm to 315mm. The frame features an X-type split structure with robust arm thickness of 5.5mm, ensuring durability and stability during flight. Please note, this is an empty frame kit and does not include FC, ESC, motor, propeller, VTX, camera, or battery. It requires assembly by the buyer, providing a customizable experience for drone enthusiasts.

Notice:
1. It is Empty Frame Kit, not include FC,ESC, Motor, Propeller, VTX, Camera, Battery, etc.
2. It Comes unassembled. Need build by buyers.
Specifications:
Brand: TEOSAWModel: APEX X5/X6/X7
Item Name: 5 Inch/6 Inch/7 Inch Frame Kit

Model:

APEX X5

APEX X6

APEX X7

Wheelbase:

225mm

275mm

315mm

Appearance Size:

Approx.165mm x 213mm x 35mm

Approx.189mm x 253mm x 35mm

Approx.212mm x 286mm x 35mm

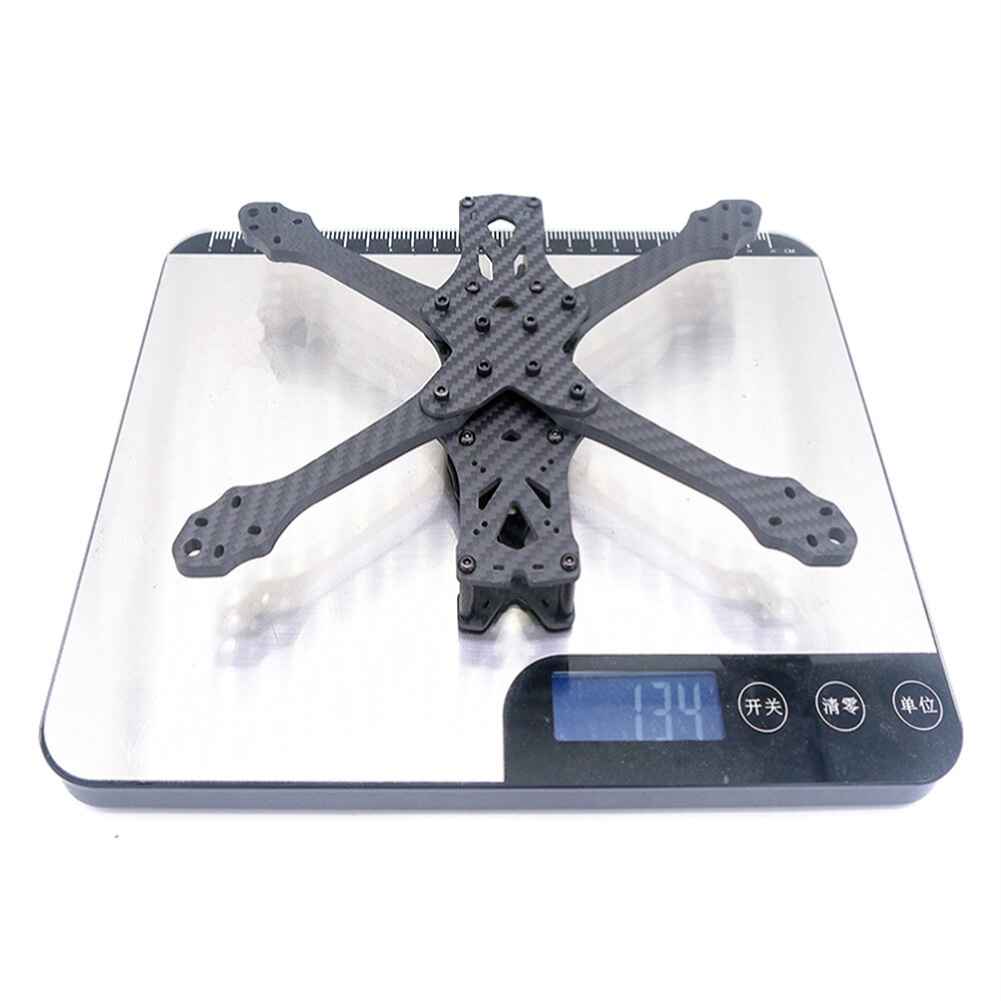

Weight:

Approx.134g

Approx.143g

Approx.151g

Structure:

X-type split

Thickness:

Arm 5.5mm, bottom plate 2.5mm, splint 2.5mm, upper plate 2.0mm, side plate 2.0mm

Applicable Propeller Size:

5-5.1 Inch

6 Inch

7 Inch

FC Mounting Hole:

20*20mm侈M3佩佾30.5*30.5mm侈M3佩

VTX Mounting Hole:

20*20mm侈M2佩佾25.5*25.5mm侈M2佩

Camera Installation Width:

20mm/19mm

Internal Height:

Approx.20-28mm

Motor Mounting Hole:
