iFlight Borg 5S Flight Controller & 60R ESC Stack with ELRS 2.4GHz Receiver, 60A, 3-8S for FPV Racing Drones

Description

20*20mm iFlight Borg 5S Flight Controller 5V 12V BEC with 60A 60R ESC 3-8S Stack Built-in ELRS 2.4GHz Receiver for FPV Racing Drone

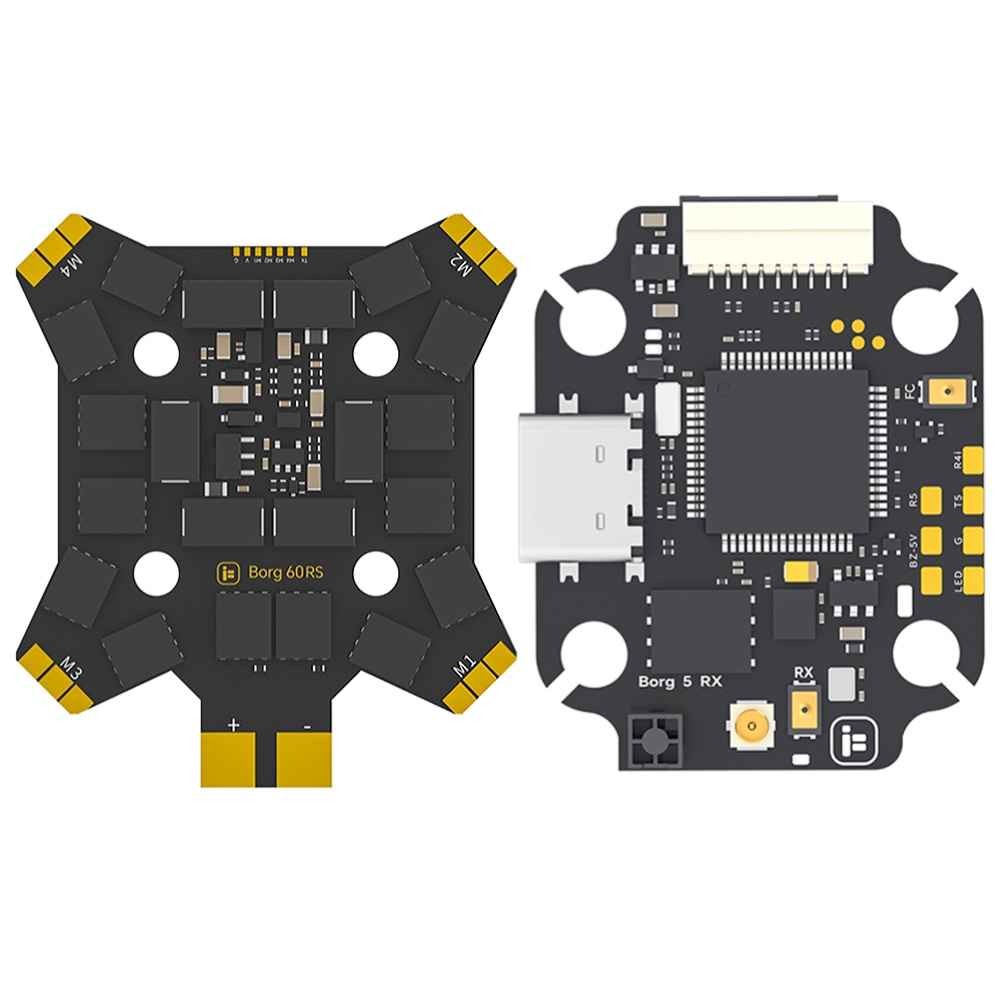

The iFlight Borg 5S RX Flight Controller and 60R ESC stack is engineered for FPV racing drones, delivering superior performance and control. The Borg 5S RX Flight Controller integrates a built-in ELRS 2.4GHz receiver, ensuring reliable connectivity, while supporting external antennas for added flexibility. It accommodates 4S to 8S battery inputs, providing versatility across various racing setups. The Borg 60R ESC supports 3-8S battery input and features a 6-layer 3OZ PCB for continuous 60A current handling, with a peak of 65A. It includes an anti-spark circuit and high polymer capacitors for optimal performance. This stack is designed to elevate your racing experience with cutting-edge technology and robust functionality.

Note: April 9, 2025: Dimensions changed from 34*28.5mm to 34*27mm.
Wiring SuggestionUART 1 for VTX HD / AnalogUART 2 for ESC TelemetUART 4 for Built-in ELRS receiver/SBUS inputUART 5 for GPS or other sensors that require a serial port
Description:
Introducing the All-New Borg Series 藩 Power Meets Precision!The Borg 5S RX FC Flight Controller is specifically designed for racing fpv, providing unmatched performance. This innovative controller features a built-in ELRS 2.4GHz receiver and an integrated antenna, ensuring a reliable connection and enhanced control during your flights. Additionally, the Borg 5S RX FC offers the flexibility to support external receivers, allowing you to customize your setup to meet your individual racing needs. Elevate your racing experience with the cutting-edge technology of the Borg Series!
Features:
Borg 5S RX Flight Controller:
– Built-in ELRS 2.4GHz Receiver, while also being compatible with external antennas for enhanced flexibility.- Supports 4S to 8S battery inputs, offering versatility for various racing setups.- Integrated 12V BEC provides stable power for your VTX system and allows remote control to switch it on and off.- FPC cables ensure secure connections with ESCs, while SH1.0 connectors enhance reliability across all other interfaces.
Borg 60R ESC:
– Supports 3-8S Battery Input for versatile power options.
– 6-Layer 3OZ PCB allows for continuous current handling of 60A, with a peak current of 65A.
– Integrated Anti-Spark Circuit protects your equipment from voltage spikes.
– Built-in High Polymer Capacitors eliminate the need for external capacitors in racing models.
– FPC Ribbon Cable Connection ensures a more reliable link between the flight controller and ESC.
Specification:
Brand: iFlight
Model: Borg 5S RX Flight Controller/Borg 60R ESC

Specification

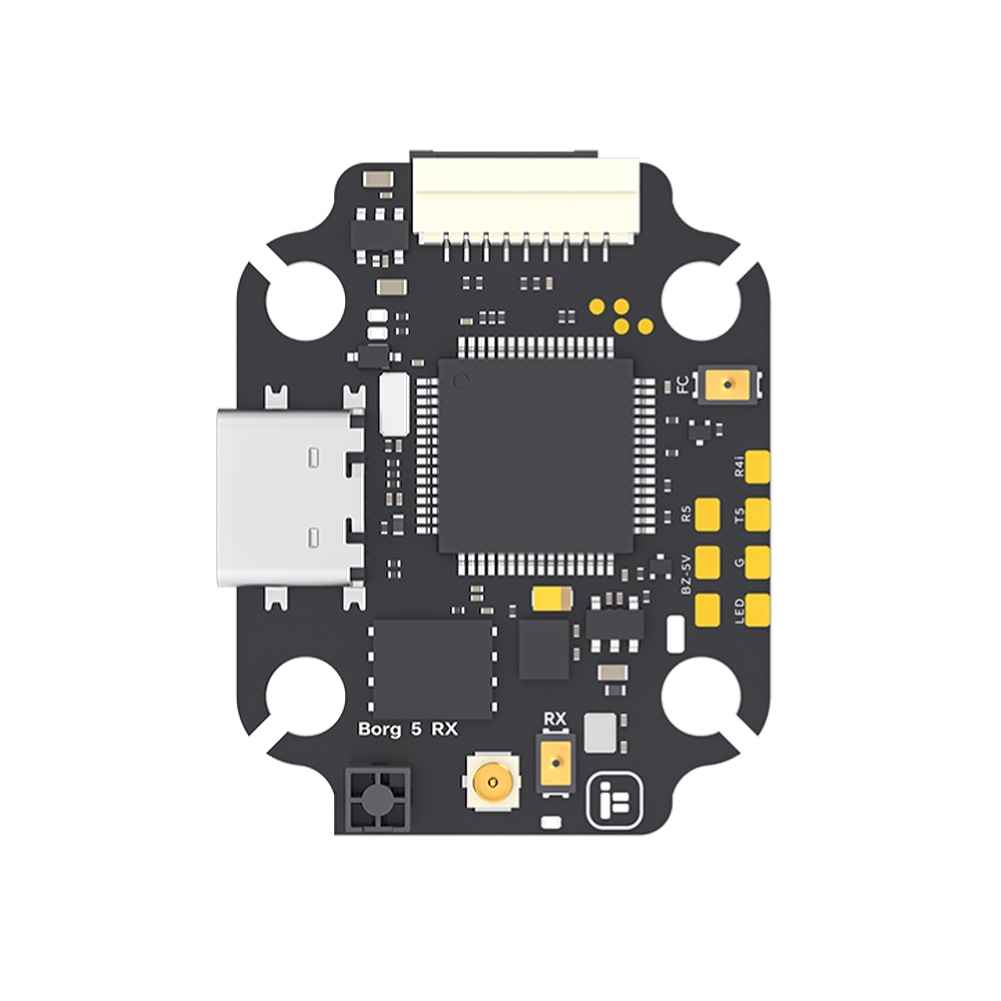

Borg 5S RX Flight Controller

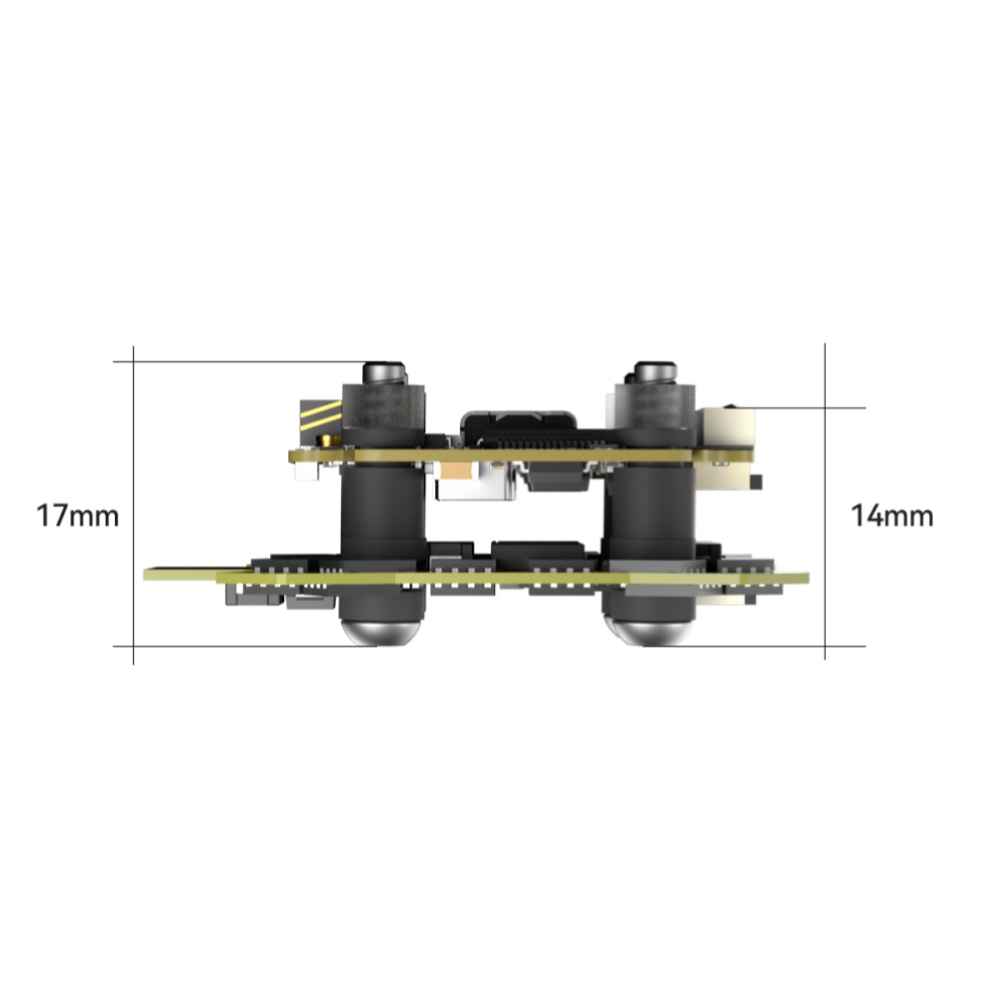

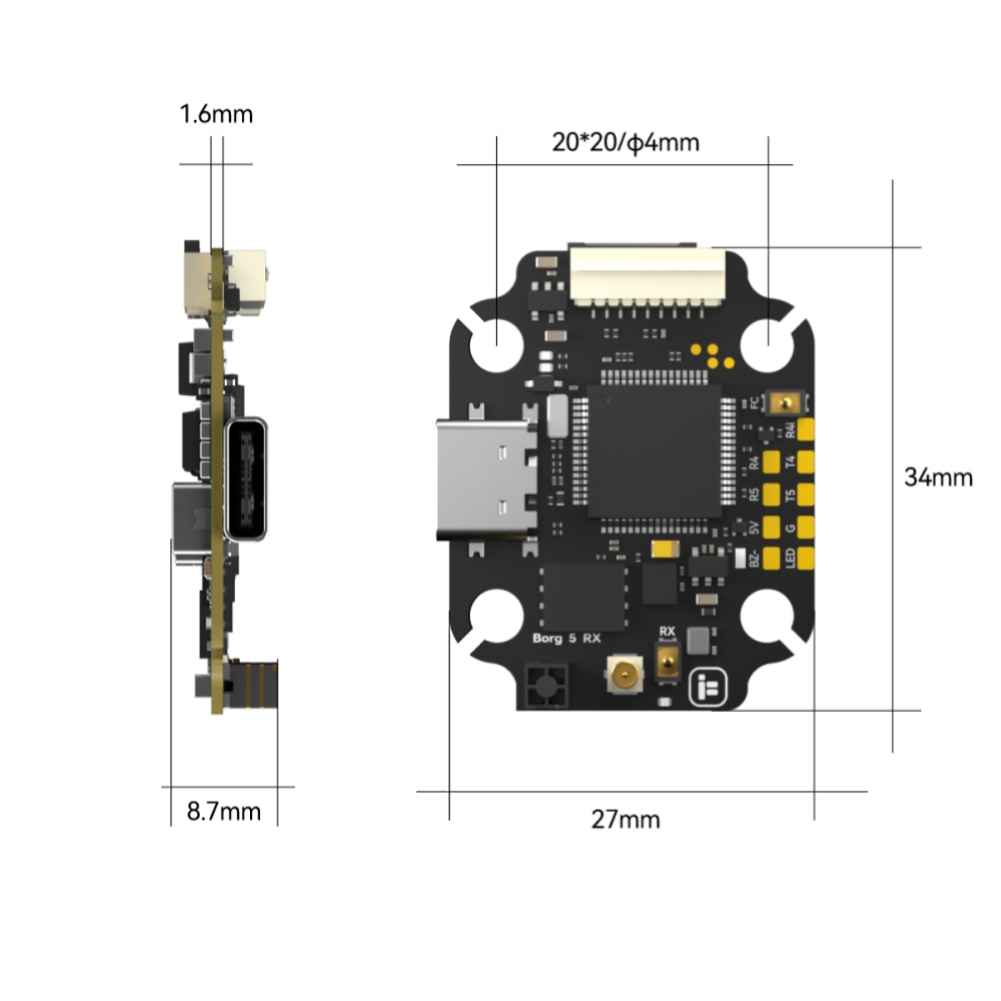

Input voltage: 4-8S; Support LIHV batteryMCU: AT32F435RGT7Gyro: ICM42688Barometer: N/AOSD Chip: AT7456EFlash: 16MB (Blackbox flash)UARTS: 4Motor outputs: 4I2C serial: Not supportedVTX protocol: support DJI MSP/Smartaudio/IRCTramp/HDZeroLED controller: YesBeeper pad: YesFirmware target: IFLIGHT_BLITZ_ATF435(Betaflight)Mount pattern: 20*20嫉4Dimensions: 34*27mm呼1Weight: 6.8g呼1BEC: 5V 2.5A, 12V 2A (12V with VTX switch)

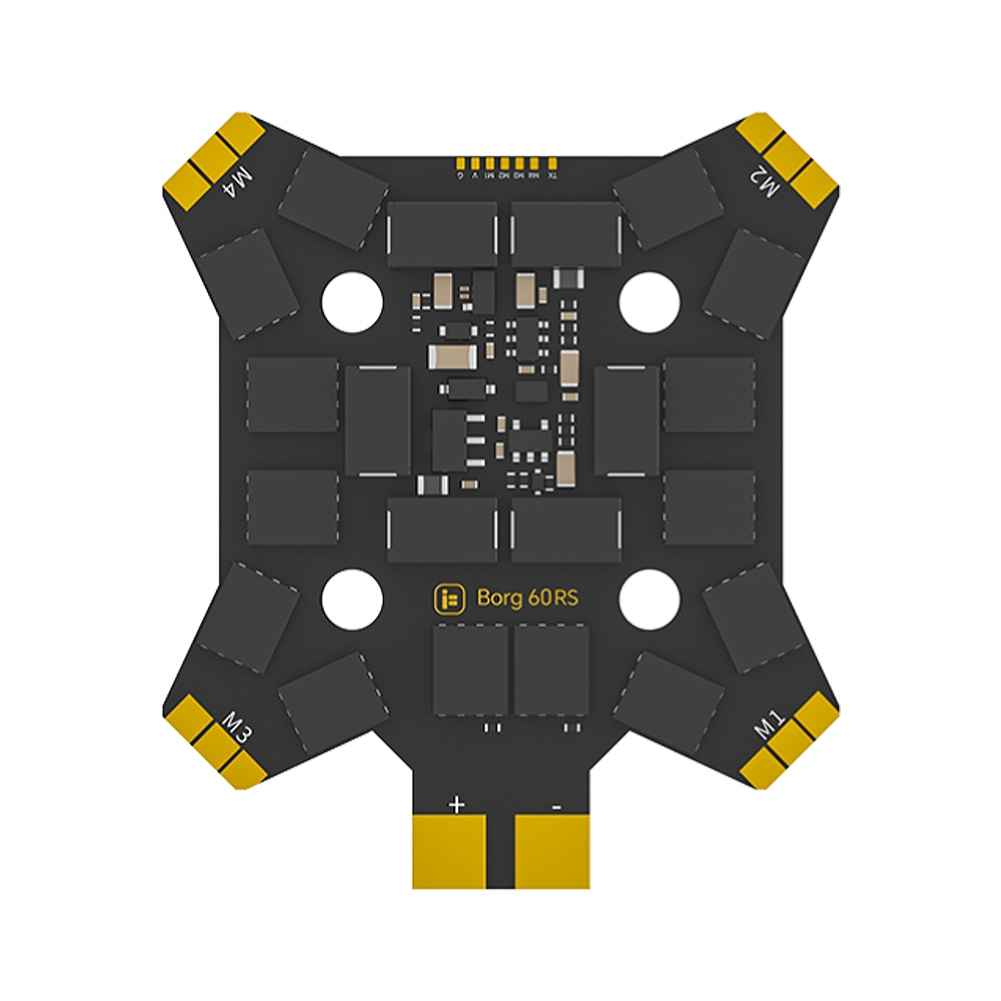

Borg 60R ESC

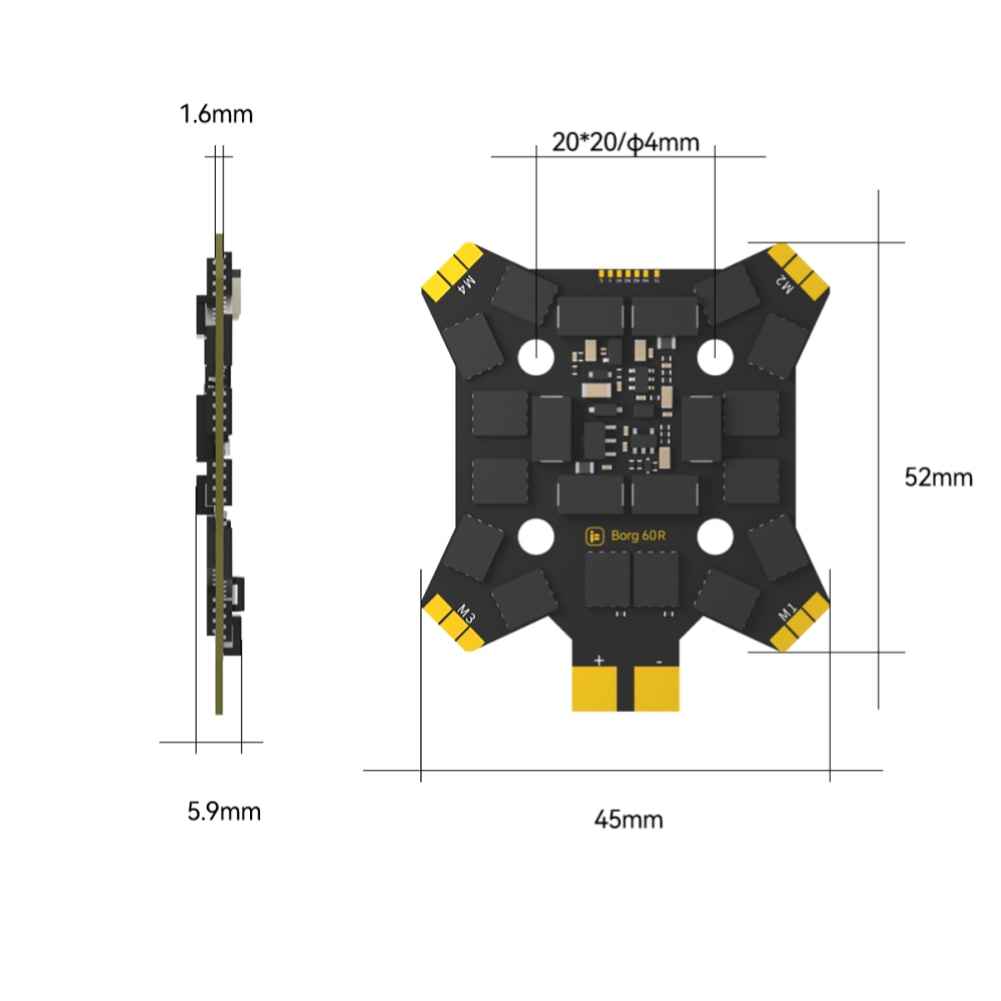

Product Name: Borg 60R ESCInput Voltage: 3-8S; Support LIHV batteryMax. Continuous Current: 60AMax. Burst Current: 65A (10s)MCU: STM32G071NDriver: FD6288Firmware: BL32 (32bit ESC)Target: IFLIGHT_BLITZ_G3 32.9Current Sensor: N/ABEC: N/ATelemetry: SupportedBidirectional DSHOT: SupportedDimensions: 45*52mm呼1Mounting Holes: 20 x20 mm/?4mmWeight: 14.5g呼1Protocol: Supports DShot150/300/600宜MultiShot宜OneShot etc.

Package Included:
1 x Borg 60R ESC
1 x Borg 5S RX Flight Controller
1 x Cable set
5 x Silicon grommets
