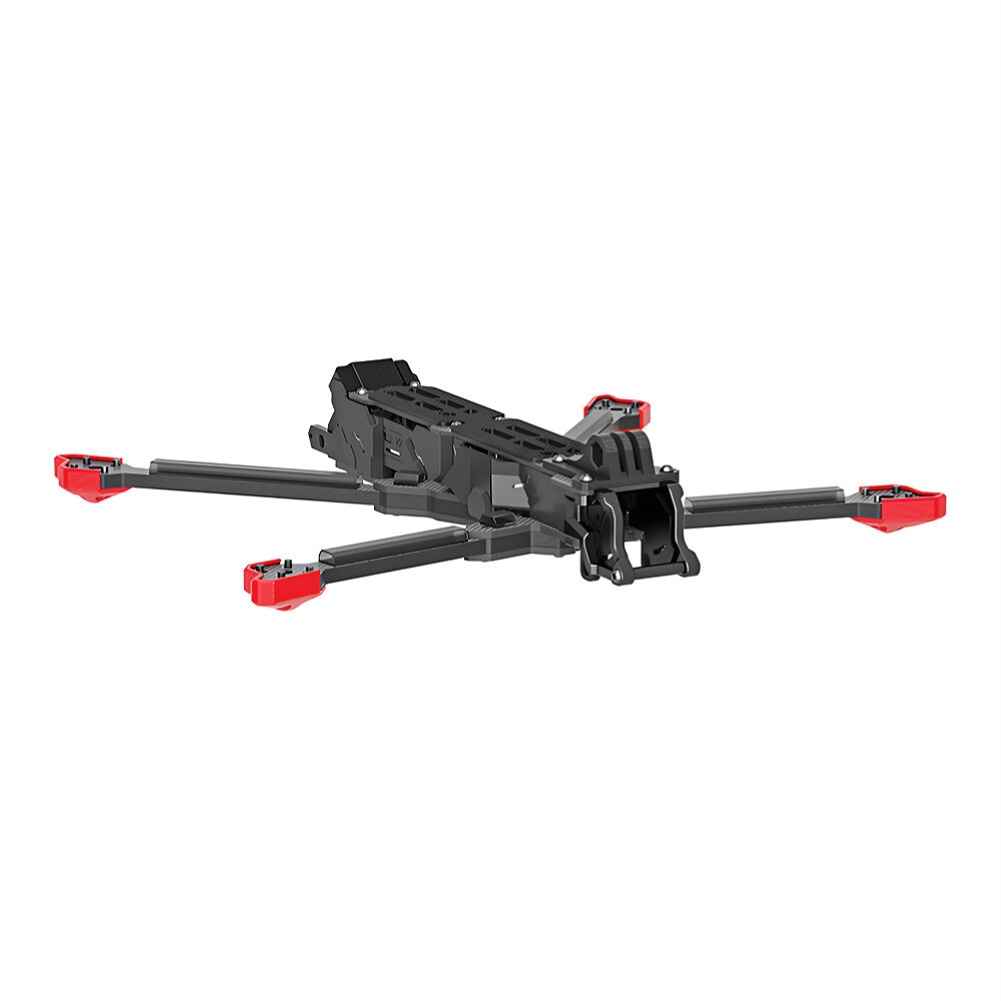

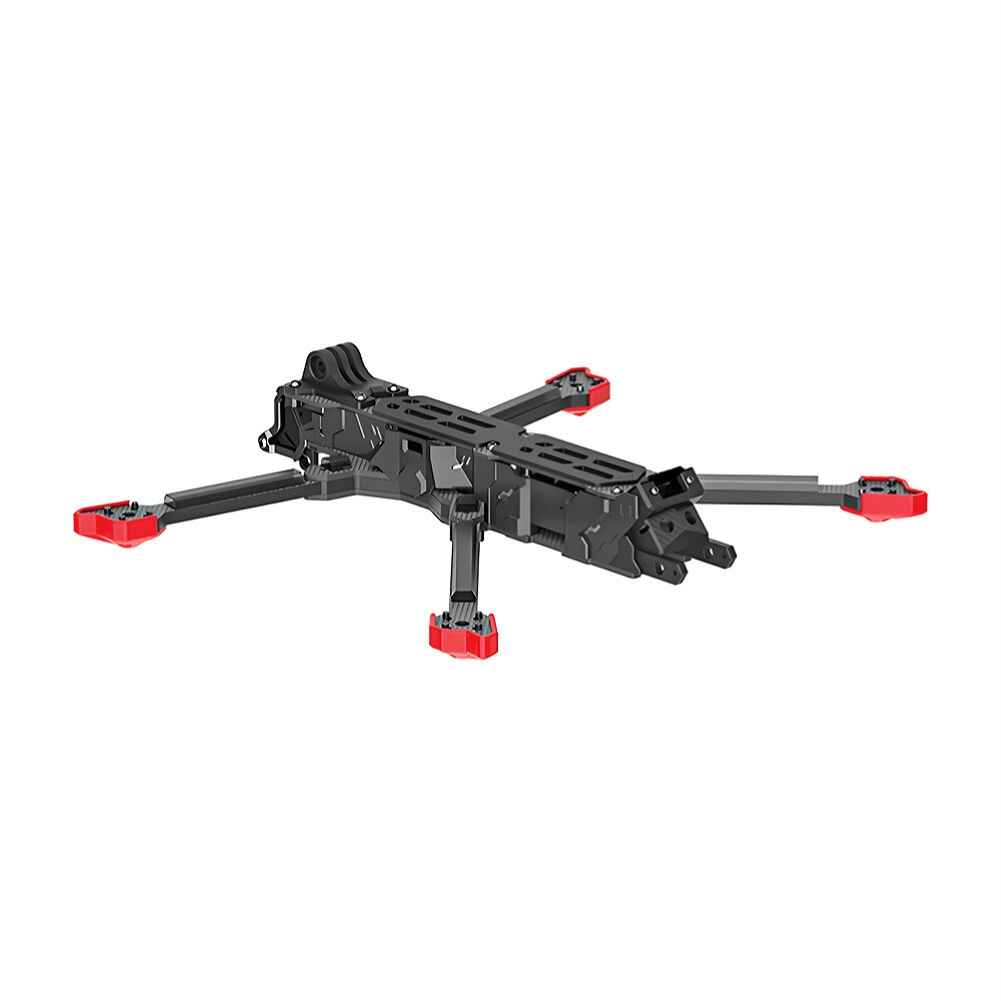

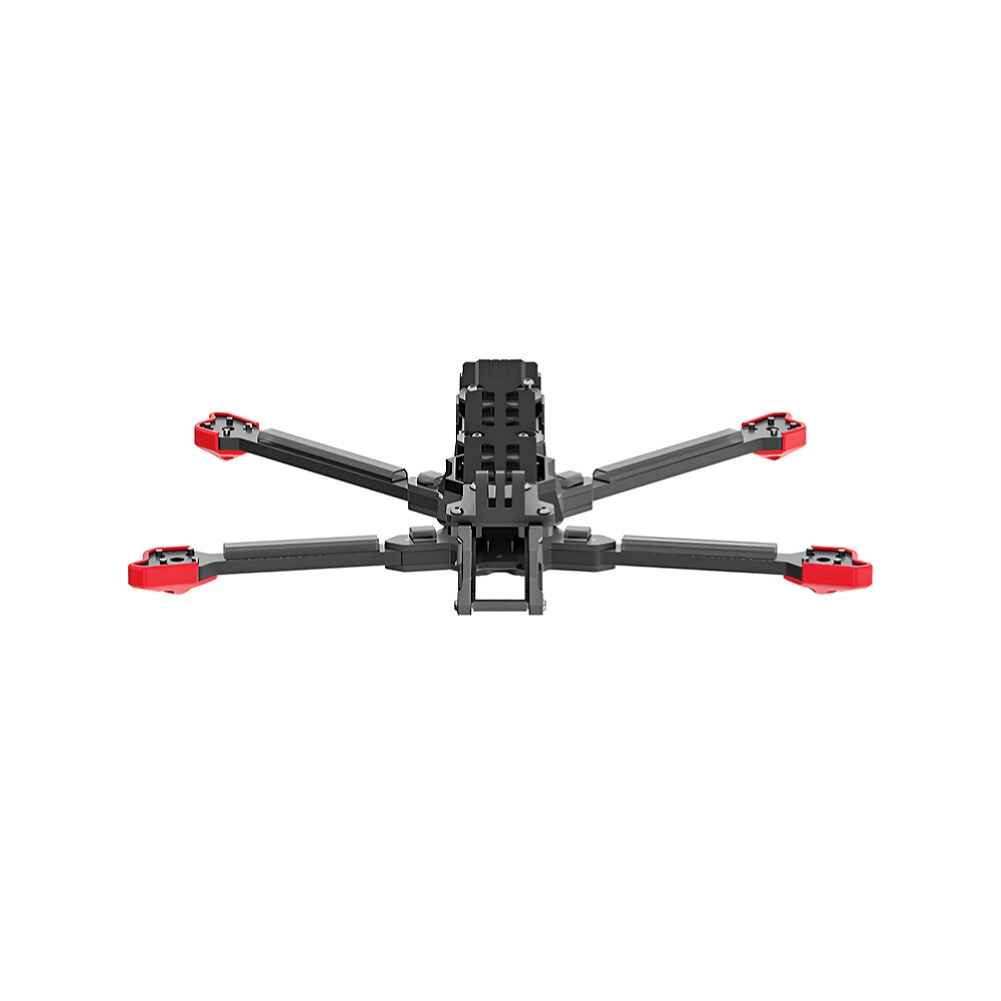

iFlight Chimera7 Pro V2 327mm 6S 7.5 Inch Frame Kit Compatible with DJI O4 Pro Air Unit for Freestyle FPV Racing Drone
The iFlight Chimera7 Pro V2 Frame Kit is expertly designed for FPV racing enthusiasts, offering compatibility with the DJI O4 Pro Air Unit. Built with super-stiff carbon material, it ensures minimal resonance and optimal stability, perfect for cinematic flights. The frame features a 327mm wheelbase and supports 7.5-inch propellers, making it ideal for smooth and versatile flying experiences. It includes new silicone side panels and a camera mount specifically for the DJI O4 Pro Air Unit. This unassembled kit requires buyer assembly, providing a customizable experience for drone enthusiasts.
Note:
– Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of 呼0.2mm. The size of the hole may have a standard manufacturing tolerance of 呼0.1mm.
– Comes unassembled. Need build by buyers.
Description:
iFlight’s upgraded Chimera 7 Frame Kit, now compatible with the DJI O4 Pro Air Unit, delivers exceptional stability and longer flight times ideal for cinematic shooting. Built from super-stiff carbon to minimize resonance, it pairs best with 2809 motors for optimal 7.5′ prop performance. Expect smooth and versatile flights, whether skimming over water or soaring through the Swiss Alps.
Features:
– DJI O3 to O4 was upgraded for the DJI O4 Pro Air Unit
– New Camera Mount for DJI O4 Pro Air Unit
– New Silicone side panels
– New DJI O4 Pro MIPI Video Cable
Specificaitons:
Brand: iFlight
Model: Chimera7 Pro V2Product Name: 7.5 Inch O4 Pro Freestyle Frame Kit
Wheelbase: 327mm
Frame Dimension: L270*W199*H34 mm
Arm Thickness: 6mm
Bottom Plate Thickness: 3mm
Top Plate Thickness: 2mm
Upper Plate Thickness: 3mm
Camera Plate Thickness: 3mm
Maximum Flight Stack Height: 21mm
Maximum VTX Height: 30mm
Flight Stack Mounting: 30*30/?3mm
Motor Mounting: 16x16mm / 19*19mm ?3mm
VTX Mounting: 30.5*30.5 嫉3mm / 25*25 嫉1.6mm / 20*20 嫉2mm
Weight: 355g呼5g
Compatibility: DJI O4 Pro Air Unit/DJI O4 Air Unit/Vista HD/BLITZ Whoop 1.6W VTX
Recommanded parts:(Not Included):FC&ESC: BLITZ F722 FC E55S 4-IN-1 55A ESC Stack
VTX&Camera: DJI O4 Pro Air UnitMotor: XING2 2809 1250KV motorsPropeller: HQ 7.5X3X3 propellersBattery: iFlight Fullsend 22.2V 8000mAh 6S Li-ion Battery XT60 Plug
Package Included:
1 x Chimera7 Pro V2 O4 Frame Kit
1 x 220mm O4 MIPI Digital Video Cable
2 x O4 IPEX to RP-SMA Antenna Pigtails
1 x Dual Antenna TPU
1 x GPro TPU Base Mount
1 x Screw Bag
4 x TPU Arm Guard
2 x Anti-Slip Battery Pad
2 x Battery Strap
