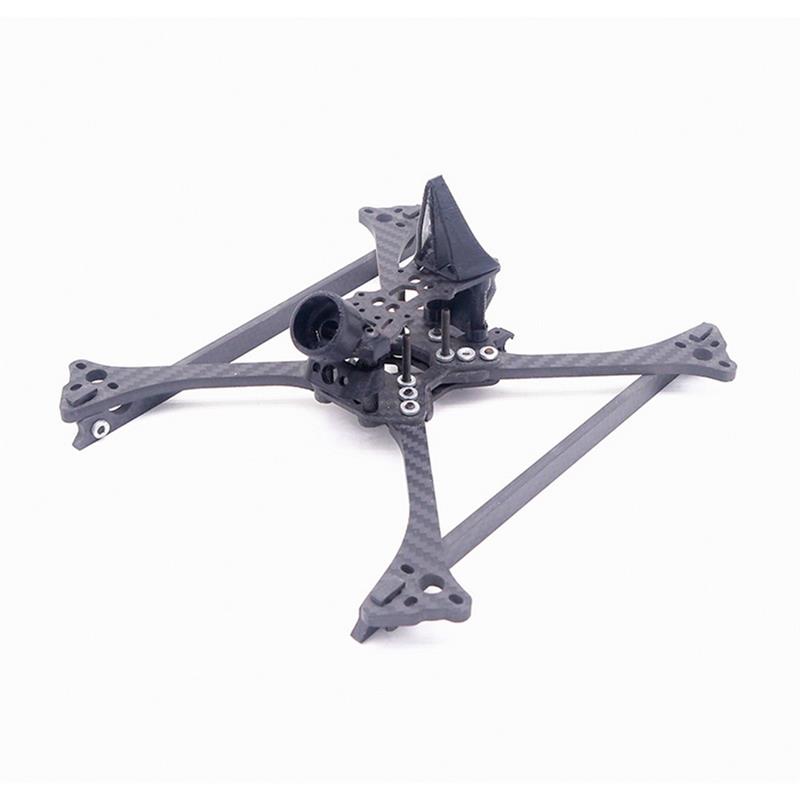

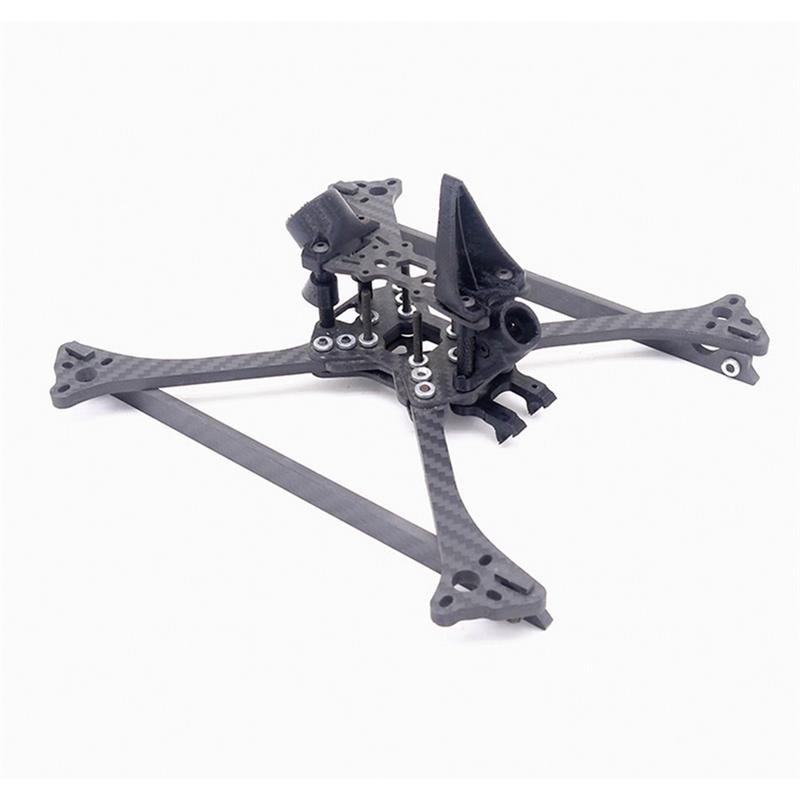

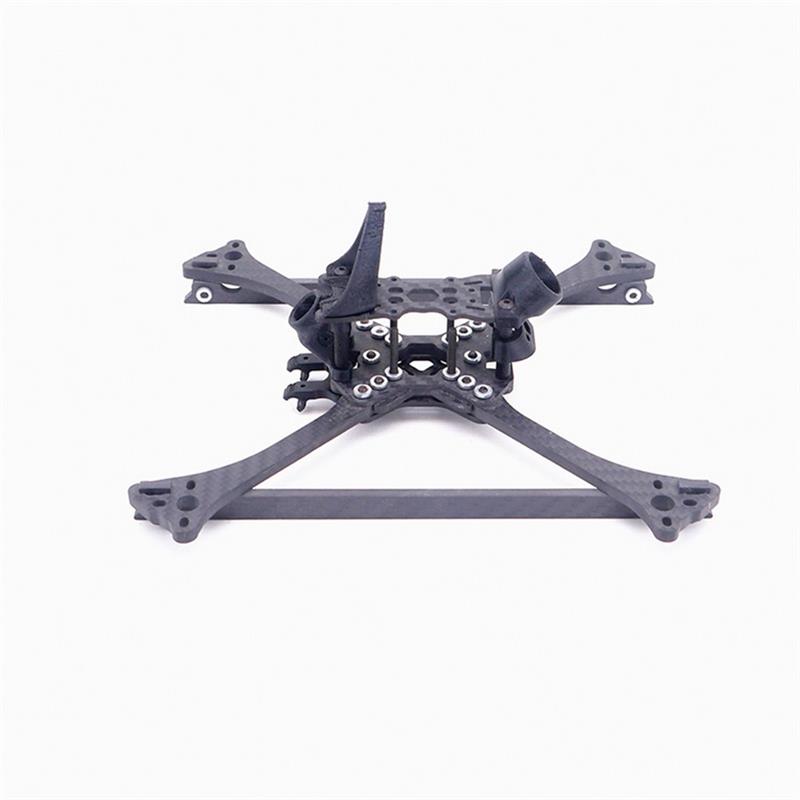

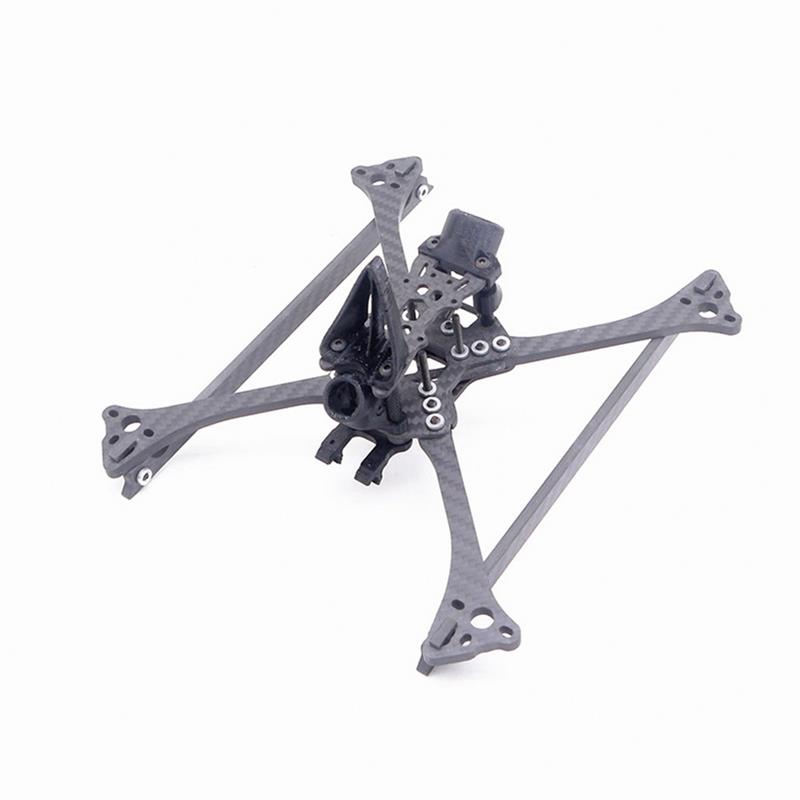

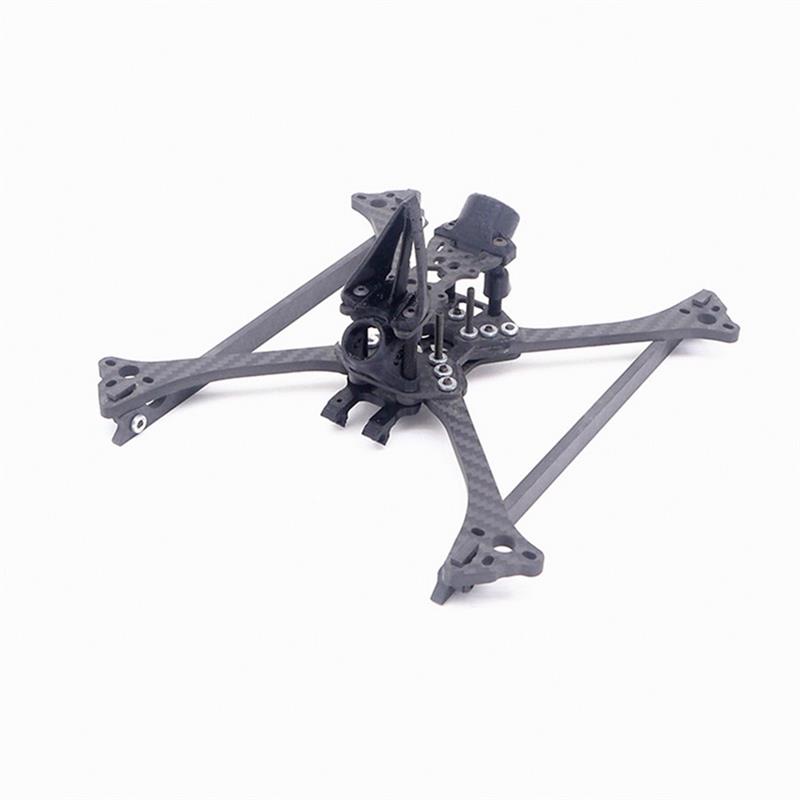

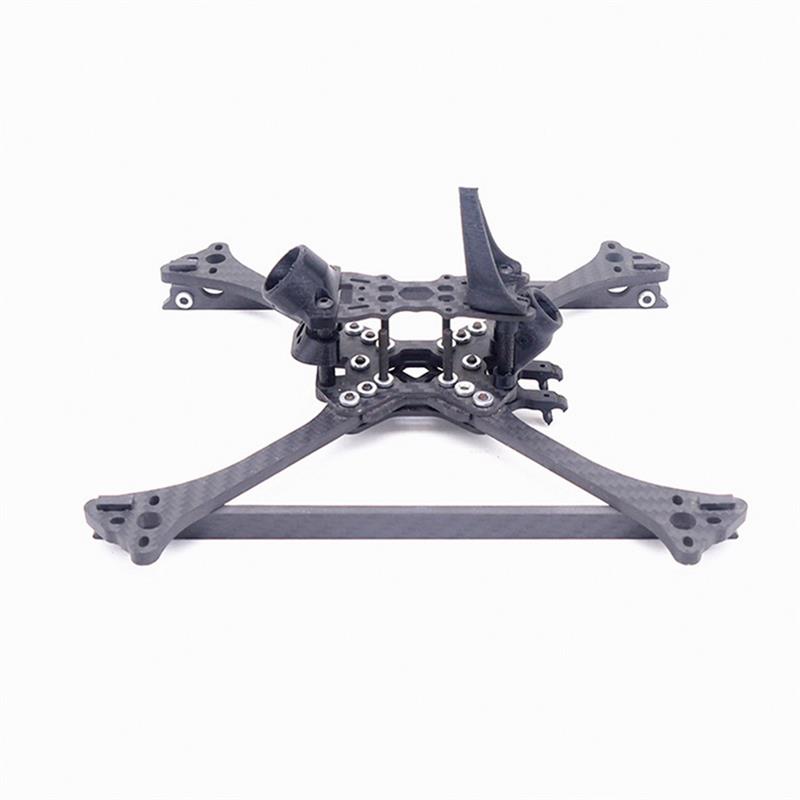

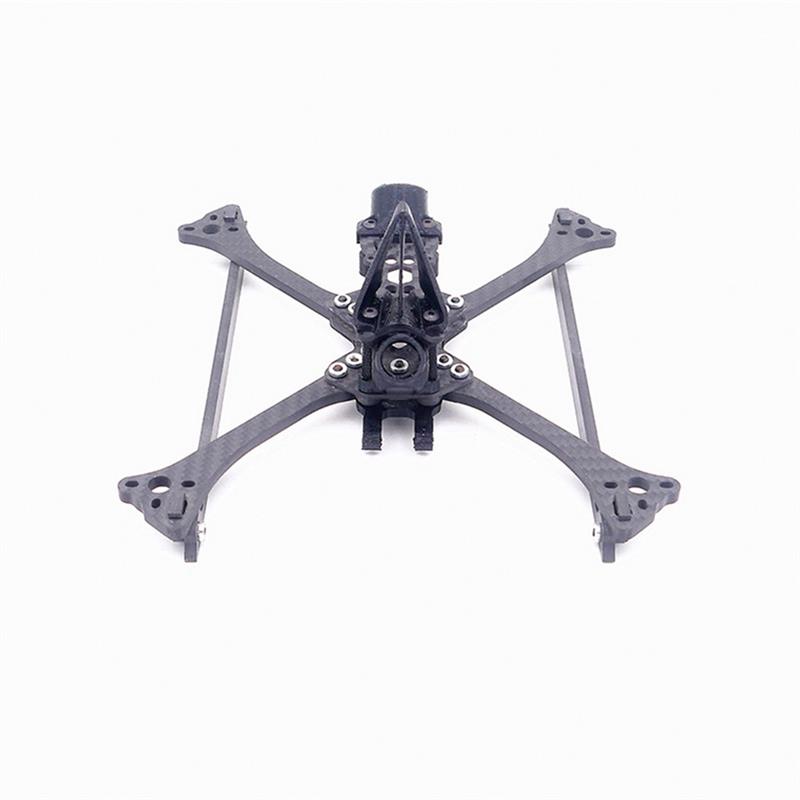

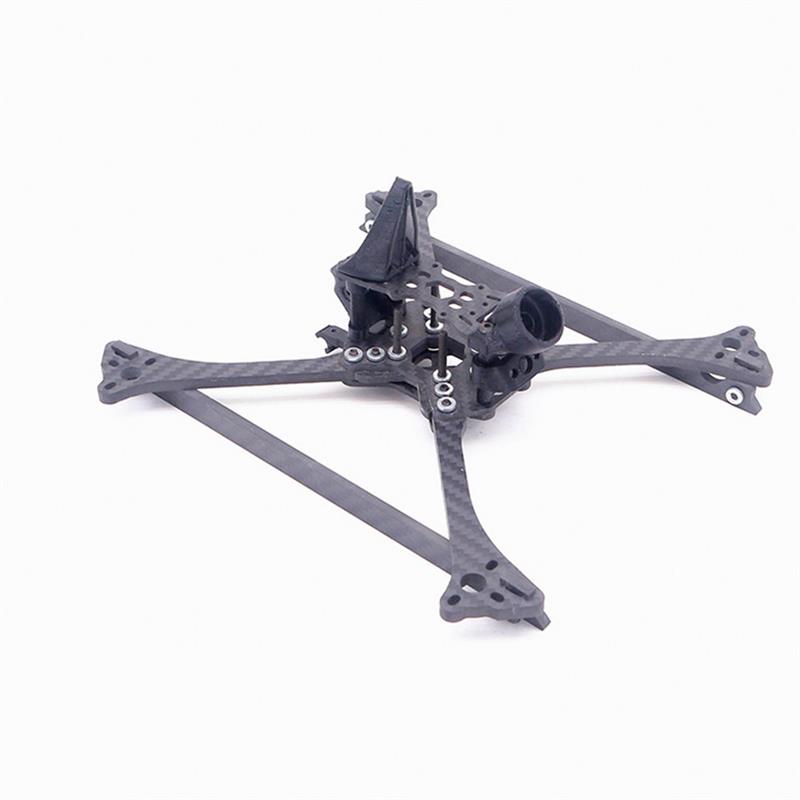

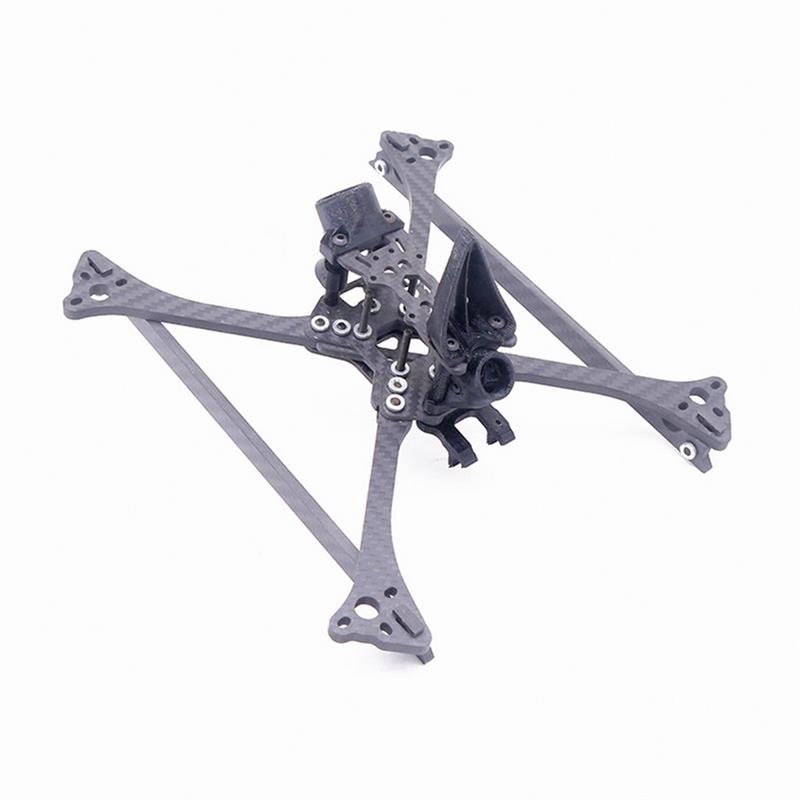

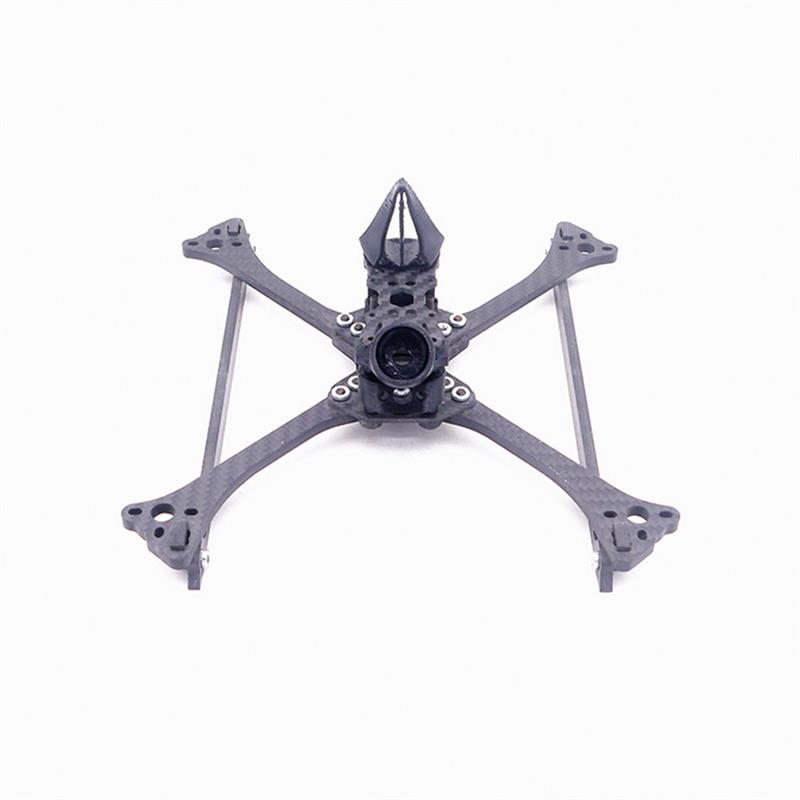

TEOSAW 533 210mm Wheelbase 5mm Arm Thickness Carbon Fiber 5 Inch Frame Kit for FPV Racing Drones
The TEOSAW 533 Carbon Fiber Frame Kit is designed for FPV racing drones, featuring a 210mm wheelbase and 5mm thick arms. This lightweight yet durable frame offers a wobble-free midsection and quick arm replacement with its unique quick-release structure. It accommodates NANO (14×14) size cameras, with a 19mm 3D printed camera mount for added flexibility. The frame supports versatile mounting options for both 20x20mm and 30.5×30.5mm flight controllers. Its unique side panels allow pilots to modify the flight feel without adding weight. With a structure adaptable to various components like snail, nebula, aurora, and vista sky terminals, this frame is perfect for customizing your FPV racing experience.
Notice: Comes unassembled. Need build by buyers.
Specifications:
Brand: TEOSAW
Model: 533
Wheelbase: 210mm

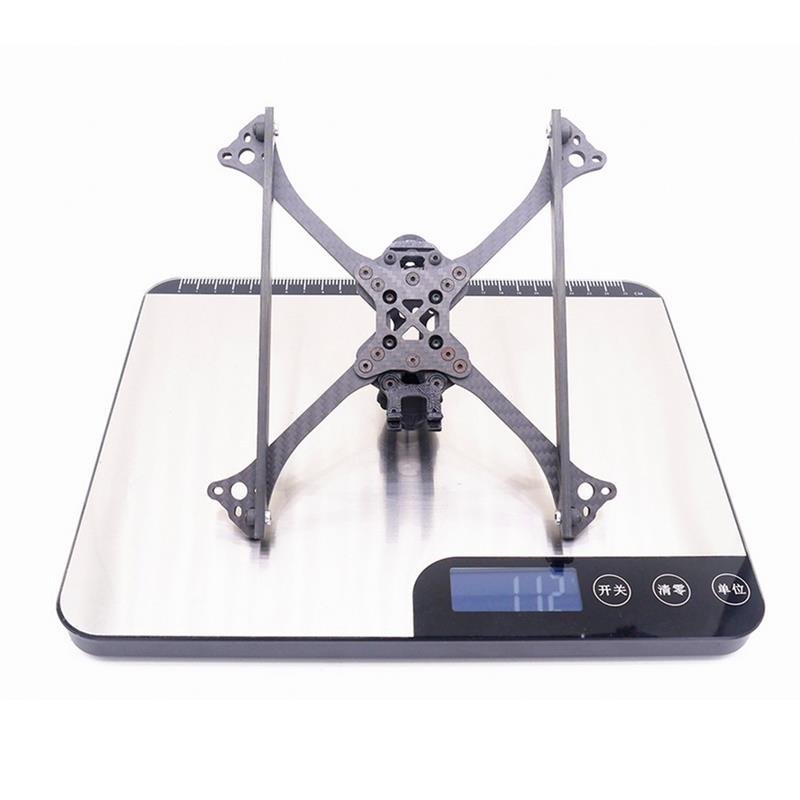

Weight: 110g
Arms Plate Thickness: 5.0mm,
Crossbar Plate Thickness: 4.0mm
Clamping Plate Thickness: 3.0mm
Other Plate Thickness: 2.0mm
Recommend Propeller Size: 5.0 inch, Max 5.1 inch
Flight Controller Hole Distance: 20*20mmㄗM3ㄘ,30.5*30.5mm(M3)
Camera Installation Width: 14mm (Camera Angle Approx. 50 Degrees) ; new add a 19mm 3D Print camera mount
Motor Installation Hole Position: 16*16mmㄗM3ㄘㄛ19*19mmㄗM3ㄘ
Structure: X-type Split
Aluminum Column Height: M3*25mm/M3*30mm(two kinds of aluminum columns will be matched, you only need to choose the height you need for installation)
Adapt to snail, nebula, aurora, vista sky terminal, etc., 915 antenna
Features:
Lightweight yet Durable: This frame maintains a light configuration while providing 5mm arms and a sturdy, wobble-free midsection.
Flexible Camera Accommodation: The 533 frame caters to NANO (14×14) size cameras, making it adaptable for future needs and reducing weight.
Versatile Mounting Options: The frame supports both 20x20mm and 30.5×30.5mm flight tower installation, offering flexibility in setup.
Unique Side Panels: 533’s unique side panels allow pilots to modify the flight feel without increasing weight and complexity.
Quick Arm Replacement: The quick-release structure of the arm slots with a full carbon fiber middle section makes arm replacement as easy as unlocking a single screw.
Recommend Parts: ( NOT Included)
FC & ESC: 20x20mm HAKRC F7 2-6S FC & 35A BL_S 4in1 ESC Stack
Brushless Motor: iFlight XING-E Pro 2207 1800KV 3-6S /2450KV 2750KV 2-4S
Propeller: HQProp Ethix S3 Watermelon 5031 5×3.1 5 Inch 3-Blade Propeller
VTX: 20X20mm EWRF VTX 5.8Ghz 40CH 25-650mW Adjustable FPV Transmitter
FPV Camera: Caddx Ant 1.8mm 1/3 CMOS 1200TVL 16:9/4:3 Global WDR
Lipo Battery: ZOP Power 14.8V 850mAh 100C 4S LiPo Battery
Gaoneng GNB 22.8V 1100mAh 60C 6S LiPo Battery
Package Included:
1 x Empty Frame Kit
