TEOSAW Drake35 155mm Wheelbase Carbon Fiber 3.5 Inch Frame Kit Support Vista Air Unit for DIY RC Drone FPV Racing
The TEOSAW Drake35 Frame Kit is designed for DIY RC drone enthusiasts seeking an optimal blend of freestyle flying and HD filming. With a 155mm wheelbase, this carbon fiber frame offers impressive durability and stability. The top and side plates are 1.5mm thick, while the bottom plate is 3.0mm, ensuring a robust build. The frame’s internal height of 25mm provides ample space for all necessary components. It supports a variety of configurations, including a 1404 3800KV brushless motor and Caddx Polar Vista Kit. The extended camera position ensures a propeller-free view, allowing for stunning aerial shots. Note: The kit comes unassembled and requires building.
Notice: Comes unassembled. Need build by buyers.
Specifications:
Brand: TEOSAW
Model: Drake35
Item Name: 155mm Wheelbase Carbon Fiber 3.5 Inch Frame Kit
Wheelbase: 155mm
Top Plate Thickness: 1.5mm
Side Plate Thickness: 1.5mm
Bottom Plate Thickness: 3.0mm
Internal Height: 25mm

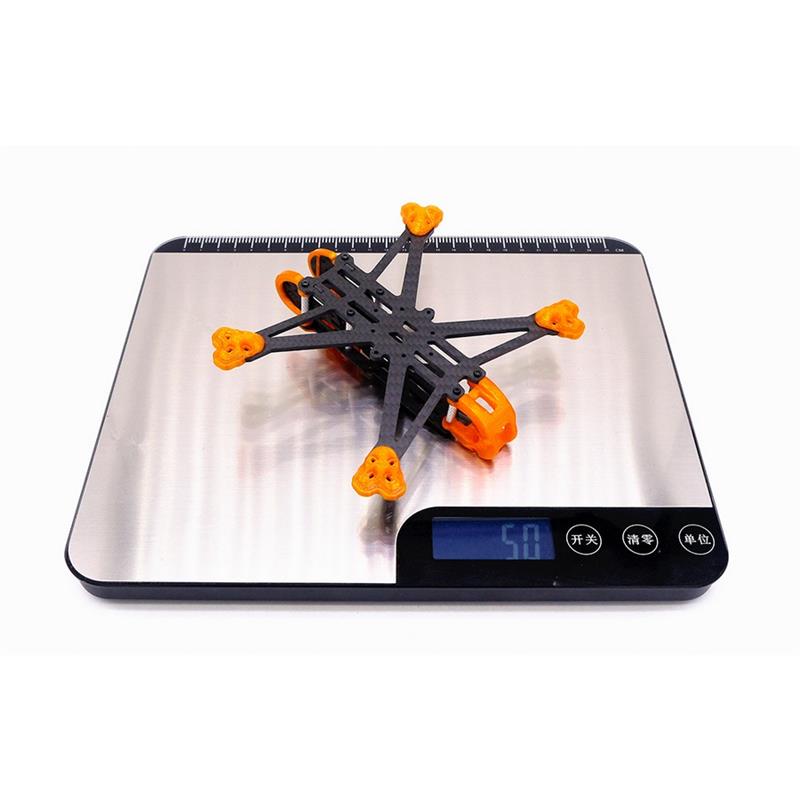

Weight: Around 51g
Flight Controller Hole Distance: 20*20mm(M2)ㄛ25.5*25.5mmㄗM2)
VTX Hole Distance: 20*20mm(M2)
Camera Installation Width: 19mm
Motor Installation Hole Position: 9*9mm(M2),12*12mm(M2)
Recommended configuration: ( NOT Included)
Brushless Motor: 1404 3800KV brushless motor
FC&ESC: F4 AIO 20A Flight Controller (M2,25*20mmㄘ
Propeller: HQProp T3.5×2.5 3525 3.5 Inch Propeller
Camera & VTX: Caddx Polar Vista Kit (VTX)
FPV camera angle: 0～-60～
Receiver: ELRS 2.4GHz Receiver/TBS Receiver
Lipo Battery: 750mAh 4S 95C
Power connection: XT30, black and red wires
Reference flight time: 11~13 minutes for 4S 750mAh battery to fly smoothly or 4~6 minutes for FPV flying (all based on actual situation)
Features:
Combination of Freestyle Flying and HD Filming: Drake35 Frame Kit perfectly blends the abilities of freestyle flying and high-definition filming.
Extended Camera Position: For a complete propeller-free view, we’ve thoughtfully extended and protected the camera position.
Made of Carbon Fiber: To maximize the quad’s stability and impressive durability, the frame is made of carbon fiber.
Allows Stunning Tricks: The build quality and design of the frame allow pilots to execute some amazing freestyle tricks.
Ample Internal Space: With an internal height of about 25mm, the frame provides ample space for all necessary components.
Package Included:
1x Empty Frame Kit
1x set of TPU Parts
