Description
30.5×30.5mm Holybro KAKUTE H7 V1.3 Tekko32 F4 4in1 50A ESC Stack Flight Controller 5V 9V BEC / Atlatl HV V2 0.5/ 25/ 200/ 500/ 800mW VTX for RC Drone FPV Racing
The Holybro Kakute H7 V1.3 Tekko32 F4 4in1 50A ESC Stack is designed for FPV racing drones, offering a robust flight controller with a 32-bit STM32H743 processor running at 480 MHz. It features an MPU6000 IMU, BMP280 barometer, and AT7456E OSD, ensuring precise and reliable performance. With onboard Bluetooth, the system is compatible with SpeedyBee apps for iOS and Android, and it automatically manages connectivity when the controller is armed or disarmed. The Tekko32 F4 4in1 50A ESC supports various protocols including DShot and MultiShot, and it includes a 1000uf 35v capacitor for enhanced stability. The stack also offers ESC telemetry, PWM outputs, and compatibility with 4-6S batteries. The Atlatl HV V2 VTX provides adjustable power output up to 800mW, making this stack ideal for high-performance drone racing.
Specification:
Brand: Holybro
Model: KAKUTE H7 V1.3 Tekko32 F4 4in1 50A ESC Stack
Optional Version: NO VTX / With VTX
|
Kakute H7 V1.3
( Manual)
MCU: STM32H743 32-bit processor running at 480 MHz
IMU: MPU6000
Barometer: BMP280
OSD: AT7456E
Onboard Bluetooth chip: ESP32-C3
SpeedyBee IOS & Android App Compatible
Note: The Bluetooth onboard is set to automatically turn off when the flight controller is unlocked (arm) ,
and turn on automatically when the flight controller is locked (disarm).
6x UARTs (1,2,3,4,6,7; UART2 is used for Bluetooth telemetry)
9x PWM Outputs (8 Motor Output, 1 LED)
2x JST-SH1.0 8pin ESC port (4in1 ESCs, x8/Octocopter compatible)
1x JST-SH1.0 6pin VTX port (For HD System like Caddx Vista & Air Unit)
Battery input voltage: 7V to 42V
BEC 5V 2A Cont.
BEC 9V 3A Cont
USB Type-C
Mounting: 30.5 x 30.5mm/朴4mm hole with 朴3mm Grommets
Dimension: 35x35mm
Weight: 8g
Firmware:
BetaFlight: KakuteH7 (v4.2.11 and above)
INAV: KakuteH7 (4.0.0 & above) SD card support added in 4.1.0.
ArduPilot: KakuteH7 (4.2.0 & above)
|
Tekko32 F4 4in1 50A ESC
( Pin Cable)
Continuous Current: 50A x4
Burst Current: 60A x4
Supports 4-6S battery
Supports DShot 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc.
ESC telemetry Supported
Onboard analog current sensor
No output BEC
BLHeli_32 firmware
1000uf 35v capacitor included (highly recommended for 6s setup)
Amperage meter scale ratio: 120 (V1.9 Version)

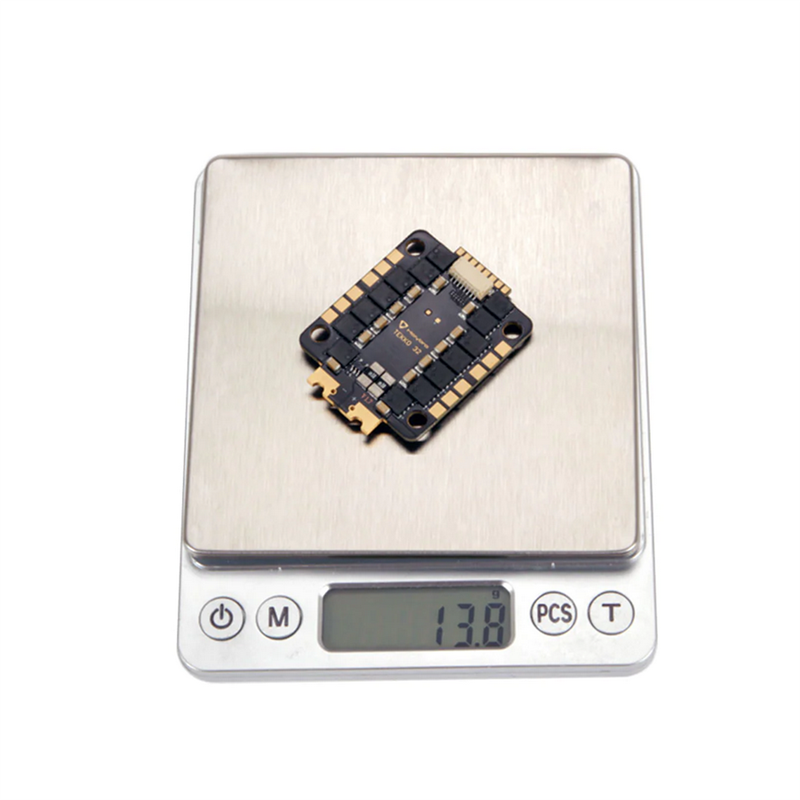

Dimensions: 48x37x6mm / Weight: 13.8g
Mounting holes: M4 30.5×30.5mm (M3 grommets included)
Features:
New and faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)
PWM Frequency: 16k to 96k
Separate drive & control circuit, this broadens the current capability of the drive circuit
while reducing the electrical interference to the control circuit.
|
NO VTX Version
without VTX Module
|
With VTX Version
( Manual)
Model: Atlatl HV V2 VTX
Output Power: 0.5 mW (pit mode), 25 mW, 200 mW, 500 mW, 800 mW
Audio: 6.5 MHz Mono
Protocolsmart audio2.0
Antenna Connector: MMCX
Input Voltage: 7 to 28 volts (2-6S LiPo) with absolute maximum 42 volts
Dimensions: 35x25x7mm (Includes USB height)
Mounting Holes: Standard 30.5mm square to center of holes
Weight: 9.3g
( VTX Table Link )
Package Included:
NO VTX Version
1x Kakute H7 v1.3 FC
1x Tekko32 F4 4in1 50A ESC
1x Electrolytic capacitor: 1000uF 35v
1x 8pin to 8pin 1mm pitch 65mm cable
1x 8pin to 8pin 1mm pitch 25mm cable
1x JST SH 6pin to JST GHR 8pin 80mm & 150mm cable
1x JST SH 6pin 100mm cable
With VTX Version
1x Kakute H7 v1.3 FC
1x Tekko32 F4 4in1 50A ESC
1x Atlatl HV V2 VTX
1x Electrolytic capacitor: 1000uF 35v
1x 8pin to 8pin 1mm pitch 65mm cable
1x 8pin to 8pin 1mm pitch 25mm cable
1x JST SH 6pin to JST GHR 8pin 80mm & 150mm cable
1x JST SH 6pin 100mm cable
1x 80mm SMA to MMCX Cable
1x JST GHR 4pin 150mm cable
