iFlight BLITZ Mini F7 Flight Controller & E55 4in1 ESC for Nazgul5 Evoque F5D/F5X RC Drone FPV Racing

Sale!

iFlight BLITZ Mini F7 Flight Controller & E55 4in1 ESC for Nazgul5 Evoque F5D/F5X RC Drone FPV Racing

Price range: 86.42$ through 181.88$

STM32 F722 MCU with BMI270 gyro and DPS310 barometer
Supports 6 UARTS and smart audio/IRC Tramp VTX protocol
BLHeli32 firmware with max continuous current of 55A
Compact 20x20mm mounting pattern with silicon grommets
DJI HD VTX Connector for plug-and-play setup

Version

ESC F7 mini FC FC+ESC

SKU: RC1916516 Category: Multi Rotor Parts Tags: 20x20mm mounting pattern, BLHeli32 firmware, BLITZ Mini E55 4in1 ESC, drone flight controller, FPV racing drone controller, iFlight BLITZ Mini F7, Nazgul5 Evoque compatible, STM32 F722 MCU Brand: iFlight

Description

20x20mm iFlight BLITZ Mini F7 Flight Controller / BLITZ Mini E55 4in1 ESC BL_32 for Nazgul5 Evoque F5D / F5X RC Drone FPV Racing

The iFlight BLITZ Mini F7 Flight Controller and E55 4in1 ESC are designed for optimal performance in FPV racing drones such as the Nazgul5 Evoque F5D and F5X. The BLITZ Mini F7 features a robust STM32 F722 MCU, BMI270 gyro, and DPS310 barometer, offering precise control and stability. It supports 6 UARTS, smart audio, and IRC Tramp VTX protocol, with convenient LED indicators for visual debugging. The BLITZ Mini E55 ESC supports 2-6S input voltage, with a max continuous current of 55A. It is equipped with BLHeli32 firmware and supports various protocols including DShot. Both components have a compact 20x20mm mounting pattern, ensuring easy integration into your drone setup.

Notice: ESC upgrade into new version like photos showed.
Description:
Brand: iFlight
Model: BLITZ Mini

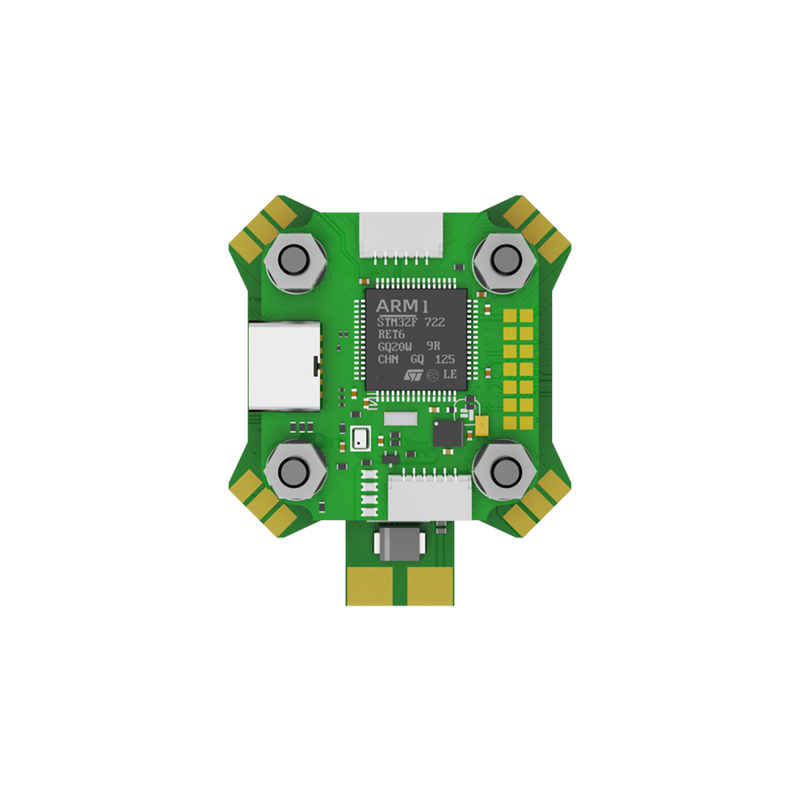

BLITZ Mini F7 Flight Controller
( Diagram Picture)

MCU: STM32 F722
Gyro: BMI270
Barometer: DPS310
OSD Chip: AT7456
Flash: 16MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
I2C serial: SDA / SLA pads
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Firmware target: IFRC-IFLIGHT_BLITZ_F722
Mount pattern: 20×20 mm / 4mm PCB hole diameter, silicon grommets for M3 screws
Dimensions: 30.5×27 mm
Weight: 5g
Wiring suggestion:
– UART 1 for VTX HD / Analog
– UART 2 for a Receiver
– UART 3/4/5 for GPS or other sensors that require a serial port
– UART 6 for ESC Telemetry
Top Features:
– Improved circuit design, better components and lower electrical noise!
– DJI HD VTX Connector (Plug-and-Play / No soldering required)
– FC indicator LEDs for visual debugging

New BLITZ MINI E55 4IN1 55A 2-6S ESC
( Diagram Picture)

Input Voltage: 2-6S
Max. Continuous Current: 55A
Max. Burst Current: 60A
MCU: G071
BEC: No
Firmware: BLHeli32
Current Sensor: Yes
Telemetry: Supported
Target: IFLIGHT_BLITZ_G071_01 32.9
Mounting Dimensions: 20 x20 mm/朴4mm
Dimensions: 35x42mm
Weight: 11.3g
Protocol: Supports DShot DShot150/300/600/MultiShot/ OneShot etc

Package Included:
1x BLITZ Mini F7 V1.1 Flight Controller
1 set of FC connectors
1 set silicon grommets
1x BLITZ Mini E55 4IN1 ESC
1 set Power cables & ESC signal wires
1 set silicon grommets
1 set wire harness for F7 FC
