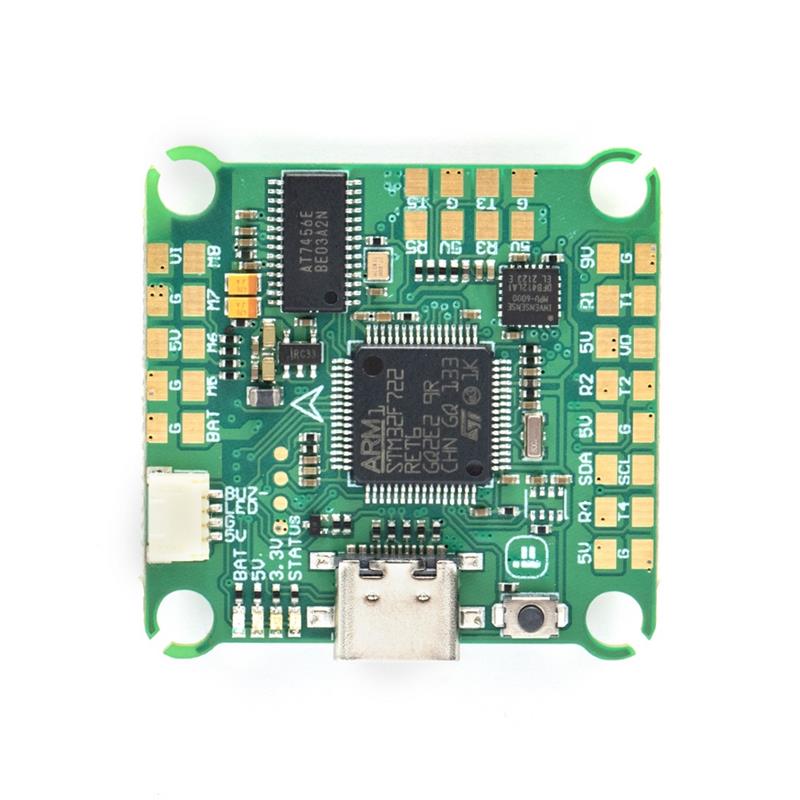

30.5×30.5mm iFlight BLITZ F7 V1.1 OSD Flight Controller 2-6S Bulit-in 5V 9V BEC for Nazgul5 V2 RC Drone FPV Racing

30.5×30.5mm iFlight BLITZ F7 V1.1 OSD Flight Controller 2-6S Bulit-in 5V 9V BEC for Nazgul5 V2 RC Drone FPV Racing

Features:
– Improved circuit design, better components and lower electrical noise!
– DJI HD VTX Connector (Plug-and-Play / No soldering required)
– FC indicator LEDs for visual debugging
– With LC filter
Changelog:
– 2022/Feb: Version updated to V1.1 / Gyro changed to BMI270 due to availability & price issues with MPU6000.
Description:
Brand: iFlight
Model: BLITZ F7 V1.1
MCU: STM32 F722
Gyro: BMI270
Barometer: DPS310
OSD Chip: AT7456E
Flash: 32MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
I2C serial: SDA / SLA pads
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Firmware target: IFRC-IFLIGHT_BLITZ_F722
Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter
Dimensions: 36.5*35 mm
Weight: 7.8g
BEC: 5V 2.5 A/ 9V 2A
Wiring suggestion:
– UART 1 for VTX HD / Analog
– UART 2 for a Receiver
– UART 3/4/5 for GPS or other sensors that require a serial port
– UART 6 for ESC Telemetry
Tips
1. F722 MCU has an inner inverter.
2. SBUS??CRSF??ELRS??IBUS??DSM ETC… can be connected to any unused UART_RX??we suggest you connect to Uart_RX2
3. Frsky SmartPort??Tramp & Smartaudio can be connected to any unused UART_TX??we suggest you connect to Uart_TX1
4. F.port can be connected to any unused UART_TX??we suggest you connect to Uart_TX2
Included Connectors (Plug-and-Play wire harness):
– 1x SH1.0 – 5pin connector for HD VTX/Analog VTX&CAM (R1/T1/G/9V/VO)
– 1x SH1.0 – 10pin connector for ESC (R6/CUR/M4/M3/M2/M1/BAT/BAT/G/G)
– 1x SH1.0 – 6pin connector for any receiver or DJIV3/R2i/5V/G/R2/T2/p>- 1x SH1.0 – 4Pin connector GPS (T4/R4/G/5V)
– 1x SH1.0 – 4Pin connector LED & Beeper (5V/G/VI/NC)
Package Included:
1 x BLITZ F7 V1.1 Flight Controller
1 set of FC connectors (as above)
1 set silicon grommets

Additional information
