Description

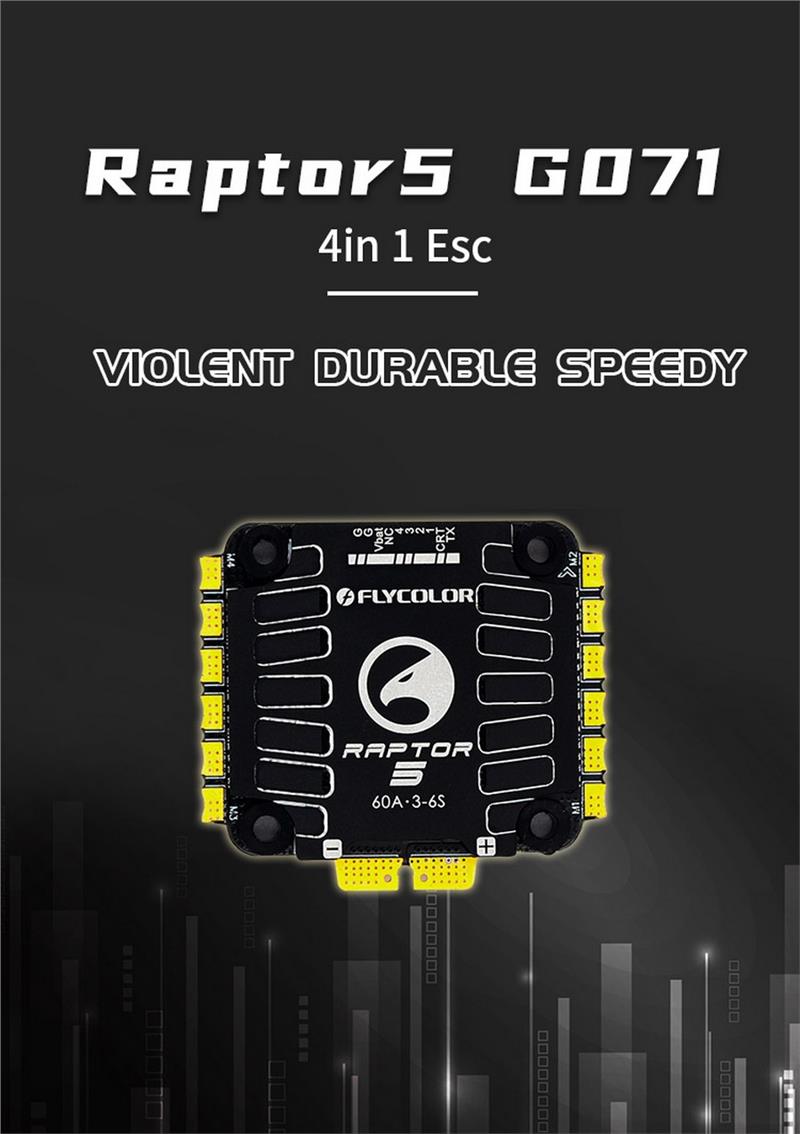

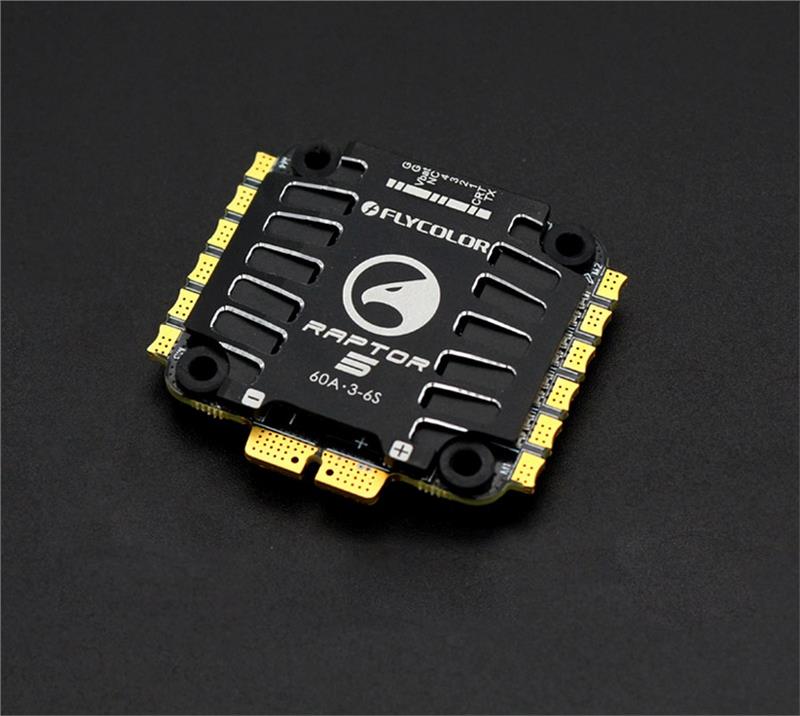

30.5×30.5mm Flycolor Raptor5 G071 60A BLHeli_32 3-6S 4in1 Brushless ESC for 170-450mm Multi-Rotor Drone
Specification:
Brand: Flycolor
Model: Raptor5 G071
Item Name: 30.5×30.5mm 60A 4in1 ESC
Input Voltage: 3-6S
Con. Current: 60A
Burst Current: 70A (10S)
BEC: NO
Configurator: BLHeliSuite32
FirmWare: Flycolor_Raptor_5
Weight: 19.6g ( with Heat Sink)
Mounting Hole: 30.5c30.5mm, M3
Size: 45x41x8.3mm
Application: 170-450mm Muti-Rotor
Features:

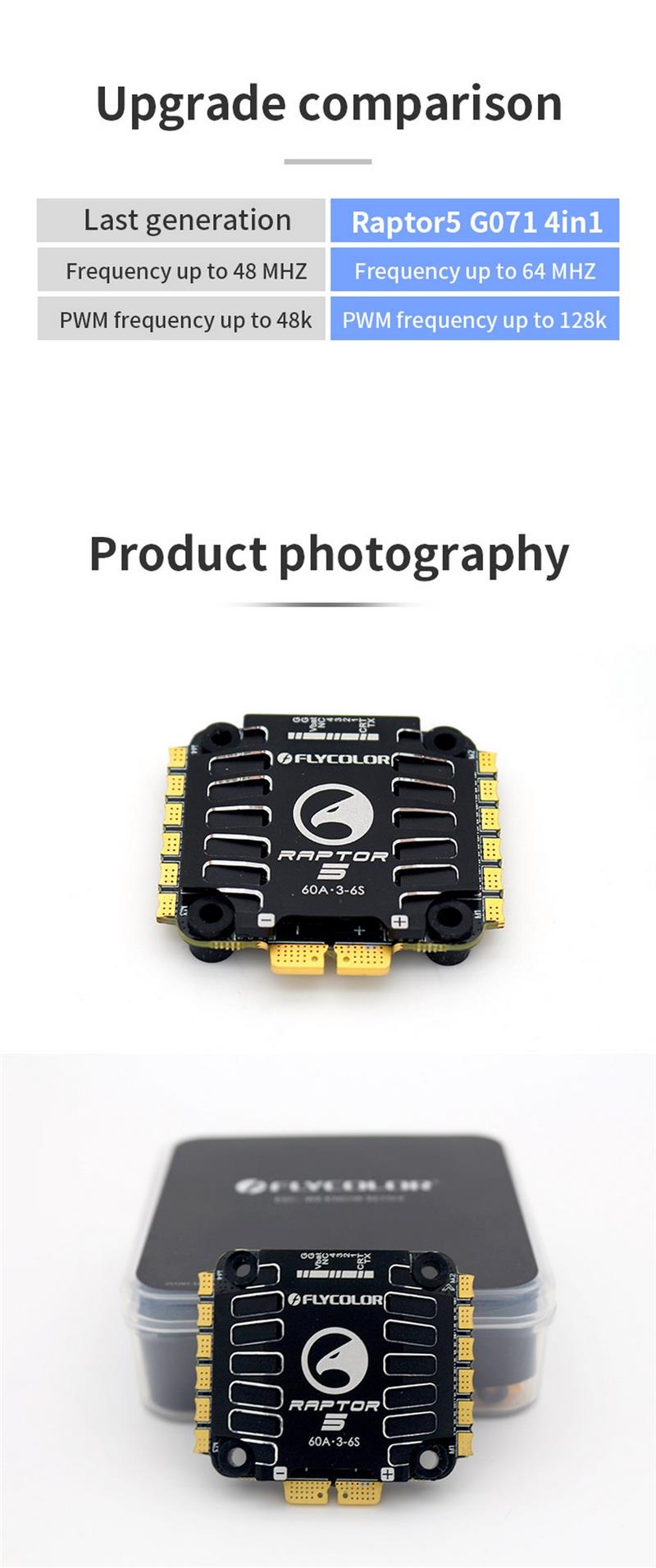

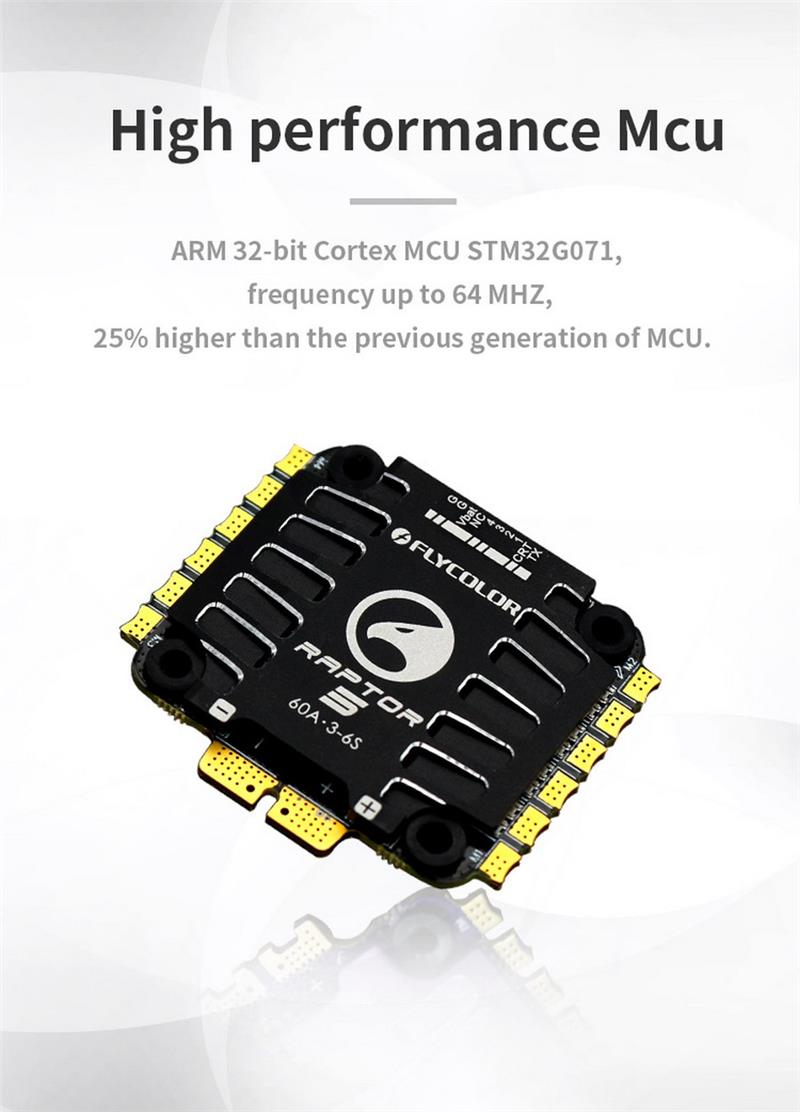

nbsp;ARM 32-bit Cortex MCU STM32G071, frequency up to 64 MHZ, 25%
higher than the previous generation of MCU.
nbsp;PWM frequency up to 128k, high frequency for higher throttle makes
running smoother.
nbsp;Compared with the previous generation of ESC, the ESC firmware is
optimized, makes the throttle linearity smoother and the response faster.
nbsp;Compared with the previous generation of ESC, it has better routing
and component layout.
nbsp;4in1 ESC built-in current sensor and VBAT output.

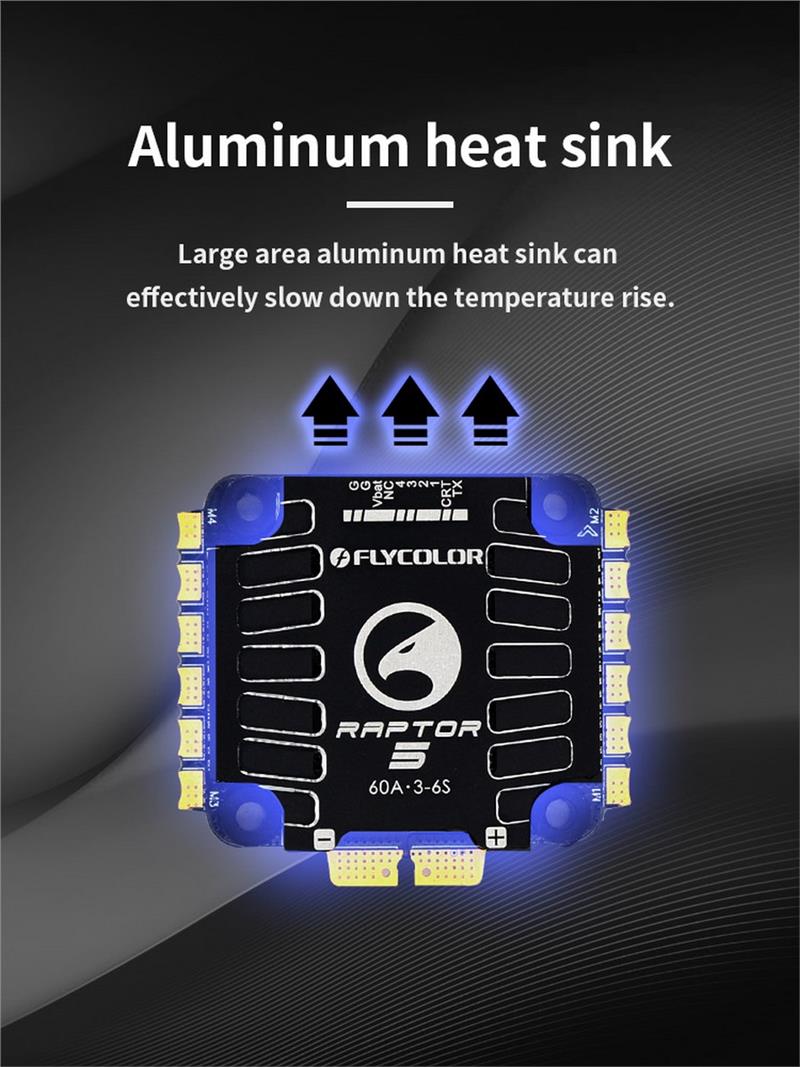

nbsp;Large are Aaluminum heat sink can effectively slow down the
temperature rise.

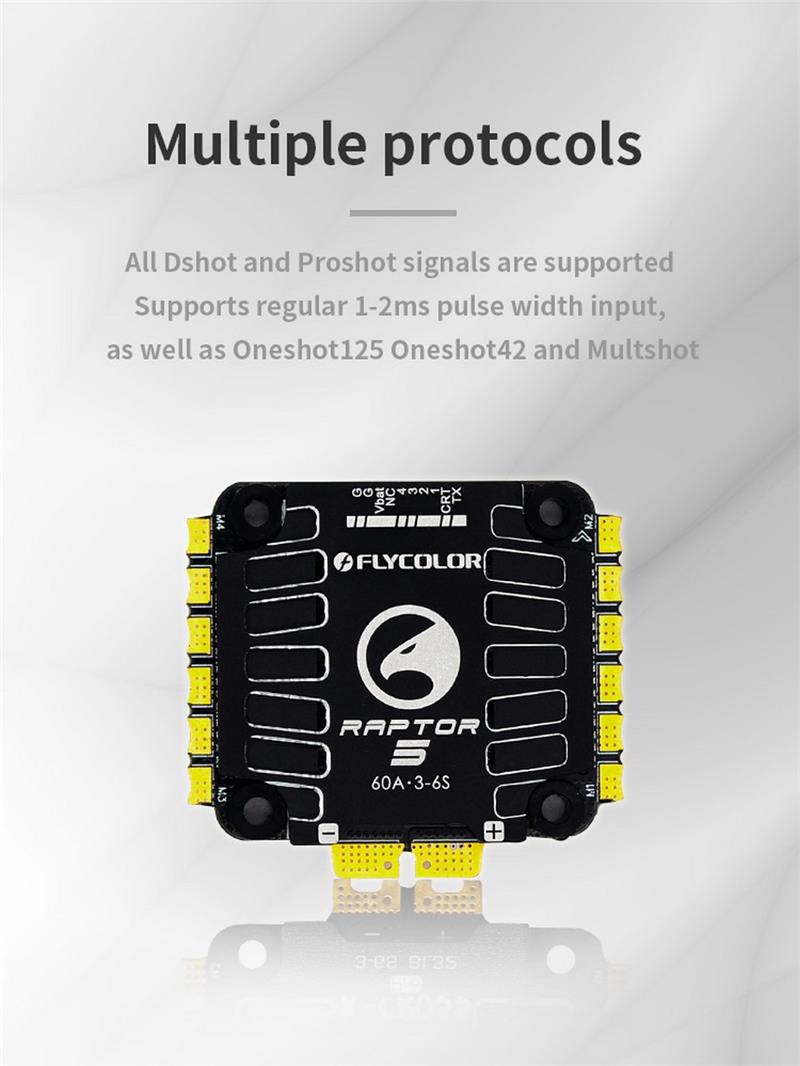

nbsp;Supports regular 1-2ms pulse width input, as well as Oneshot125
(125-250us), Oneshot42 (41.7-83.3us) and Multshot (5- 25us). The
input signal is automatically detected by the ESC upon power up.
nbsp;All Dshot and Proshot signals are supported .

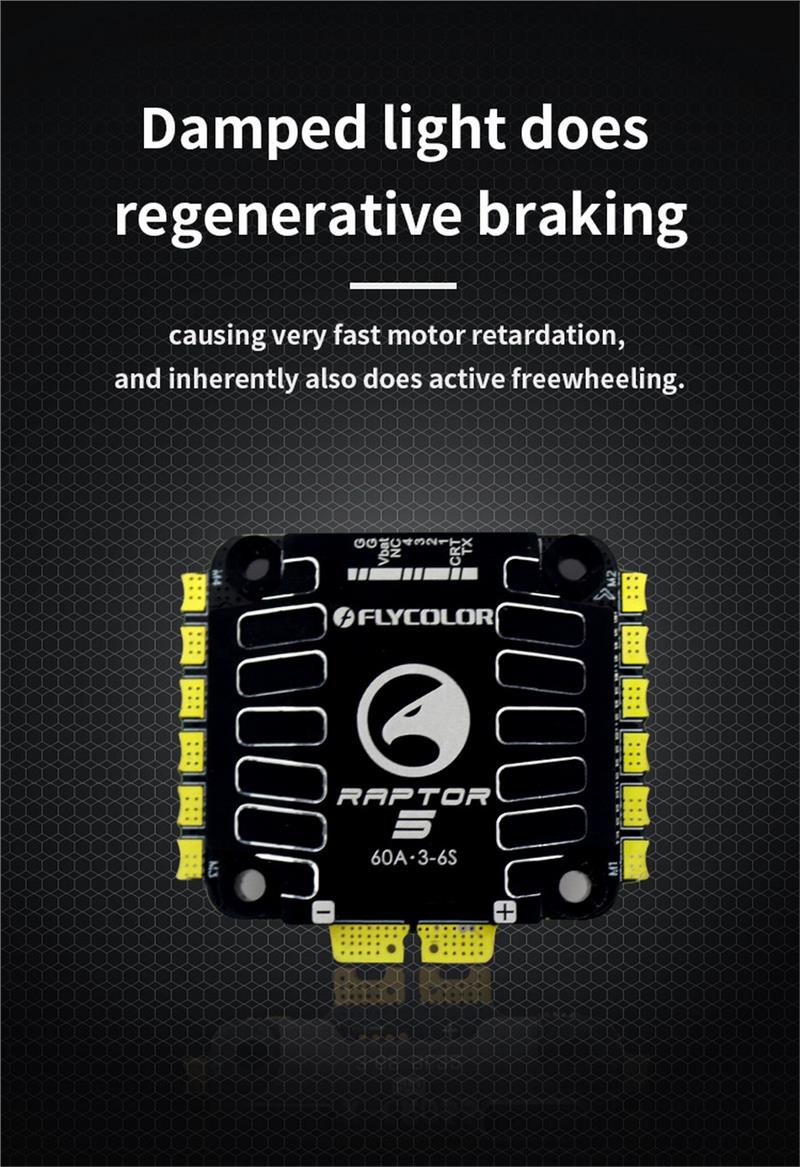

nbsp;Damped light does regenerative braking, causing very fast motor
retardation, and inherently also does active freewheeling.
nbsp;Supports higher power load, more suitable for violent flight of racing
drone.
Package Included:
1x 60A 4in1 ESC

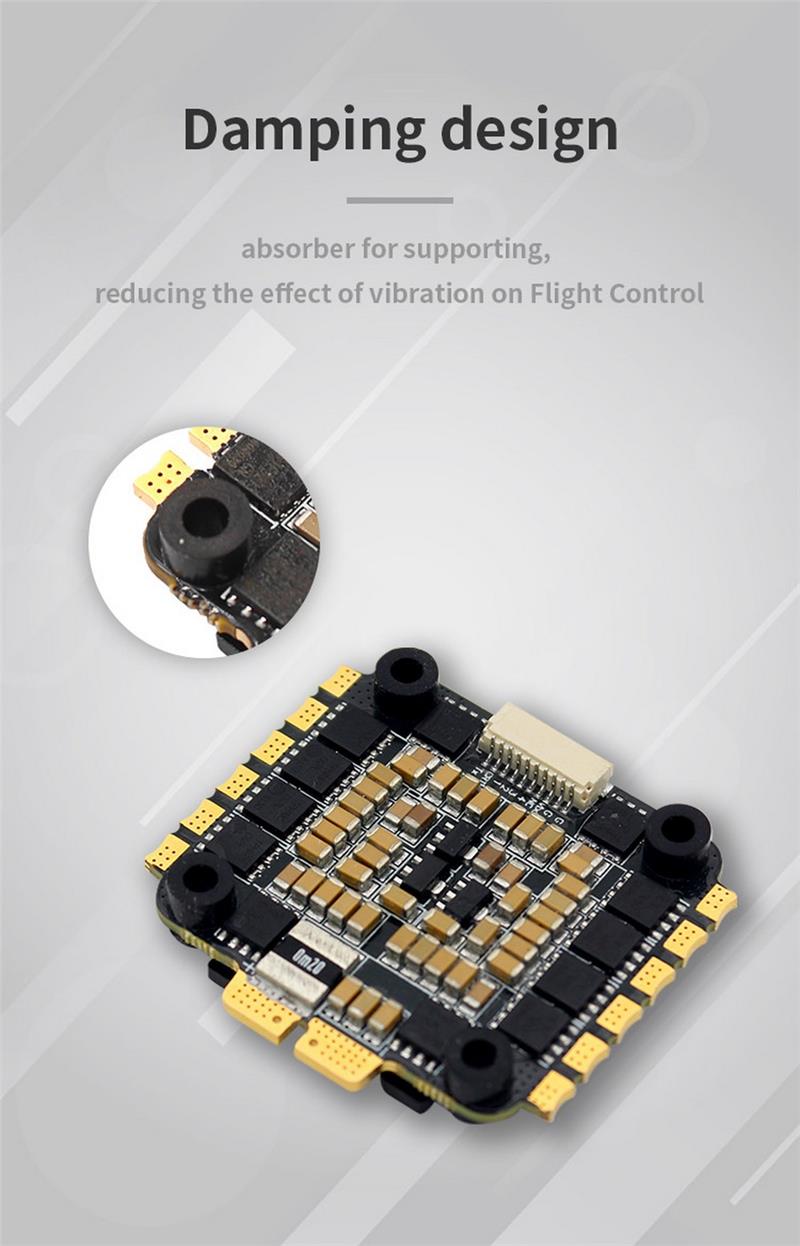

4x Silicone Vibration Absorber
5x O-Ring
1x XT60 Power Cable
1x Capacitor
1x Heat Sink
