30*30mm RUSHFPV BLADE 50A SPORT F4 MAX 128K 4in1 3-6S ESC / F7 OSD Flight Controller Stack for Analog Digital HD FPV Racing RC Drone
Description:
Brand: RUSHFPV
Optional Version: ESC / Stack for Analog / Stack for DJI System
ESC Version: Only BLADE 50A SPORT F4 ESC
Stack for Analog Version: BLADE 50A SPORT F4 ESC + F722 FLIGHT CONTROLLER V2
Stack for for DJI Version: BLADE 50A SPORT F4 ESC + F722 FLIGHT CONTROLLER V2

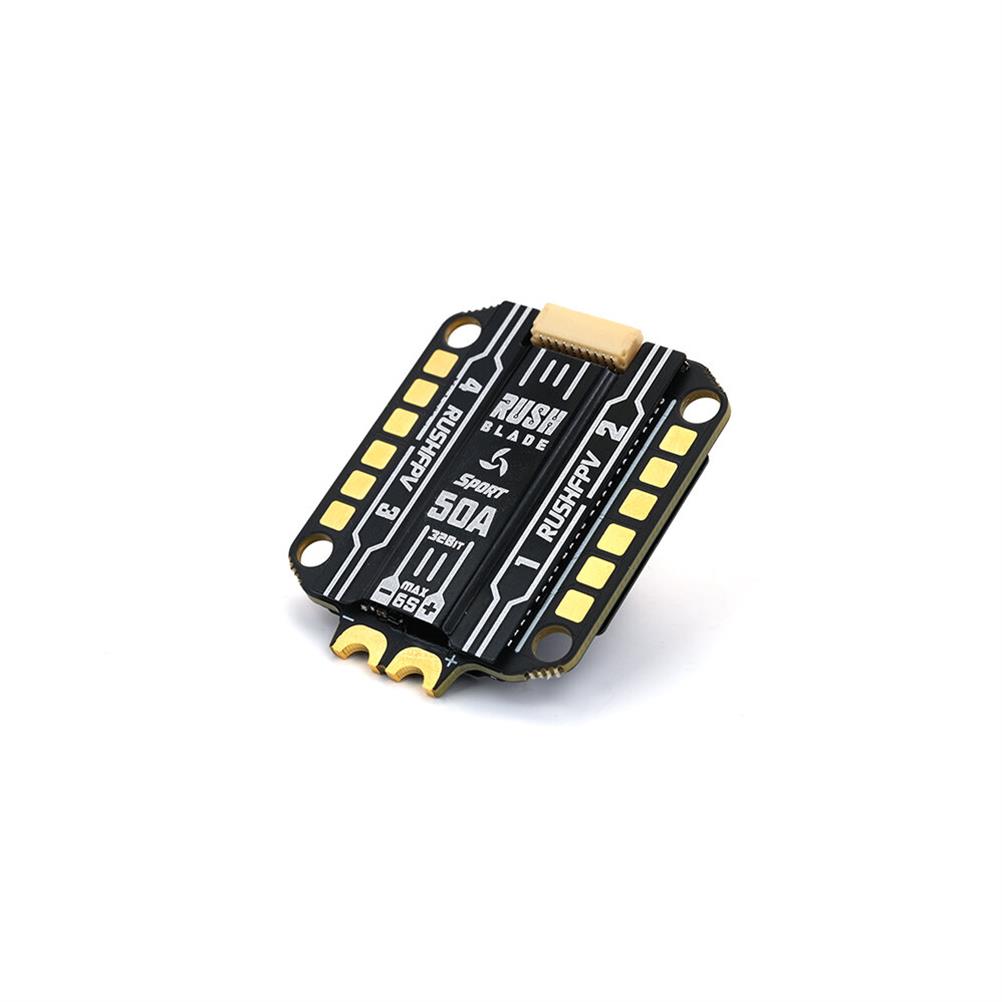

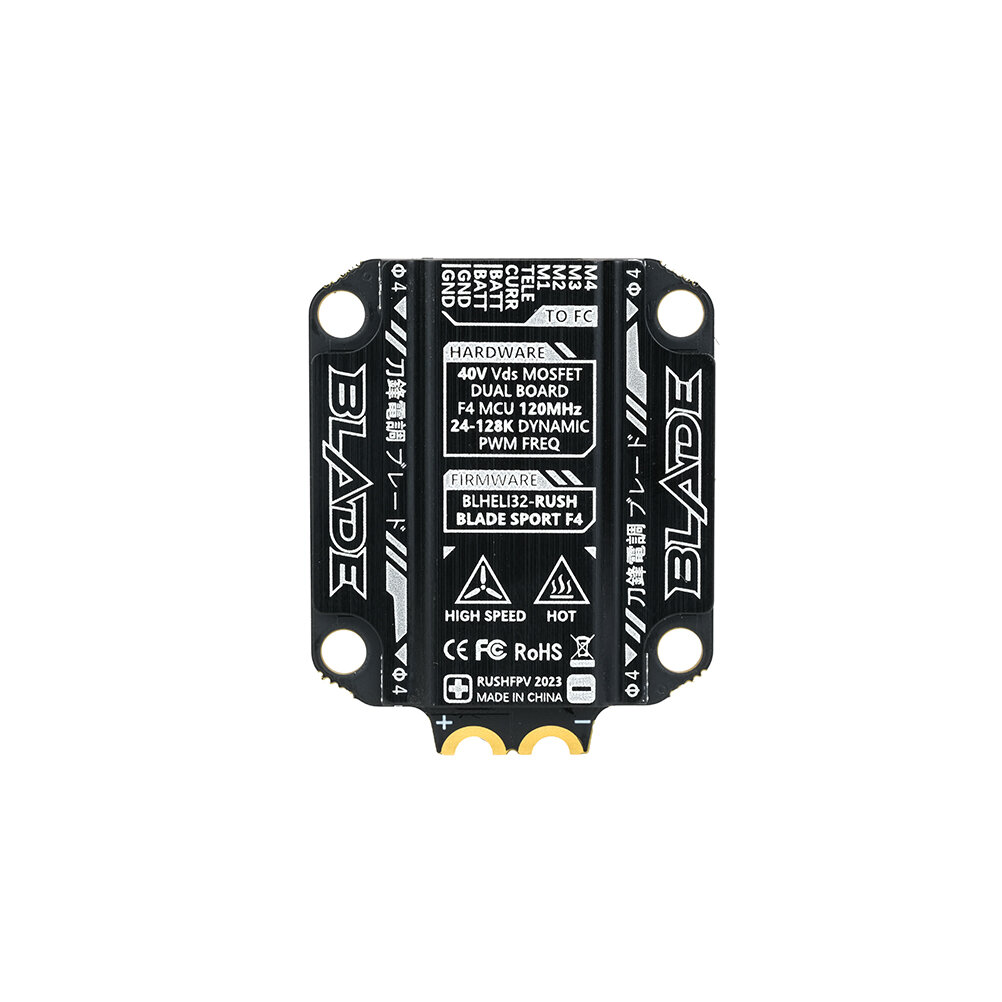

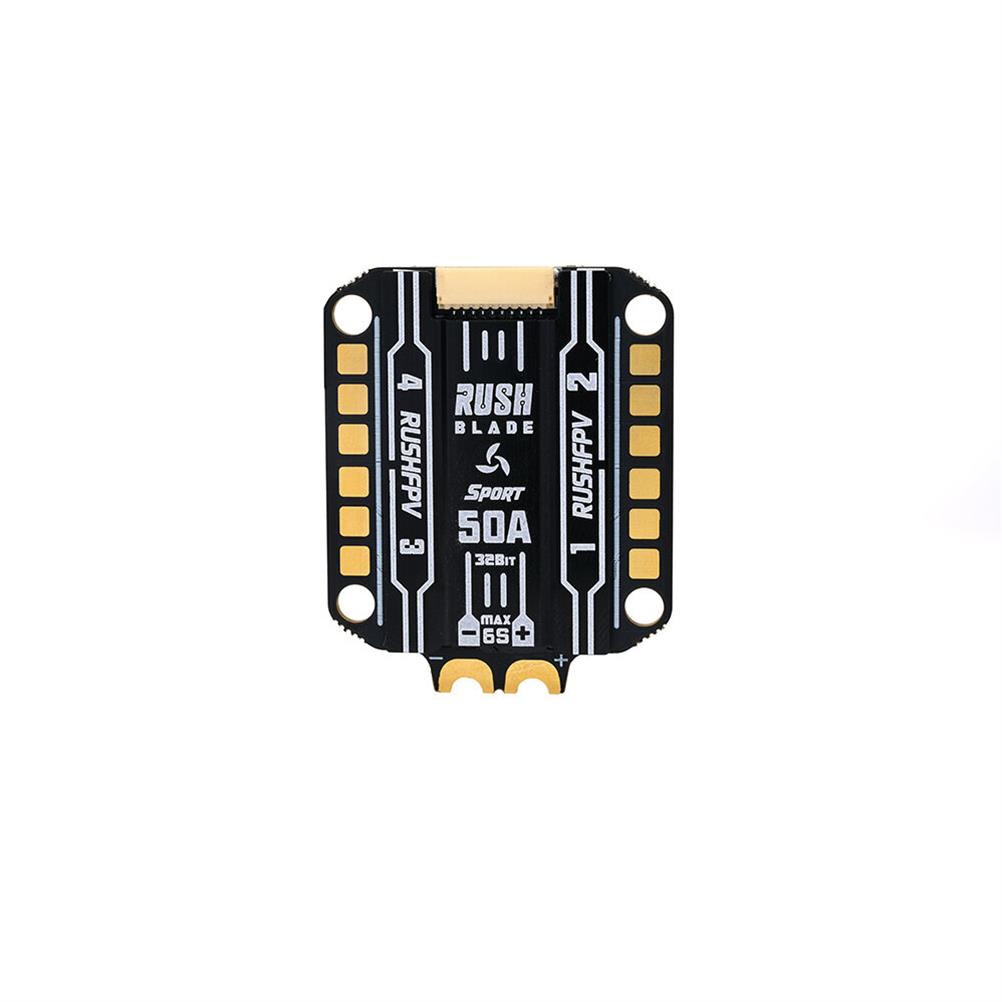

| BLADE 50A SPORT F4 ESC | Current: 50A Max. Voltage: 40V Input Voltage: 3-6S Lipo PWM FREQ: 24-128K LED Color: Blue Weight: 16.2g Size: 45×36.5×7.5mm Mounting Hole Distance: 30x30mm BL32 FW: RUSH_BLADE_SPORT_F4 |
| F722 FLIGHT CONTROLLER V2 ( for Analog Version) (USER Manual) |
Model: Blade F722 (for Analog) MCU: STM32F722RET6 GYRO: ICM42688P Input Votage: 3-6S Lipo (7-36V)/p>BEC Ooutput: 5V 3A OSD: AT7456E CVBS OSD Blackbox:16MB FLASH Target: RUSH_BLADE_F7 PORT: 8??PWM 5??UART 1??I2C ADC: V-BATT / CURR-ESC LED: WS2812 LED STRIP BARO: BMP280 Mounting Hole: 30.5×30.5mm Size: 36.5x37x5.2mm Weight: 11g(without cable) |
| F722 FLIGHT CONTROLLER V2 ( for DJI System Version) (USER Manual) |
MCU: STM32F722RET6 GYRO: ICM42688P BARO: BMP280 BLACKBOX: 16MB FLASH Input Votage: 3-6S LIPO (7-36V) BEC OUTPUT: 5V 3A; 10V 3A PORT: 8??PWM 5??UART 1??I2C ADC: V-BATT / CURR-ESC LED: WS2812 LED STRIP SIZE: 36.5x37x5.2mm Mounting Hole: 30.5×30.5mm Target: RUSH_BLADE_F7_HD WEIGHT 11g(without cable) |
Click to Check Wiring Diagram
Package Included:
| ESC Verion | 1x BLADE 50A SPORT F4 ESC |
| Stack for Analog Version | 1x BLADE 50A SPORT F4 ESC 1x F722 FLIGHT CONTROLLER V2 ( for Analog Version) |
| Stack for for DJI Version | 1x BLADE 50A SPORT F4 ESC 1x F722 FLIGHT CONTROLLER V2 ( for Digital Version) |
Additional information
| Weight | 0.05 kg |
|---|---|
| Version: No selection | ESC, Stack for Analog, Stack for DJI System |
